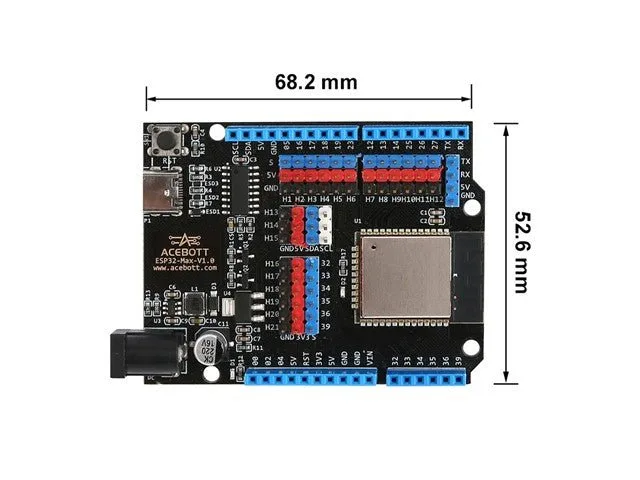

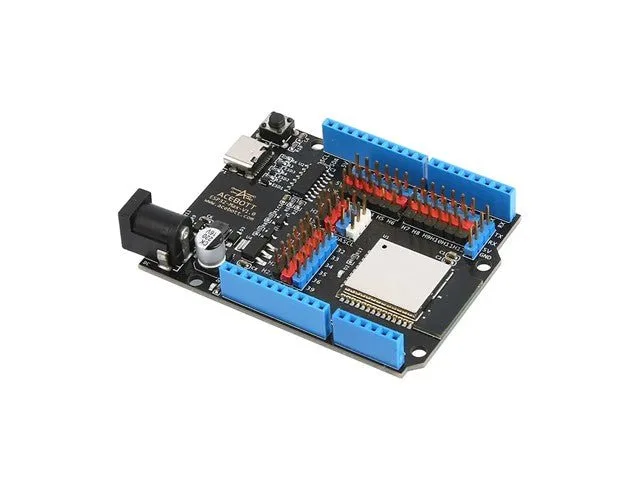

ACEBOTT ESP32 Max V1.0 Development Board with Type-C Cable
We haven’t published a price for this one yet — ask and we’ll quote you, usually same day.
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
The ACEBOTT ESP32 Max V1.0 is a versatile Wi-Fi and Bluetooth development board designed for robotics, smart home, and Internet of Things projects. Powered by an ESP32 module running at 240MHz and supported by FreeRTOS, it provides high-speed processing and wide platform compatibility for makers, students, and educators.
Wireless connectivity and processing
Featuring an onboard ESP32 module with 448KB RAM and 4MB flash memory, this board provides reliable 240MHz dual-core processing. Integrated Wi-Fi and Bluetooth Low Energy enable straightforward wireless networking for IoT applications.
Extensive peripheral interfaces
The board features a built-in Hall sensor and supports multiple communication protocols including UART, I2C, SPI, CAN, I2S, and high-speed SDIO. Its comprehensive pinout provides 25 digital pins, 15 analog pins, 25 PWM outputs, and 2 DAC outputs.
Flexible power and development support
With an input voltage range of 6V to 18V and easy wiring access, the board integrates smoothly into larger robotic builds. It is compatible with Arduino and supports multiple development platforms.
What is included
The package includes one ACEBOTT ESP32 Max V1.0 development board and one 1-metre Type-C USB cable.
Specifications
| Connectivity | WI-FI| LE |
| Clock | 240MHz |
| Ram | 448KB |
| FLASH | 4MB |
| Interfaces | UART | I2C | SPI | CAN |
| Input Voltages | 6-18V |
| Pinout | 25(DIGITAL) | 15(ANALOG)| 25(PWM) | 2(DAC) | 2(UART) | 2(SPI) | 1 (I2C) |
| Device | Development Board |
