Description

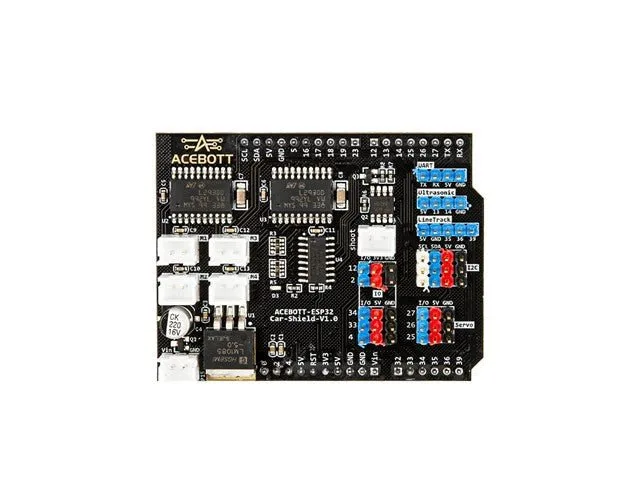

The ACEBOTT ESP32 Car Shield V1.0 is an expansion board designed specifically for the ESP32-Max-V3.0 controller to simplify building smart cars. It adds dedicated motor drive capabilities and standardized connection headers to speed up hardware prototyping. This shield is an ideal choice for robotics students, educators, and makers developing autonomous wheeled projects.
Dedicated motor and servo drive
The shield features five DC motor interfaces and three servo connections, allowing you to power and drive a wide variety of robotic car mechanisms with ease.
Standardised sensor and module interfaces
It includes dedicated ports for an ultrasonic sensor, a three-way line-tracking sensor, three I2C connections, and a serial communication port.
General-purpose IO expansion
Breakouts for three 3-pin digital pins and two 3-pin analogue pins make it simple to integrate additional sensors and custom electronic components.
Power management
The board is equipped with a dedicated power interface that supports a maximum input voltage of up to 15V and delivers up to 3A output current.
Specifications
| Device | Driver Shield |
| Compatibility | ESP32-Max-V3.0 (two-row pin interface) |
| DC motor interfaces | 5 |
| Servo interfaces | 3 |
| Digital pins | 3 (3-pin) |
| Analogue pins | 2 (3-pin) |
| I2C pins | 3 |
| Serial ports | 1 |
| Sensor interfaces | Ultrasonic interface, 3-way trace sensor interface |
| Power input | Maximum 15V |
| Output current | Maximum 3A |
| Operating temperature | 0 to 70 °C |

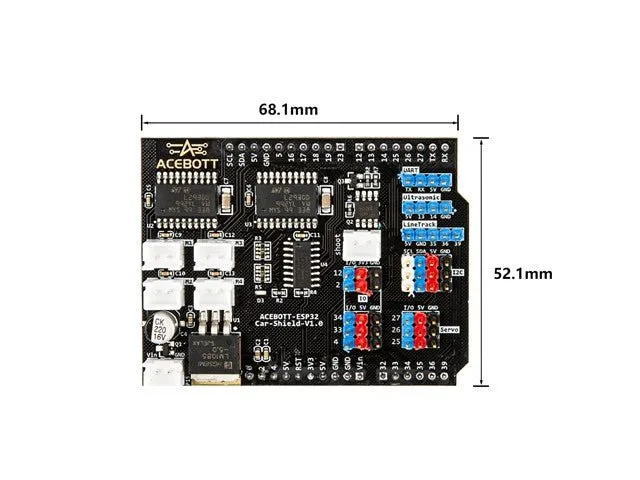

| Dimensions | 68.1 mm x 52.1 mm |
| Weight | 22 g |
