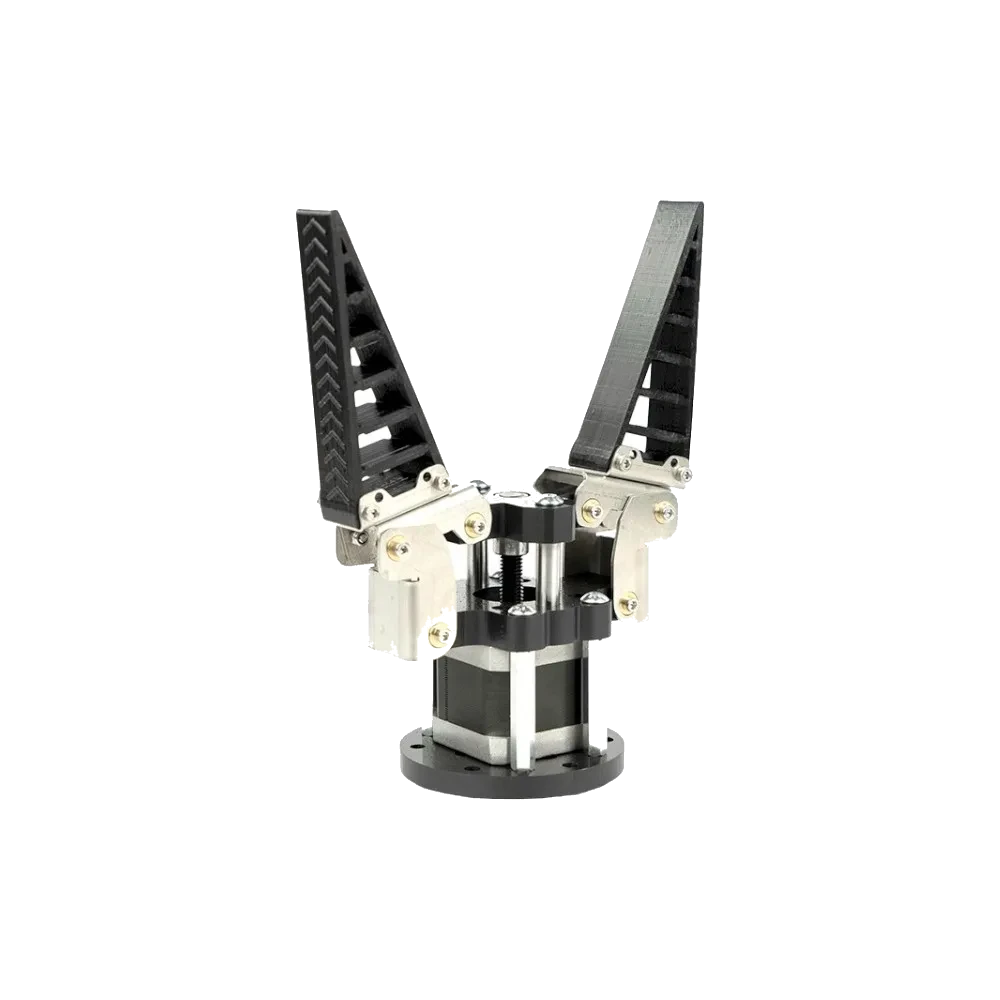

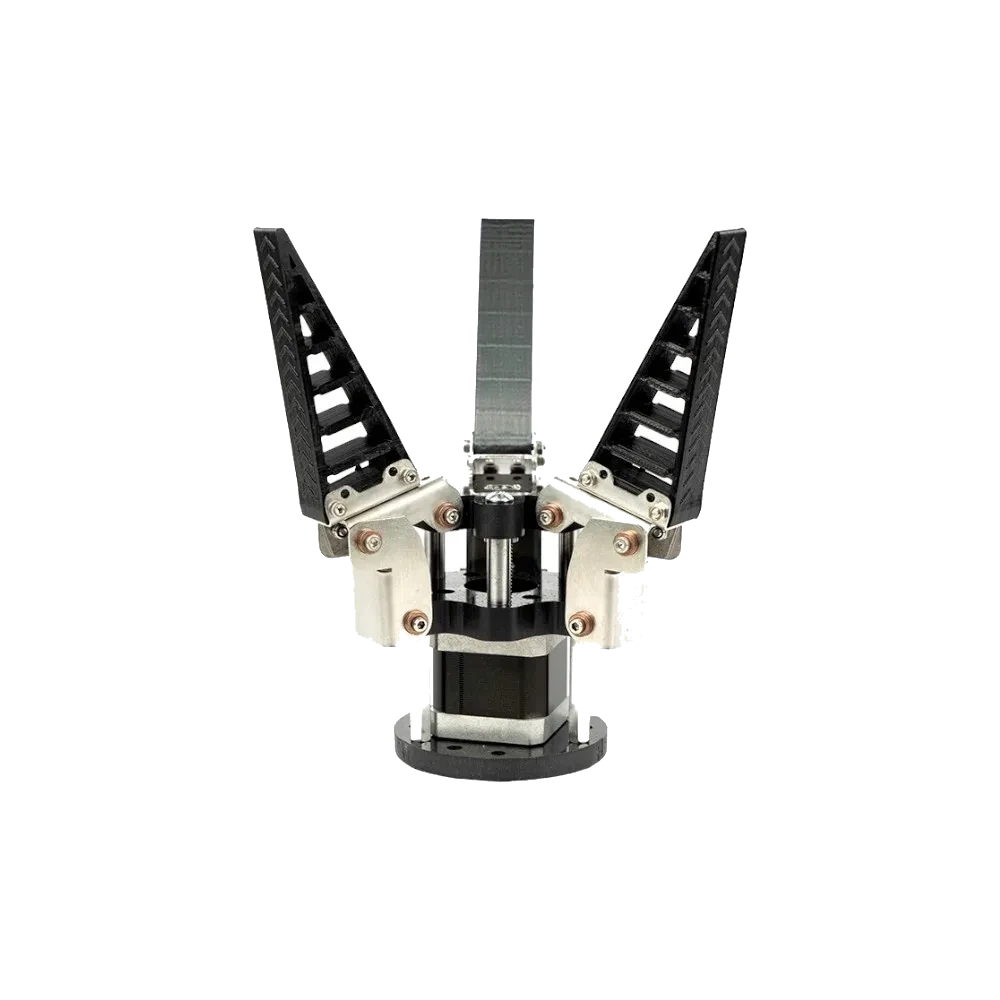

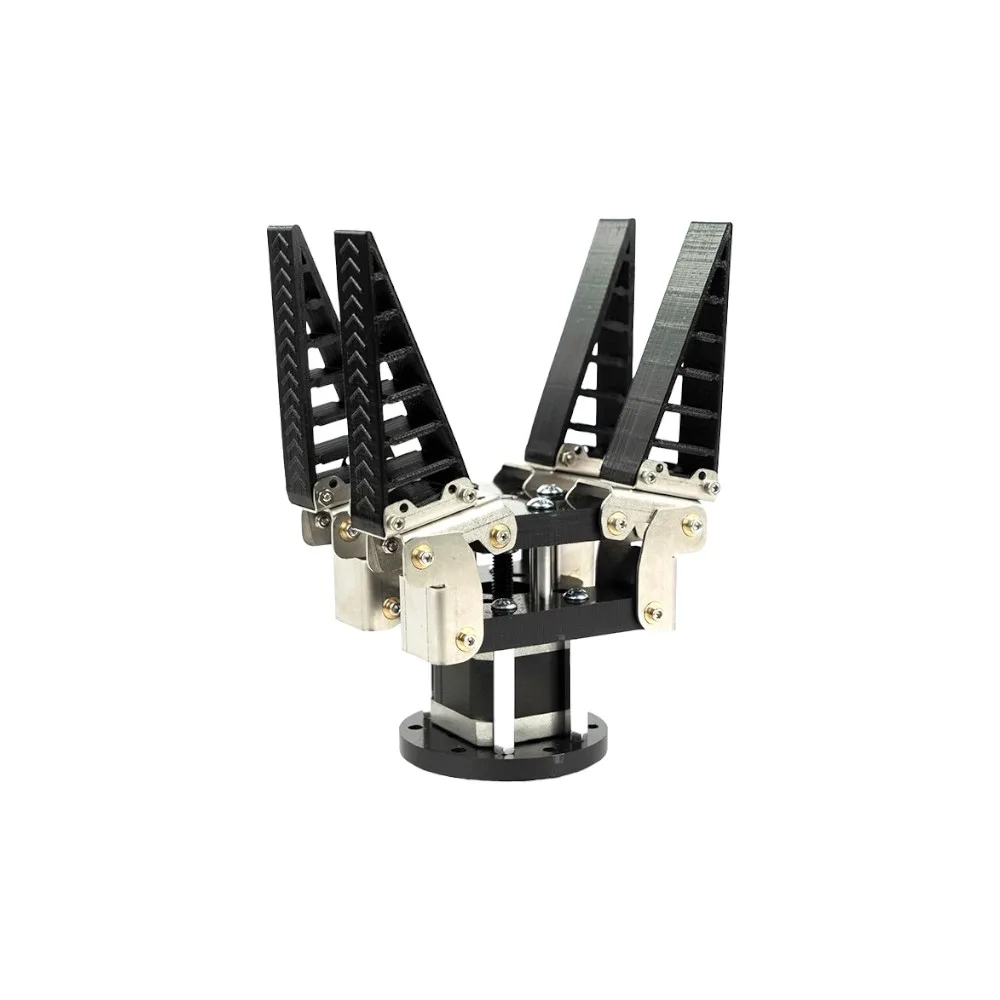

Advanced Fin Ray Effect Robotic Gripper with Two, Three or Four Fingers Options Including Power and Motor — Three Fingers

All kits including:

• Fin Ray Effect Gripper
• IR Remote
• Stepper Motor
• Motor Controller
• 24V Power Supply
• Screws

Highlights:

• Utilizes the bio-inspired fin ray effect for adaptive gripping
• Available in 2-finger, 3-finger, and 4-finger configurations
• Bright teal-colored fingers for high visibility
• Precision-engineered metal and plastic components
• Adjustable finger spacing for various object sizes
• Compact and lightweight design
• Electric and pneumatic versions available

Specifications:

• 2-finger version: 89-150mm adjustable spacing, grip weight <1.5kg
• 3-finger version: 96-161mm adjustable spacing, grip weight <3.0kg
• 4-finger version: 89-150mm adjustable spacing, grip weight <3.6kg
• Finger height: 186mm (2-finger), 185mm (3-finger), 195mm (4-finger)
• Base plate dimensions: 130mm x 76mm
• Mounting: 4 x 8mm holes, spaced 60mm x 46mm
• Weight: Approximately 550g (varies by model)
• Input Voltage: 12~24V
• Grip Frequency: <40
• Material: Metal frame with durable plastic fingers

Usage:

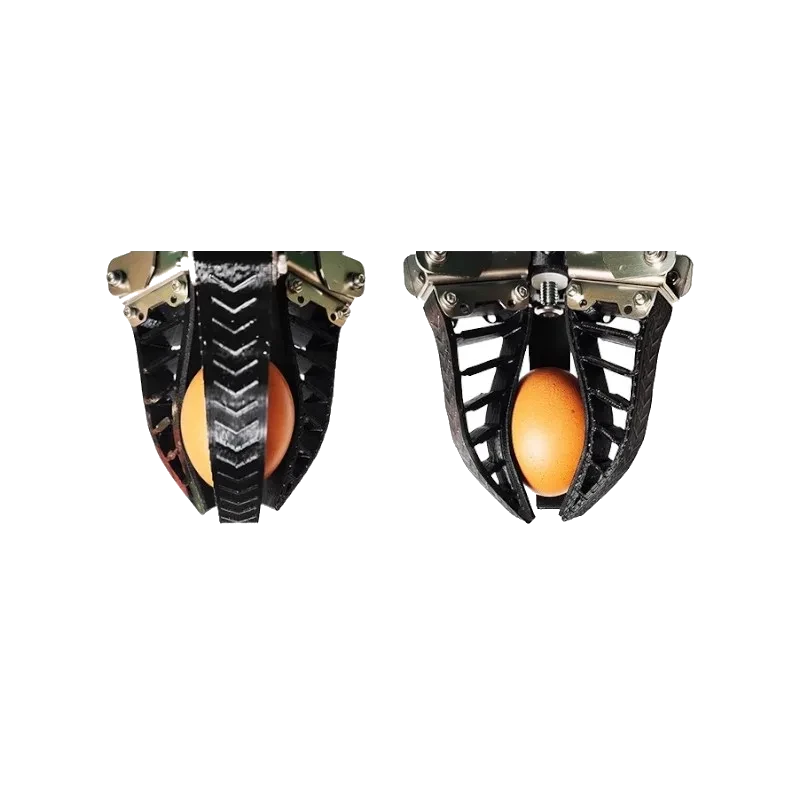

Ideal for delicate object handling in your robotics projects, automated assembly lines, and research applications. The fin ray effect allows the gripper to conform to object shapes, providing secure and gentle gripping of various sizes and geometries. The 4-finger configuration offers enhanced stability for larger or irregularly shaped objects. Easy integration with standard robotic arms and controllers.
