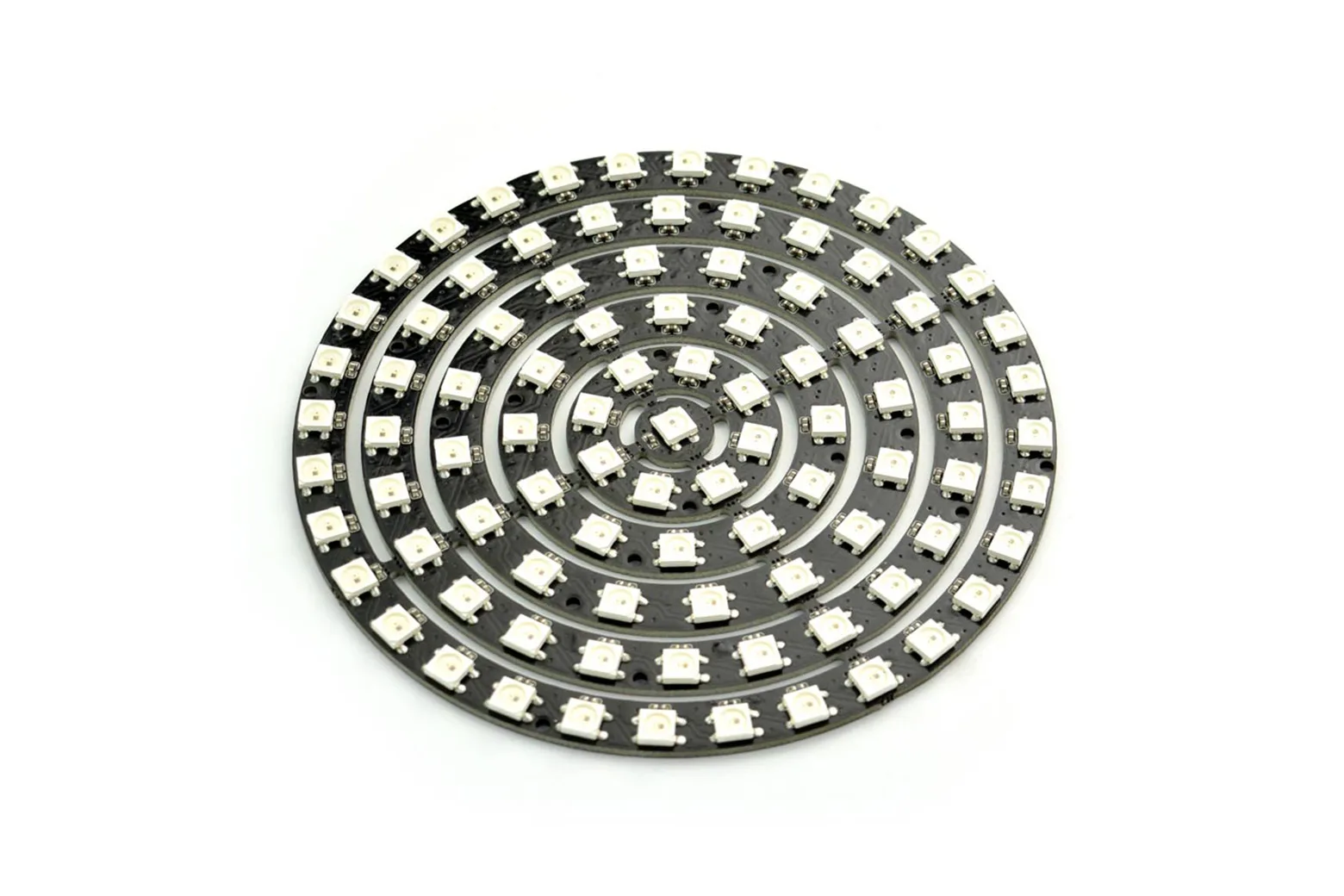

93 LEDs WS2812B RGB 6 Ring Lamp

The 93 LEDs WS2812B RGB 6 Ring Lamp is a versatile lighting module composed of six concentric rings that can be driven together or separately. It is ideal for makers, students, and robotics enthusiasts creating custom illumination, wearable electronics, or interactive displays. With support for standard 5V logic, it integrates smoothly into microcontroller projects.

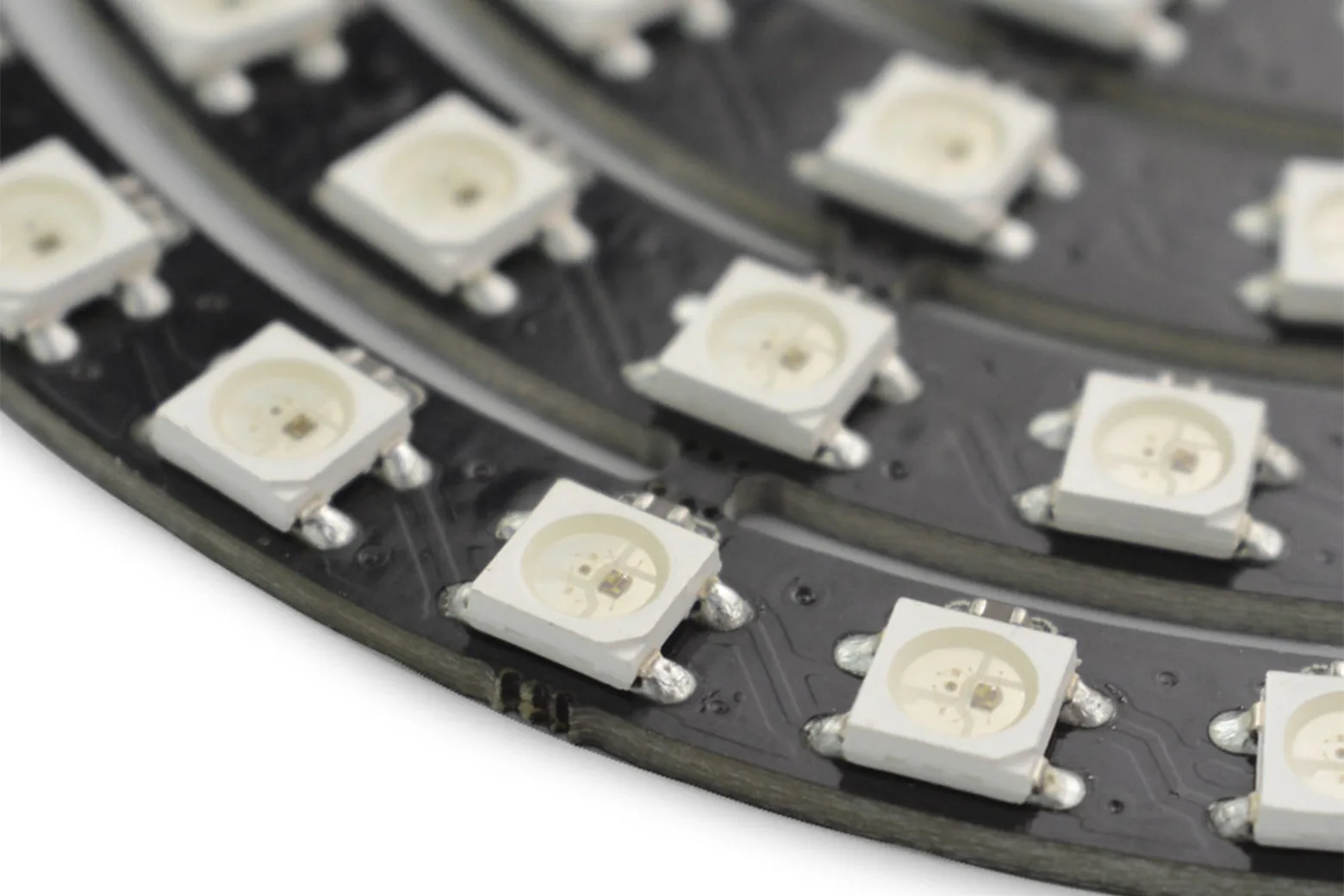

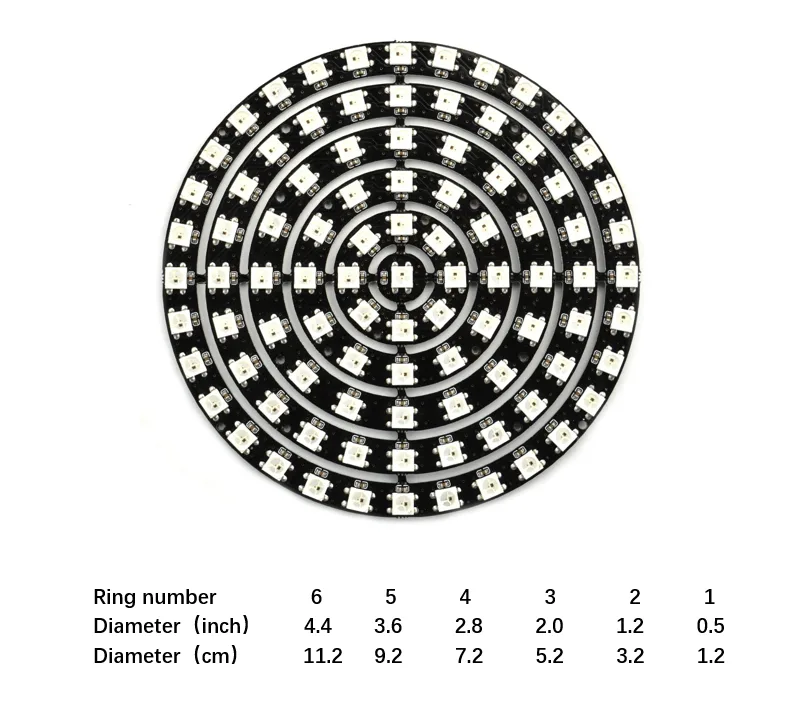

Full-colour addressable RGB LEDs

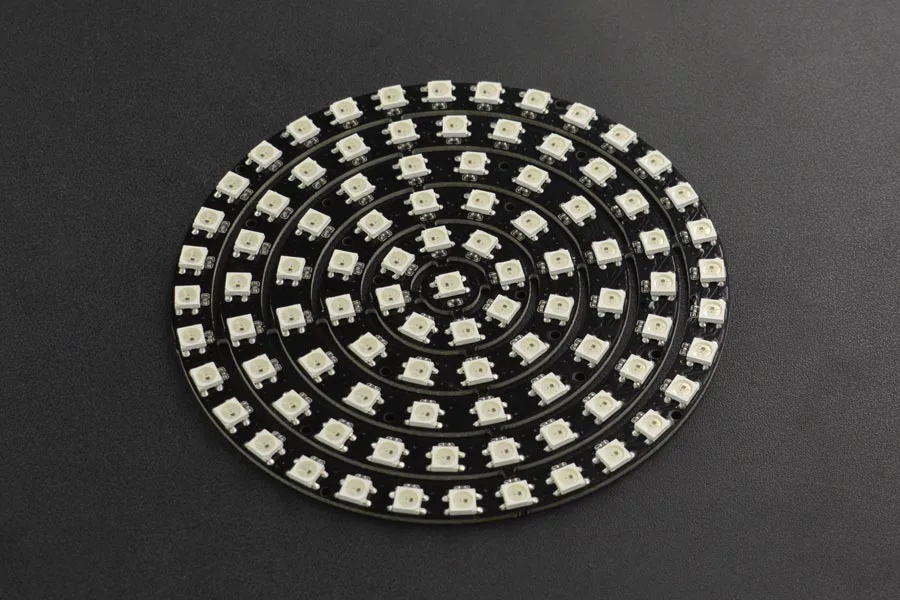

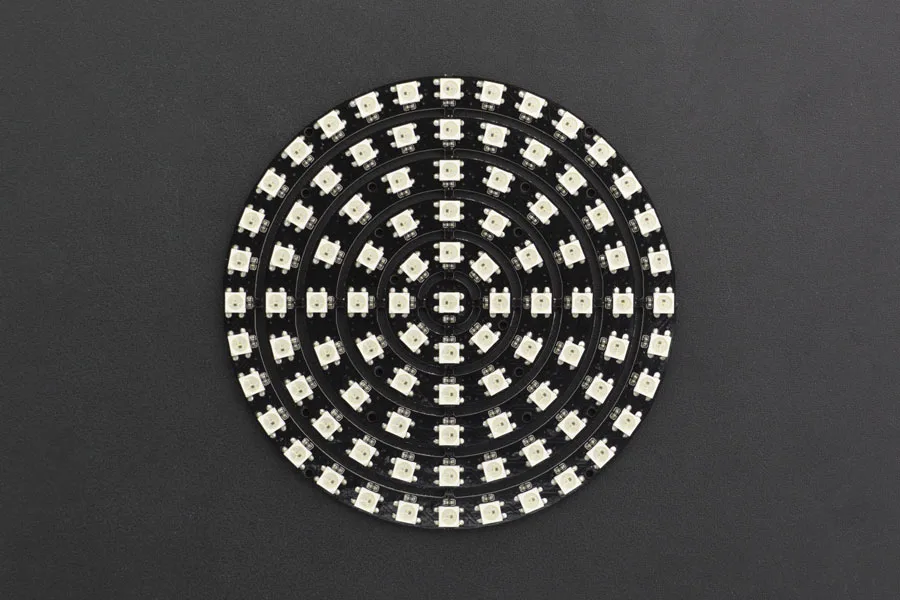

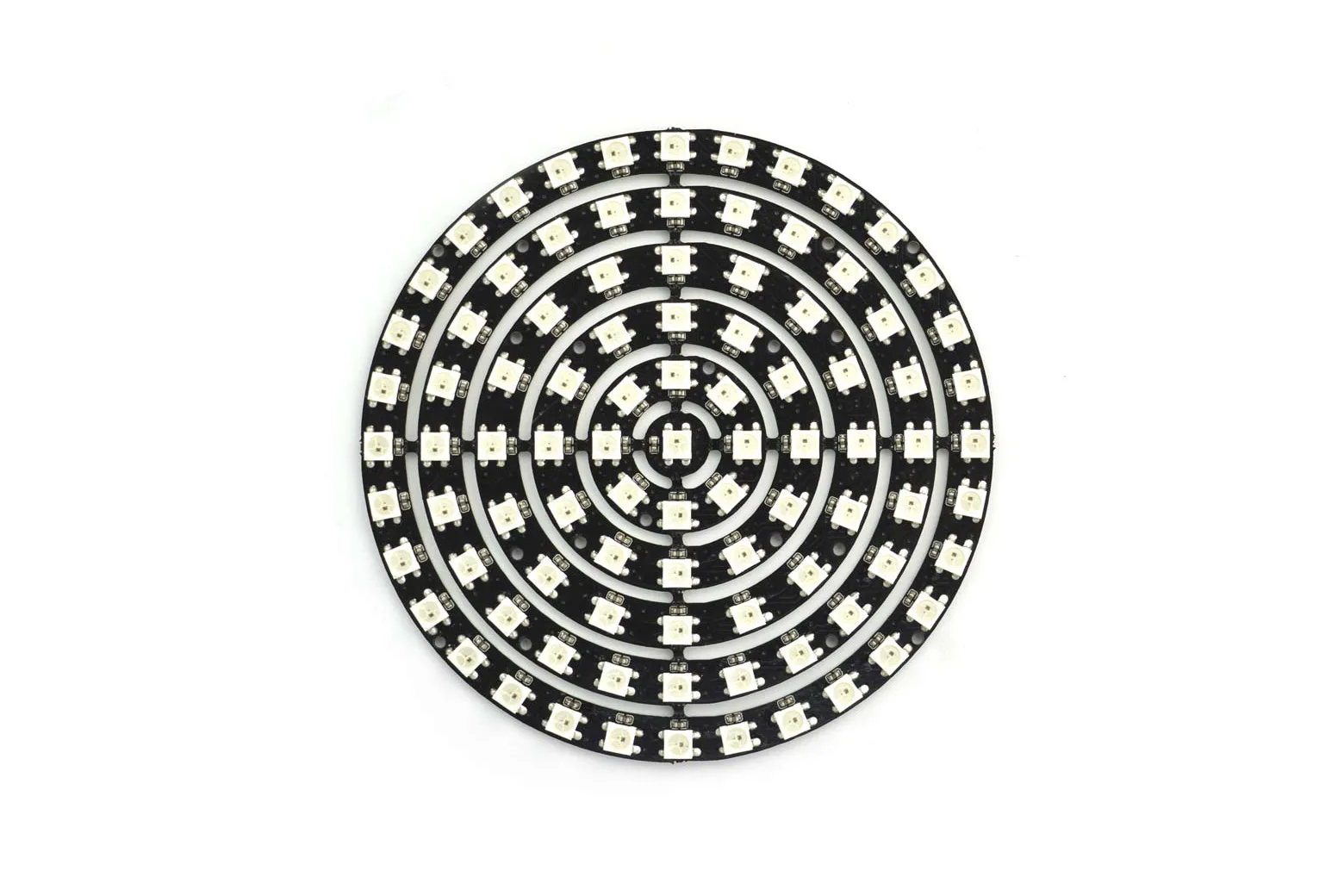

The panel features 93 individually addressable WS2812B LEDs across six concentric rings, delivering 256 brightness levels and 16,777,216 display colours. It runs at a scanning frequency of at least 400Hz for responsive visual output.

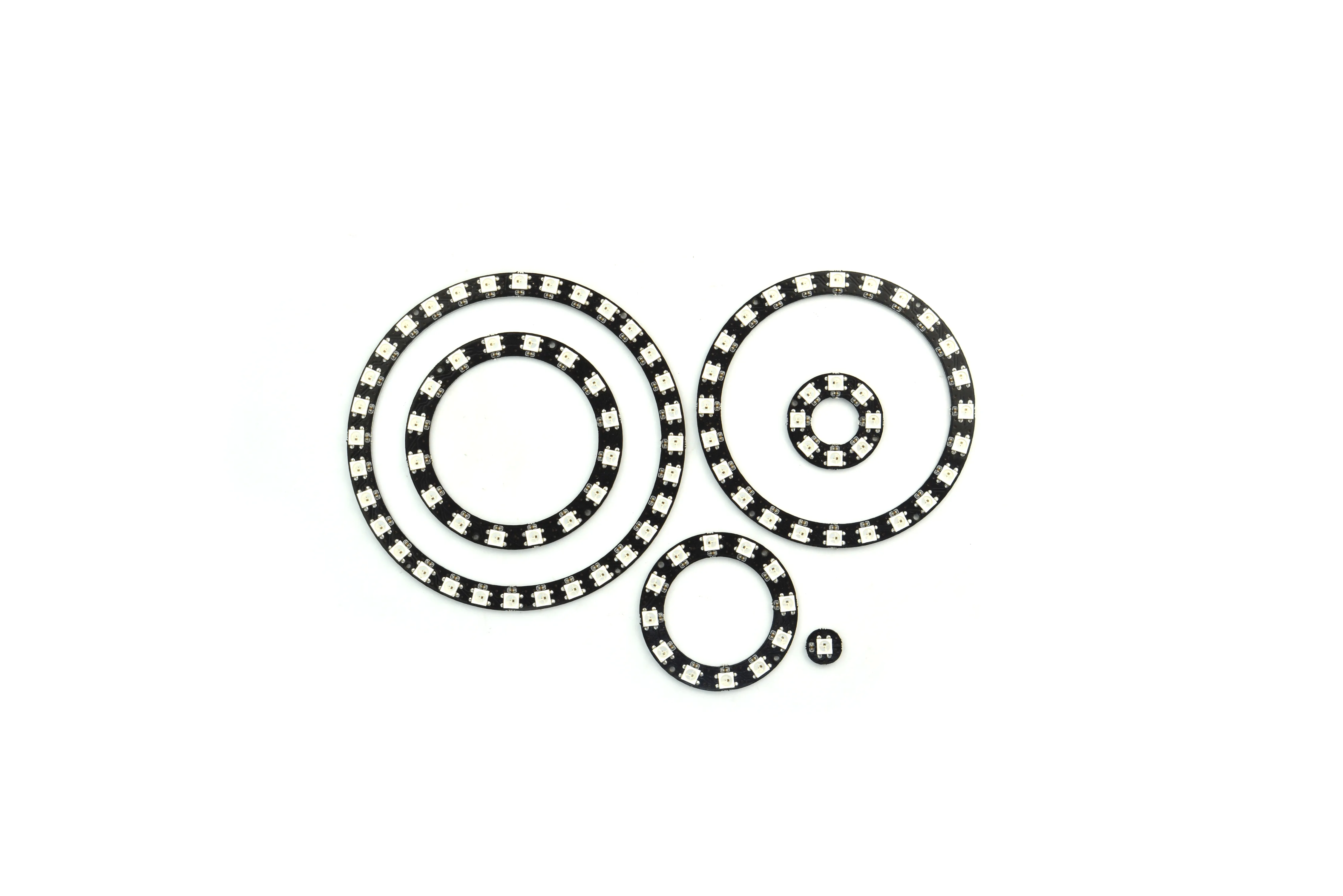

Customisable cut and combine layout

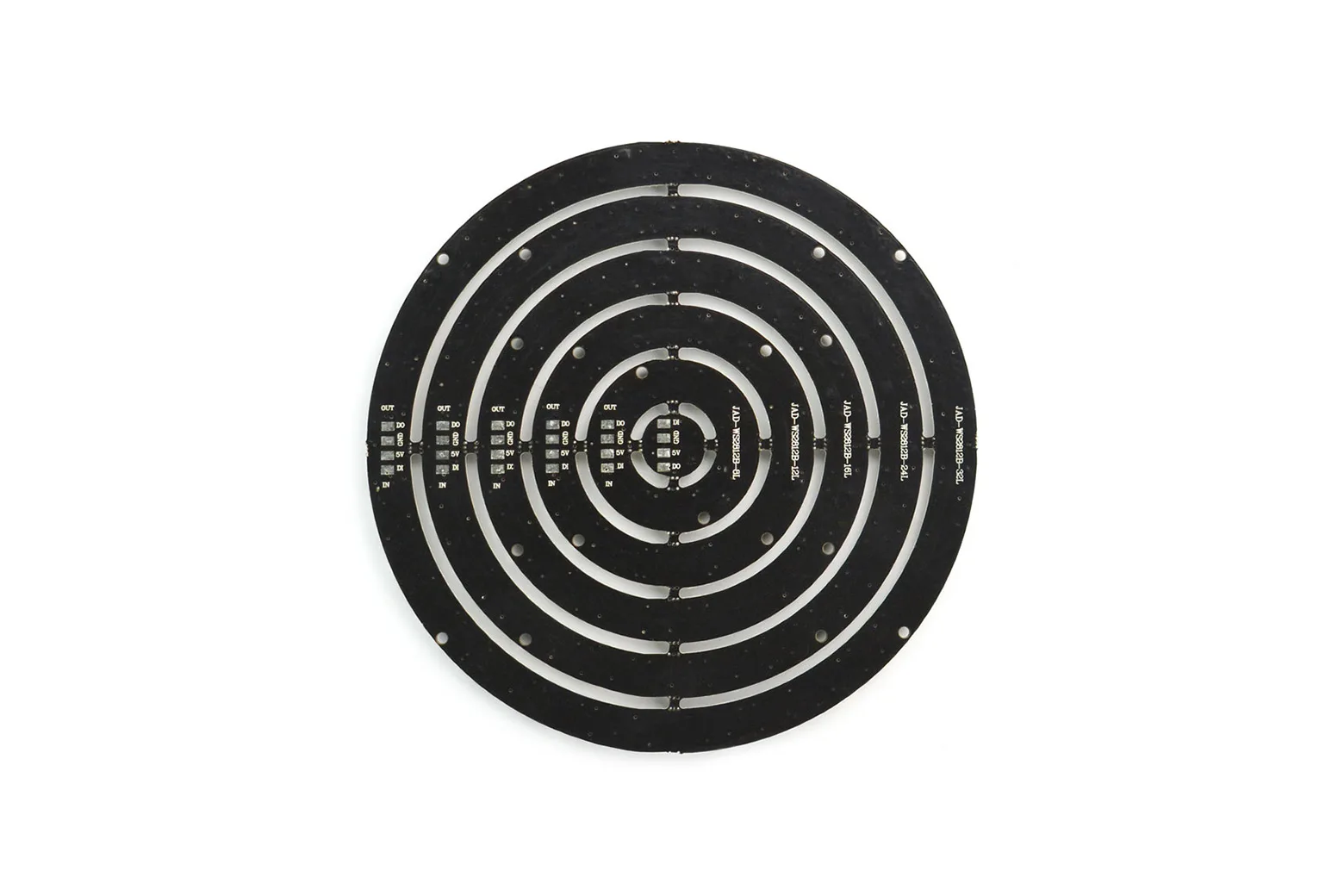

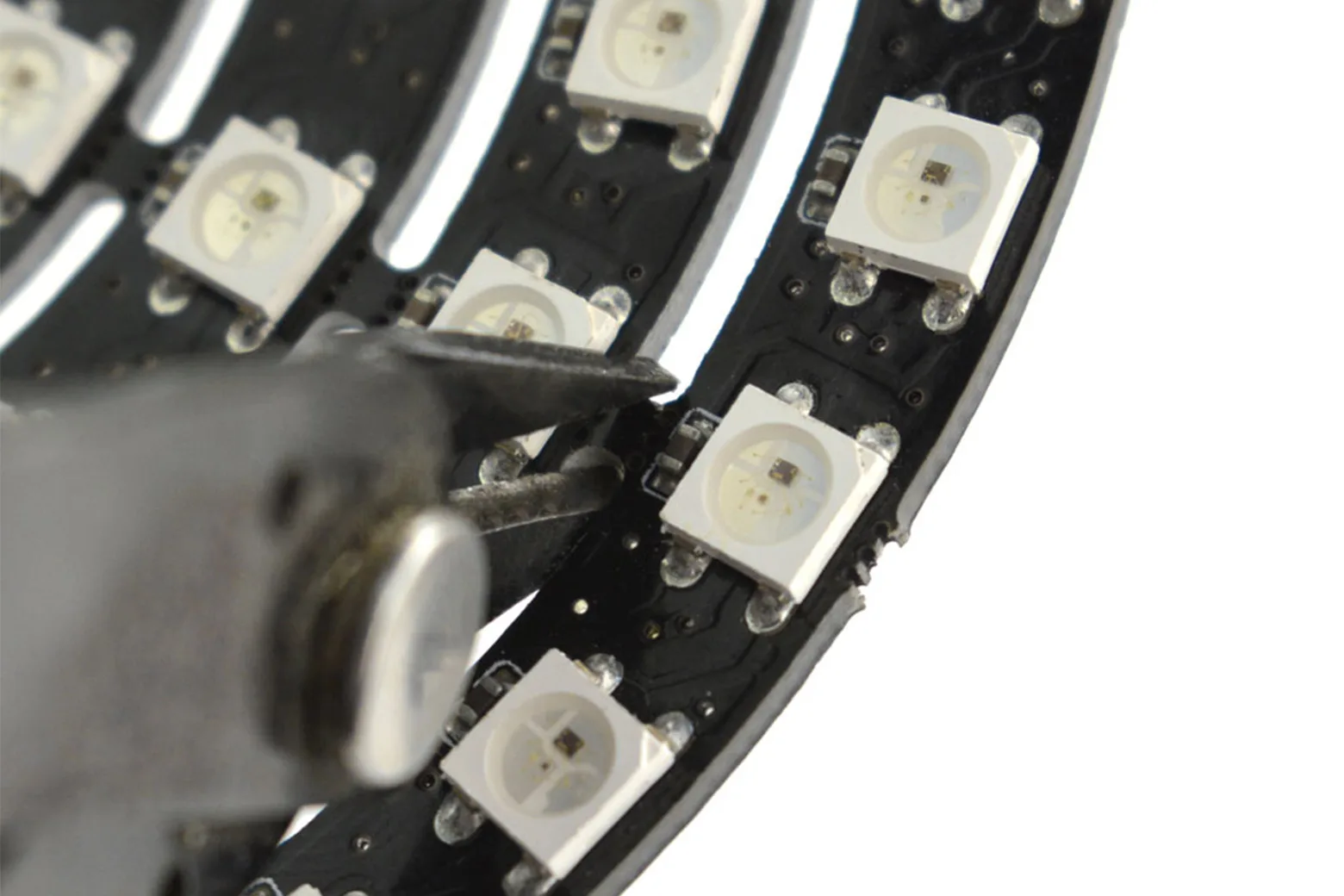

Each of the six rings can be cleanly cut apart and rearranged into custom shapes and sizes. This flexible layout allows you to adapt the module to fit bespoke enclosures and project enclosures.

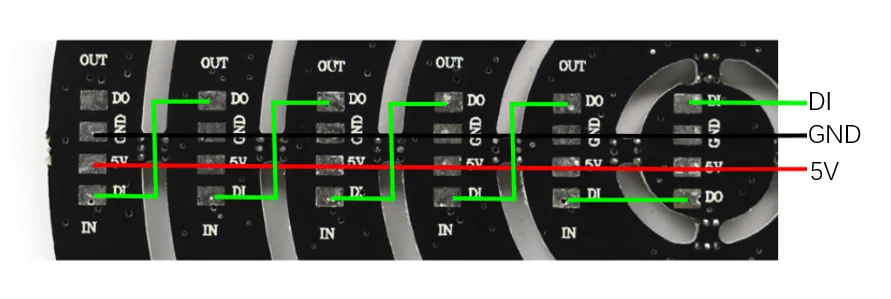

Single-bus cascade control

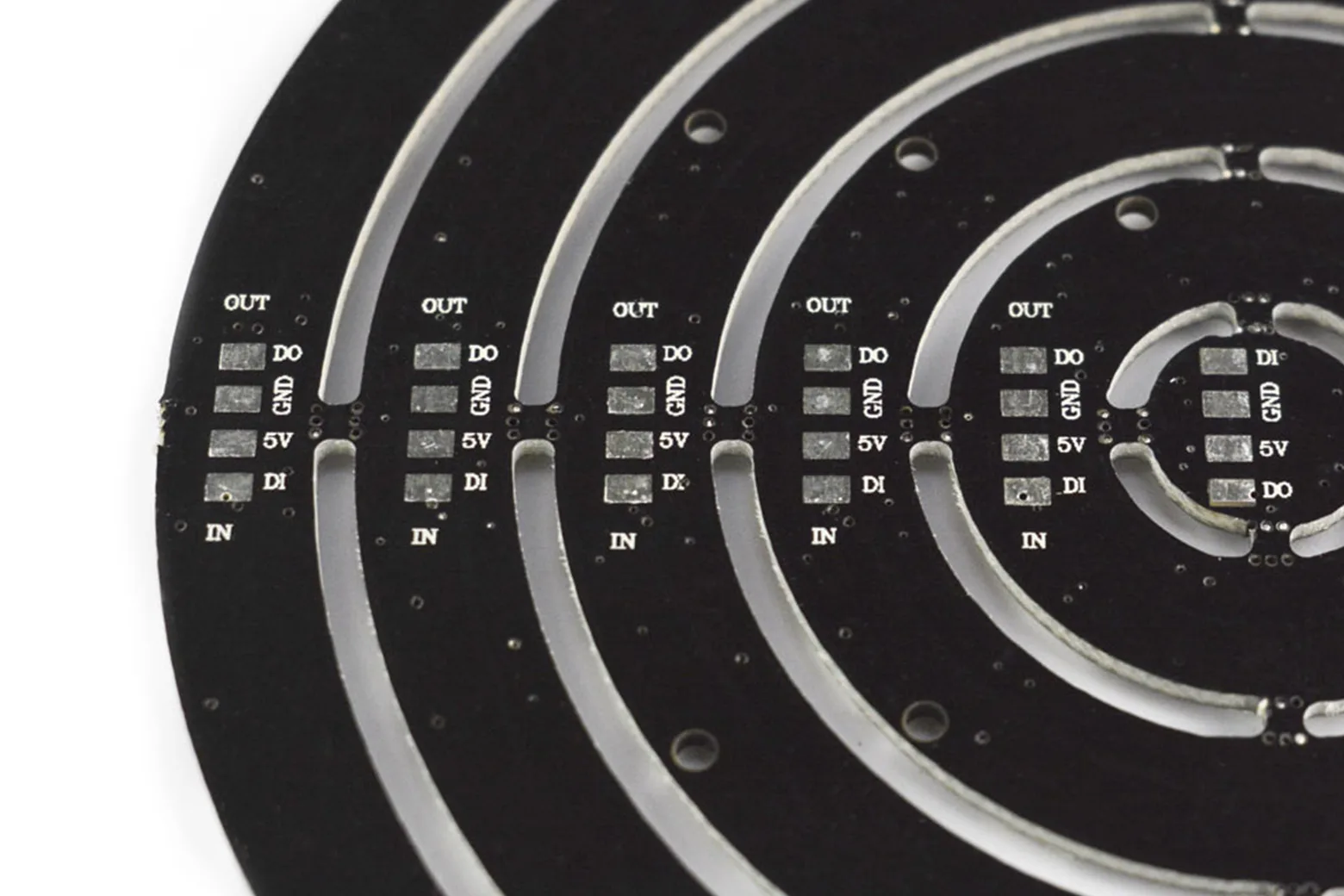

The entire assembly or individual rings can be controlled through a single data line. Connecting the DO pin of one ring to the DI pin of the next allows straightforward multi-ring or multi-module cascading.

Versatile project applications

With compact wiring and addressable control, this board is well suited for robot decoration, wearables, intelligent room lighting, and audio-reactive lighting rigs.

Key electrical specifications

The module runs on a 5V supply with a maximum operating current of 1A or less. It contains 93 WS2812B RGB LEDs capable of full-colour output.

Package contents

Each package contains one 93 LEDs WS2812B RGB 6 Ring Lamp panel.

Downloads & documentation

• Product wiki (DFRobot)
