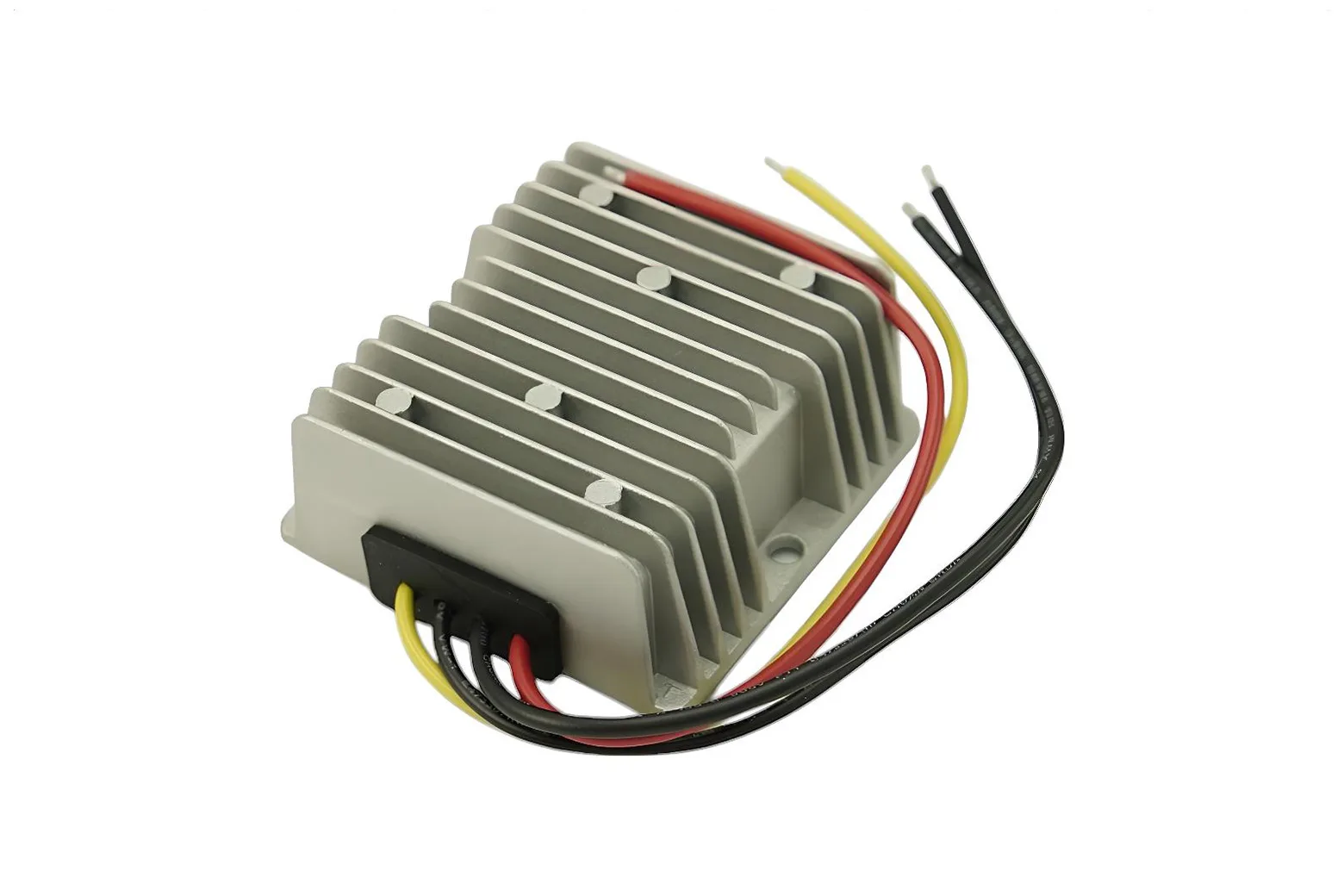

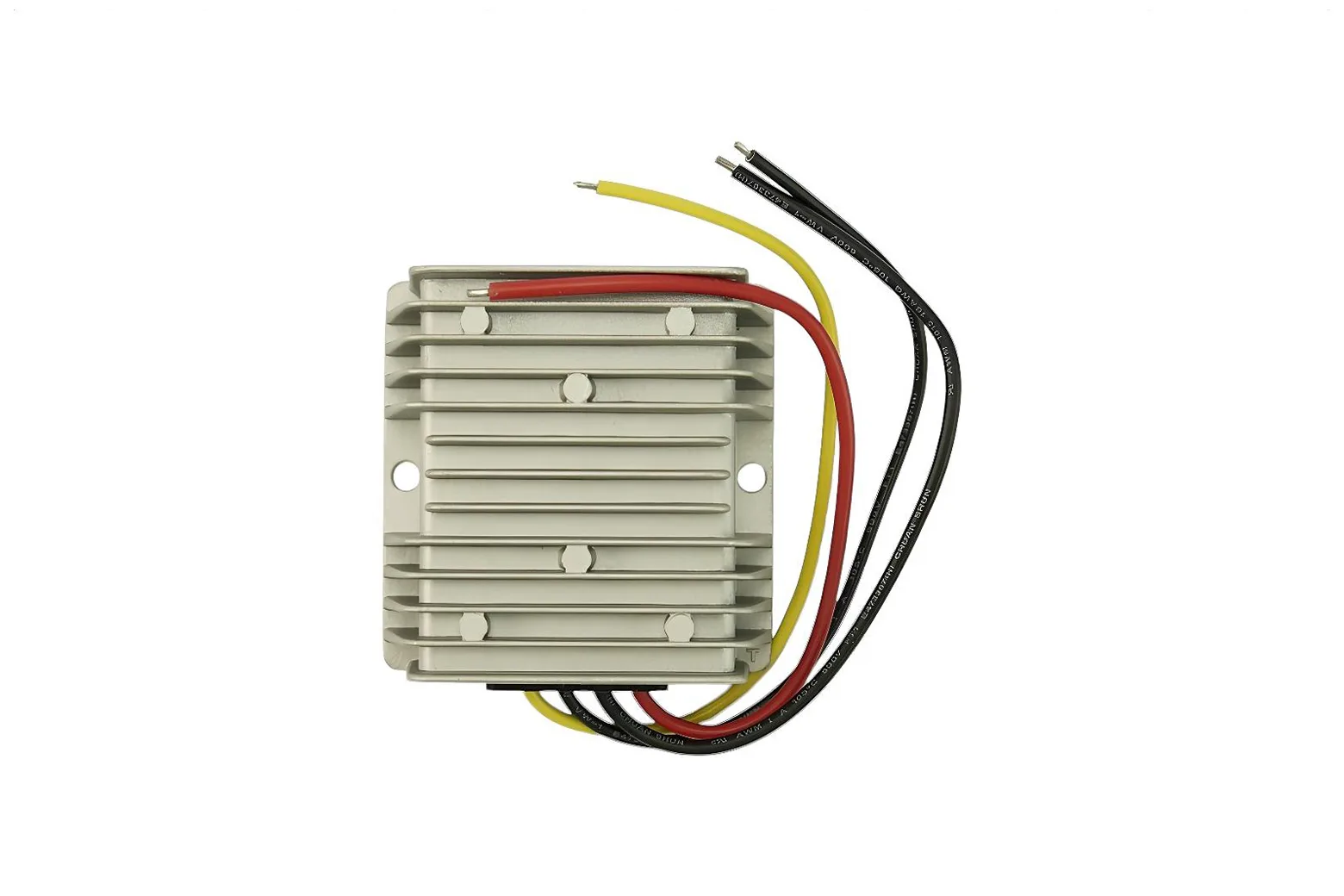

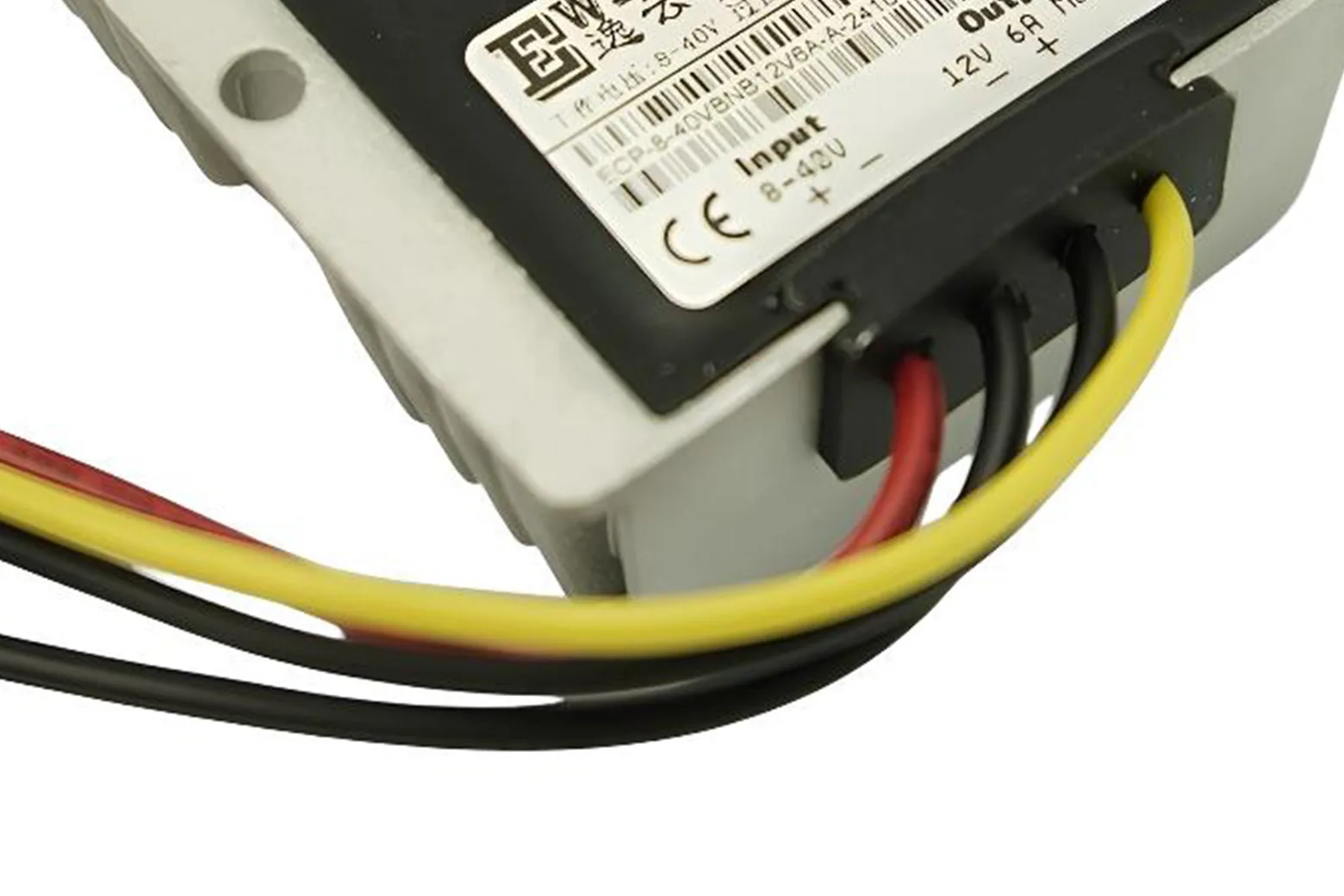

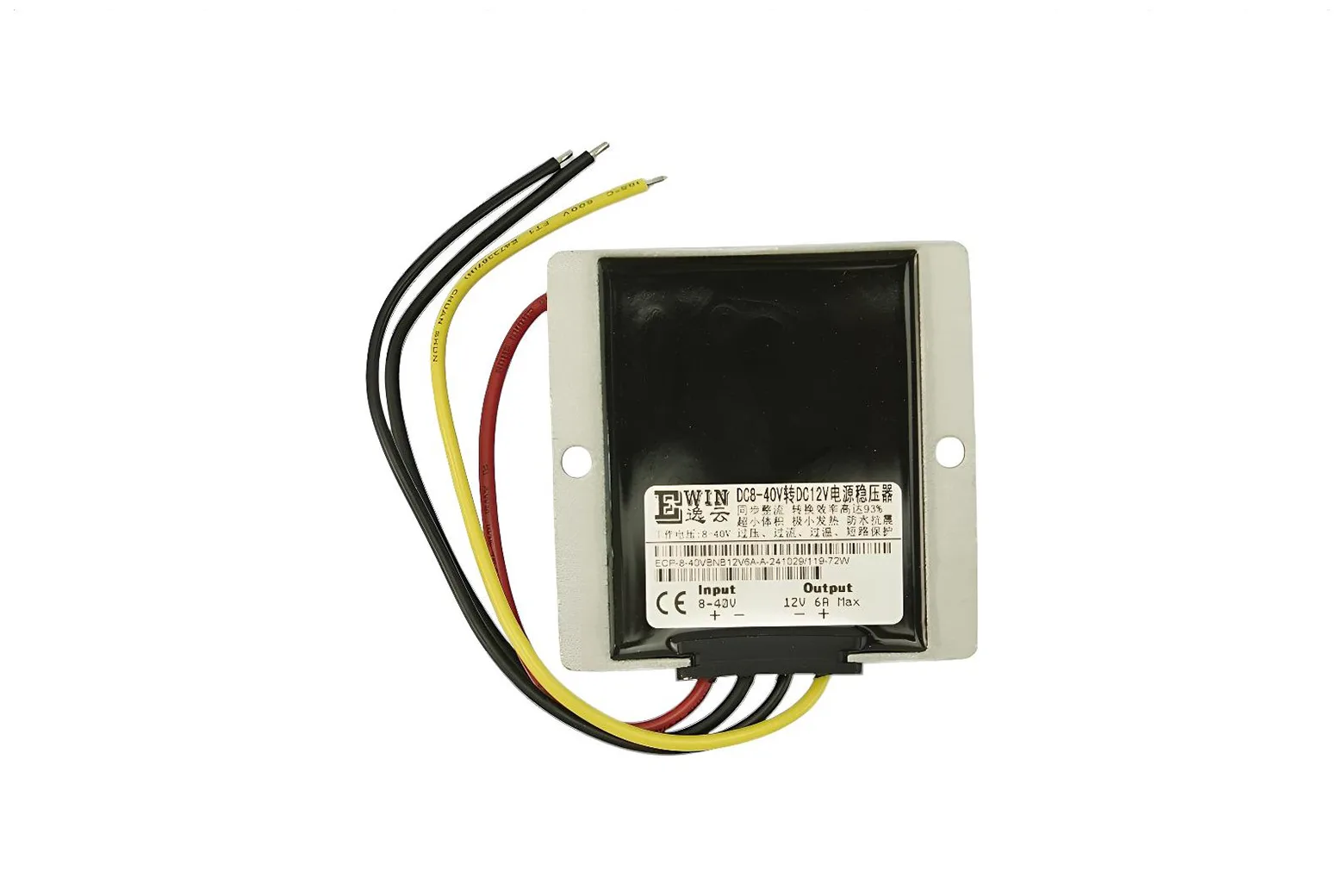

72W DC-DC Converter 12V@6A

The 72W DC-DC Converter delivers a steady 12V DC output at up to 6A from a wide 8V to 40V DC input supply. Housed in a rugged waterproof enclosure, it is designed to power embedded PCs, mobile robots, and maker projects in demanding environments.

Wide input voltage range

The converter operates across a flexible 8V to 40V DC input range, regulating fluctuating voltages down or up to a fixed 12V DC. This makes it suitable for use with diverse battery configurations and fluctuating DC power sources.

High current 72W output

Providing up to 6A of continuous current at 12V, this unit supplies a total power capacity of 72W. It provides stable, dedicated power for embedded computing boards, motors, and robotic subsystems.

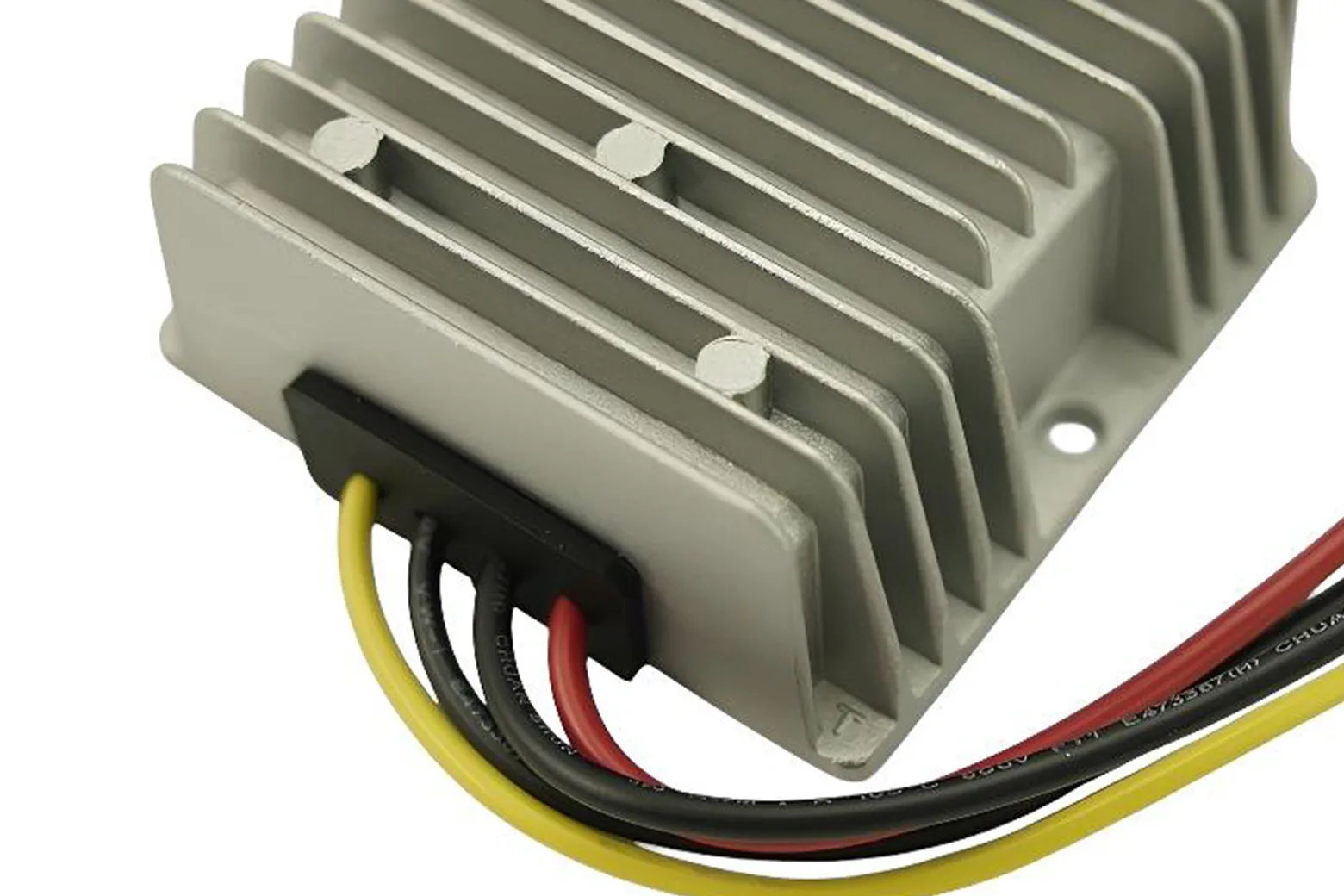

Waterproof and compact construction

The unit features a waterproof and lightweight casing designed to protect internal electronics from moisture and dust. Measuring 71 mm by 73 mm by 28 mm, it fits neatly into compact robotics chassis and outdoor installations.

Efficient non-isolated switching design

Engineered as a non-isolated switching mode power supply, the converter delivers an energy efficiency rating between 82% and 88%. It operates reliably in ambient temperatures ranging from -10 °C to 45 °C.

Package contents

Each package contains one 72W DC-DC Converter (12V at 6A).
