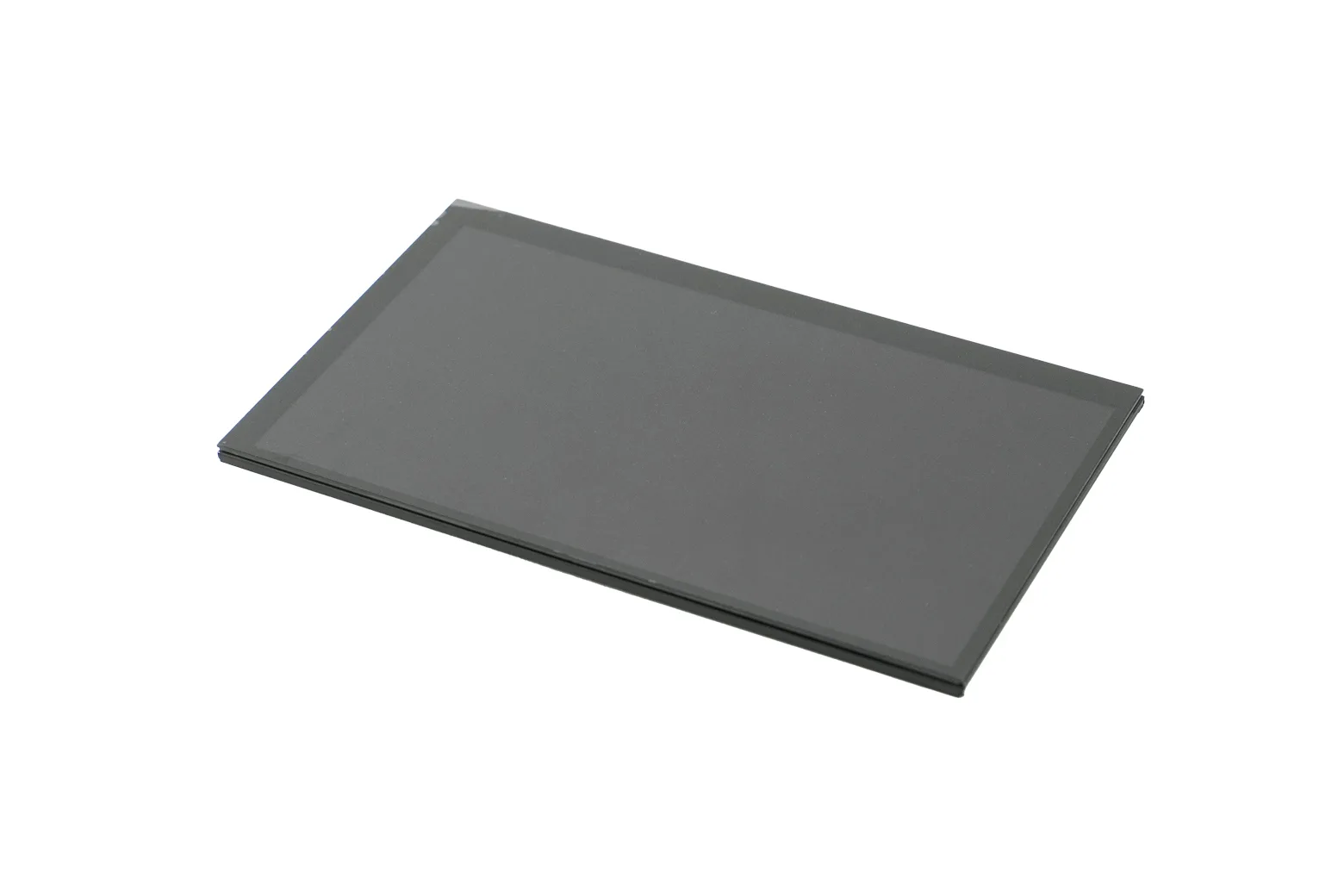

7" eDP IPS Touch Narrow Bezel Display for LattePanda IOTA / LattePanda 3 Delta

The 7-inch eDP IPS Touch Narrow Bezel Display is a multi-touch screen engineered specifically for the LattePanda IOTA and LattePanda 3 Delta single-board computers. Utilising a native eDP interface and a 1024x600 resolution, it delivers direct hardware-level integration without the need for external HDMI adaptors. It is well suited for makers, students, and engineers developing portable computing projects, interactive kiosks, and human-machine interfaces.

Native eDP and I2C connection

Connecting directly via eDP for video and I2C for touch, this panel provides seamless low-level integration with compatible LattePanda boards. It enables direct OS and API control over parameters like brightness and contrast while eliminating bulky adaptors for a clean, power-efficient setup.

Vibrant 1024x600 IPS panel

The high-quality IPS panel delivers high colour saturation and wide viewing angles, ensuring clear visuals from almost any perspective. It features a crisp 1024x600 resolution, 250 cd/m² luminance, 85% transmittance, and a fast response time of 16ms or less.

Durable fully-fit construction

A fully-fit sealed construction prevents dust ingress and reduces internal light reflections for improved optical clarity. The touch surface is rated at 6H hardness, providing strong scratch resistance during demanding everyday use in embedded and portable applications.

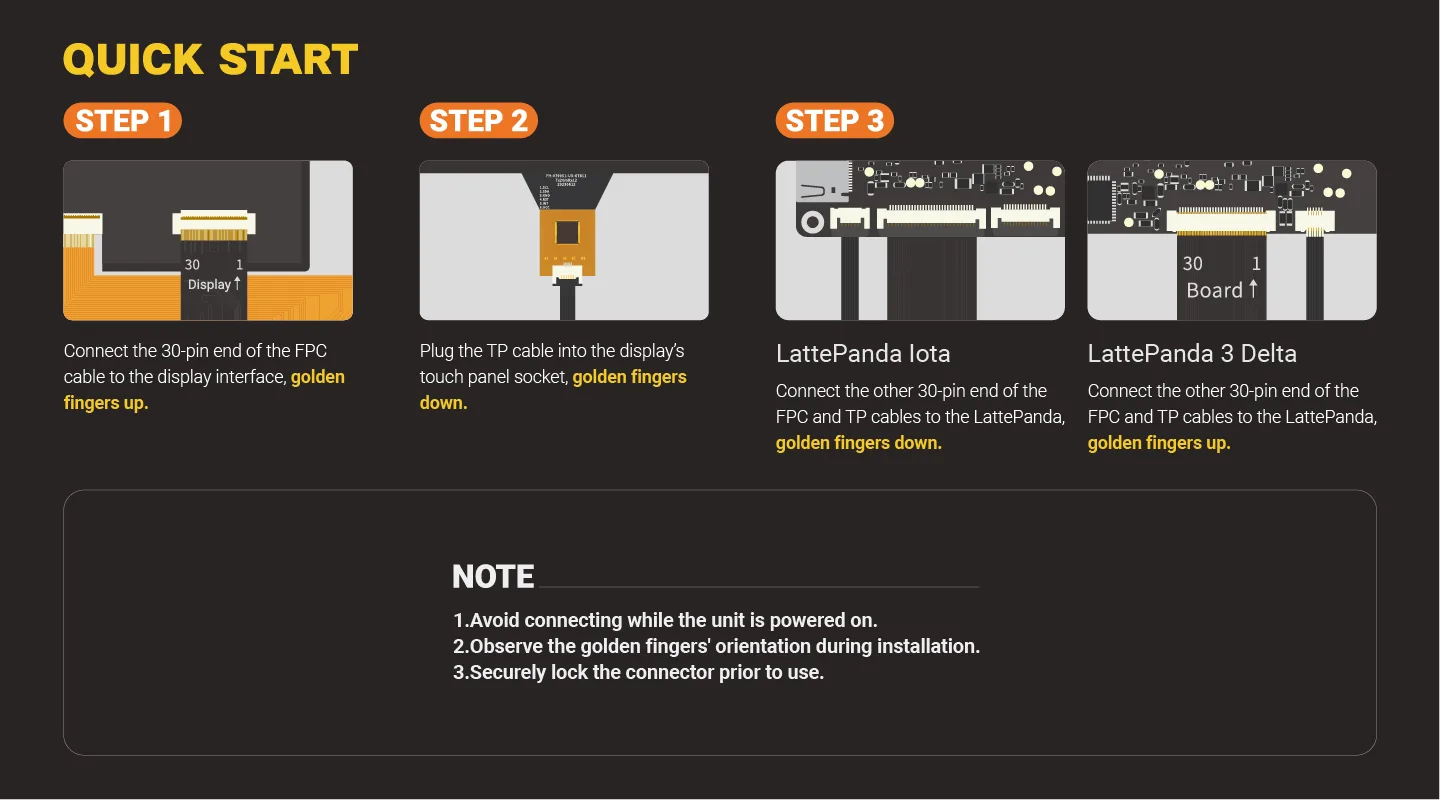

Straightforward hardware installation

Connecting the screen to your board is simple using the supplied 21cm eDP cable and 14cm touch cable. Please note that this display is compatible exclusively with the LattePanda IOTA and LattePanda 3 Delta models.

Compact dimensions and wide operating range

With an overall footprint of 164.0mm by 96.0mm, this narrow-bezel screen easily integrates into compact enclosures. It supports an operating temperature range from -20°C to +70°C and a storage range from -30°C to +80°C for reliable deployment in diverse environments.
