Description
The 7-inch 1024x600 Touch Display is an eDP-connected IPS touchscreen engineered specifically for LattePanda Mu and LattePanda Sigma single-board computers. Providing responsive multi-touch interaction and vibrant visuals, it is ideal for makers, students, and engineers developing custom human-machine interfaces and portable devices.
Vivid IPS display panel
Featuring a 1024x600 resolution and full viewing angles, the IPS panel delivers high colour saturation with 250 cd/m2 luminance and 85% light transmittance.

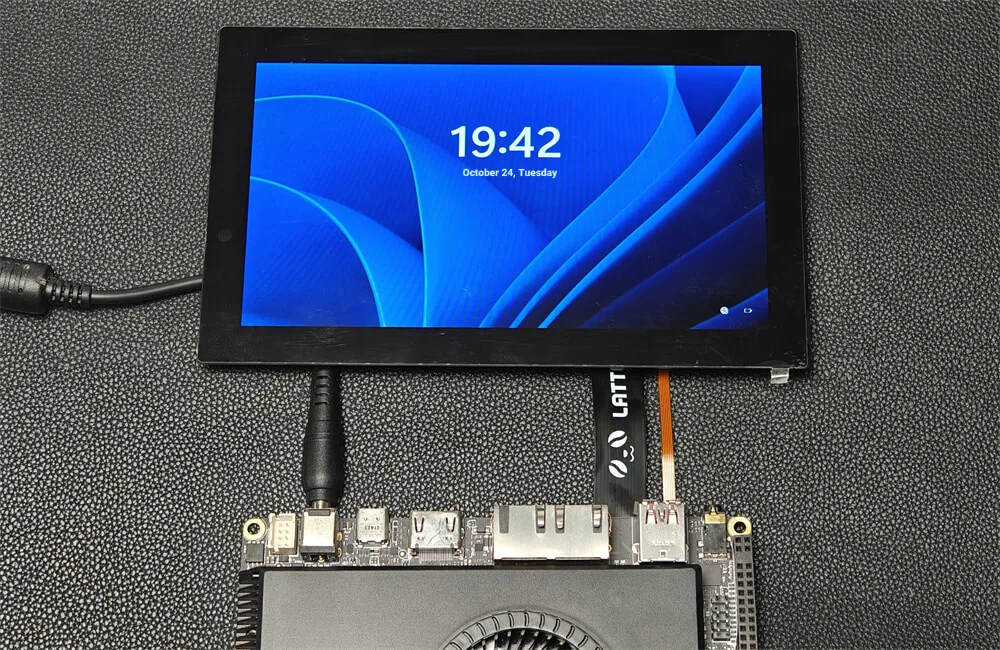

Built for HMI and portable builds

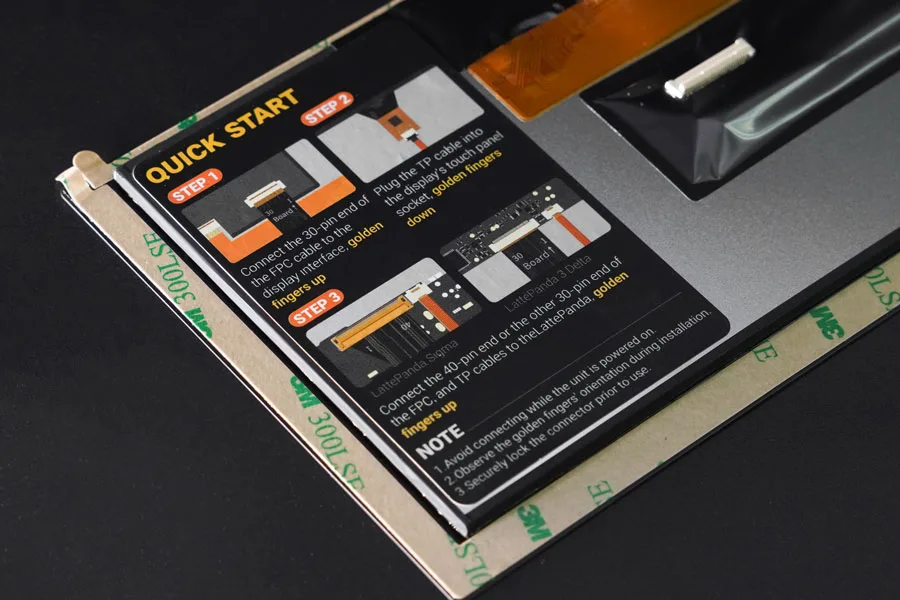

A fully laminated design prevents dust ingress and reduces surface glare in demanding environments. Pre-applied adhesive along the display edge allows for firm and straightforward mounting into custom enclosures.

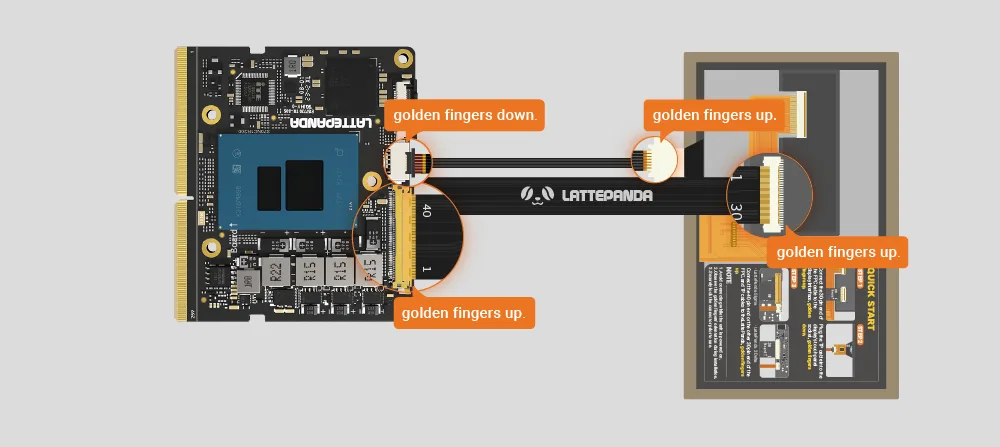

Direct LattePanda Mu integration

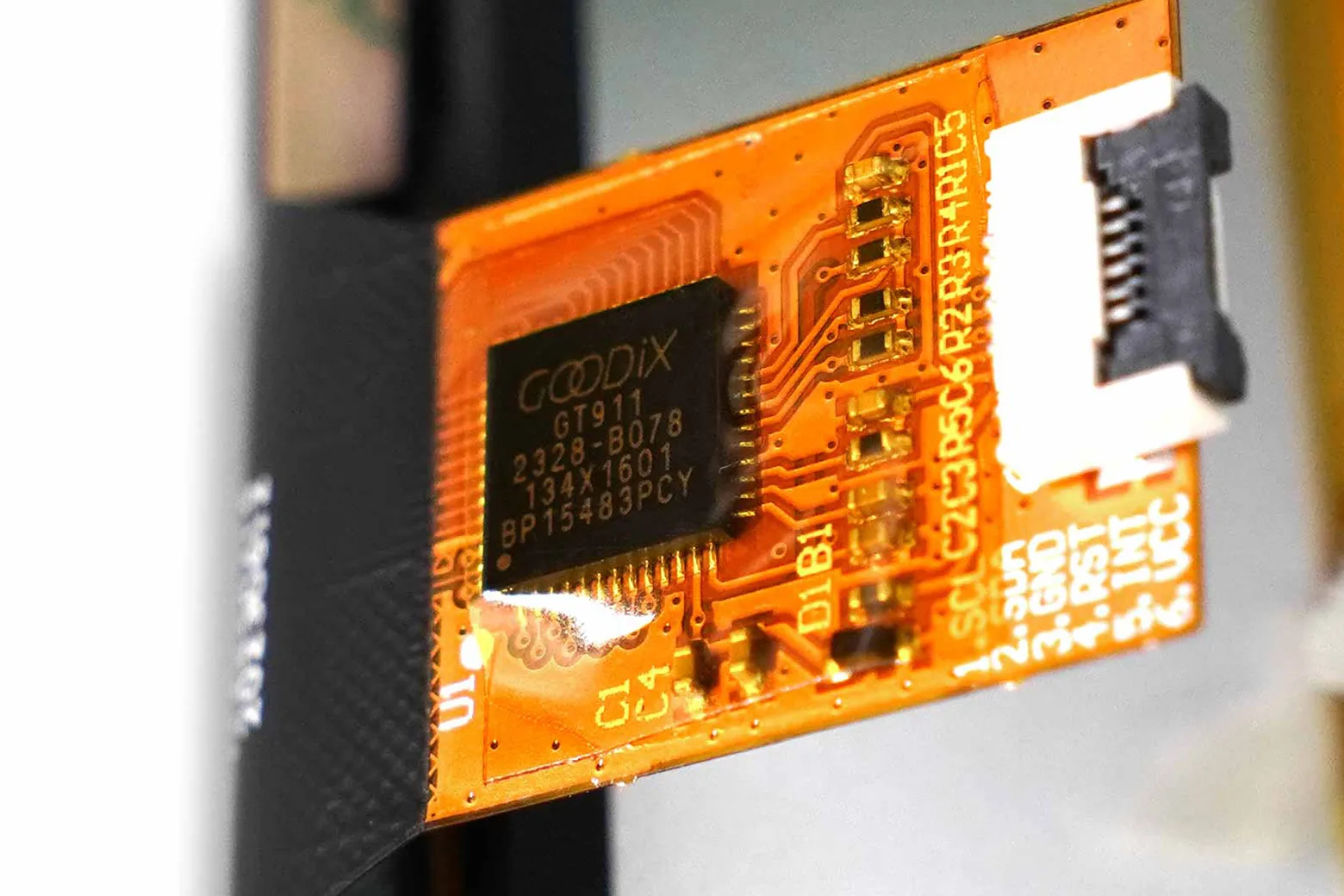

Utilising an eDP video signal and I2C touch interface, the display connects directly to the LattePanda Mu using the included 21cm opposite-side contact cable.

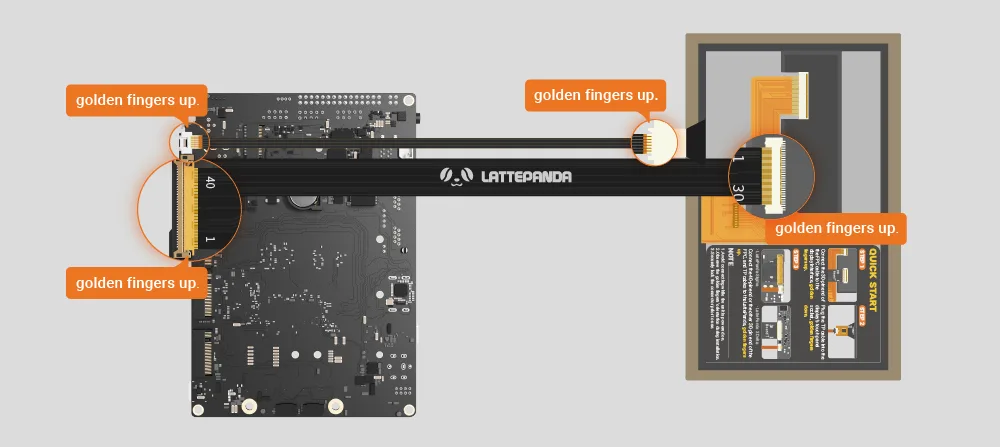

LattePanda Sigma wiring setup
The screen connects to the LattePanda Sigma via the supplied 30cm eDP cable and 23cm same-side contact touch cable for reliable video and touch functionality.
Durable touch construction
With a 6H surface hardness rating, response times of 16ms or less, and a lifespan rated for 200 million taps, the panel is built for continuous and reliable daily use.
Complete connection cables included

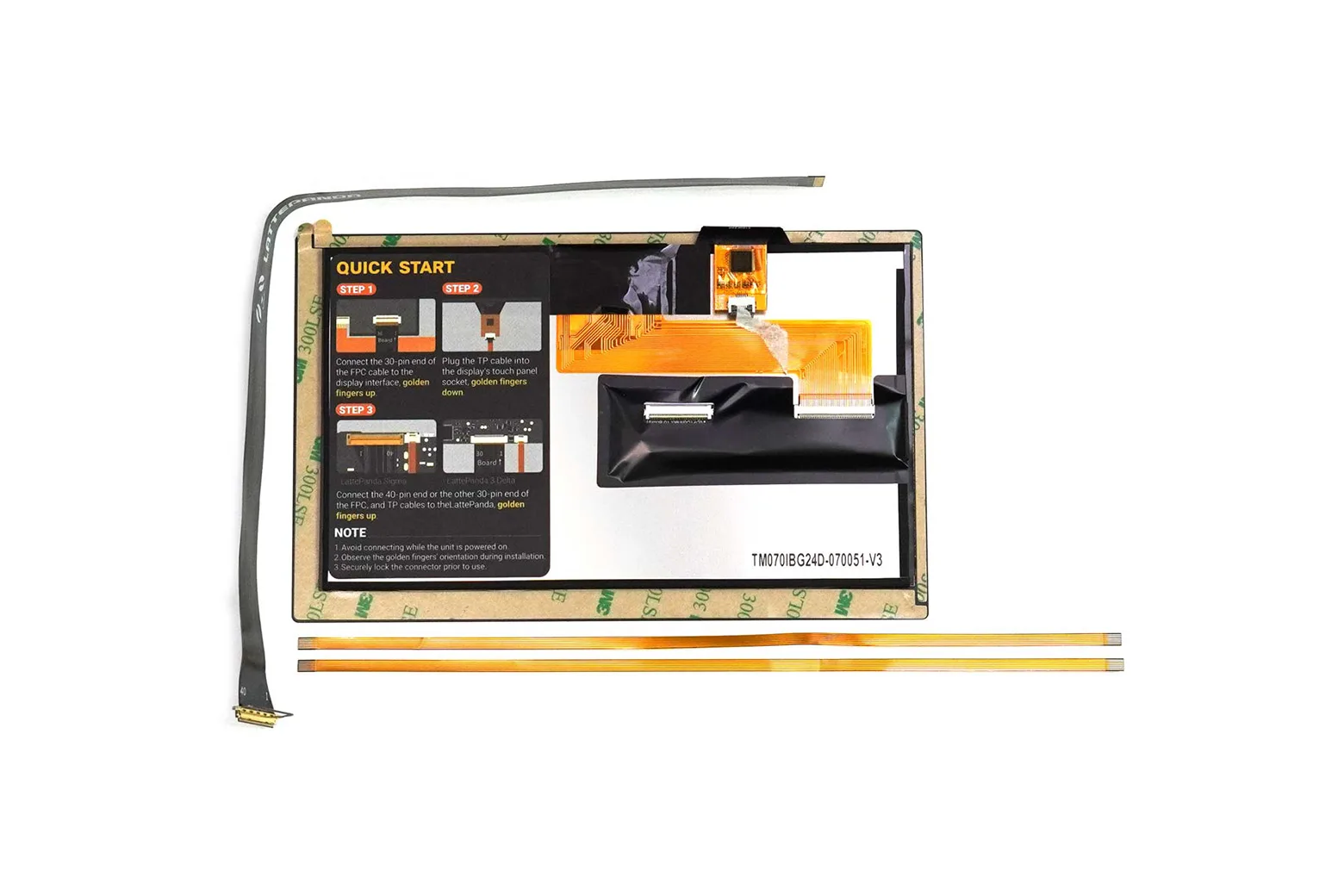

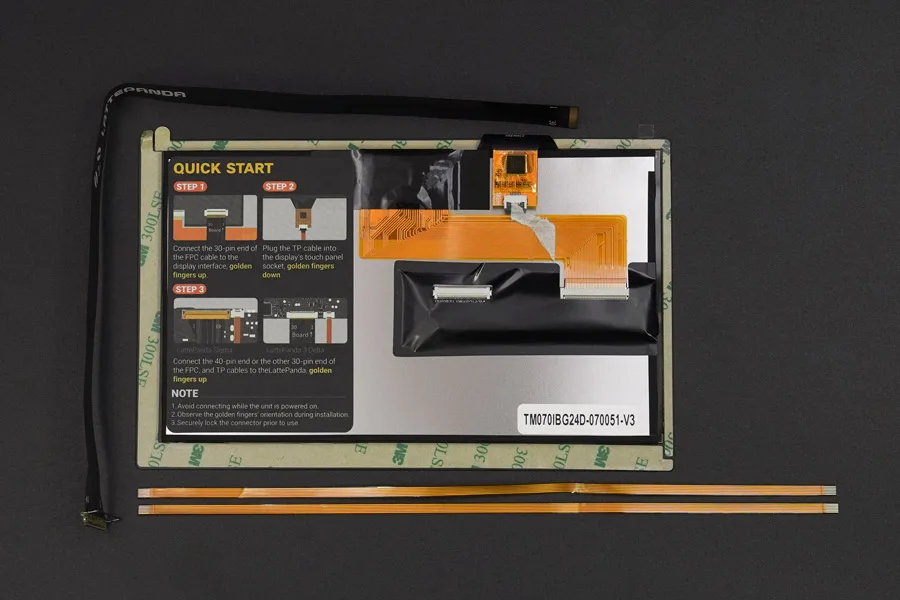

Each unit comes with the 7-inch display, a 30cm eDP cable, and dedicated touch cables for both the LattePanda Sigma and LattePanda Mu.
Video
Specifications
| Compatible Models | LattePanda Mu / LattePanda Sigma |
| Resolution | 1024 x 600 high resolution |
| Interface | eDP(DP)+I2C(TP) |
| Transmittance | 85% |
| Surface Hardness | 6H |
| Response Time | ≤16ms |
| LCM Luminance | 250 cd/m2 |
| Tapping Durability | 200,000,000 times |
| Connector | 30cm FPC Extension Cable |
| Dimensions | 180*110*5 mm / 7.1*4.3*0.2 inches |
| Weight(Screen Only) | 157.7g |
In the box
| 7 inches eDP Touch Display | 1 |
| 30cm eDP cable | 1 |
| 23cm Touch cable with Same-Side Contacts x1 (For LattePanda Sigma) | 1 |
| 21cm Touch cable with Opposite-Side Contacts x1 (For LattePanda Mu) | 1 |
