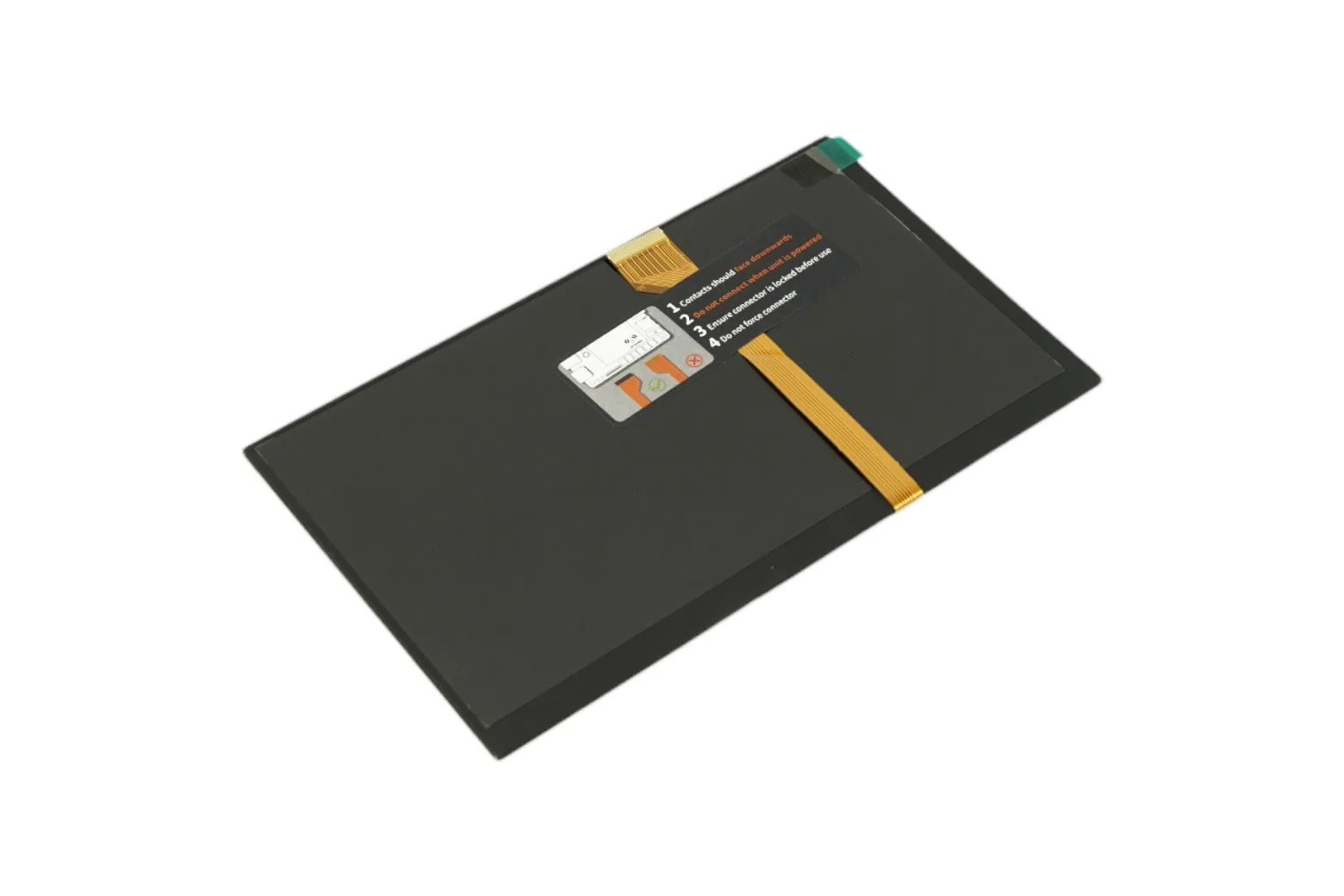

7" 1024 x 600 IPS Display for LattePanda V1

The 7" 1024 x 600 IPS Display provides a dedicated, full-colour visual user interface for the LattePanda V1 single-board computer. Powered directly through the board without extra power cabling, it is ideal for makers, students, and developers building compact embedded systems.

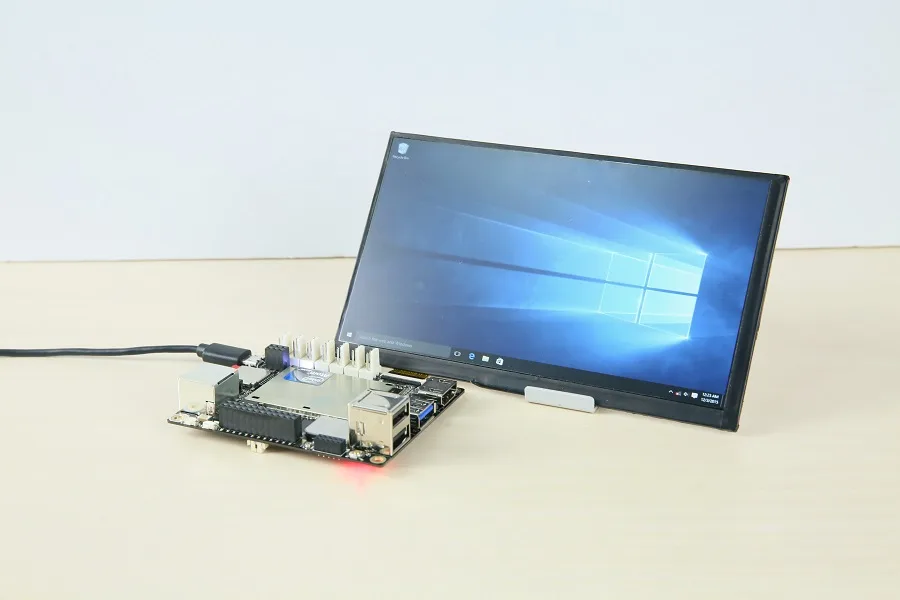

Direct power and connection

The display connects directly to the LattePanda V1 with no additional power cables required. It draws power and video signals straight from the board, keeping your project wiring clean and compact.

Clear IPS visual panel

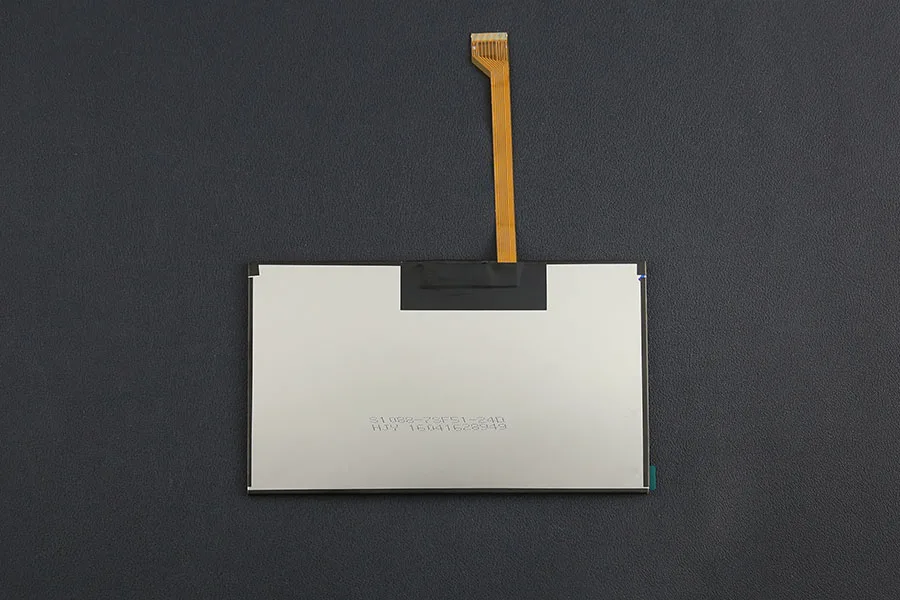

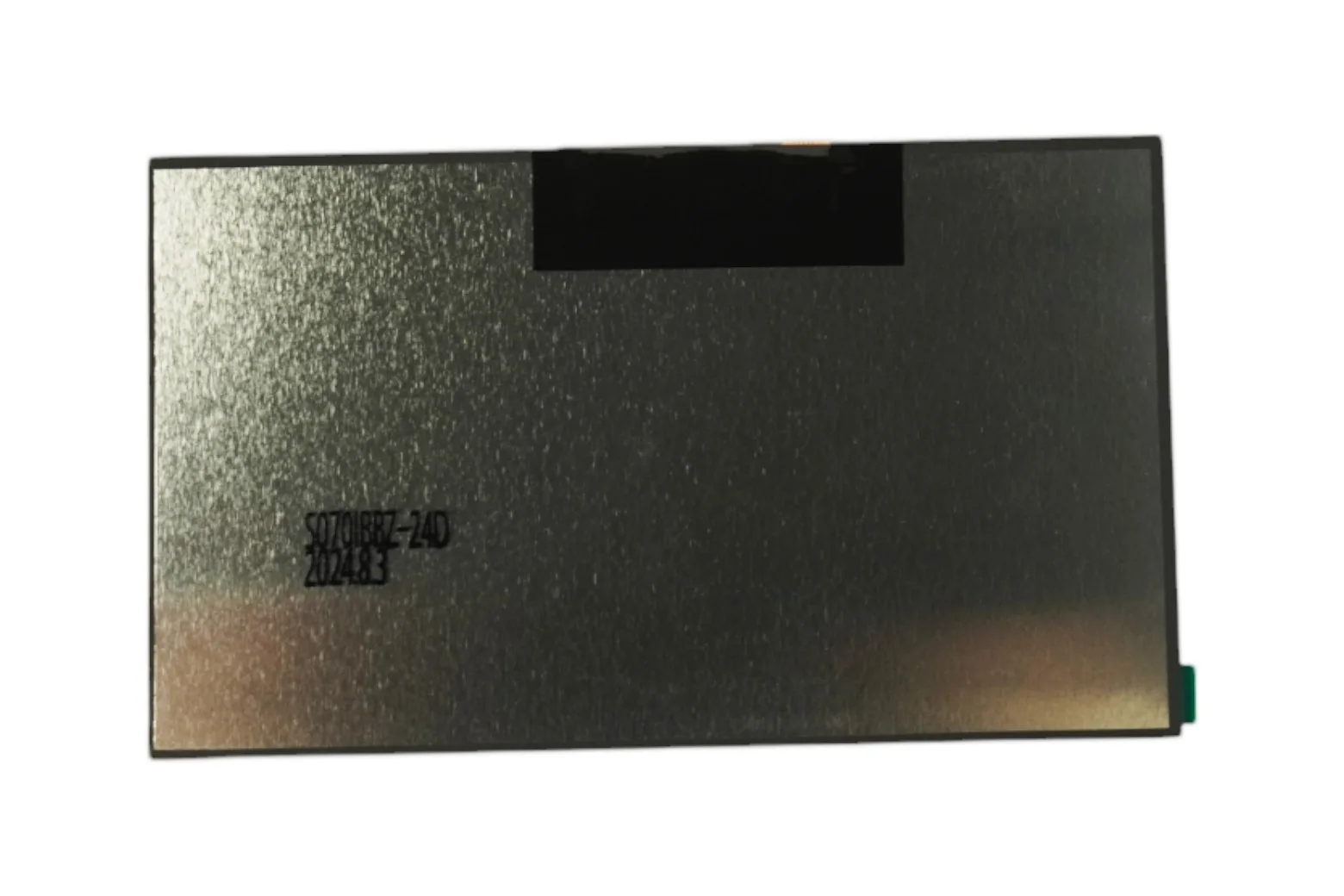

Offers a 1024 x 600 resolution across a 7-inch IPS panel for crisp graphics and wide viewing angles. The panel measures 164.0mm x 96.0mm x 2.6mm and includes a 10cm FPC connector.

Dedicated LattePanda V1 compatibility

Engineered specifically for the custom MIPI pinout on LattePanda V1 single-board computers, meaning it is not compatible with LattePanda Alpha or Delta models. You can still use the onboard HDMI port simultaneously.

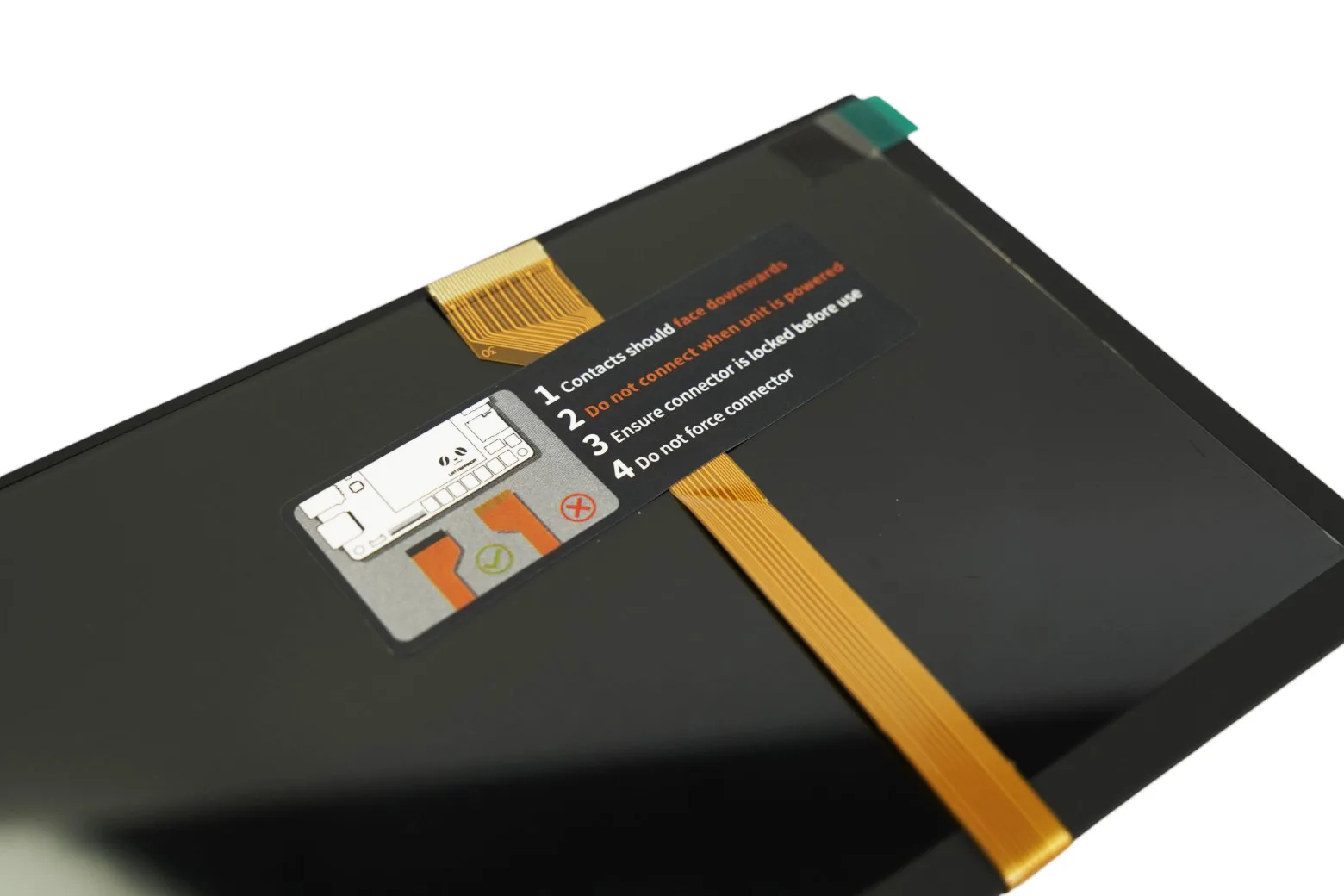

Insulated border design

The perimeter of the screen is insulated with black protective tape. This prevents electrical short-circuits, making it safe to operate even when used without an external enclosure.

Touch panel readiness

This display can be paired with an optional capacitive touch panel (not included) to add a fully interactive touch interface to your setup.

Package contents

Includes one 7-inch 1024 x 600 IPS display unit with integrated ribbon cable.
