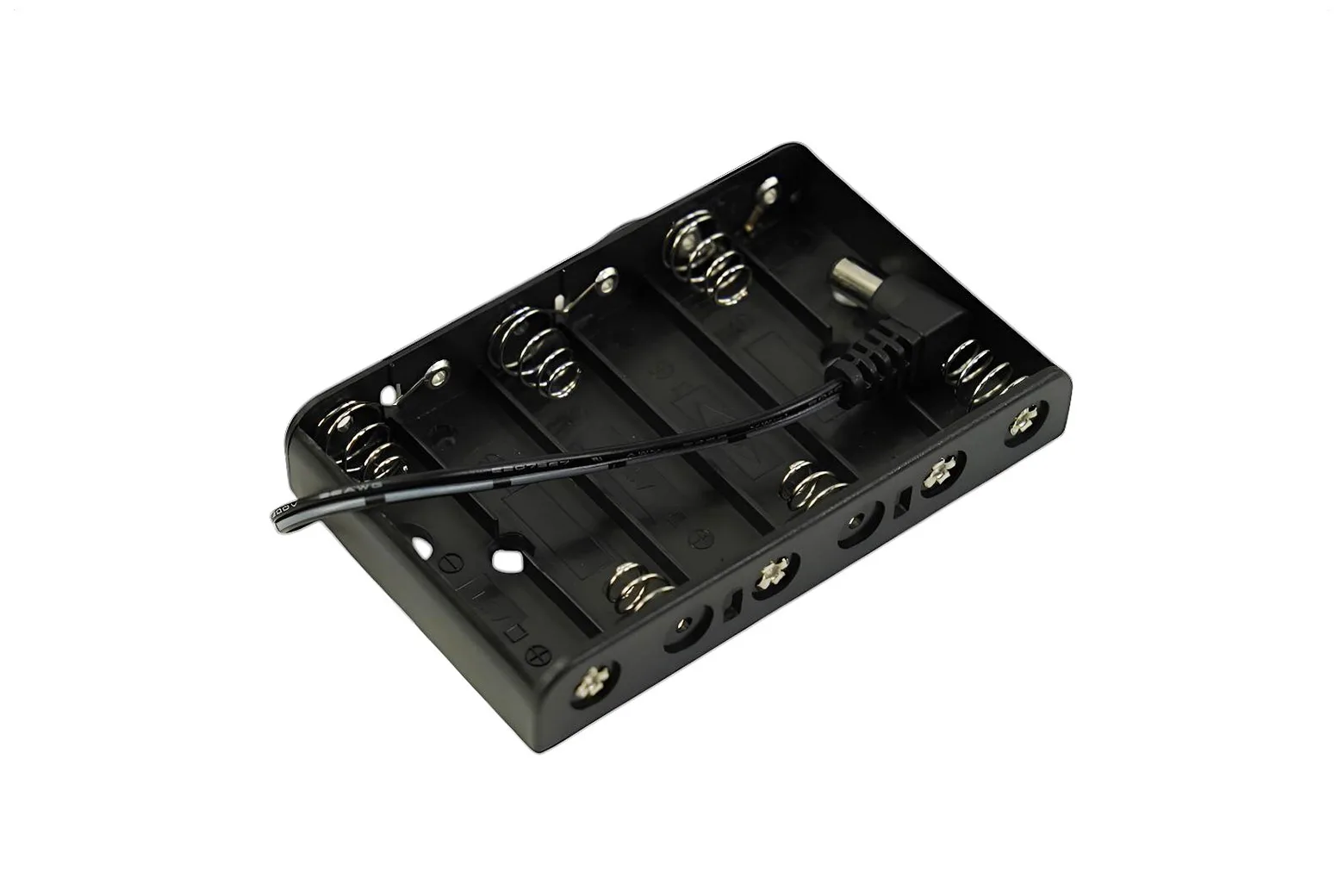

6xAA Battery Holder with DC2.1 Power Jack

The 6xAA Battery Holder with DC2.1 Power Jack provides a portable, solder-free power solution for mobile robotics and embedded development boards. It accommodates six standard AA cells to output either 7.2V or 9V depending on battery chemistry. This battery pack is ideal for students, makers, and educators needing reliable mobile power for microcontrollers.

Flexible multi-chemistry voltage output

The six-slot holder supports NiMH, NiCd, and alkaline AA batteries. Installing rechargeable NiMH or NiCd cells yields a 7.2V pack, while alkaline cells deliver an approximate 9V supply for higher voltage demands.

Direct DC2.1 barrel jack connection

An integrated DC2.1 barrel connector plugs directly into compatible development boards such as Arduino. This eliminates the need for custom wiring or soldering, enabling quick power deployment on portable builds.

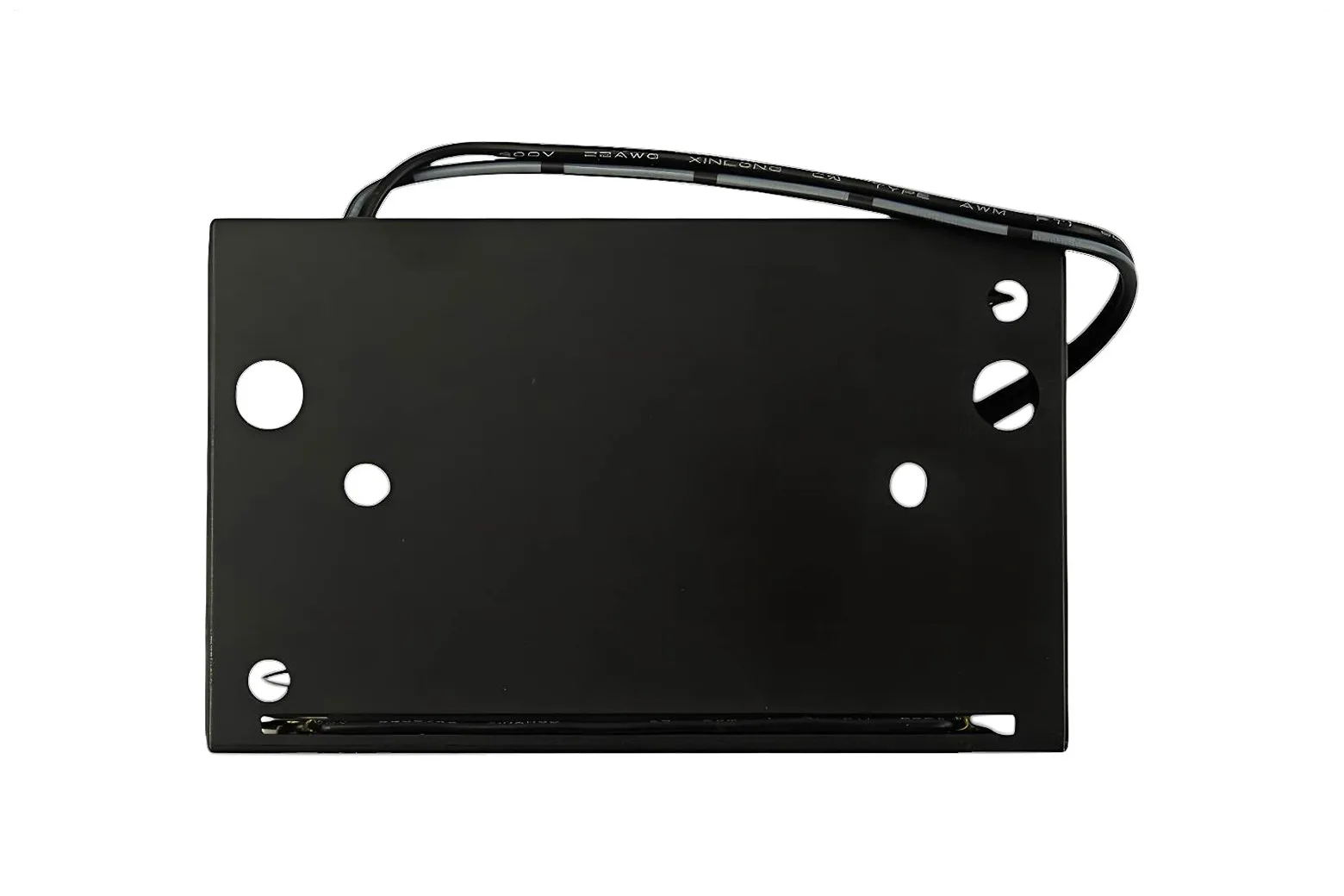

Compact enclosure with mounting holes

Measuring 93 x 57 x 15 mm, the holder fits cleanly into small chassis and project boxes. Dedicated 3 mm mounting holes with 76 mm spacing allow for secure screw installation on robotics platforms.

Reliable operation for mobile prototyping

Designed for mobile sensor nodes, field testing, and classroom experiments, the holder supports operating temperatures up to 80°C. It offers a tidy, robust battery solution wherever standalone power is required.
