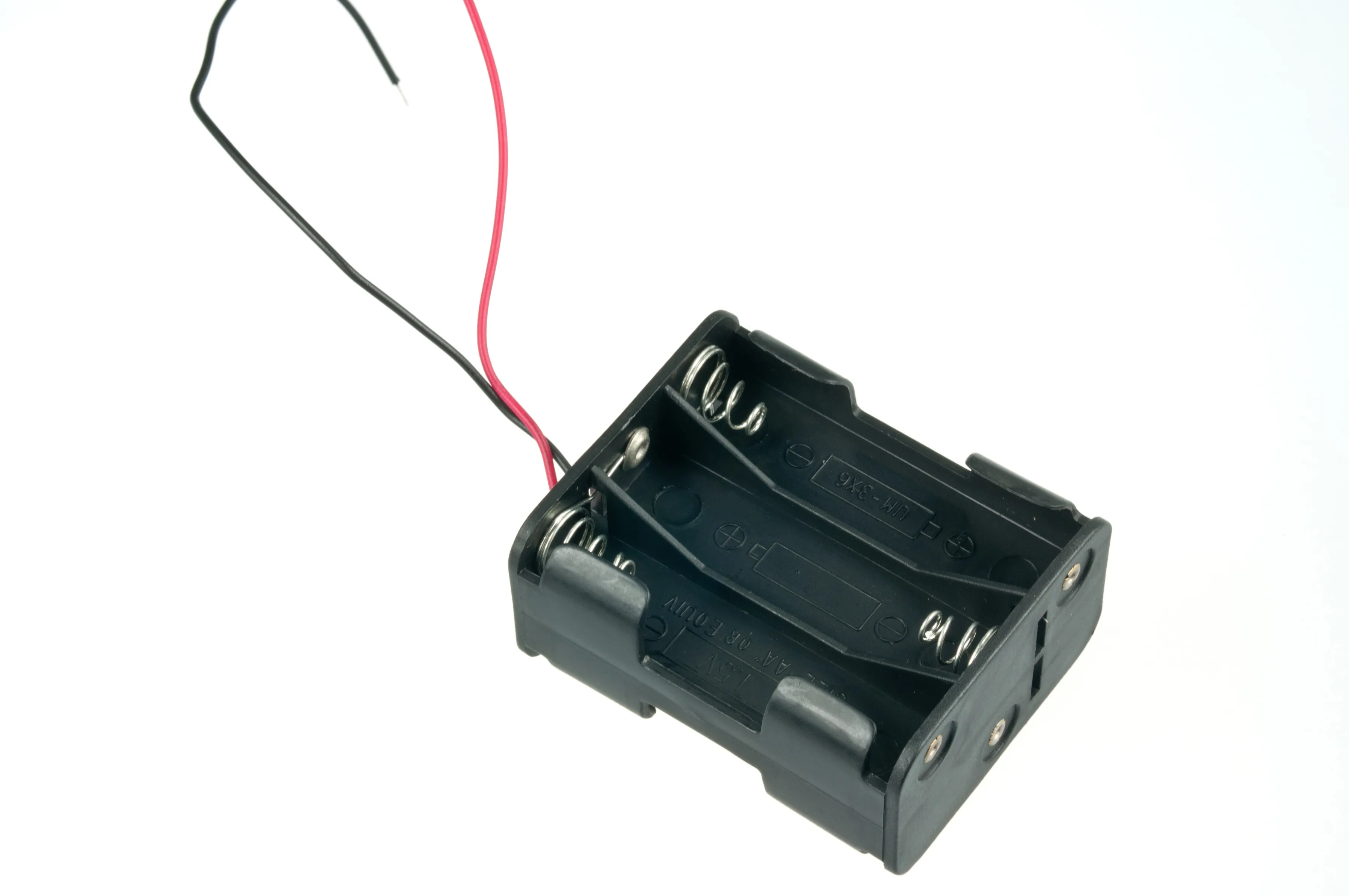

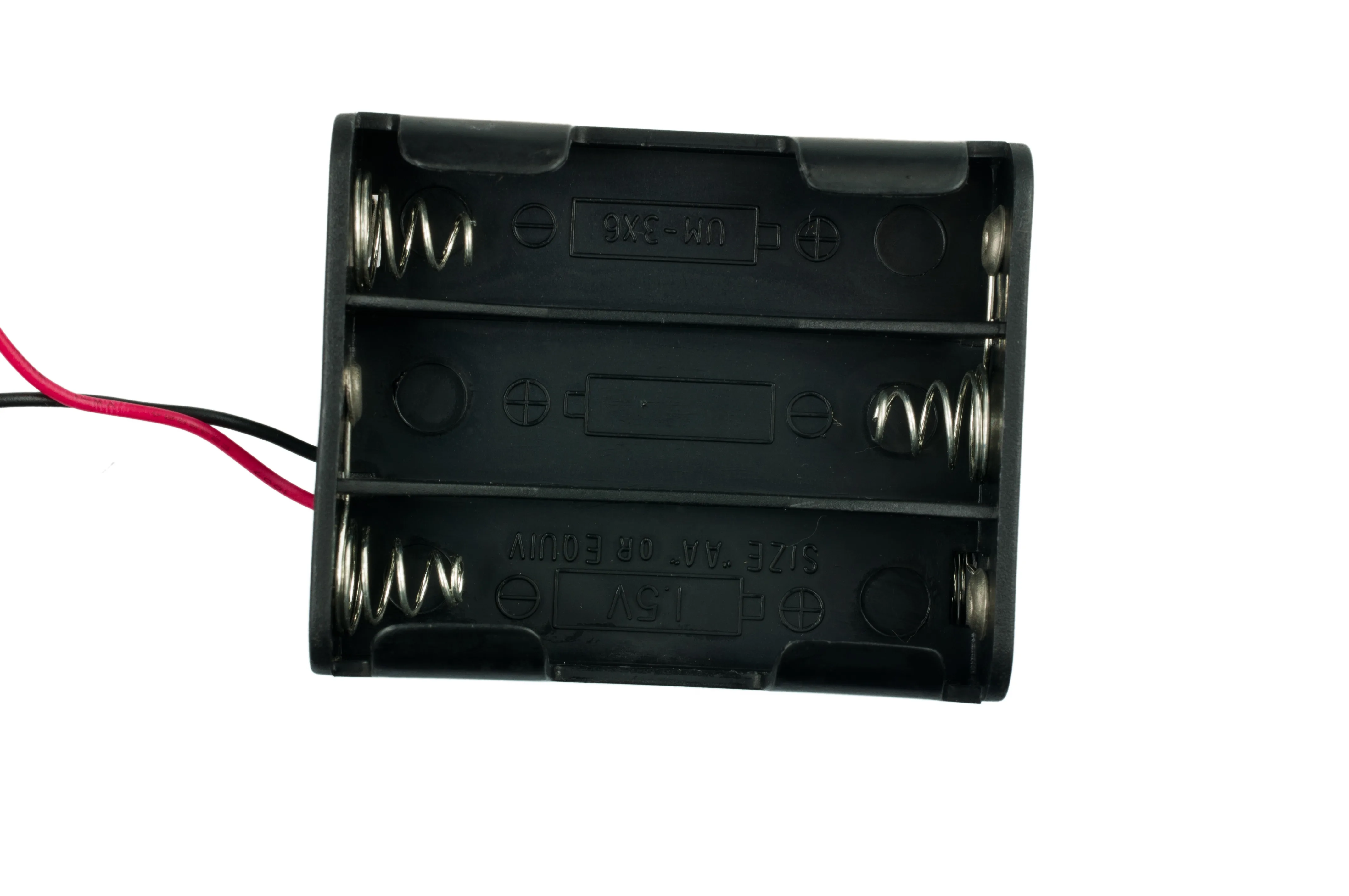

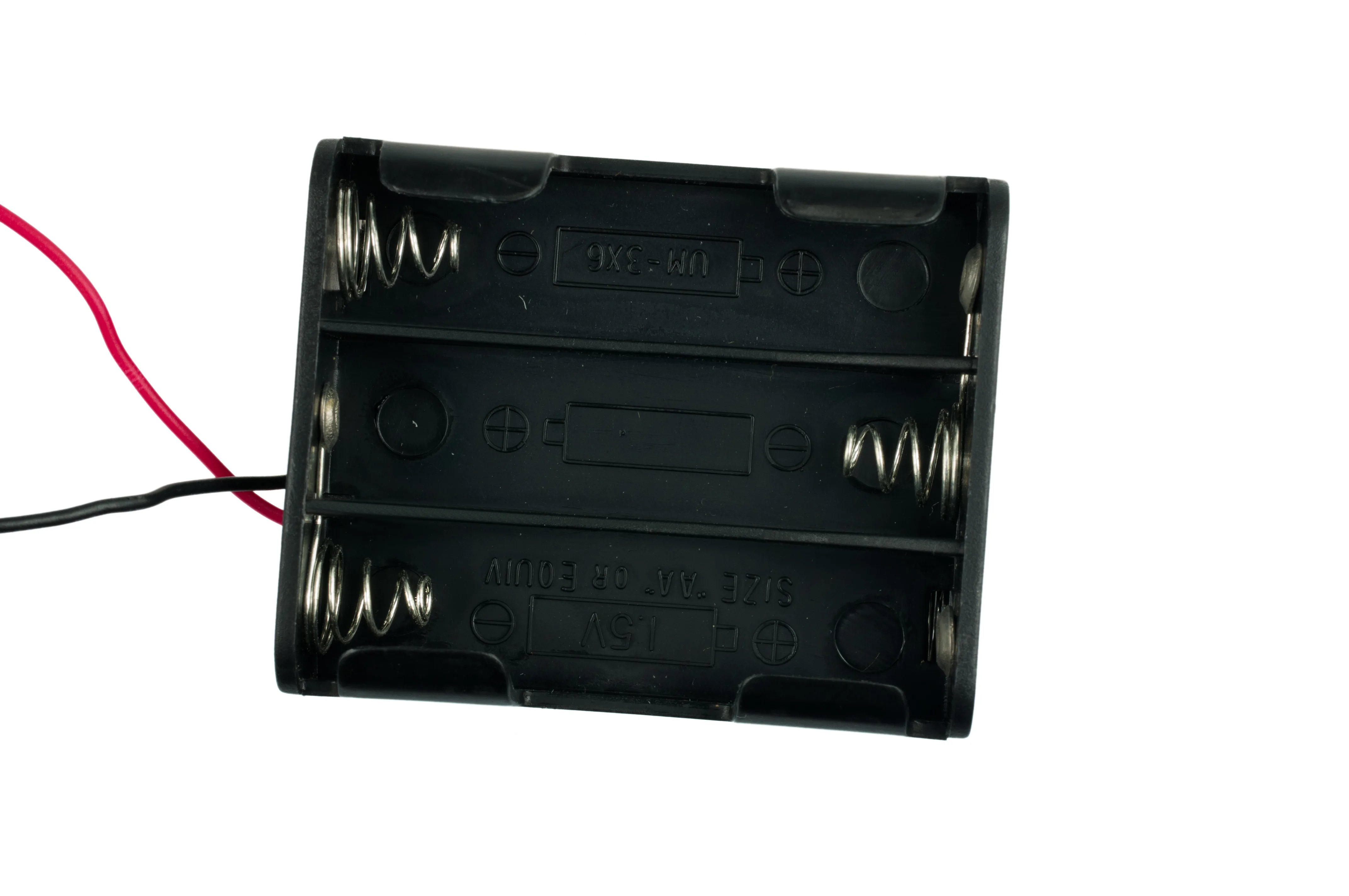

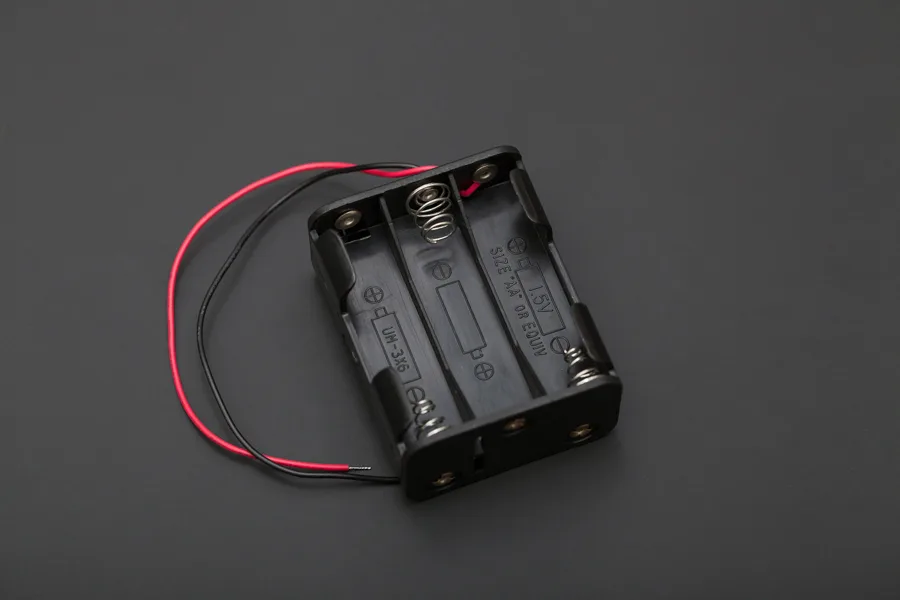

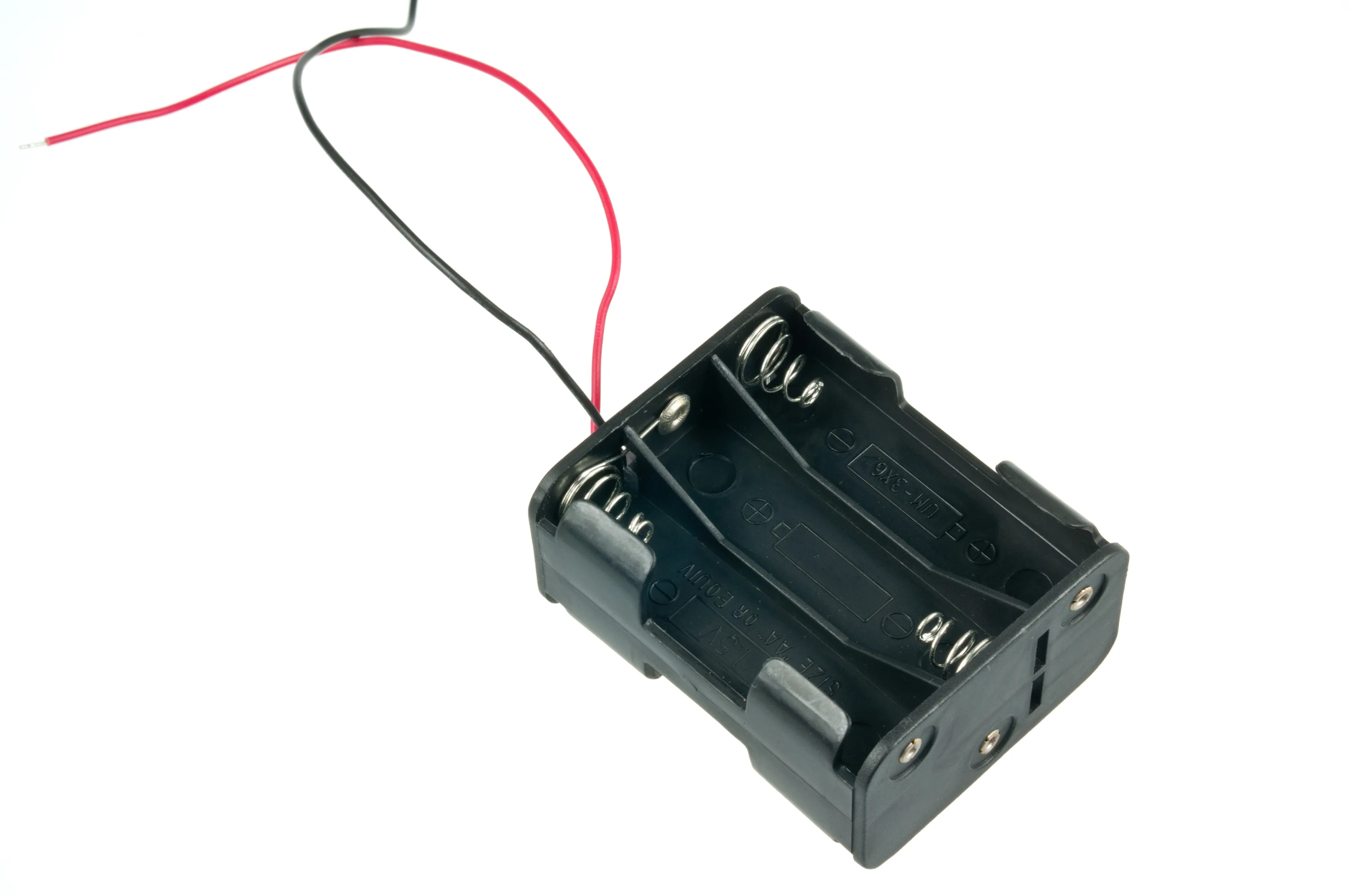

6xAA Battery Holder (Double Layer)

The 6xAA Battery Holder (Double Layer) is a compact power enclosure designed to house six standard AA cells in a space-saving stacked layout. It provides a versatile direct-current power source for robotics, embedded controllers, and student electronics projects. Depending on the chosen battery chemistry, it easily delivers either a 7.2V rechargeable supply or a standard 9V output.

Flexible voltage configuration

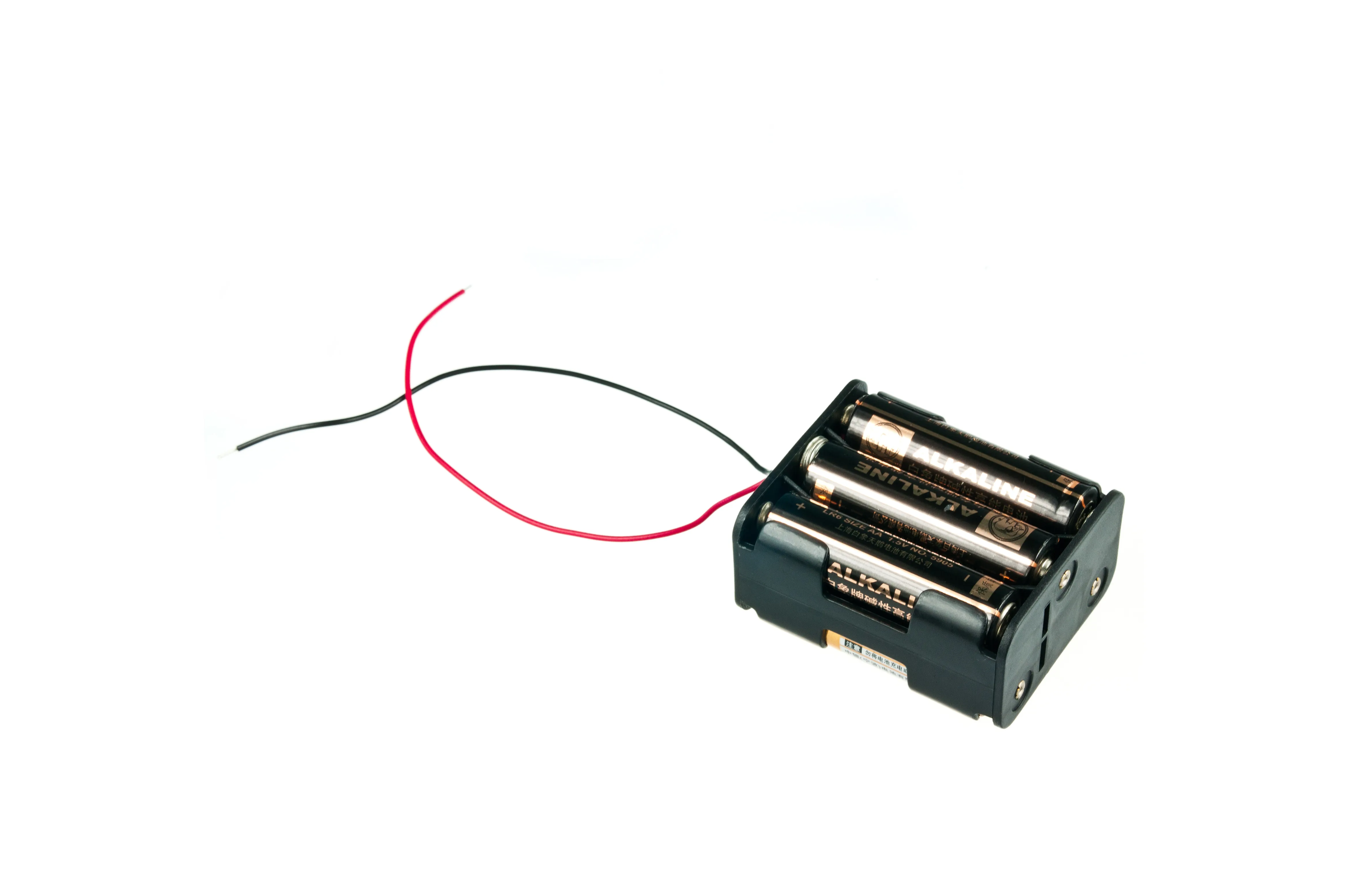

Installing rechargeable NiMH or NiCd cells provides a 7.2V power pack, whereas standard alkaline AA batteries yield a 9V output. This versatility allows you to power a wide range of microcontrollers, sensors, and motor drivers using common AA batteries.

Space-saving stacked layout

The double-layer enclosure arranges six AA batteries into a two-tier block, significantly reducing the horizontal footprint compared with flat single-row holders. This stacked design makes it easy to integrate into compact chassis and portable enclosures.

Integrated polarity-coded leads

Pre-attached 6-inch red and black wire leads provide clear polarity identification for simple wiring. They connect directly to breadboards, power distribution boards, or terminal blocks without requiring extra soldering.

Operating temperature specifications

The holder is rated for a maximum operating temperature of 80°C, with a nominal storage temperature of 25°C. This thermal tolerance ensures stable performance during continuous hardware testing and embedded prototyping.

Versatile prototyping applications

This holder suits small robotics platforms, portable electronic instruments, and classroom experiment kits. It provides reliable battery retention and consistent electrical contact for mobile devices and embedded controller power systems.
