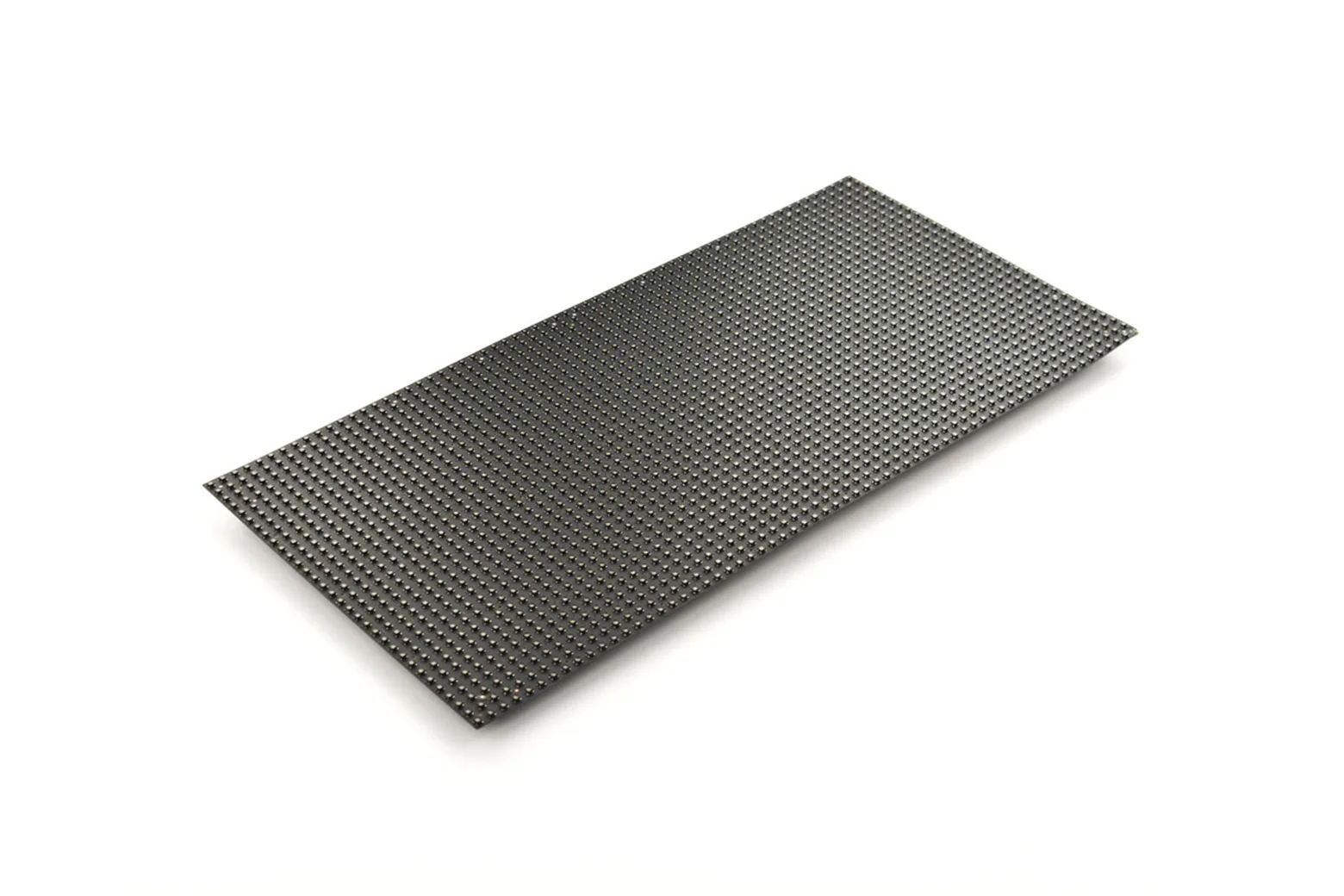

64x32 Flexible RGB LED Matrix (4mm Pitch)

The 64x32 Flexible RGB LED Matrix is a bendable display panel engineered for curved visual projects, wearable electronics, and custom signage. Featuring 2048 individually controllable LEDs at a 4mm pitch, it provides makers, students, and educators with a versatile platform for animations and graphics.

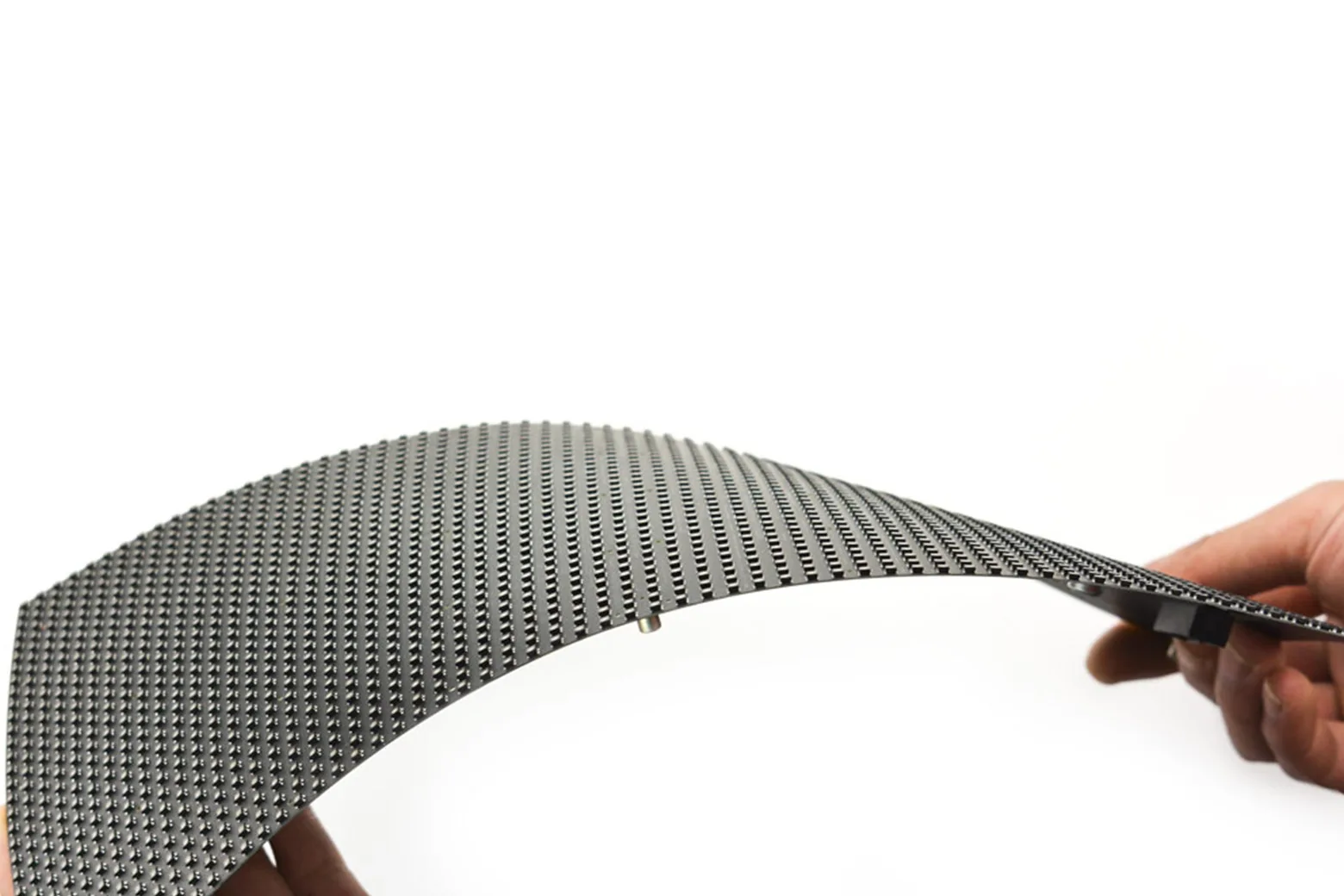

Bendable panel for curved designs

The flexible substrate allows the matrix to bend around cylindrical or irregular surfaces, making it ideal for non-flat installations and wearable builds.

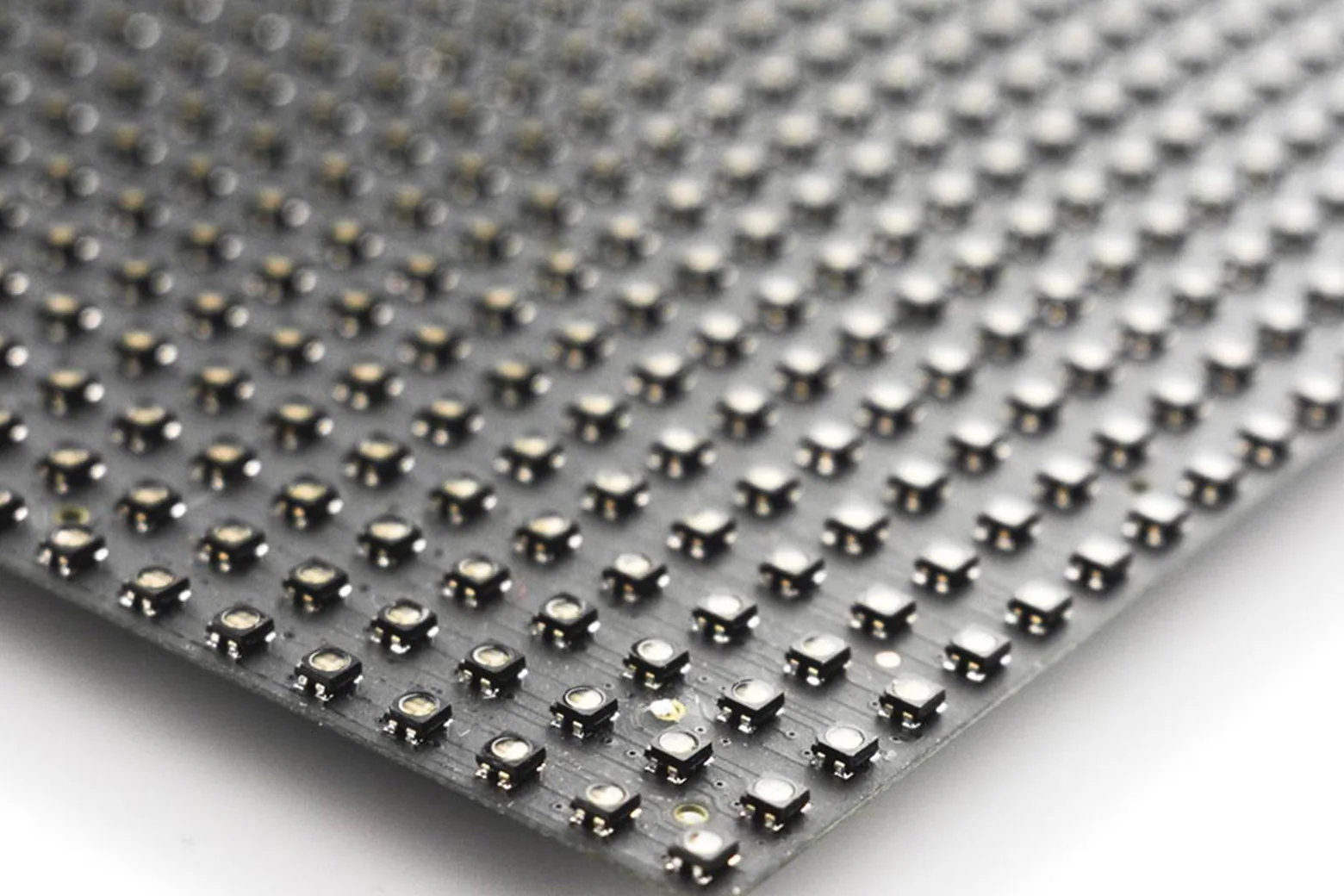

2048 individually controllable LEDs

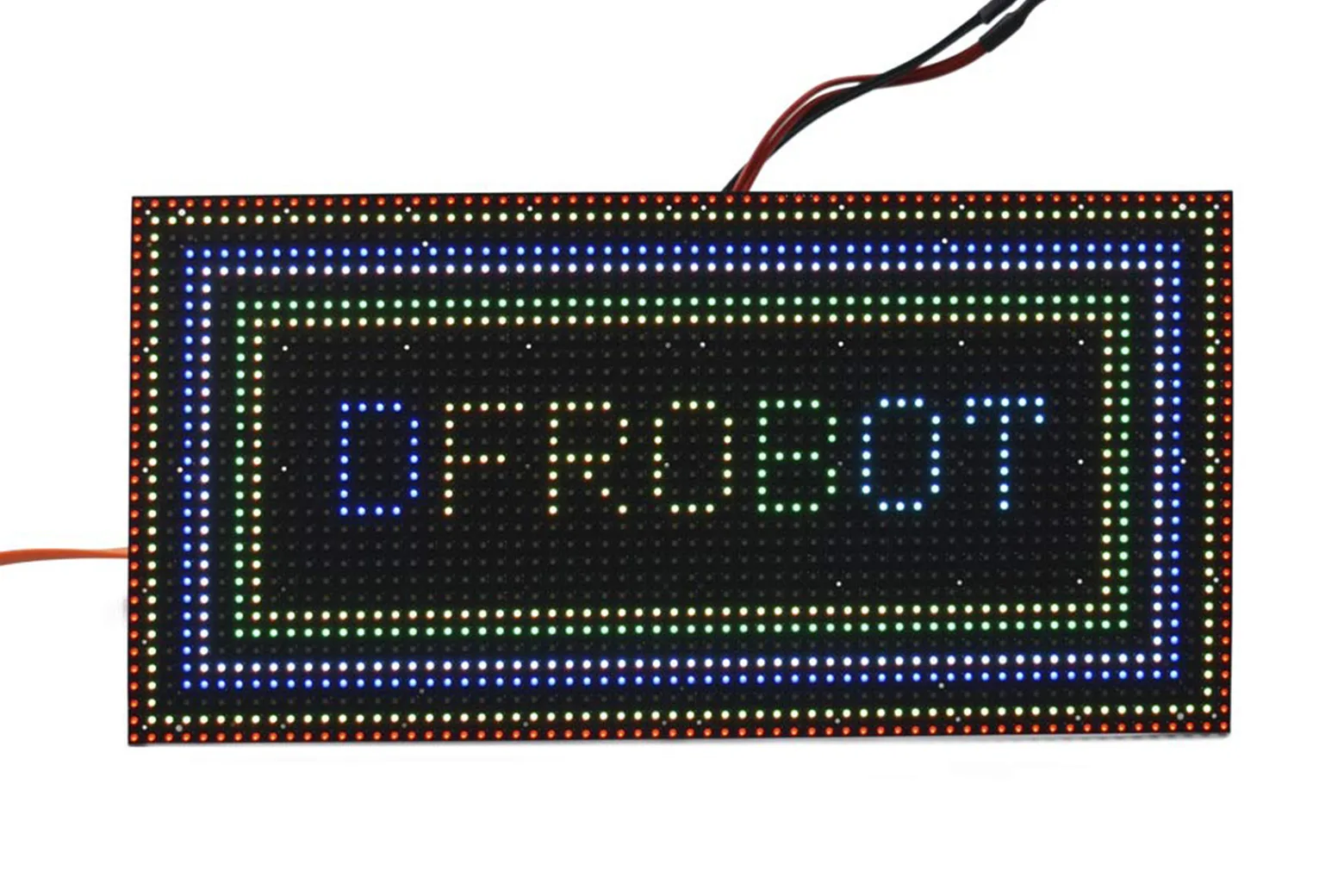

With a 64x32 grid layout, the panel packs 2048 full-colour RGB LEDs to display text, artwork, and custom animations.

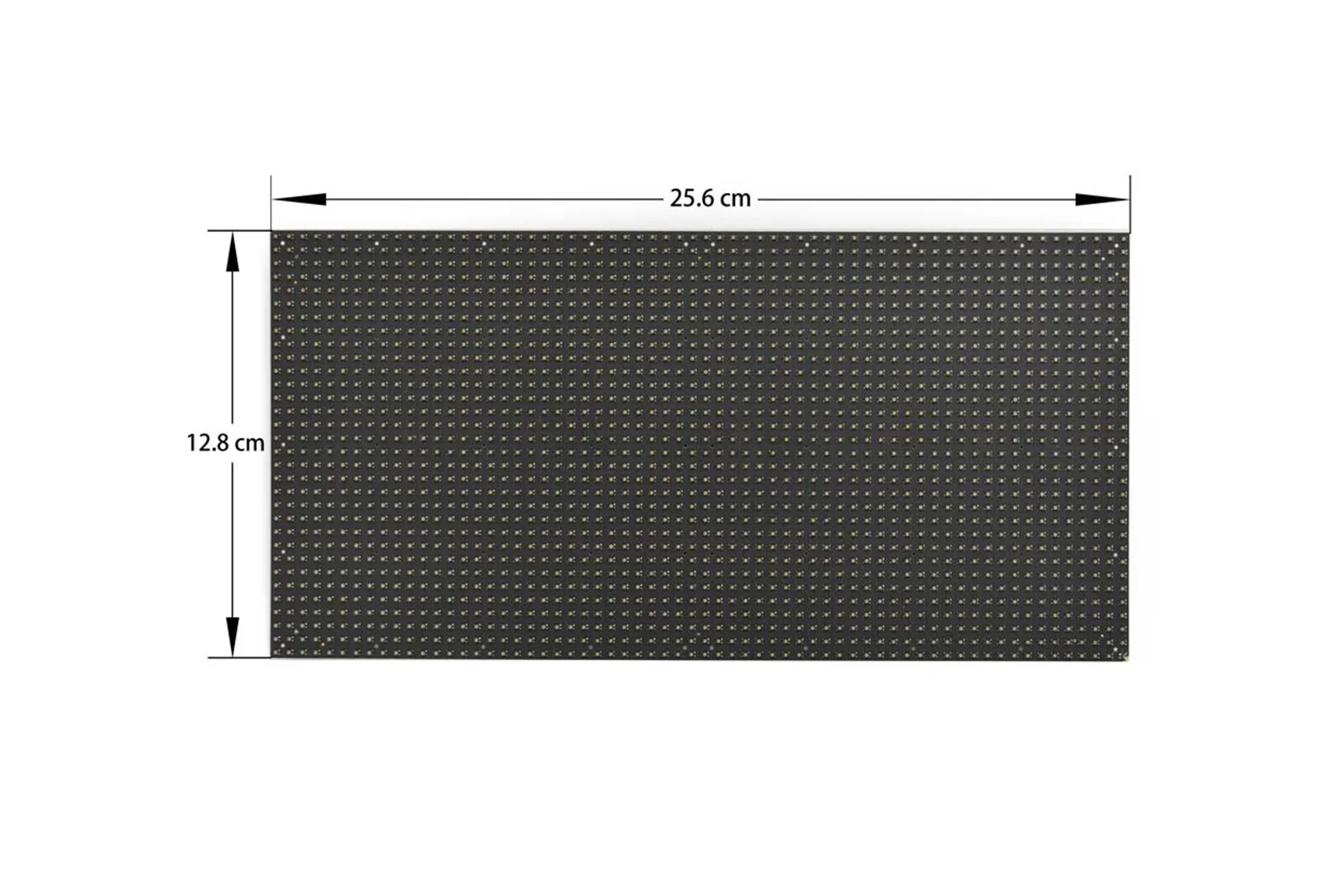

4mm pixel pitch clarity

The 4mm spacing between pixels offers clear, detailed visuals suitable for close to medium viewing distances.

Smooth 300Hz refresh rate

Operating at a refresh rate greater than 300Hz, the matrix delivers smooth animations and stable playback with minimal visual flicker.

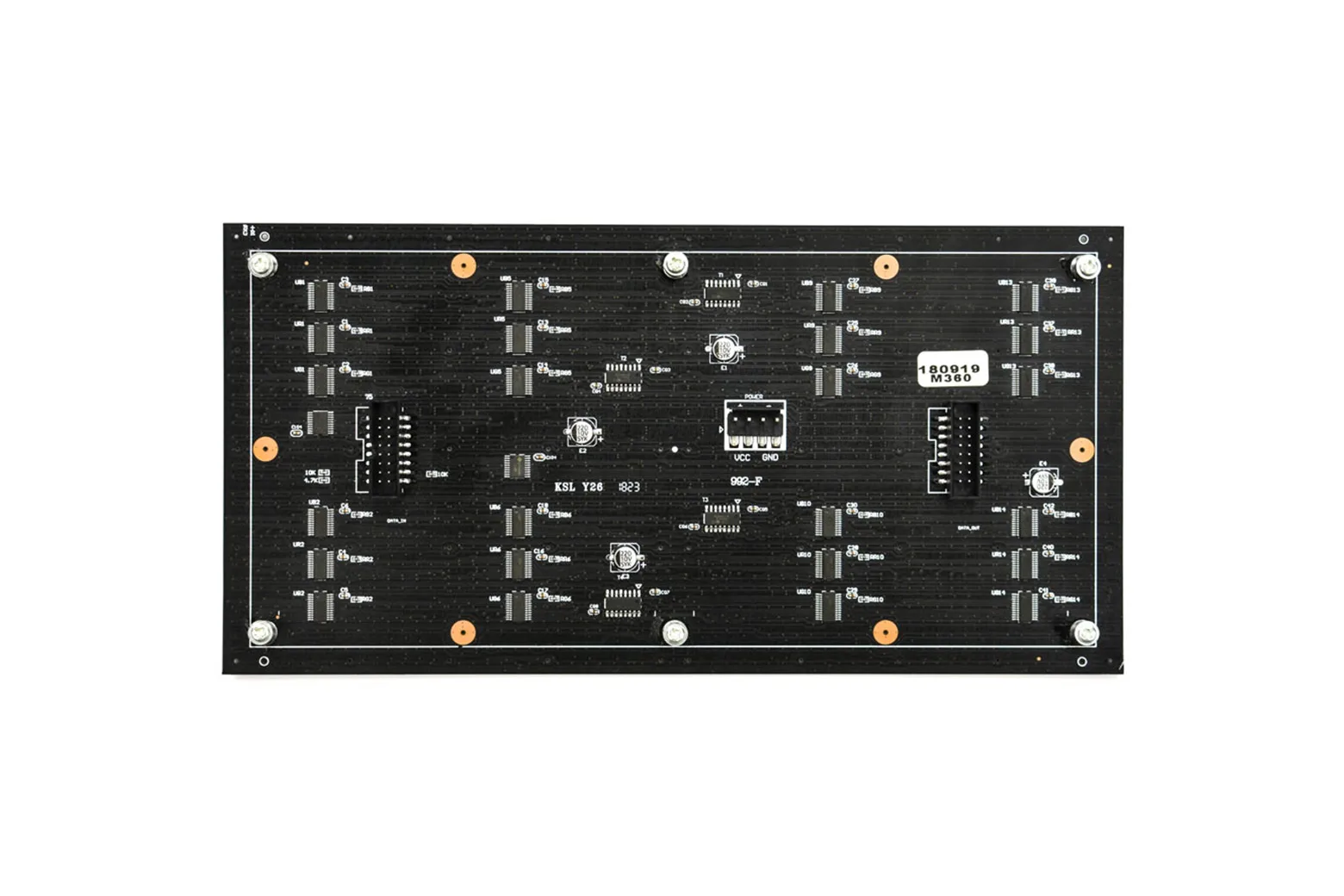

5V power and cascading connectors

Designed for standard 5V operation, the matrix includes cascading IDC connectors to simplify wiring and daisy-chaining multiple panels together.

Downloads & documentation

• Product wiki (DFRobot)
