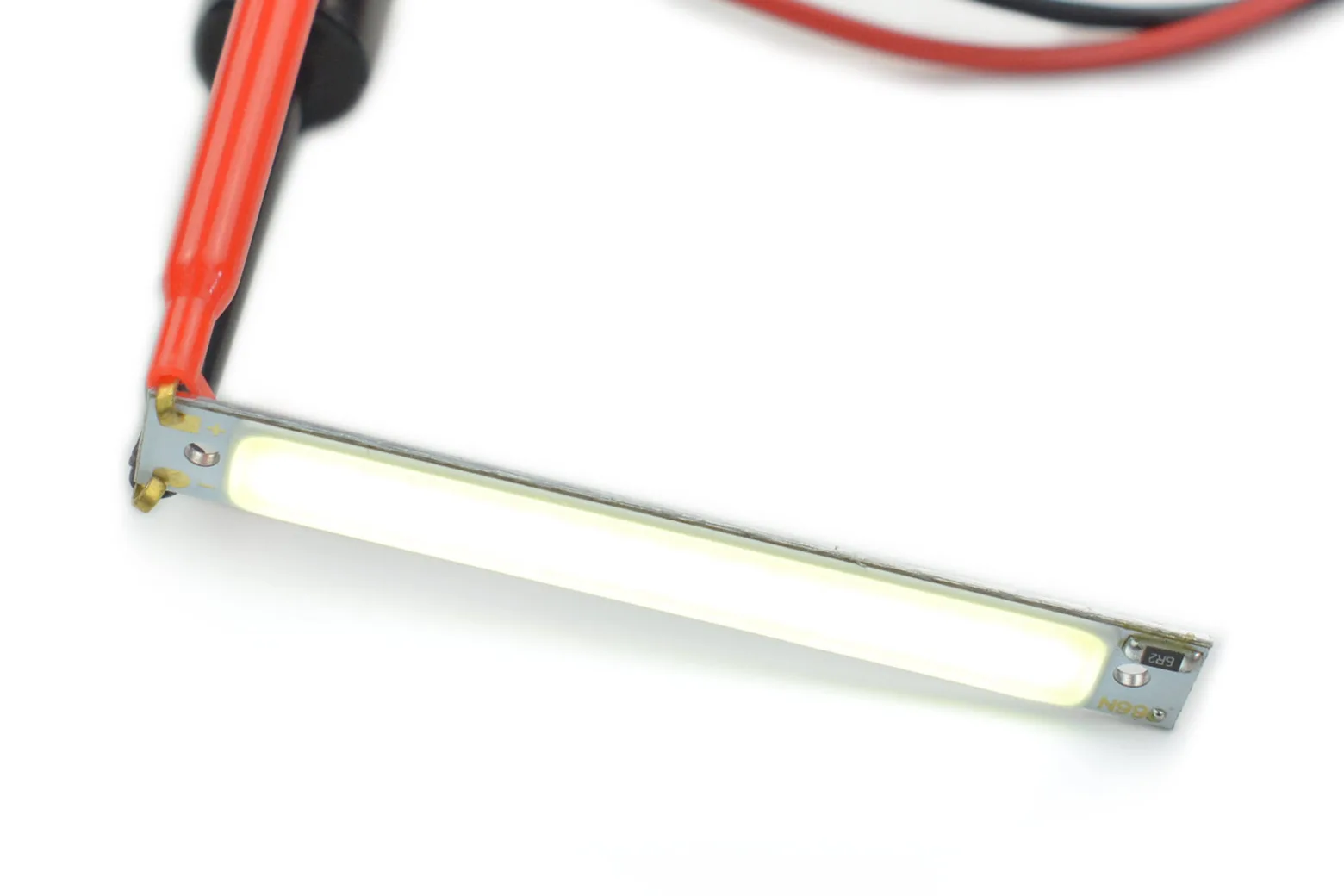

5V COB LED Strip Light - White

This 5V COB LED Strip Light delivers 300 lumens of shadow-free, 6500K white illumination from a compact footprint. Designed to run on a standard 5V DC supply, it is ideal for makers, hobbyists, and students building custom battery-operated lighting, scale models, and cabinet displays.

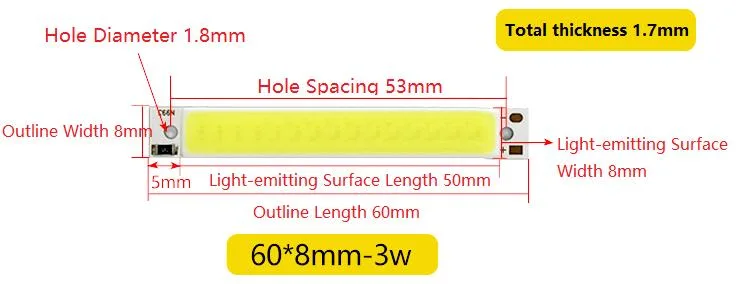

Compact form factor and dimensions

The LED strip measures just 60 x 8 x 1.7 mm, making it easy to embed into tight enclosures or small craft projects. It includes a dedicated 70 x 20 x 3 mm aluminium heat sink for thermal dissipation.

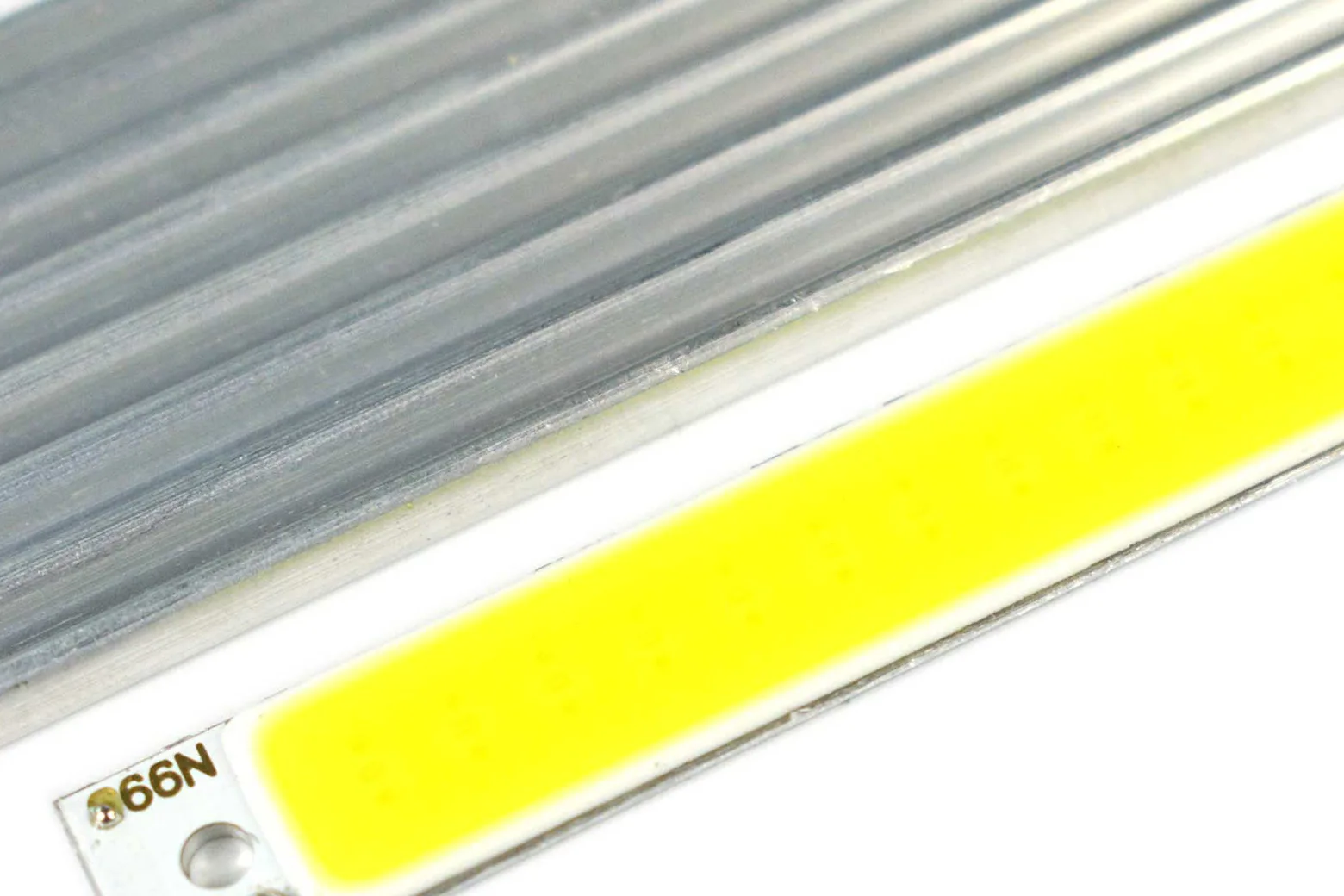

Uniform and shadowless COB illumination

Packed with 16 LEDs under a protective silicone encapsulation layer, the strip provides smooth, even 6500K white light without harsh individual diode spots or shadows. The silicone coating also safeguards the internal chips for extended service life.

Convenient 5V power requirements

Operating on DC 5V with a 600mA working current, this 3W strip can be powered via power banks, USB sources, or microcontrollers. This wide compatibility makes it well-suited for portable and battery-operated lighting designs.

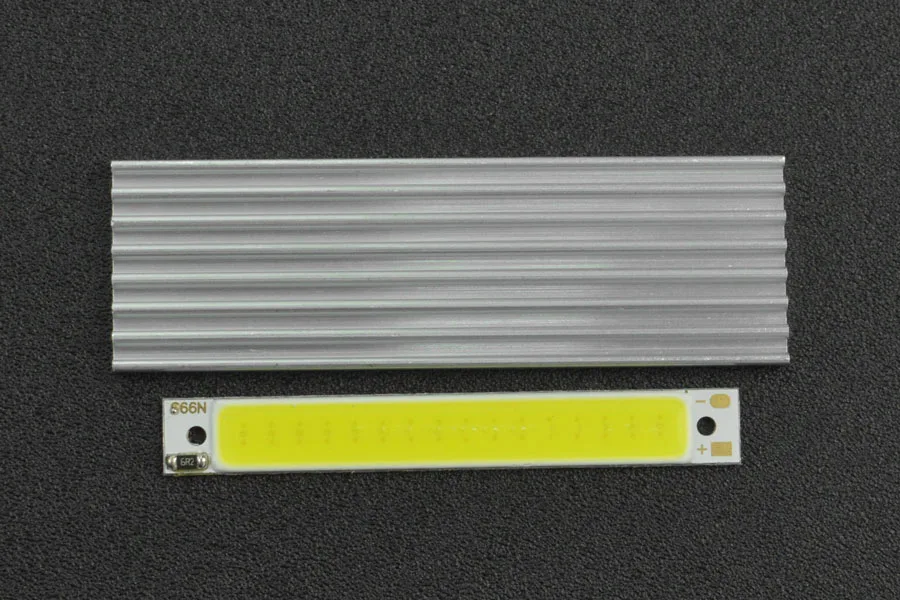

Flexible series and parallel wiring

The strip features solderable contact pads that allow multiple units to be connected in series or parallel. This gives you the flexibility to adapt the lighting layout to larger installations like bookshelves, stairs, and wardrobes.

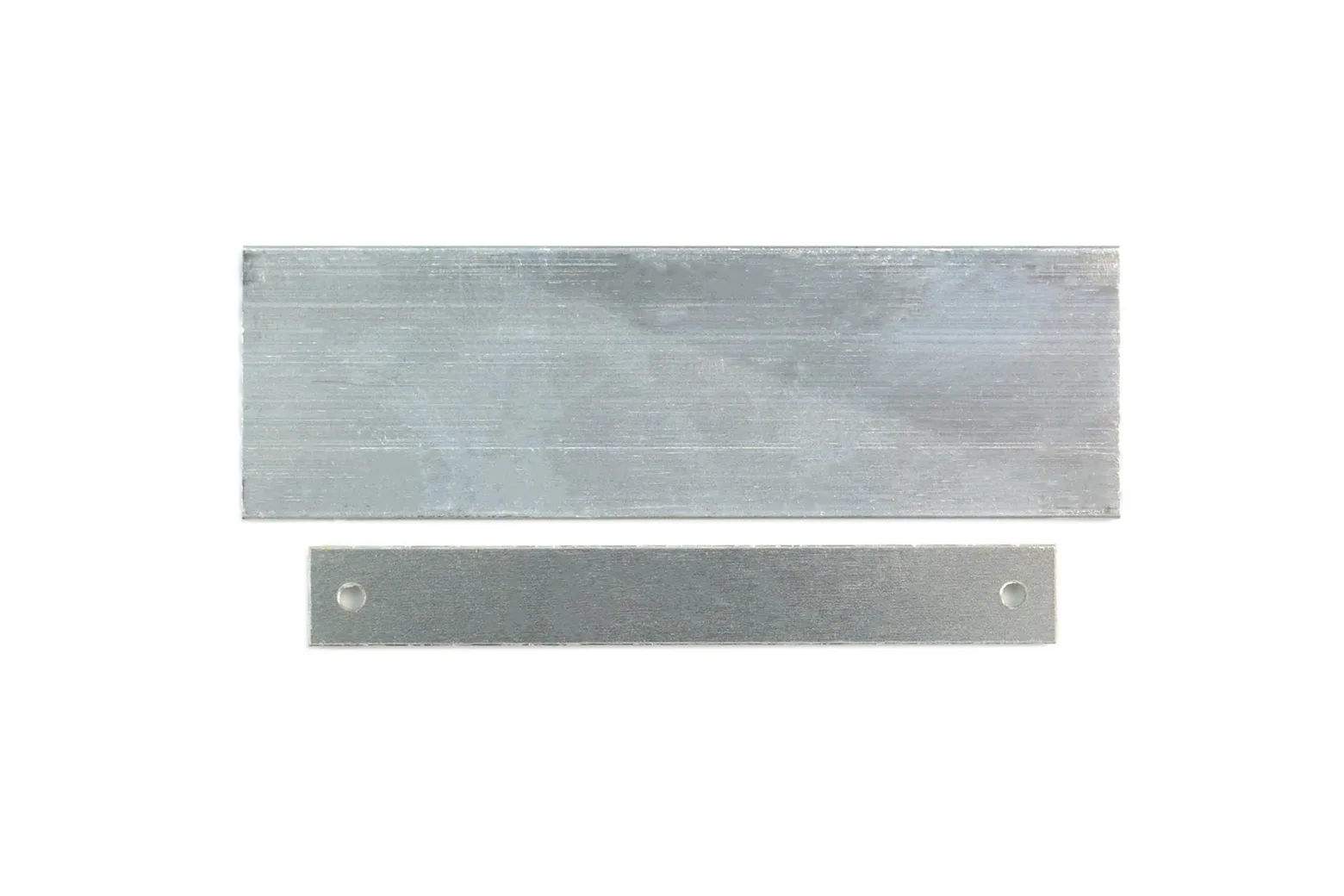

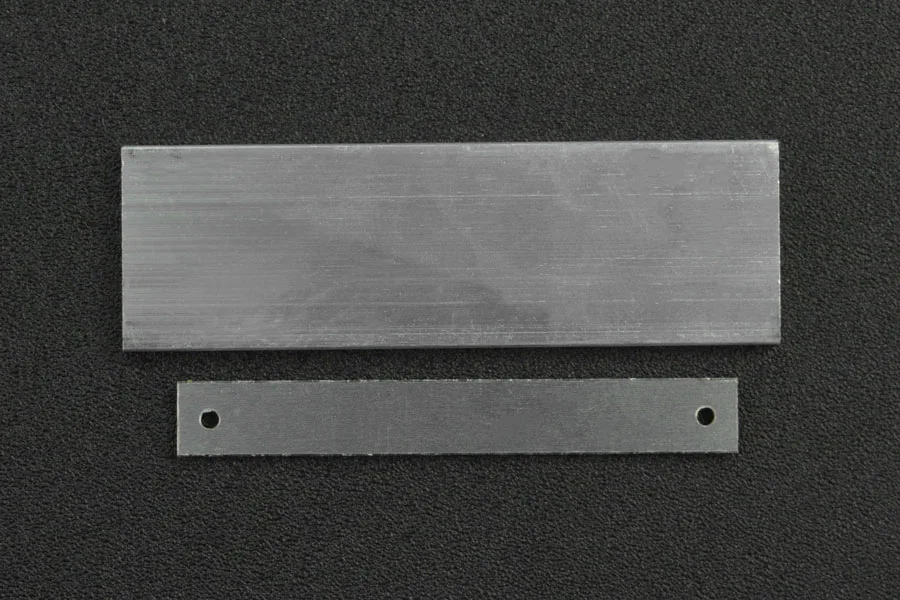

Thermal protection with included heat sink

Because COB LED strips generate heat during normal operation, the module should be adhered to an aluminium plate for long-term use. Mounting it on the included heat sink prevents light decay and extends the lifespan of the LED beads.

What is in the box

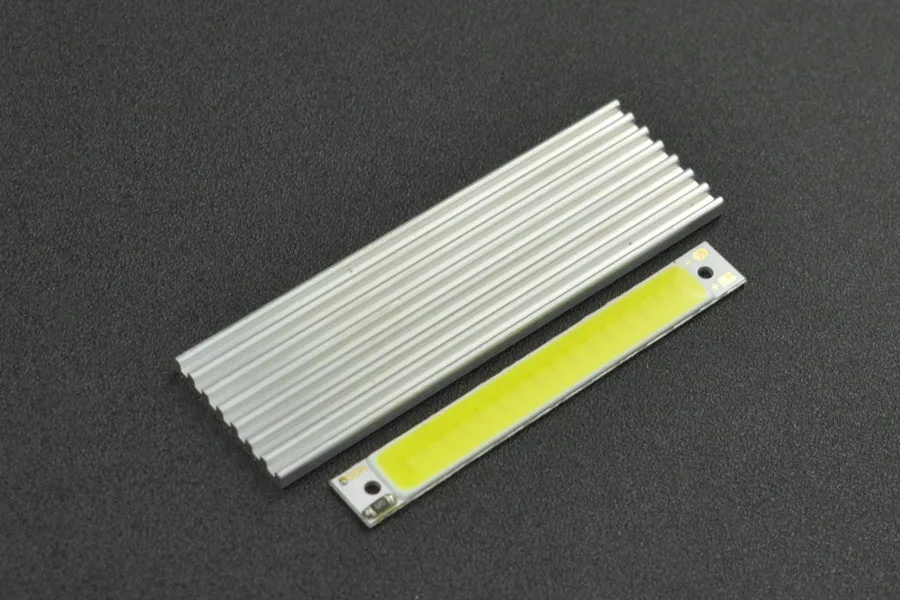

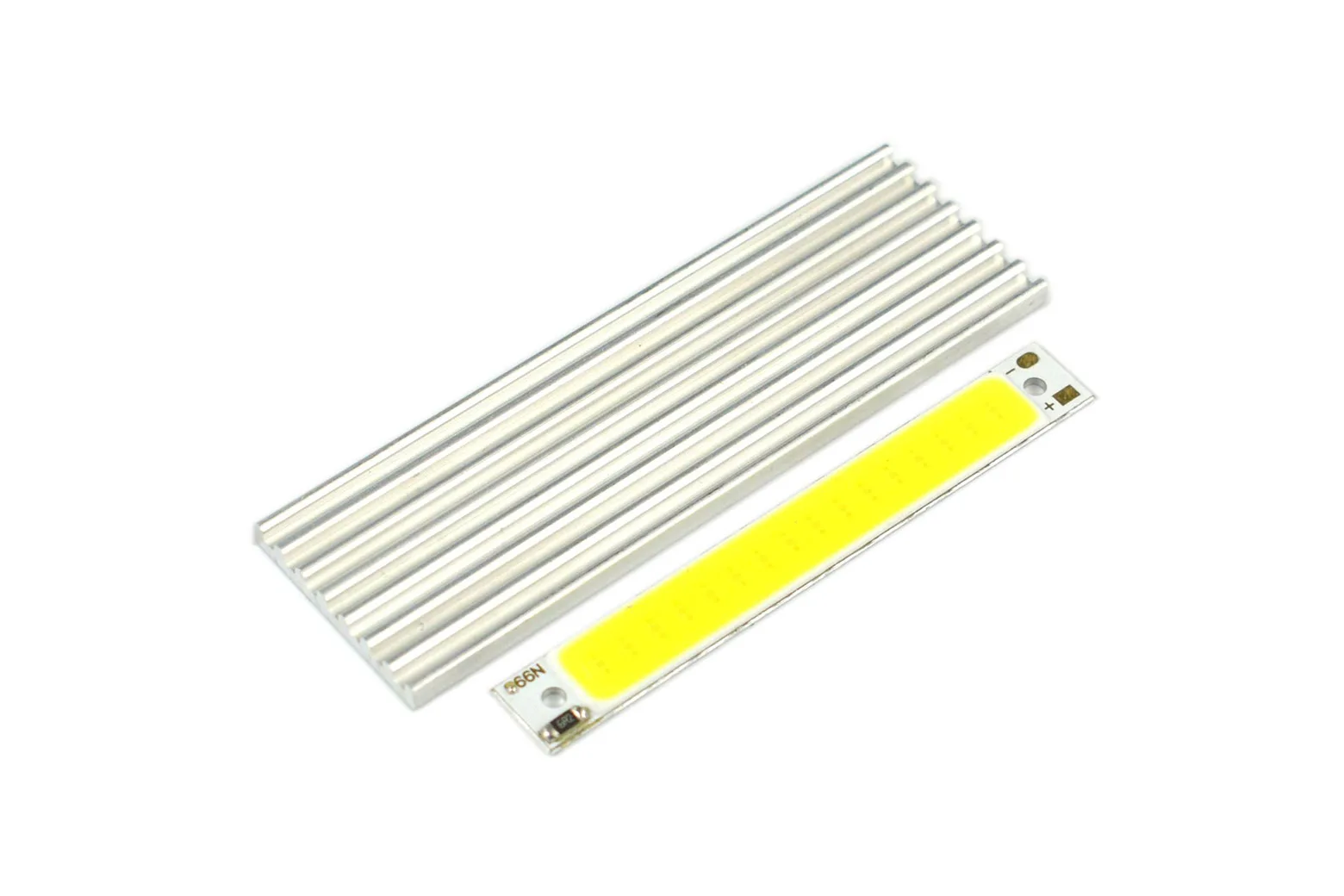

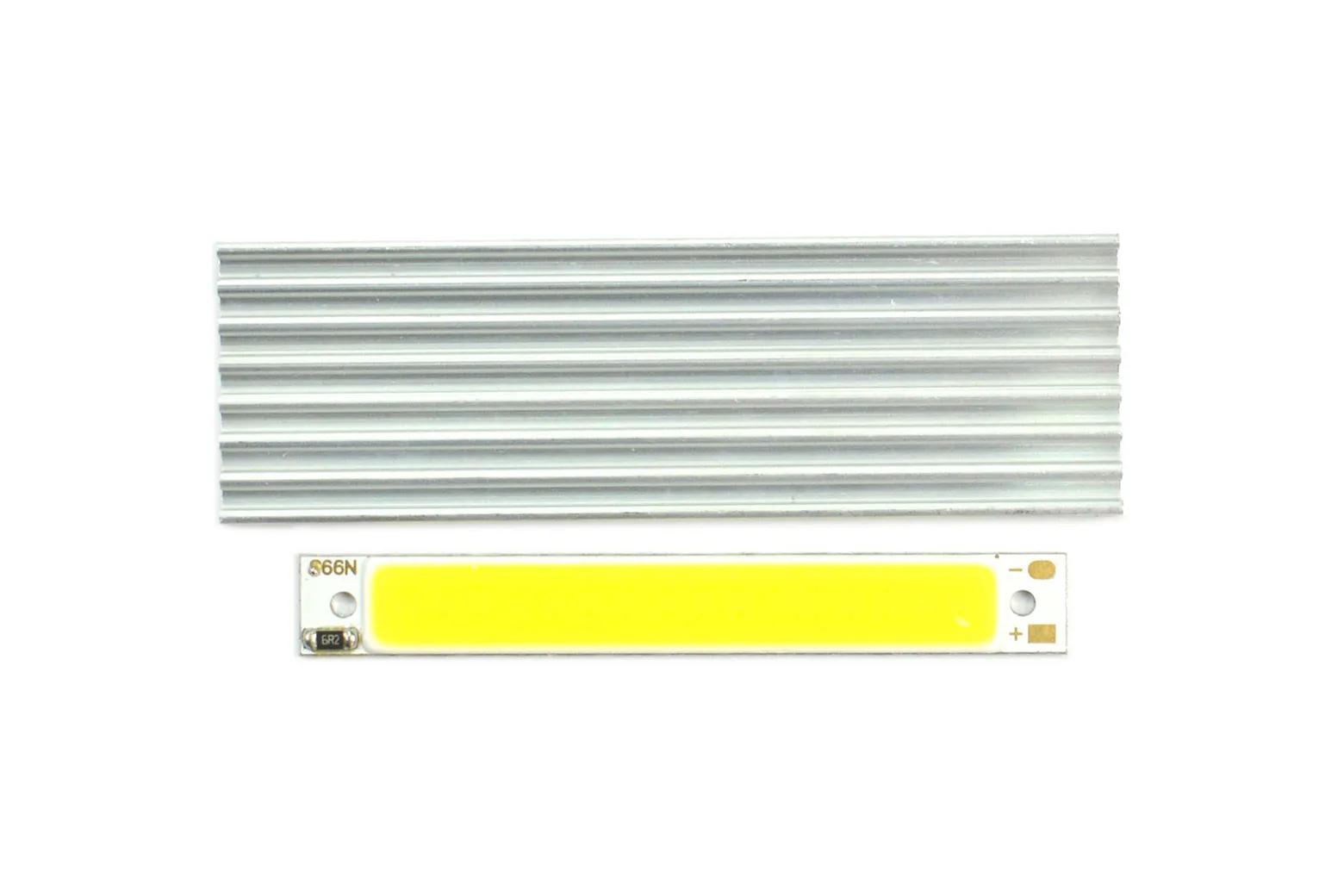

The package includes one 5V COB LED strip light in 6500K white and one matching aluminium heat sink.
