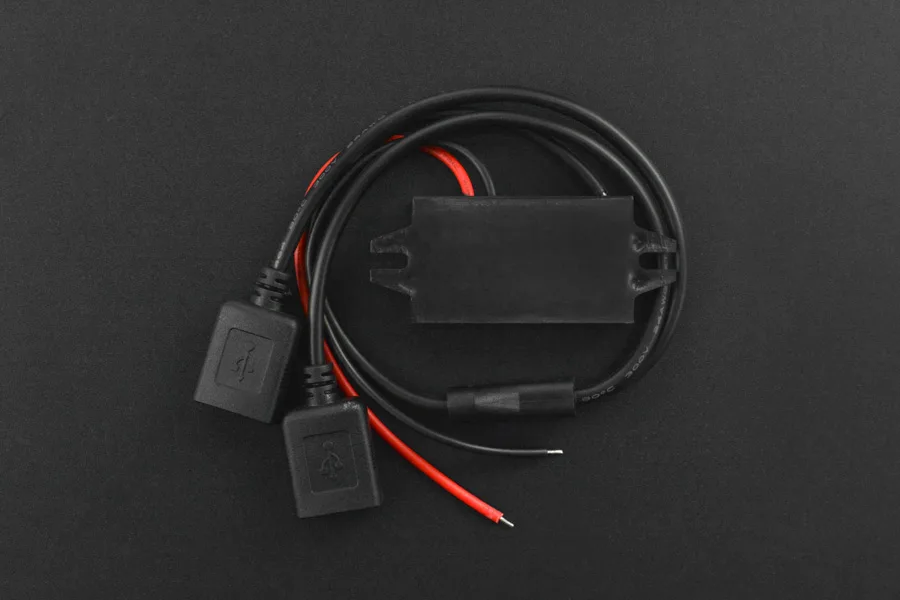

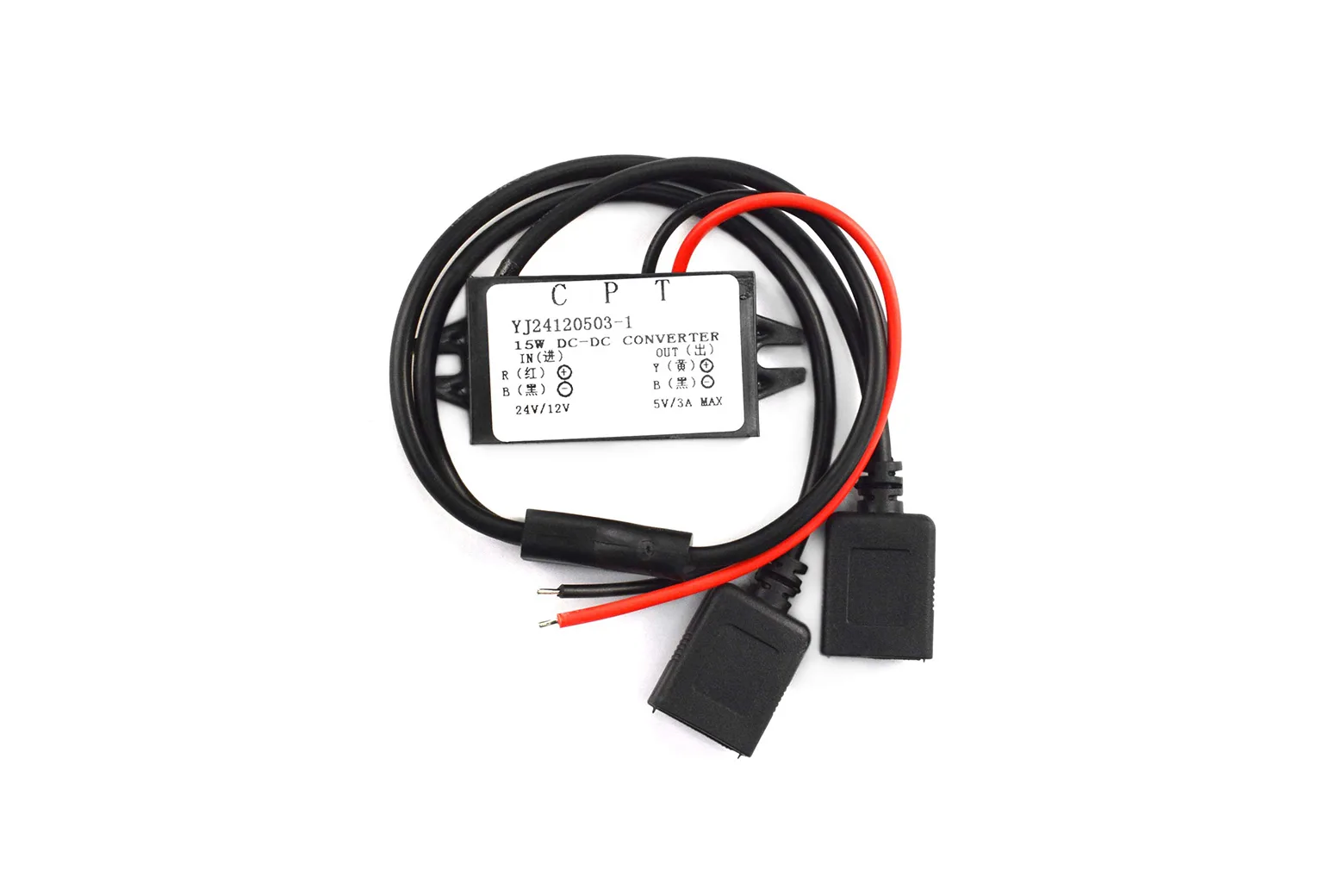

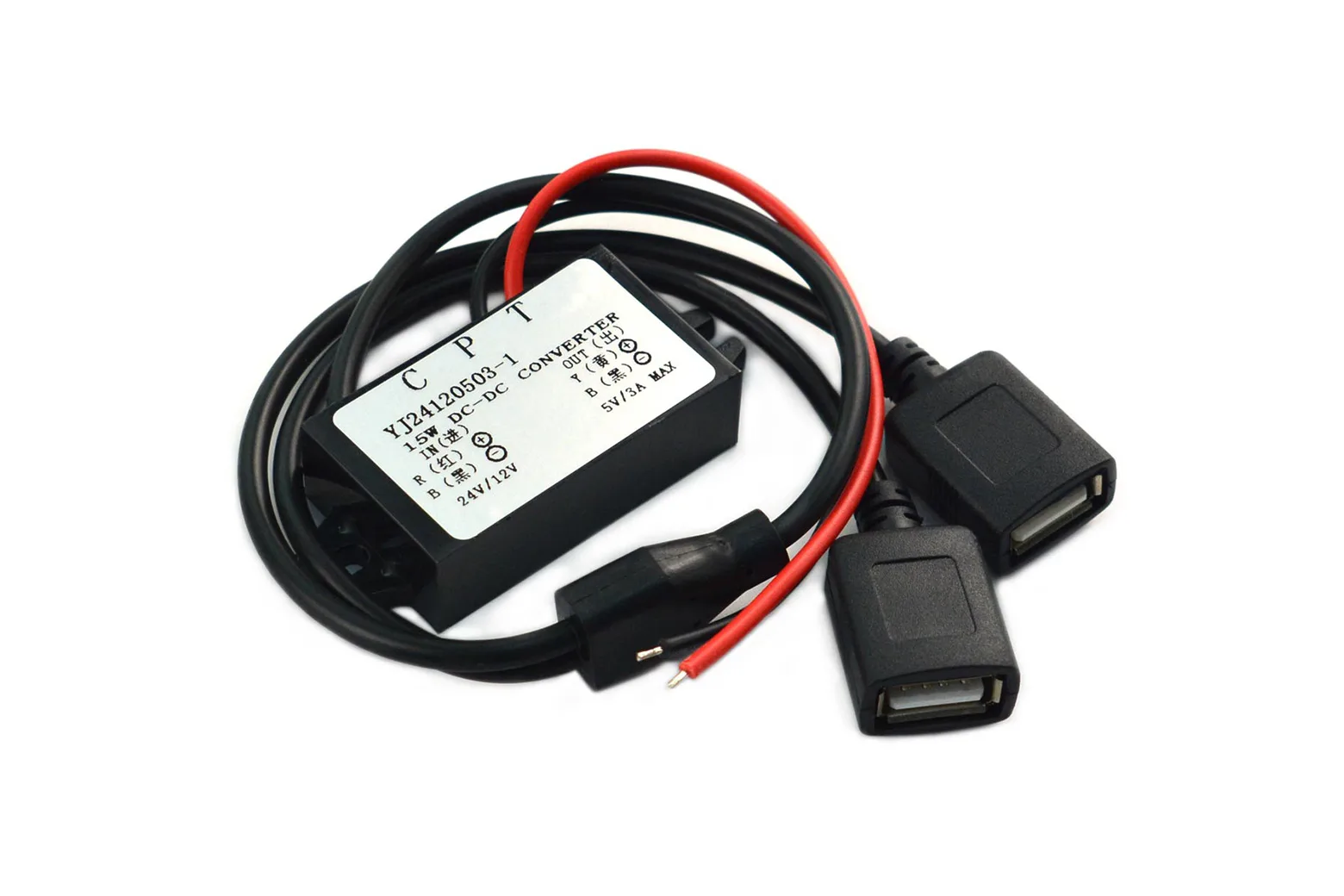

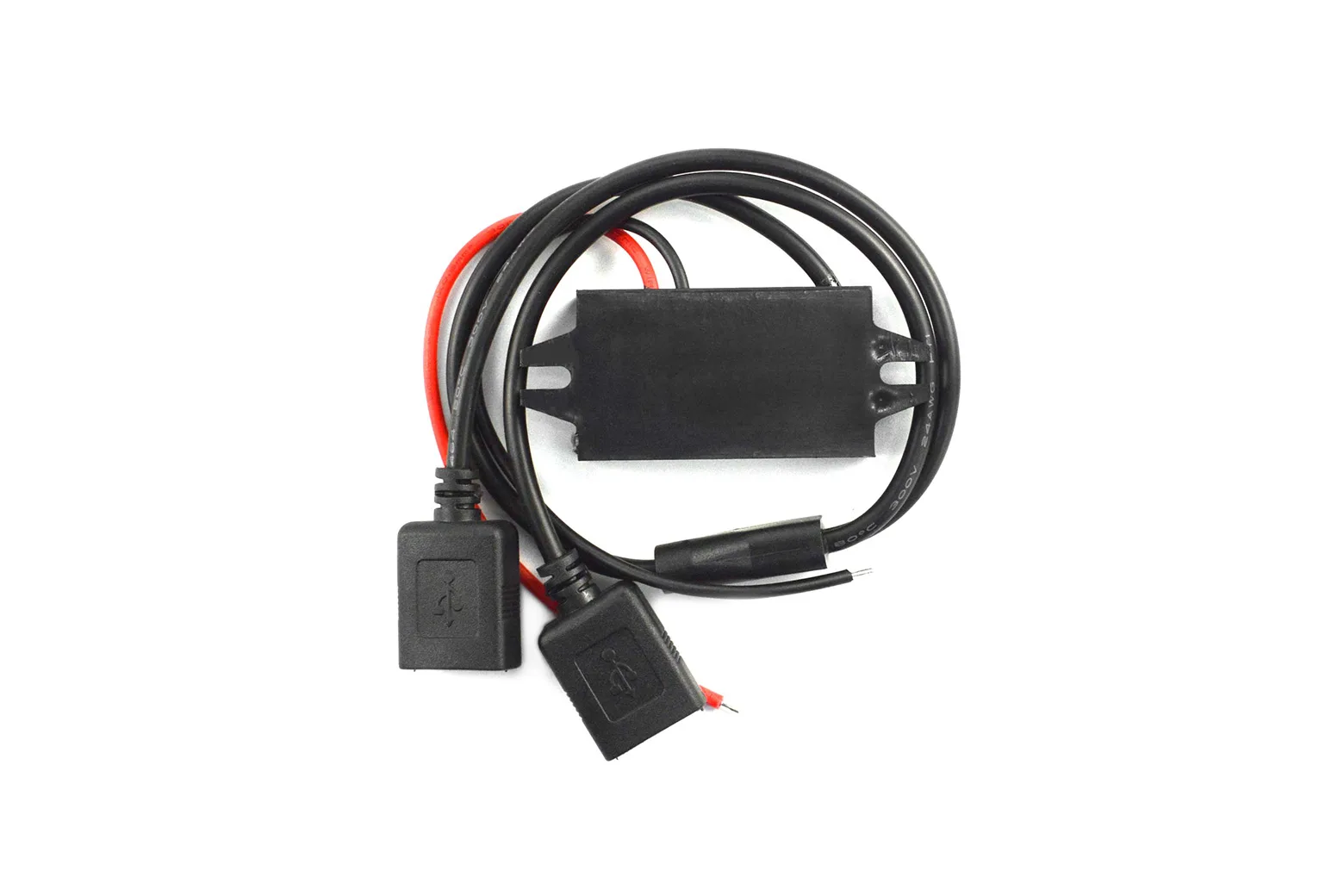

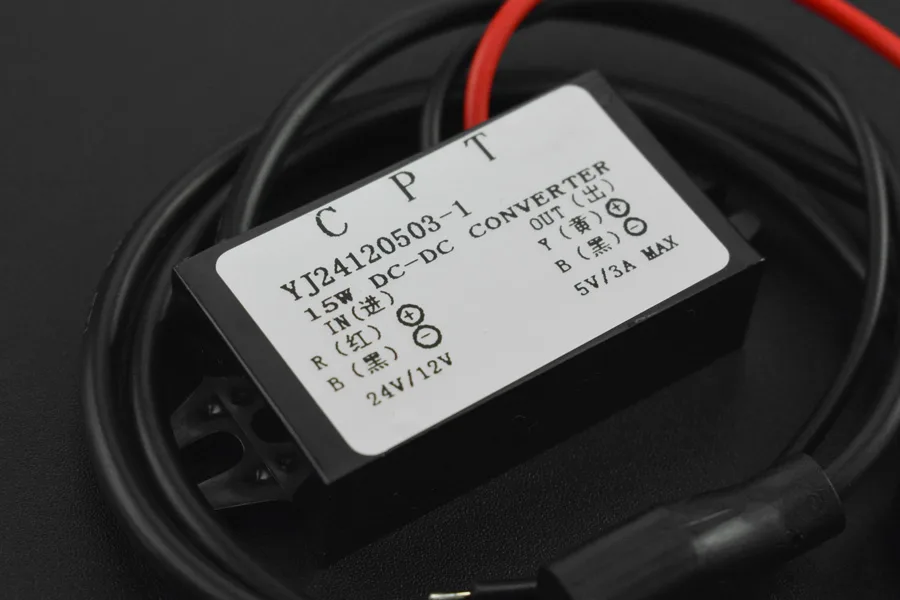

5V 3A Dual USB Step Down Buck Converter Module
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
The 5V 3A Dual USB Step Down Buck Converter Module converts a DC input voltage into a stable 5V output across two USB ports. It is well suited for makers, educators, and hobbyists building robot projects, smart home devices, and custom mobile power sources.

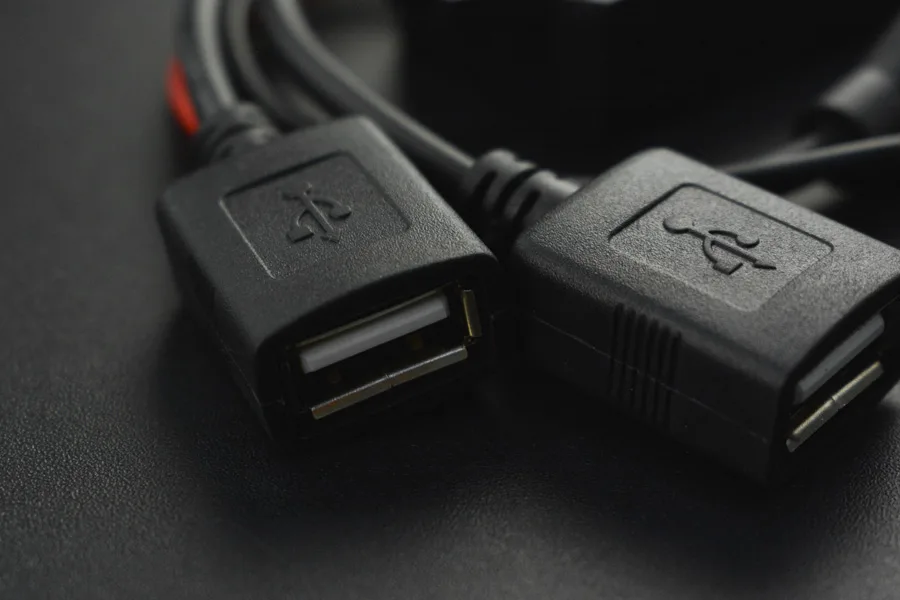

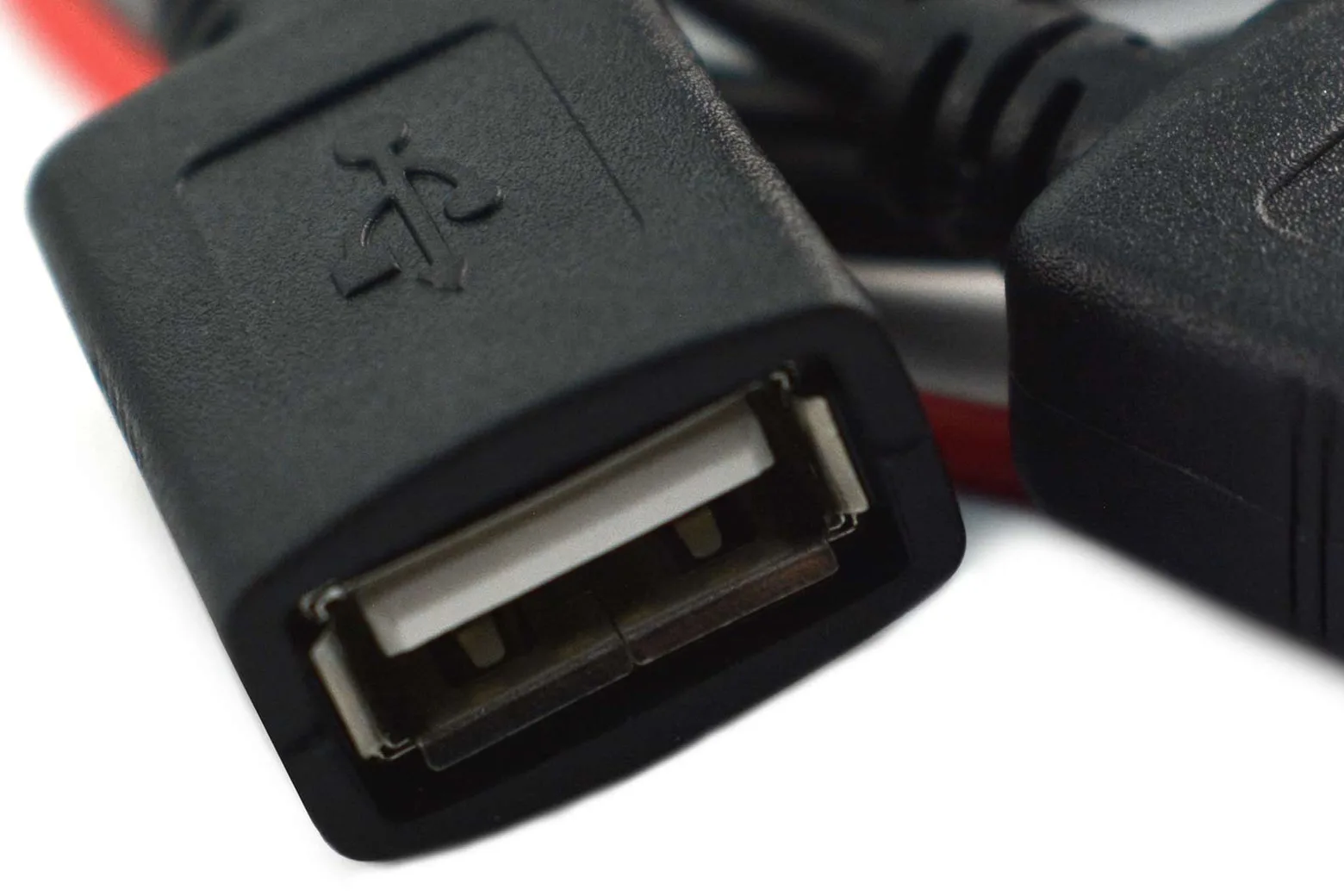

Dual simultaneous USB outputs
Equipped with two standard USB ports, this step-down module supplies a concurrent 5V 3A output. It supports all standard 5V microcontrollers and external peripherals.

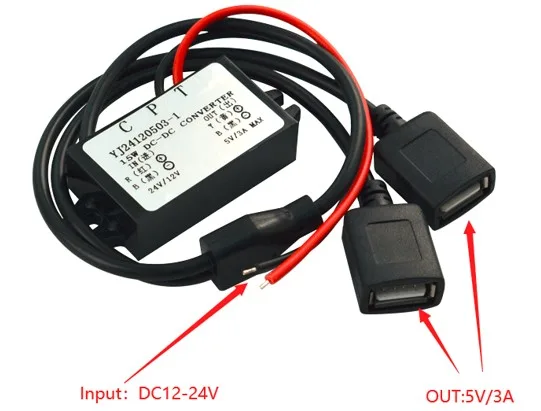

Stable voltage for continuous operation
The converter delivers a steady output with a 5.1±5%V no-load voltage rating and operates for long periods without voltage drift. This makes it dependable for sensitive controller boards and continuous automation projects.
Integrated safety and overload protection
The board features built-in reverse connection protection along with overload protection. If the current draw on any output port exceeds 3.5A, the module automatically switches off to safeguard connected equipment.
Efficient power conversion
Achieving greater than 85% conversion efficiency, the buck circuit maintains low operating temperatures with effective heat dissipation. It also features an idle static power consumption of 5mA or less.
Input range and environmental tolerance
The module accepts a 12V to 24V DC input and operates in environmental temperatures ranging from -25°C to 65°C with 0 to 95% relative humidity.
What is in the box
The package includes one 5V 3A Dual USB Step Down Buck Converter Module.
Specifications
| Input Voltage Range | 12V-24V |
| No-load Voltage | 5.1±5%V |
| Maximum Output Current | 3A |
| Conversion Efficiency | >85% |
| Static Power Consumption | ≤5mA |
| Working Environment Temperature | -25~65℃ |
| Working Environment Humidity | 0~95%RH |
In the box
| 5V 3A Dual USB Step Down Buck Converter Module | 1 |
