5.5'' HDMI OLED-Display with Capacitive Touchscreen for Raspberry Pi

This 5.5-inch full HD AMOLED display module features an integrated capacitive touchscreen with 10-point multi-touch and a 1920x1080 resolution. Driven via HDMI and powered directly over USB without proprietary drivers, it provides a vivid, responsive interface for Raspberry Pi and single-board computer projects. It is well suited to makers, educators, and hobbyists building compact kiosks, portable consoles, and embedded control panels.

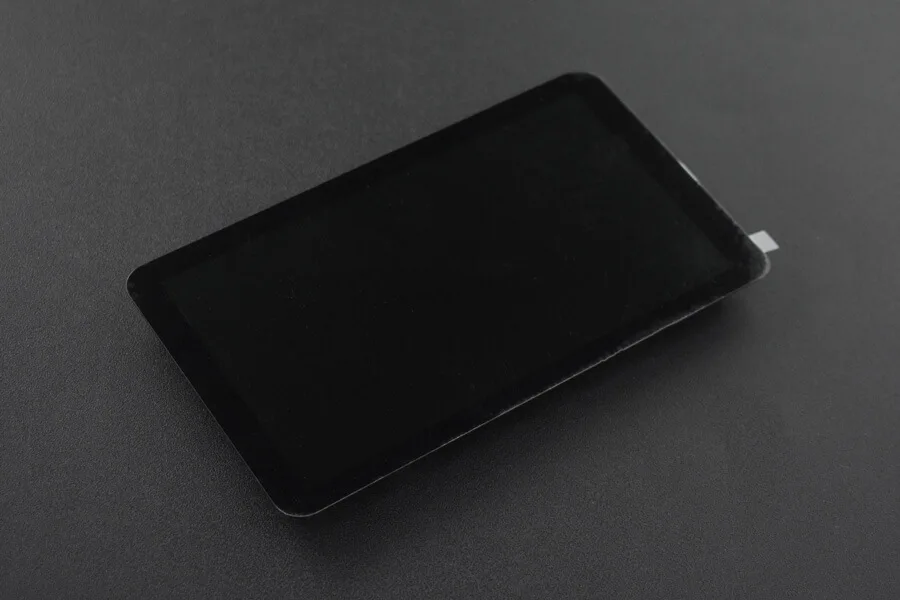

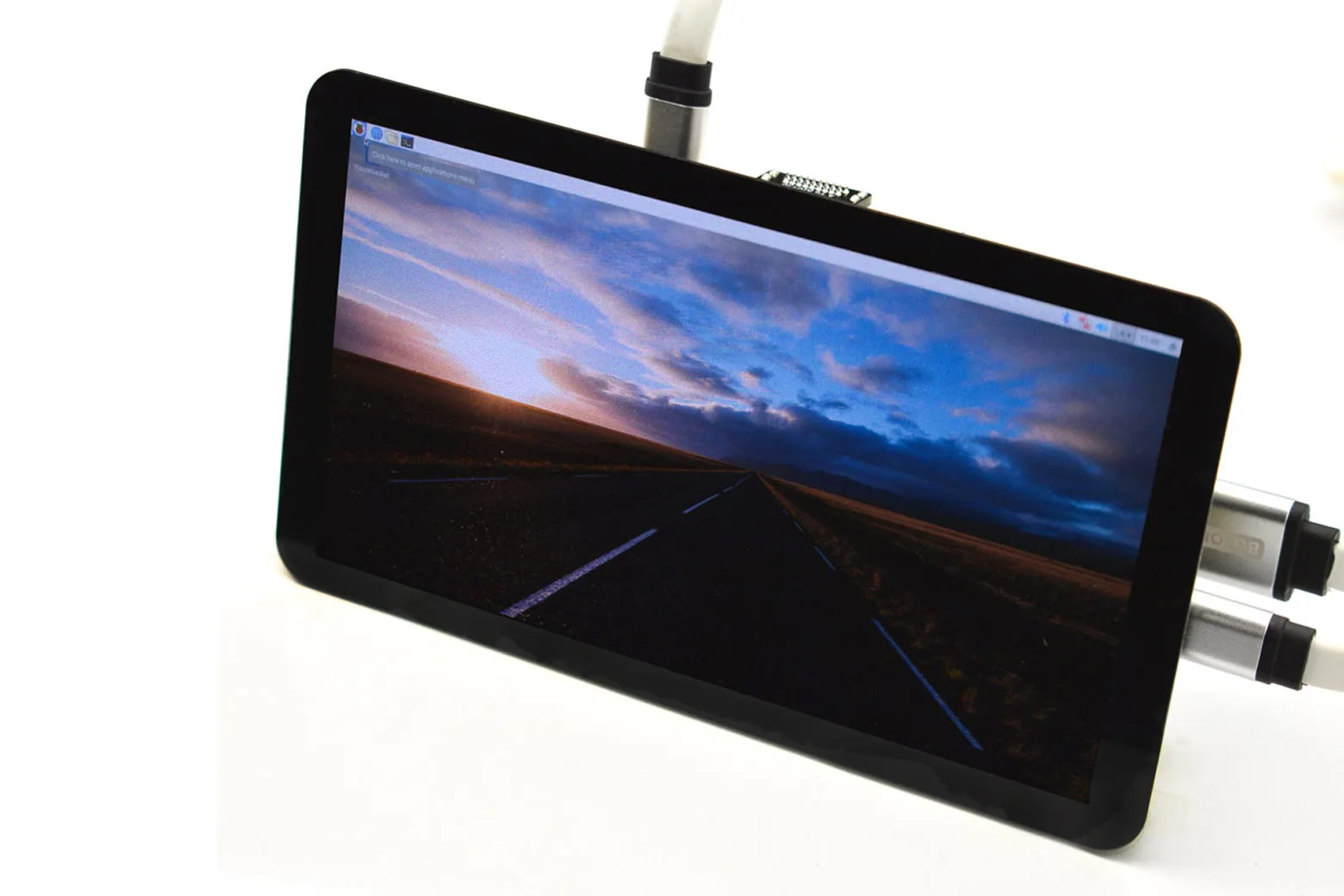

Crisp Full HD AMOLED visual output

The module delivers a sharp 1920x1080 resolution across a 5.5-inch AMOLED panel with an active display area of 68.3 mm by 121.42 mm. Backlight brightness can be controlled directly through host software for comfortable viewing across different lighting conditions.

Ten-point driver-free touch interface

The integrated capacitive touch panel detects up to 10 simultaneous touch points for multi-touch gestures. It connects via Micro-USB and functions as a standard plug-and-play input device without the need to install additional drivers.

Direct Raspberry Pi mounting

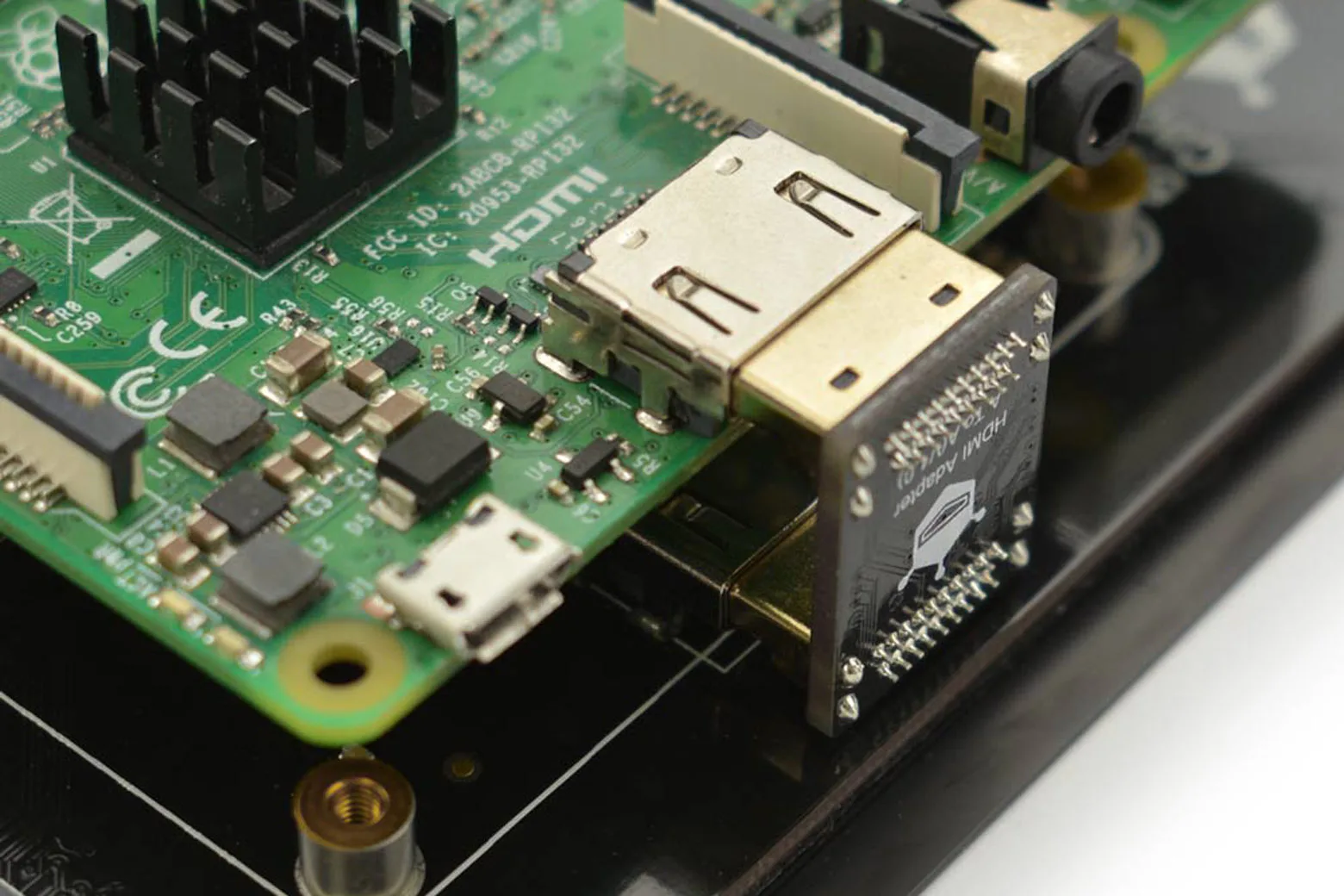

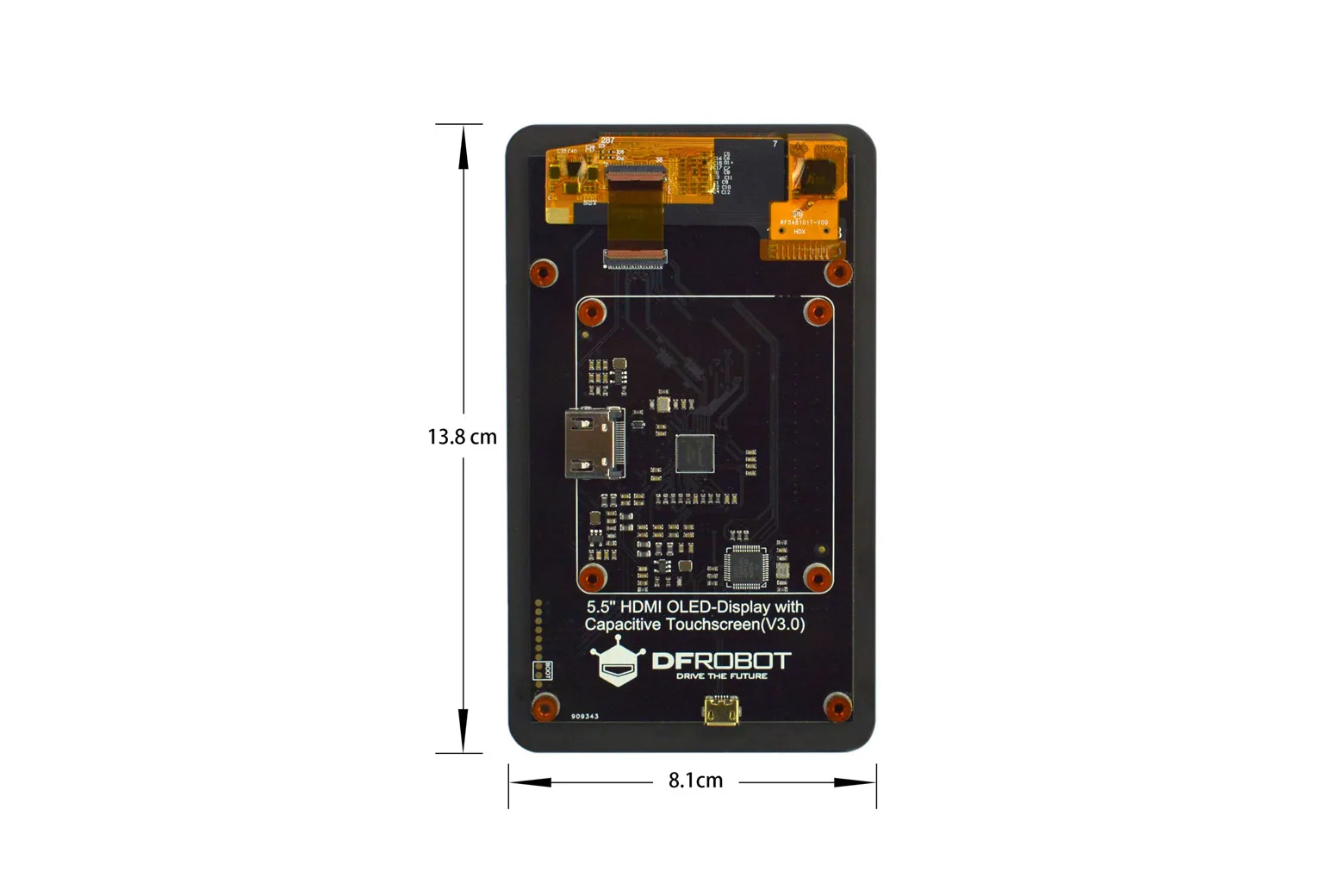

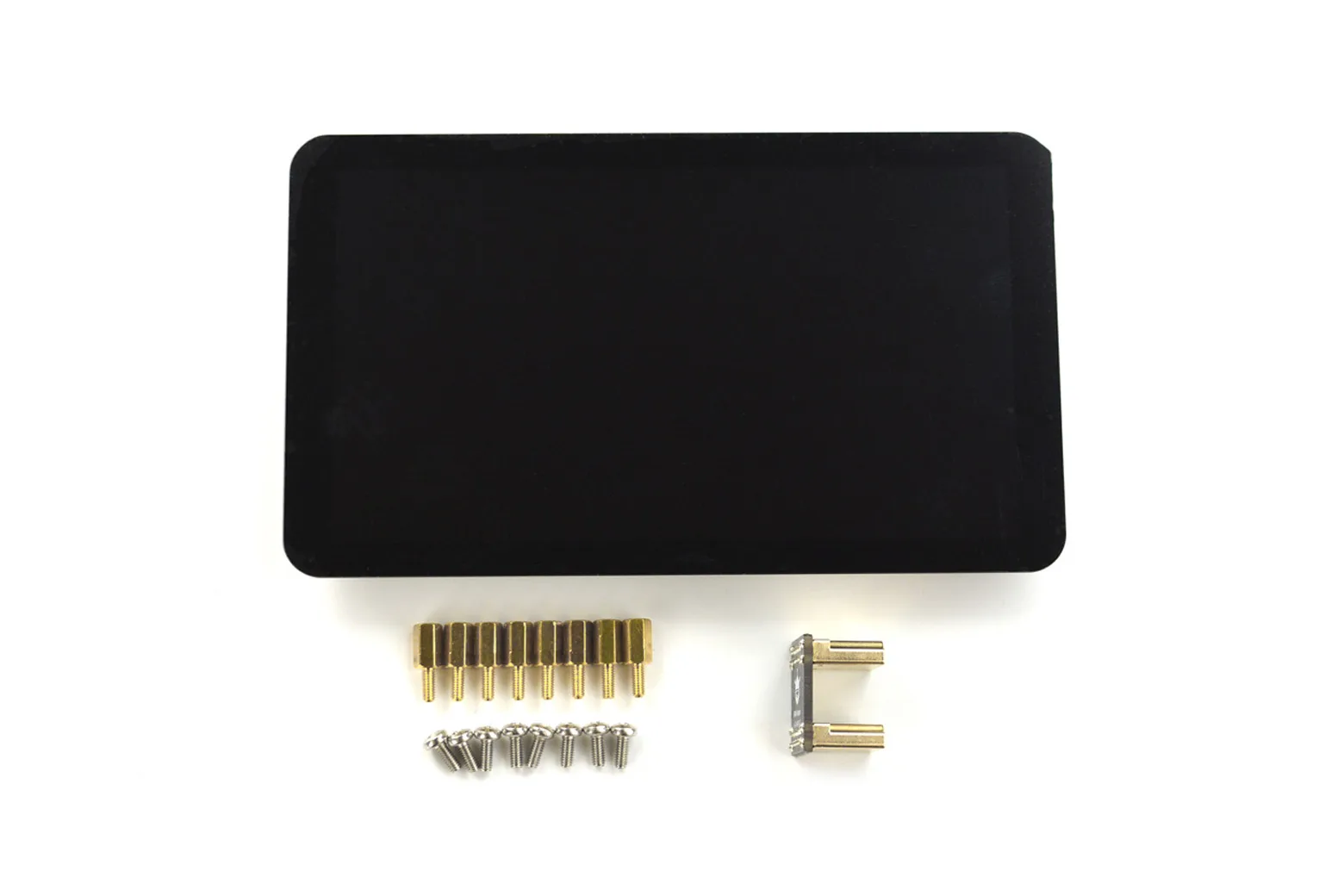

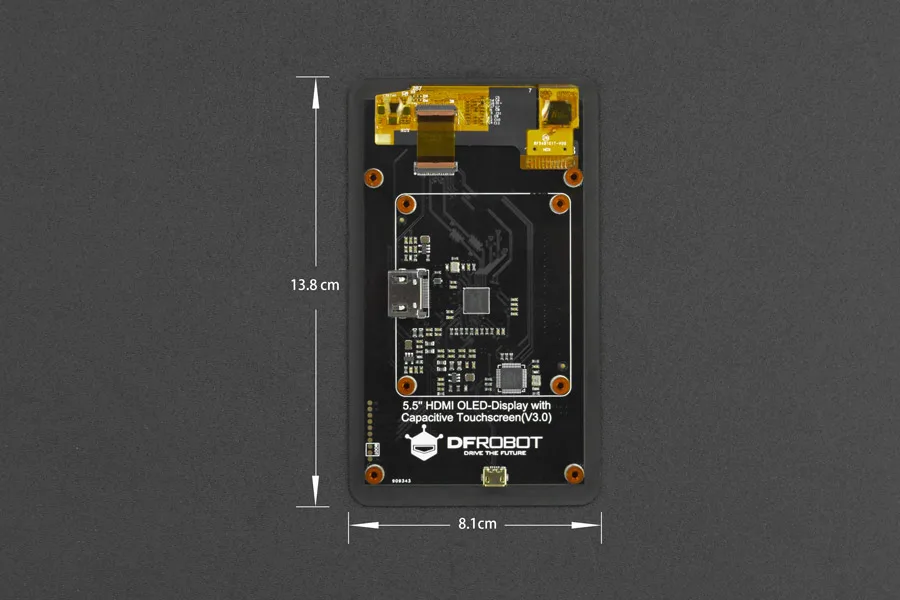

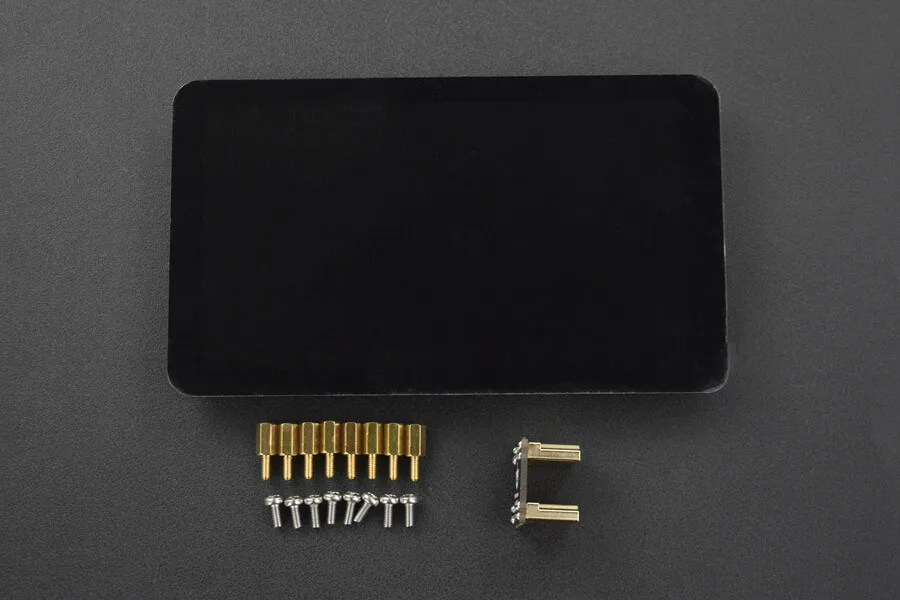

Integrated 58 mm by 49 mm M2.5 mounting holes allow a Raspberry Pi to mount directly onto the back of the display chassis. The package includes an HDMI adapter, M2.5 standoffs, and screws to streamline mechanical assembly.

Low-profile USB power and compatibility

Operating at 5V with a 700 mA current draw, the screen draws its power directly through a Micro-USB port without requiring a separate power brick. It supports Windows and Linux platforms such as LattePanda and Raspberry Pi, with touch functionality excluded on macOS.

Downloads & documentation

• Product wiki (DFRobot)
