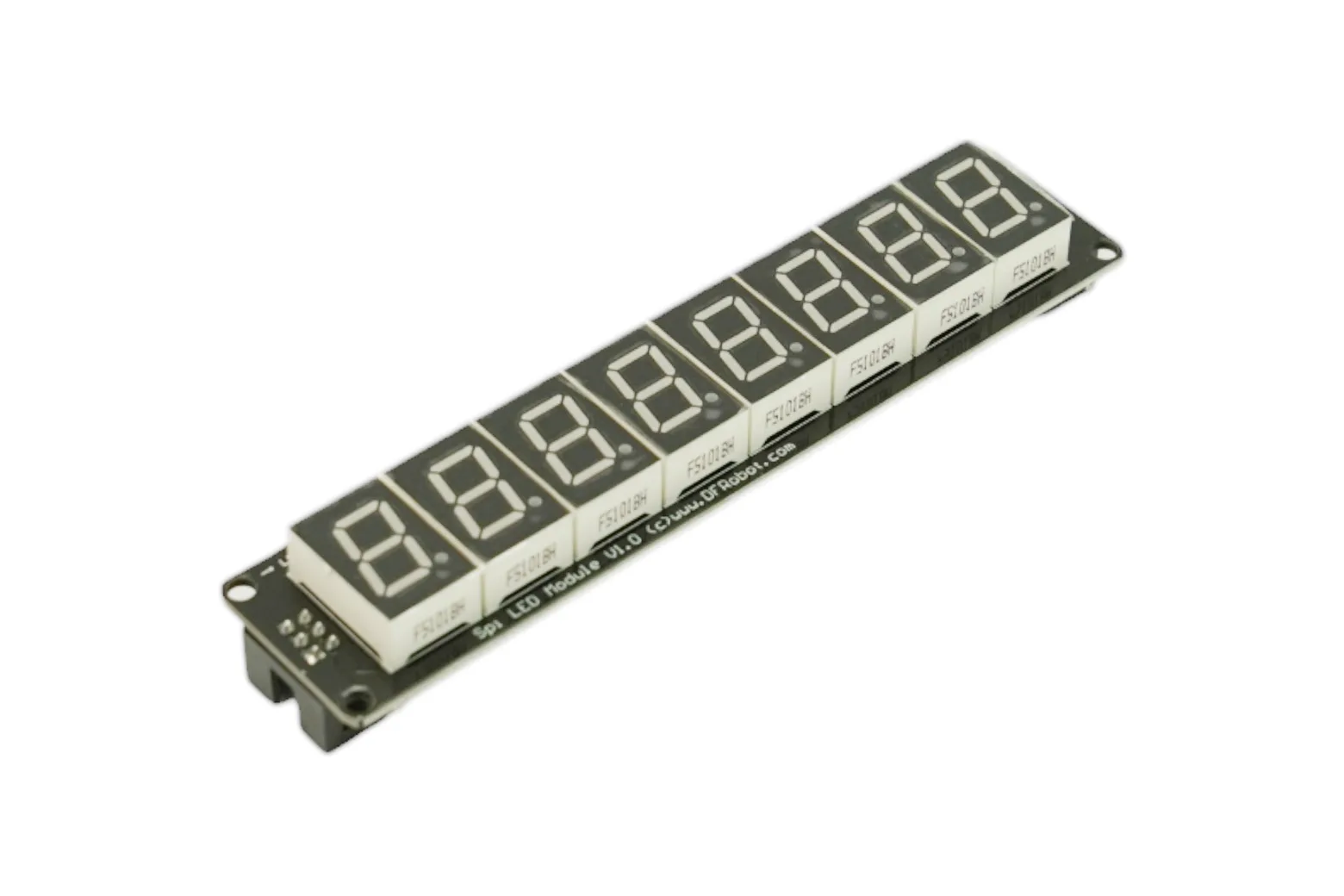

3-Wire 8-Digit Serial LED Display Module

The 3-Wire 8-Digit Serial LED Display Module provides an eight-digit red numeric readout for embedded systems and microcontroller setups. Operating at 5V over a streamlined three-wire SPI interface, it conserves valuable I/O pins on development boards like Arduino. It is ideal for students, hobbyists, and educators building timers, sensor readouts, and robotics status panels.

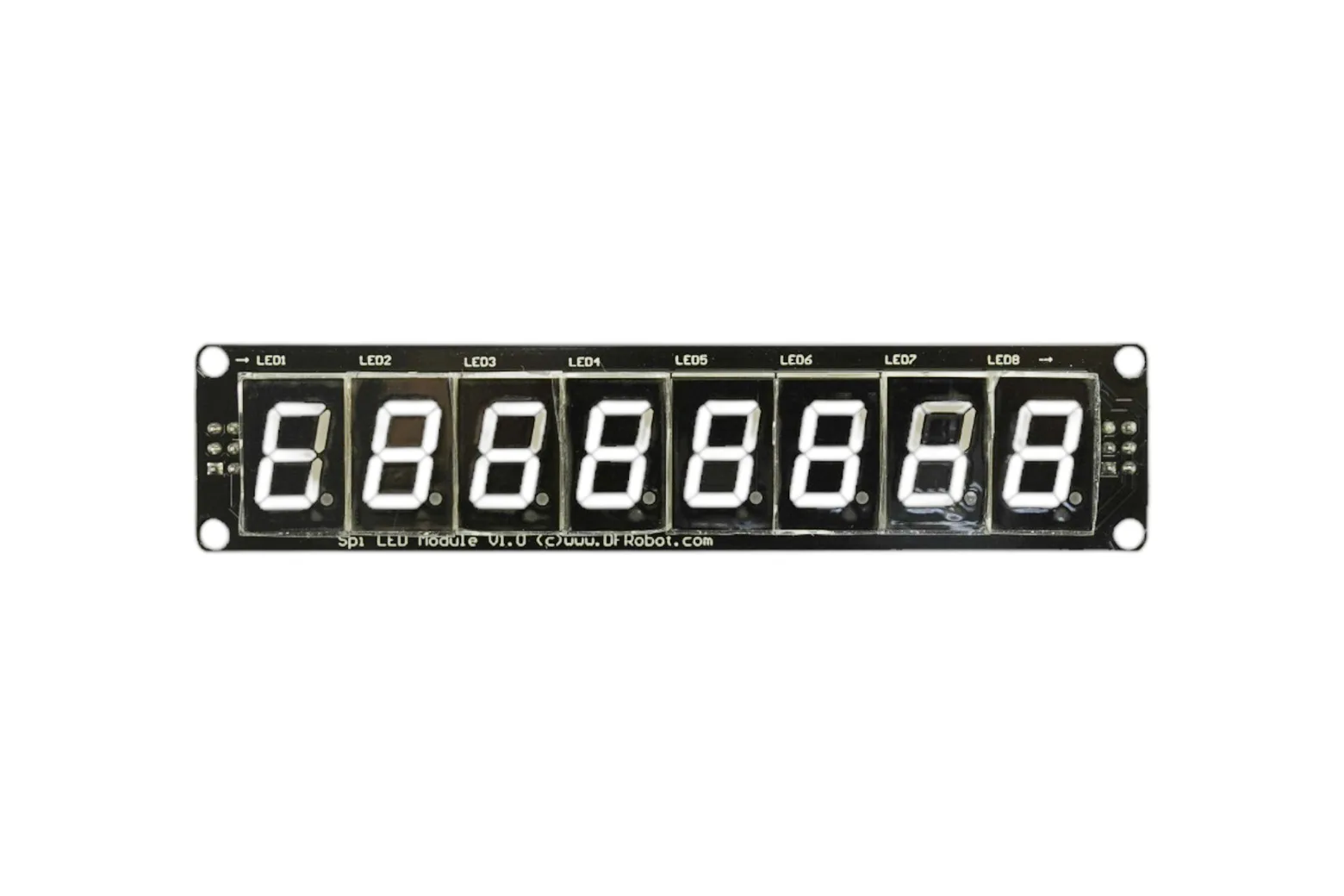

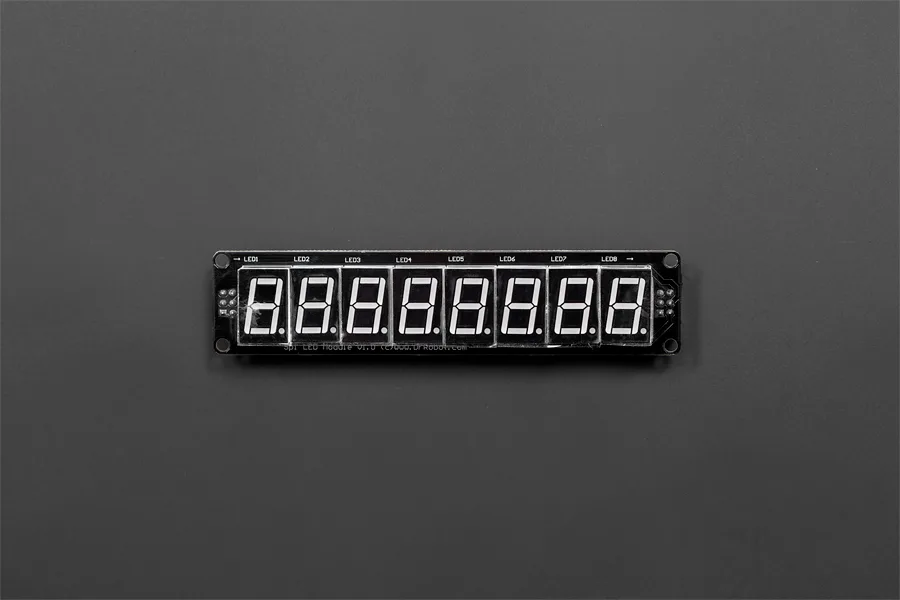

Flicker-free eight-digit red display

The module features eight red numeric digits with uniform brightness across the entire array. Its flicker-free output ensures real-time sensor readouts, counters, and measurement displays remain clear and legible during continuous data updates.

Efficient three-wire serial interface

Using an SPI serial communication structure, the board requires only three microcontroller lines for operation. This minimal pin footprint reduces wiring complexity and frees up controller resources for other sensors and actuators.

Multi-module cascade support

Multiple display units can be connected in series to expand your numerical capacity without adding controller pin overhead. More than two modules can be chained together to support extended digits for multi-channel instrumentation and scoreboards.

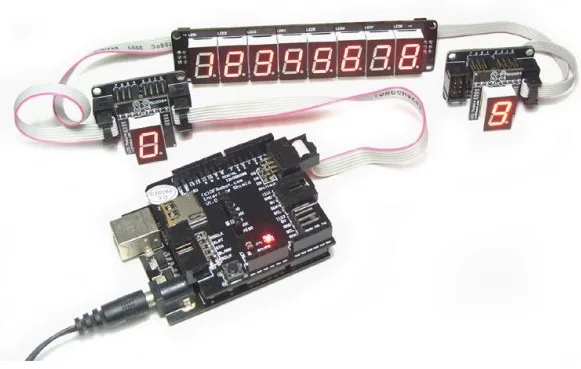

Rapid prototyping and shield integration

Standardised connections allow convenient integration with interface shields and popular microcontroller platforms. This plug-and-play capability simplifies assembly and minimises wiring errors in classroom and maker environments.

Compact form factor and 5V operation

Measuring 122 x 20 x 12 mm, the board operates on a standard 5V power supply for straightforward embedded integration. Each package includes one 8-digit serial LED display unit ready for use in digital clocks, telemetry panels, and robotics projects.

Downloads & documentation

• Product wiki (DFRobot)
