3 PCS keyestudio MINI SG90 9G 90 degrees Servo Motor Blue with PH2.54 Connector For Arduino Robot

This pack of three Keyestudio Mini SG90 9g micro servo motors is ideal for students, hobbyists, and makers building compact Arduino robotics projects. Operating through a 90-degree range, these lightweight motors are easy to control and integrate into your custom builds. Each servo comes with a variety of white motor mounts to simplify mechanical connections.

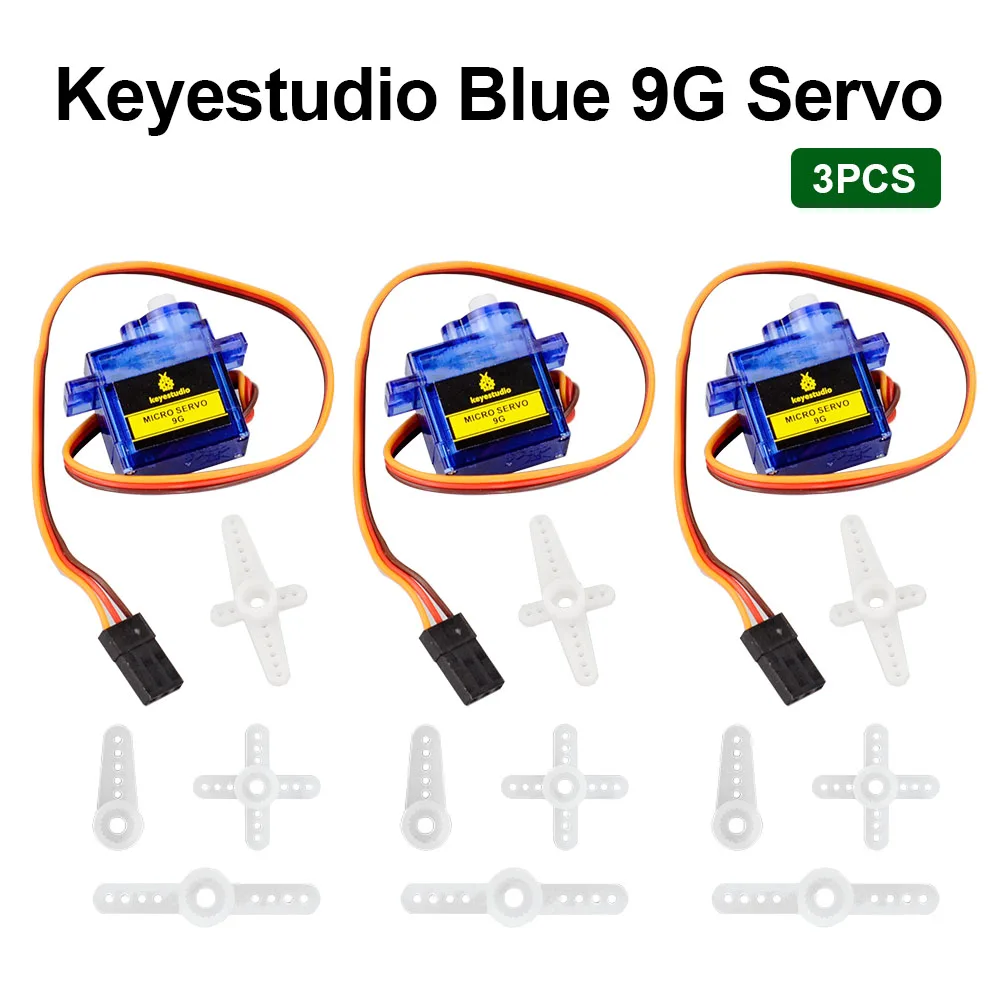

Three-pack of micro servos

This kit includes three 90-degree micro servo motors, making it a convenient choice for multi-jointed robots or classroom sets. Each motor comes with a variety of white motor mounts to easily connect the shaft to your mechanical assemblies.

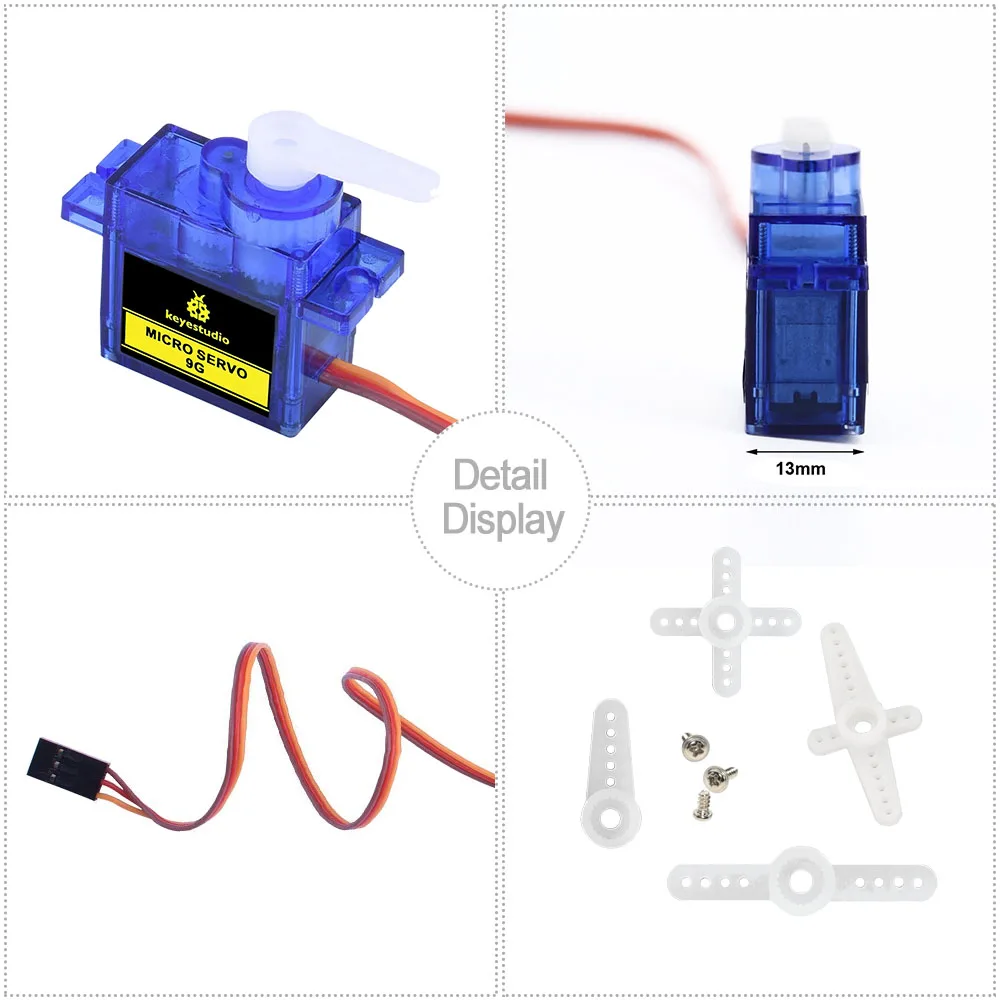

Standardised three-wire interface

The servos feature a simple three-wire connection with a PH2.54 connector for straightforward wiring. The brown wire connects to ground, the red wire handles 5V power, and the orange wire receives the PWM signal.

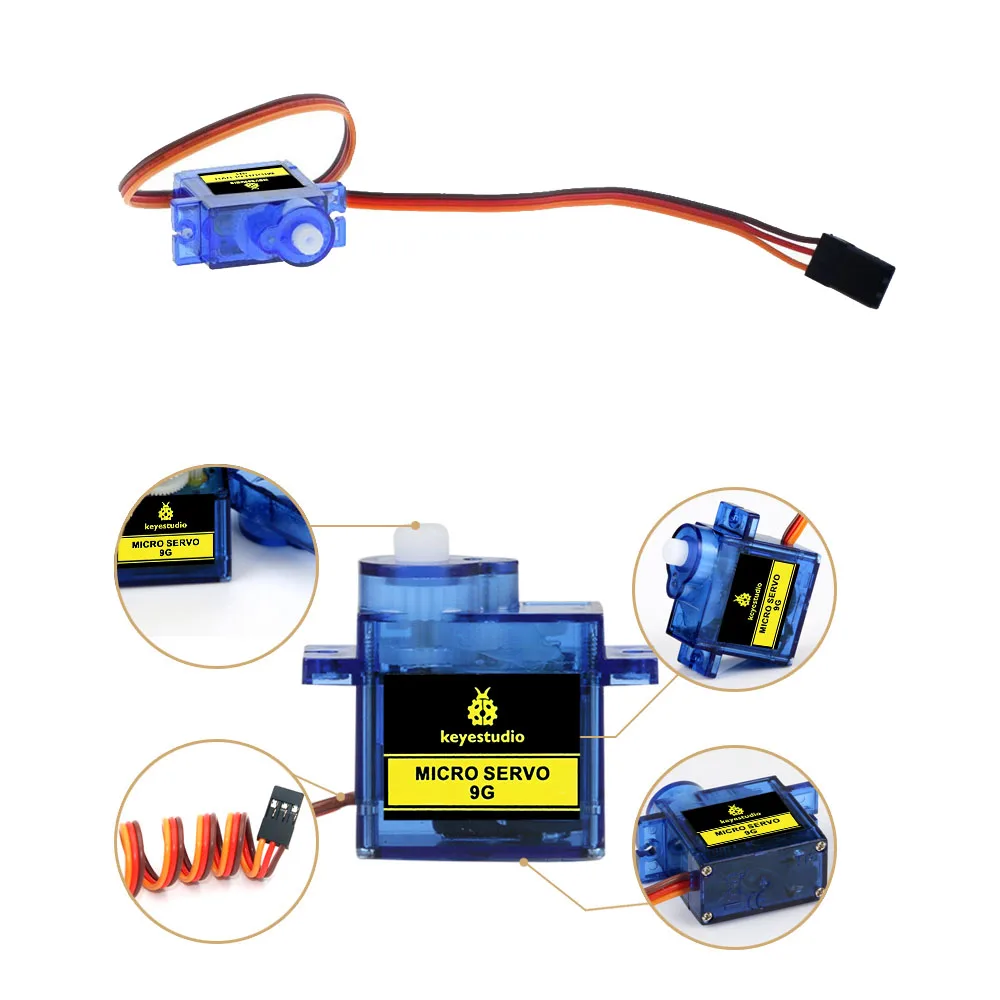

Precise PWM angle control

Control the rotation angle from 0 to 90 degrees by regulating the duty cycle of the Pulse-Width Modulation signal. The standard cycle is fixed at 20ms (50 Hz) with a pulse width distributed between 1ms and 2ms.

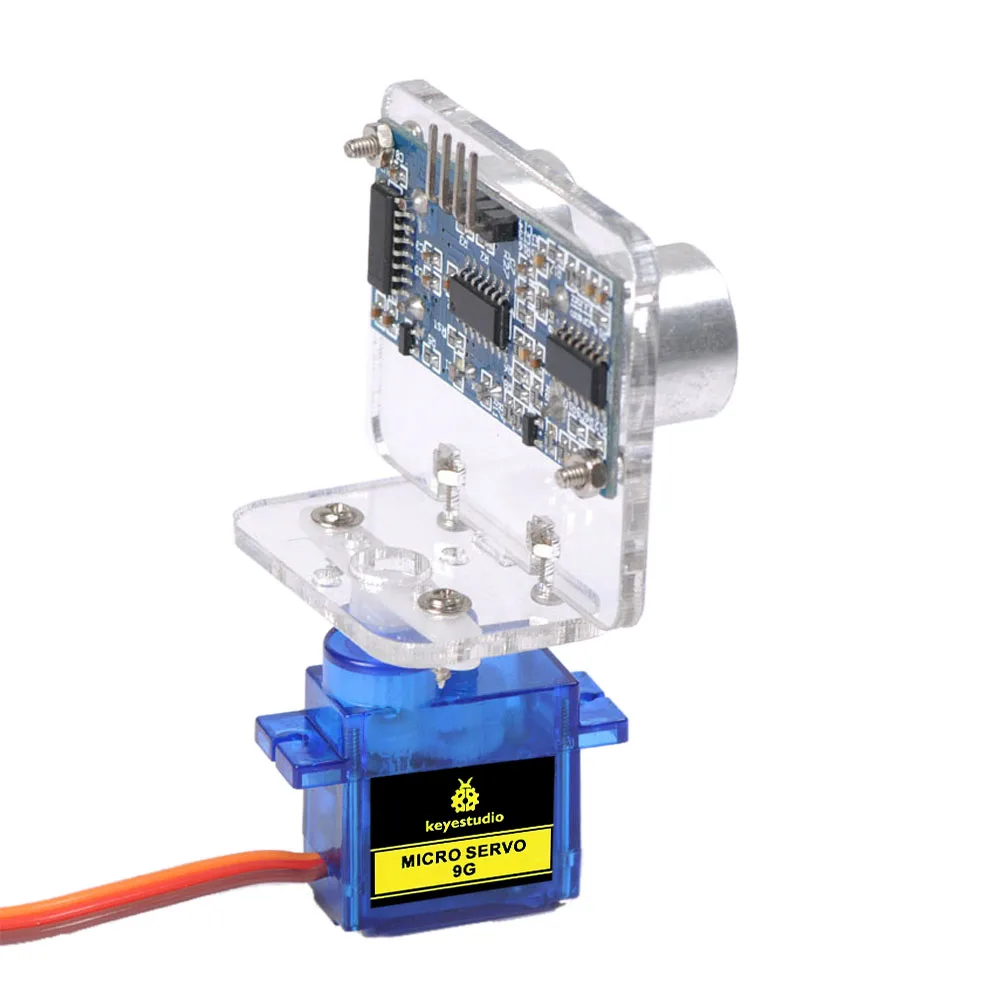

Dual voltage operation

These versatile micro motors operate on a DC voltage range of 4.8V to 6V, making them compatible with standard microcontroller power rails. They deliver a stop torque of up to 1.3 kg/cm at 6V.

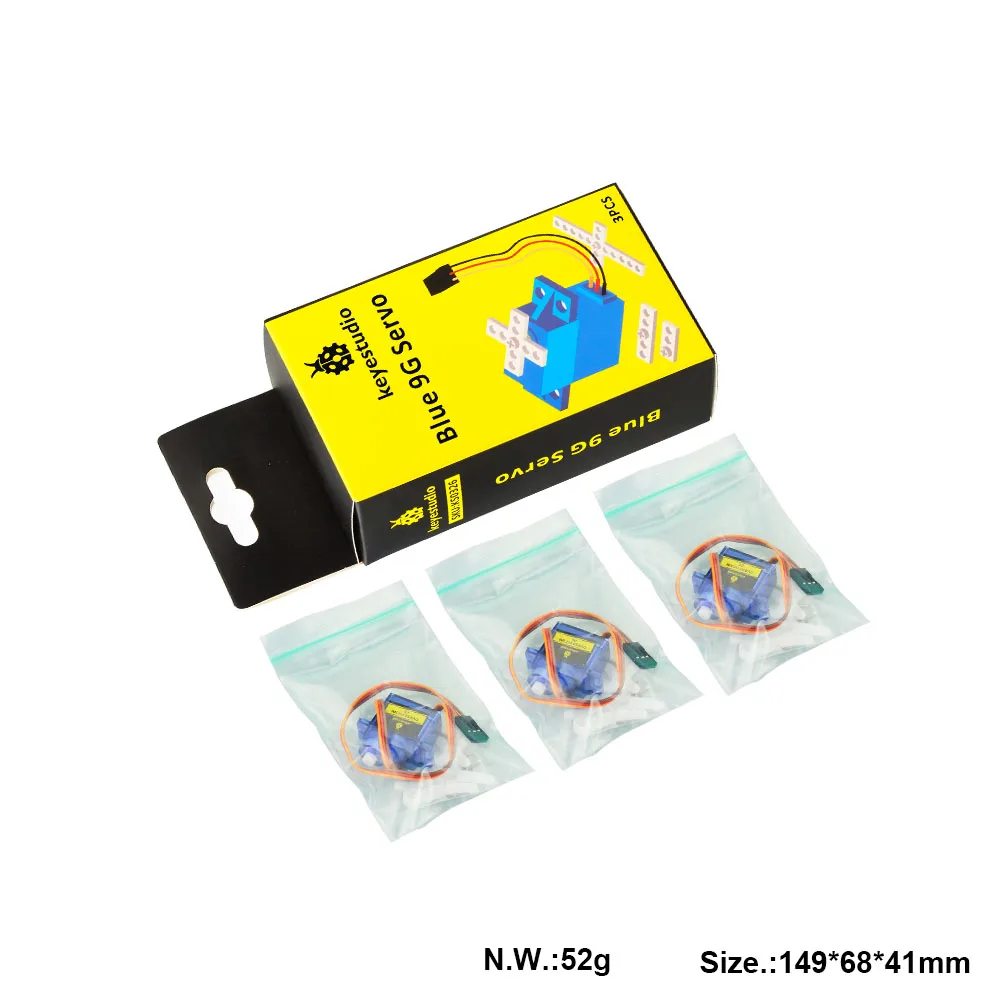

Compact and lightweight design

Weighing just 12g without mounts, these servos measure 22.7mm by 12.12mm by 25.7mm to fit into tight spaces. They feature a 250mm wire lead for flexible positioning within your chassis.

Reliable speed and torque performance

Experience responsive movement with a no-load speed of 0.12 seconds per 60 degrees at 4.8V, which improves to 0.1 seconds at 6V. The motors operate reliably in temperatures ranging from -10 to 50 degrees Celsius.
