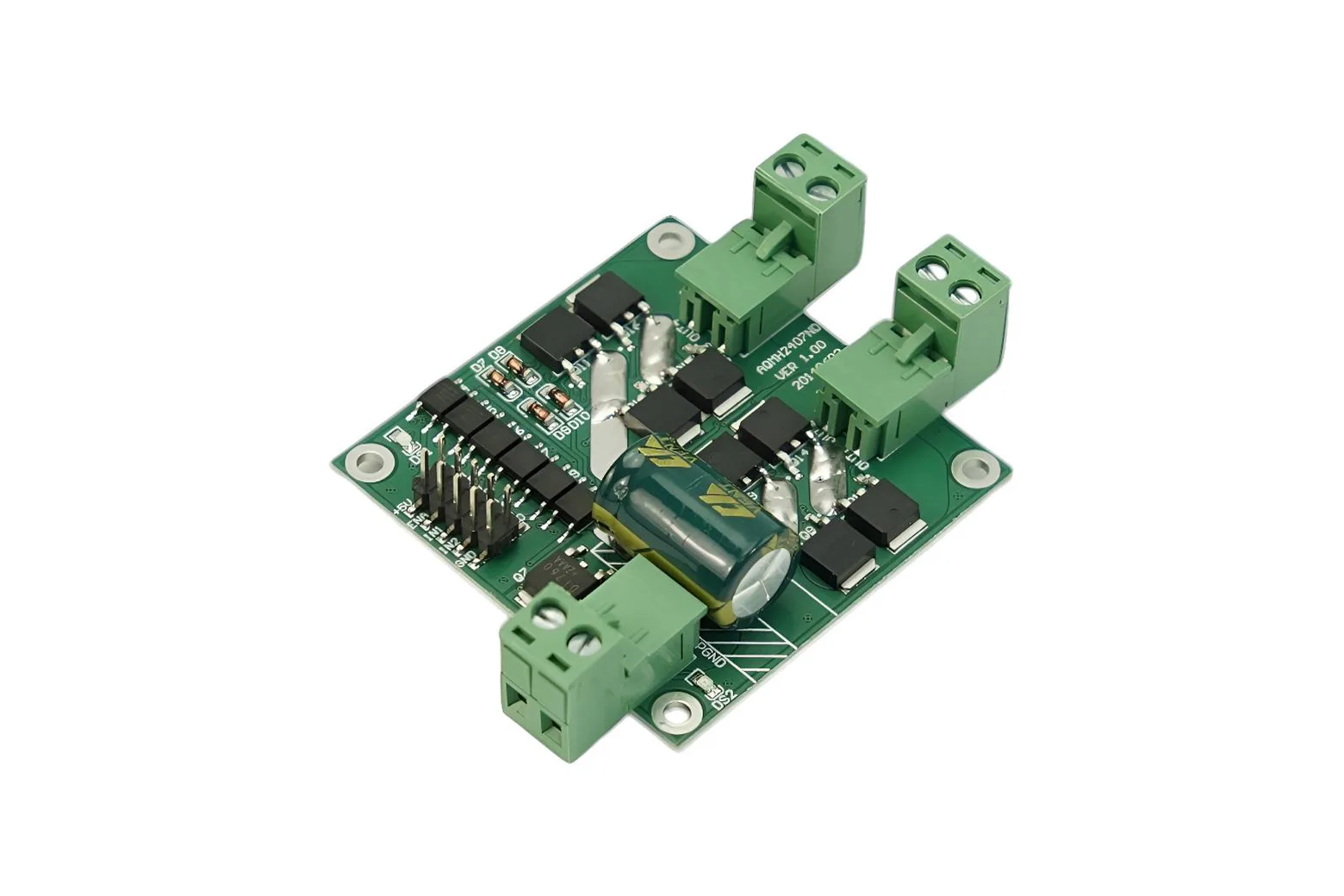

2x7A DC Motor Driver
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description

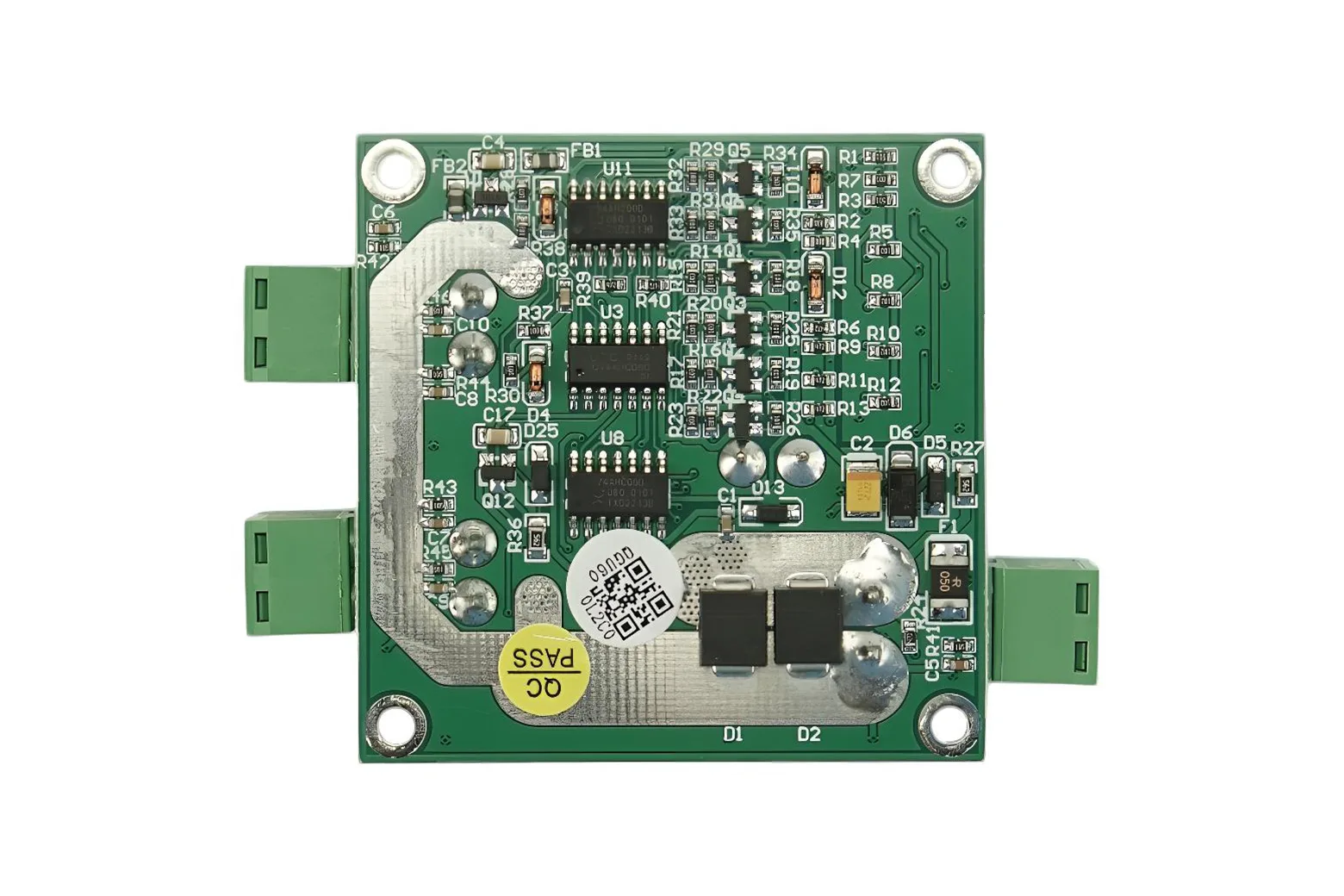

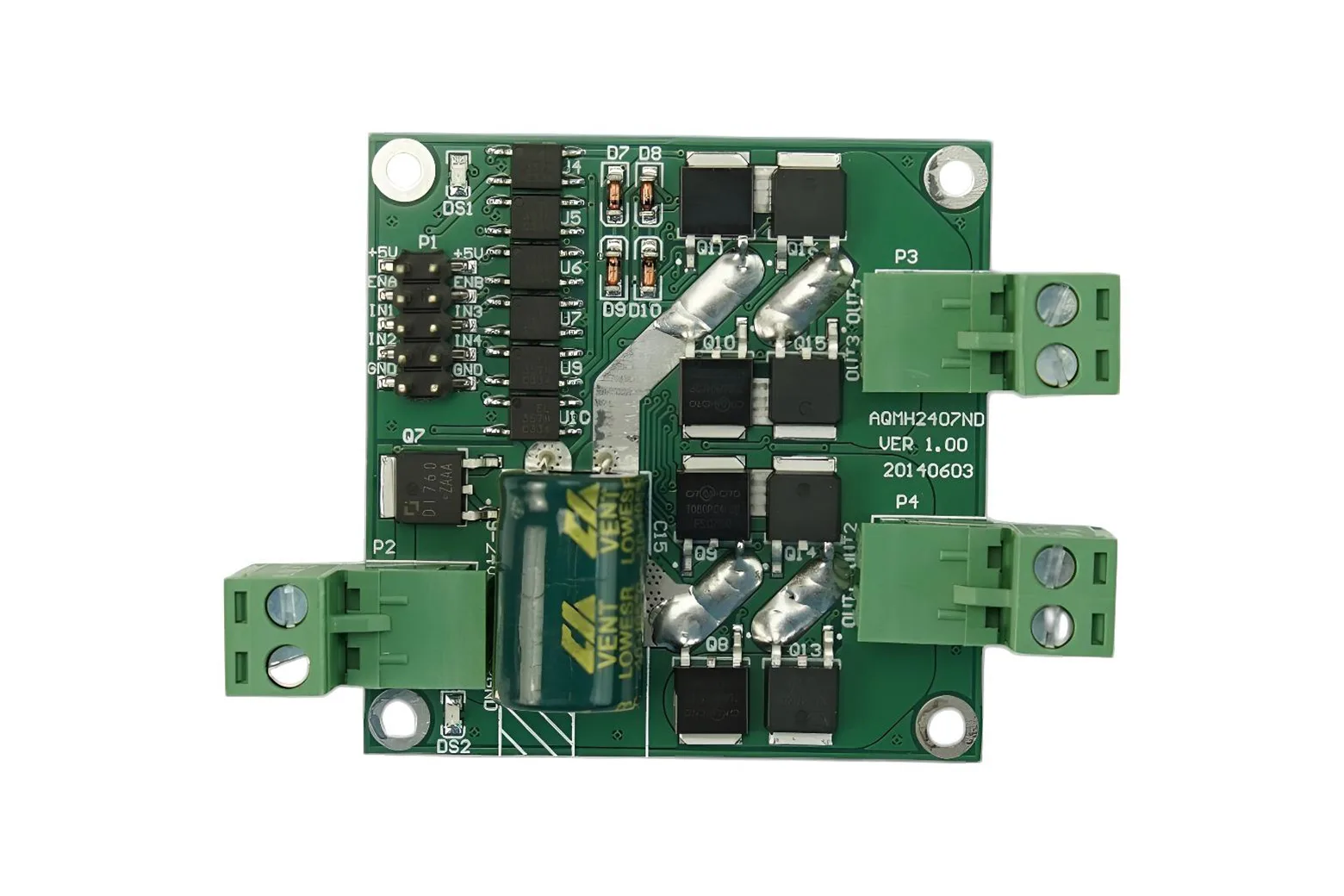

The 2x7A DC Motor Driver is a compact, high-current board capable of driving two DC motors simultaneously. Designed for demanding robotics builds and room-limited projects, it suits makers, hobbyists, and engineering students needing robust power in a small footprint.
High continuous and peak current delivery
This driver delivers up to 7A of continuous operating current per channel across two output channels, with a peak current rating of 50A. It provides the heavy power delivery needed for demanding mobile robot platforms.

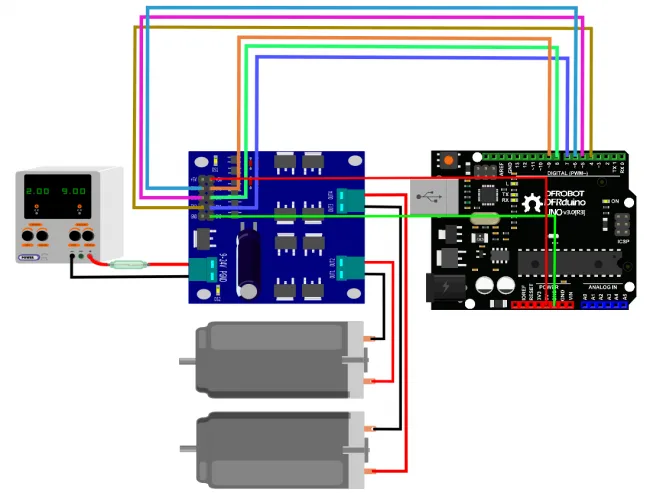

Comprehensive isolation and circuit protection
Photocoupler isolation shields control lines from motor reverse-current interference. The board also incorporates under-voltage latch-out (UVLO) and electrostatic discharge (ESD) protection on all interfaces to safeguard connected electronics.
Flexible voltage and PWM speed control
The module operates from a 7V to 24V DC supply, with an extended operating limit of 6.5V to 27V. Speed control is managed via PWM with a 5 microsecond minimum valid pulse width, supported by 3.3V and 5V logic compatibility.

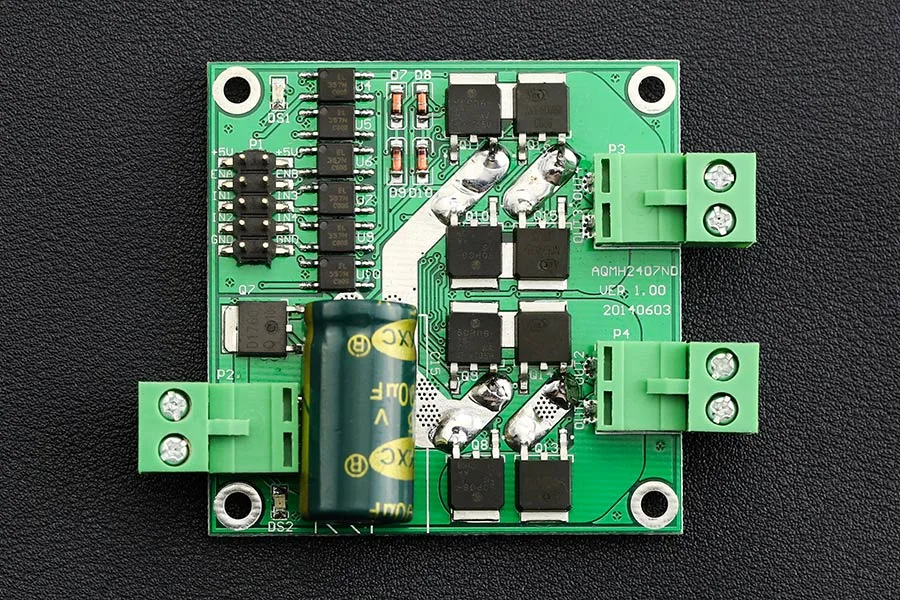

Compact layout with M3 mounting
Measuring 55 mm by 55 mm and weighing just 32 g, the board easily fits into space-constrained projects. Standard M3 mounting holes ensure secure physical installation within operating temperatures from -25 to 85 degrees Celsius.
What is in the box
The package includes one 7A Dual DC Motor Driver ready for integration into your control system.
Downloads & documentation
Specifications
| Voltage supply | DC 7 ~ 24 V |
| Voltage supply limit | 6.5 ~ 27 V |
| High | DC 3.0 ~ 6.5 V |
| Low | DC0 ~ 0.8 V |
| Output Channel | 2 |
| Control signal current | 3 ~ 11 mA (Each route) |
| Maximum continuous operating current | 7 A |
| Peak current | 50 A |
| Speed control | PWM |
| Minimum valid Pulse Width | 5 us |
| Working Temperature | -25 ~ 85 °C |
| Mounting Hole | M3 |
| Dimension (Length * Width * Height) | 55 x 55(mm)/2.165 x 2.165(in) |
| Weight | 32g |
In the box
| 7A Dual DC Motor Driver | 1 |
