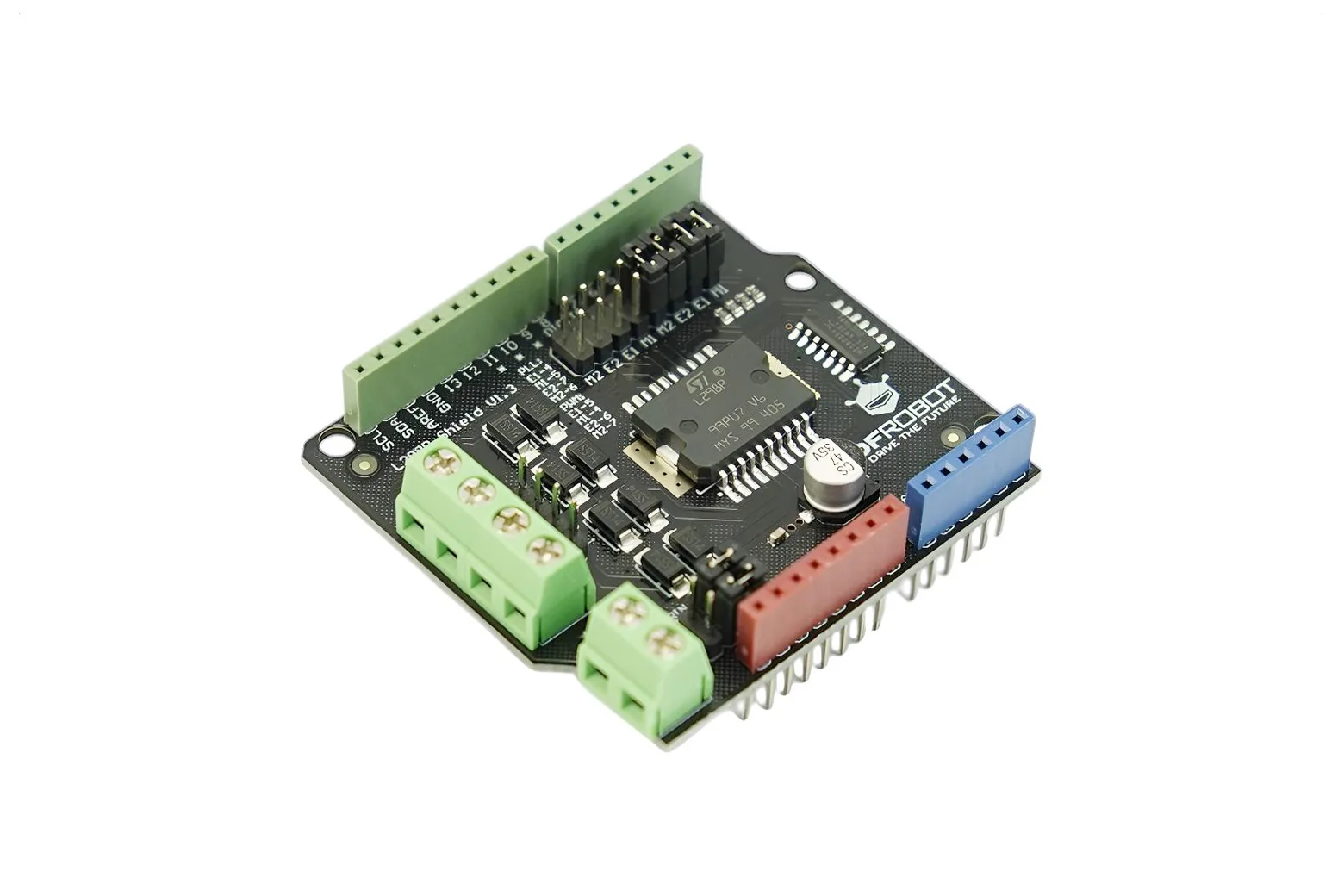

2x2A DC Motor Shield for Arduino
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description

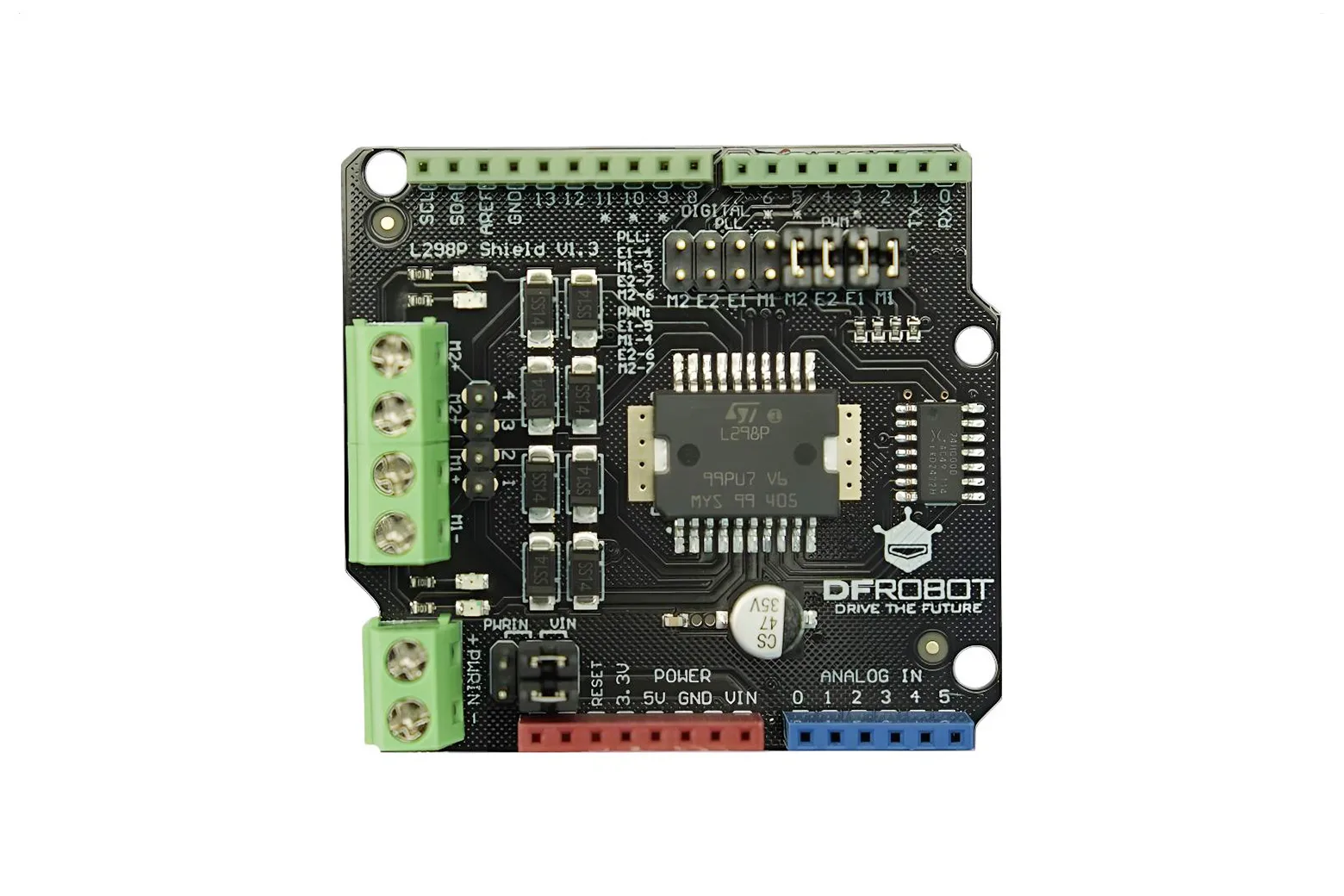

The 2x2A DC Motor Shield for Arduino is a stackable expansion board based on the L298P driver chip, capable of driving two DC motors at up to 2A per channel. It is designed for students, educators, and hobbyists building mobile robotics and automation projects. The shield mounts directly onto standard Arduino Uno and Mega controllers without complex wiring.

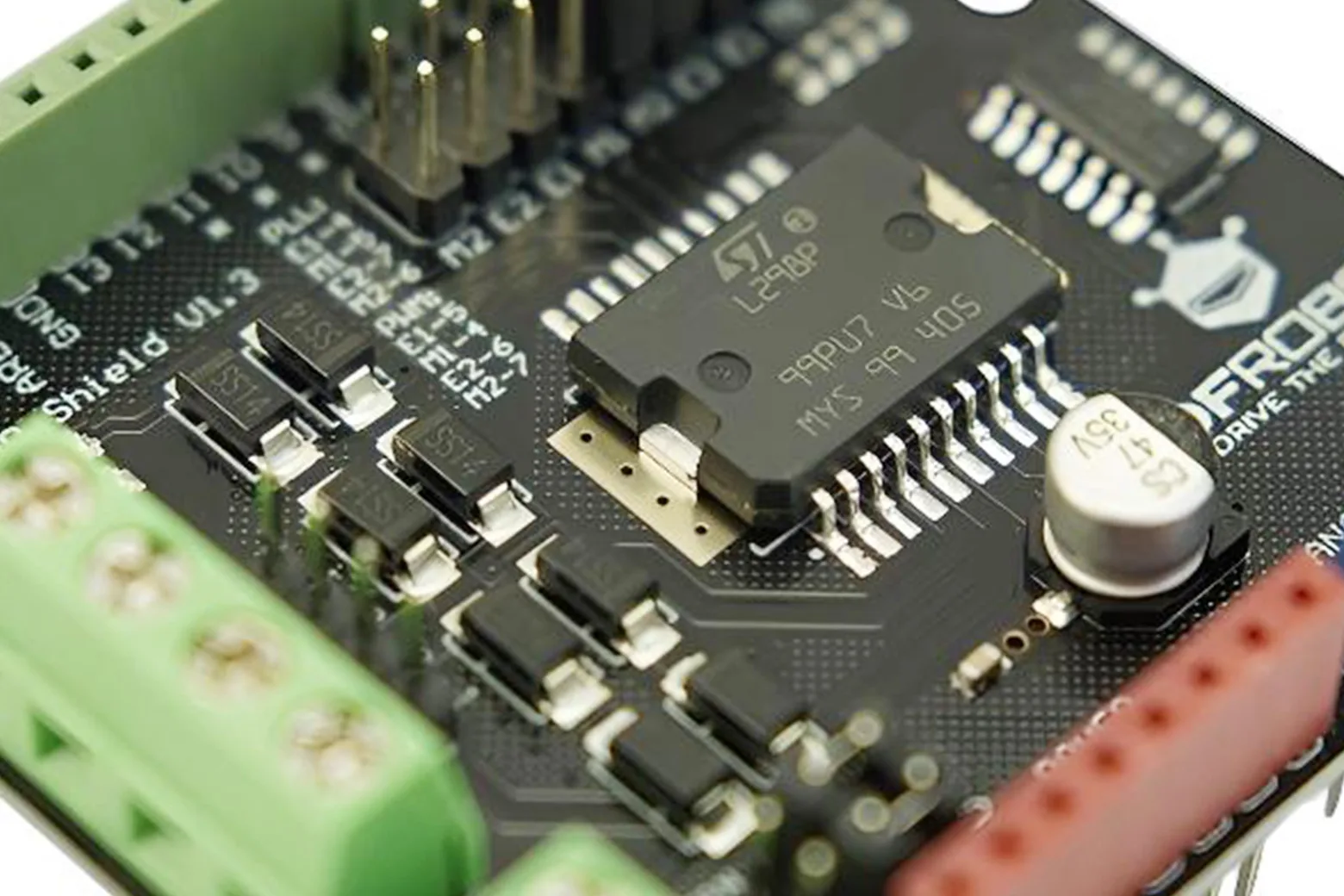

Dual-channel L298P motor control
Powered by an onboard L298P chip, this shield drives two 7V to 12V DC motors with up to 2A current per channel. It delivers a maximum power consumption of 25W at 75°C, making it suitable for medium-load mobile robotics.

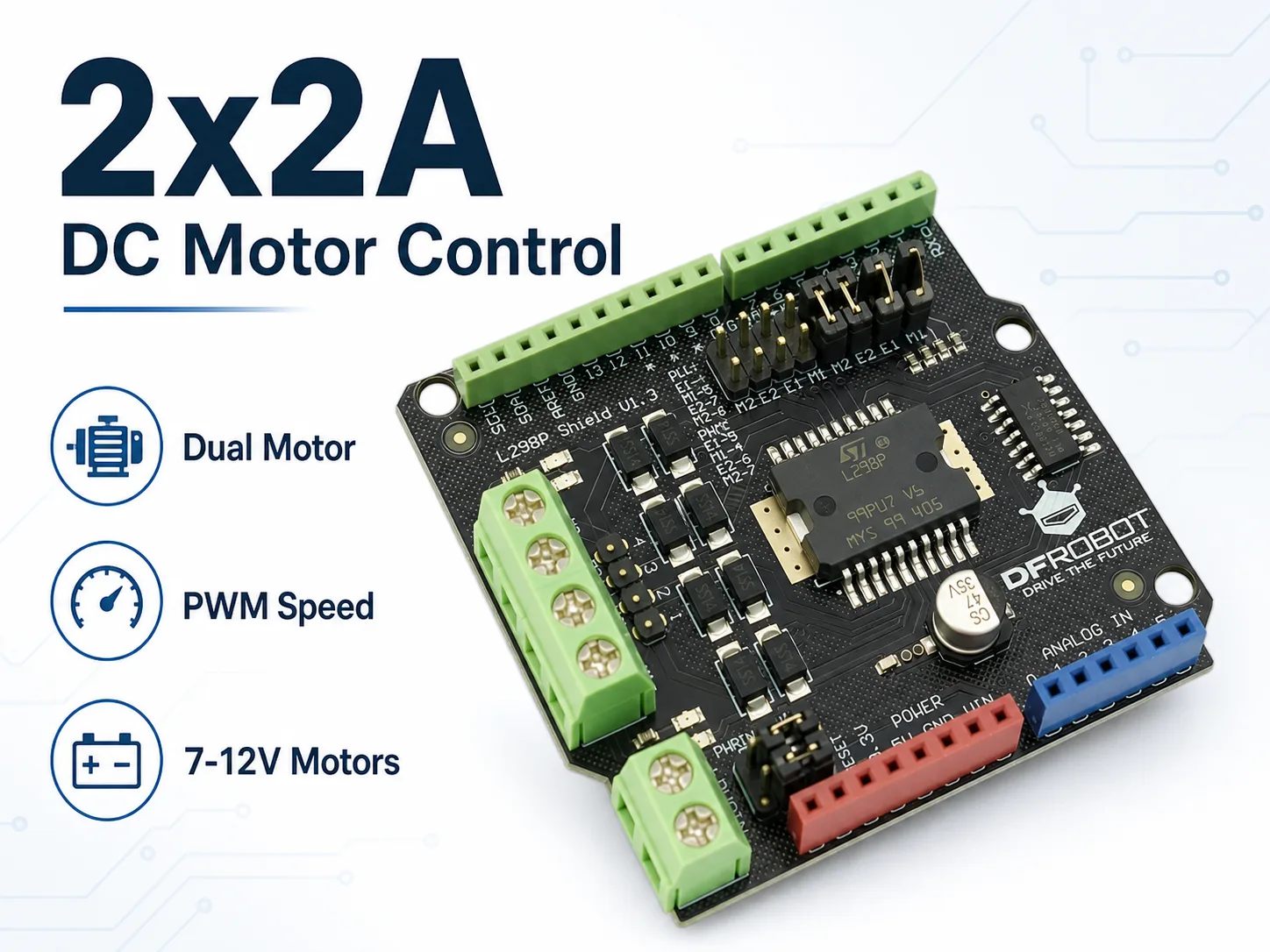

Direct stackable board design
The shield mounts directly on top of Arduino Uno R3, DFRduino Uno R3, and Bluno Mega boards for rapid prototyping. It eliminates breadboard wiring and provides a stable, beginner-friendly platform for classroom learning.
Dedicated control pin allocation
Speed regulation is handled via Arduino PWM pins 5 and 6, supporting both standard PWM and PLL advanced speed control modes. Direction and enable functions are managed using digital pins 4 and 7.
Flexible power supply options
Logic power runs at 5V directly from the Arduino controller, drawing 36mA or less. The motors can be driven from 6.5V to 12V via VIN, or from 4.8V to 35V using a dedicated external power supply.
Built for mobile robotics applications
This shield is well suited for 2WD and 4WD robot cars, obstacle avoidance systems, and line-following robots. It provides a compact 55x55mm footprint for small DC motor automation and STEM robotics education.
Downloads & documentation
Specifications
| Logic Control Voltage | 5V (From Arduino) |
| Motor Driven Voltage | 6.5~12v(VIN Power Supply),4.8~35V (External Power Source) |
| Logic supply current Iss | ≤36mA |
| Motor Driven current Io | ≤2A |
| Maximum power consumption | 25W（T=75℃） |
| Size | 55x55mm (2.2x2.2 in) |
In the box
| 2A Motor Shield For Arduino | 1 |
Reviews
No reviews yet — be the first to review this product.
