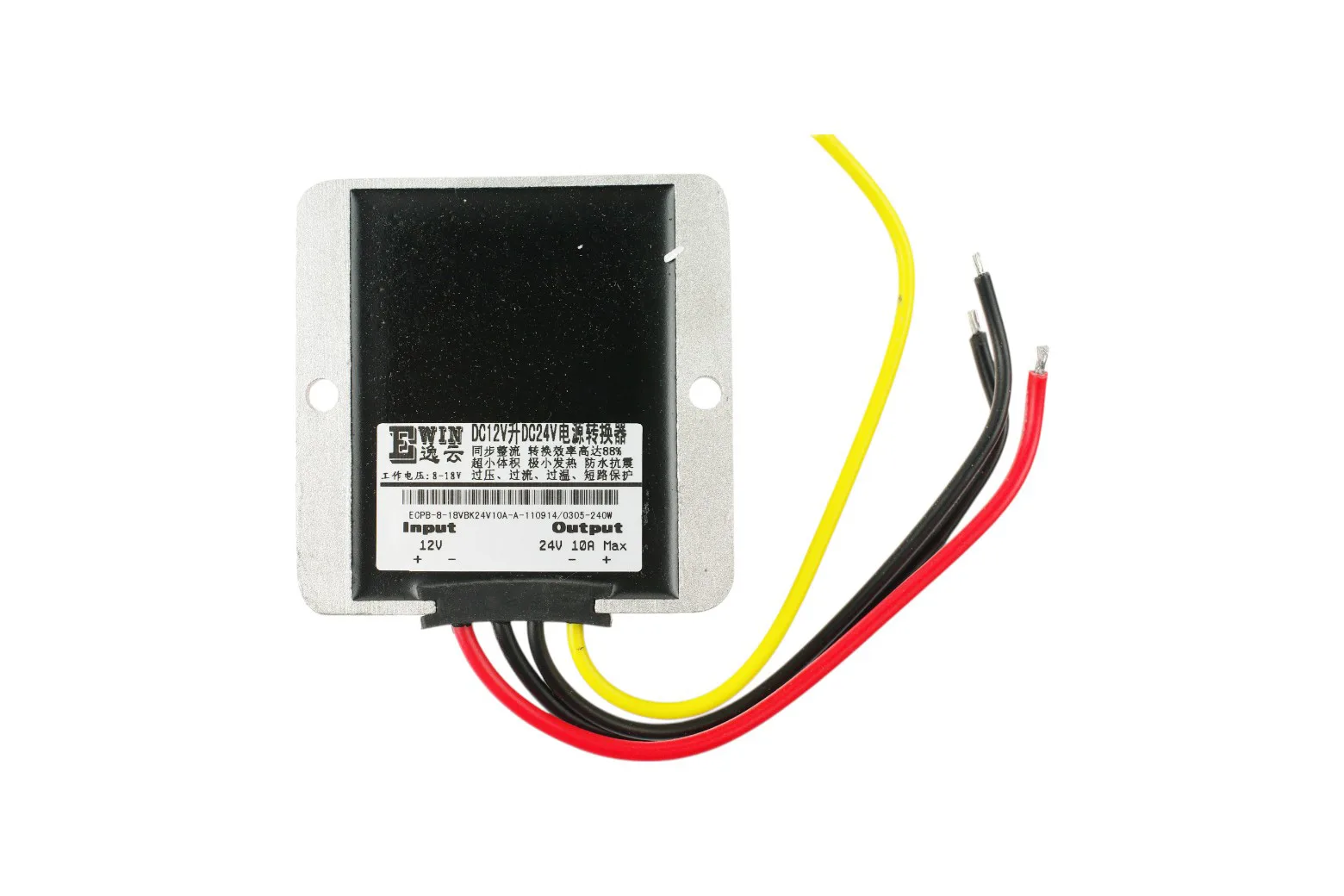

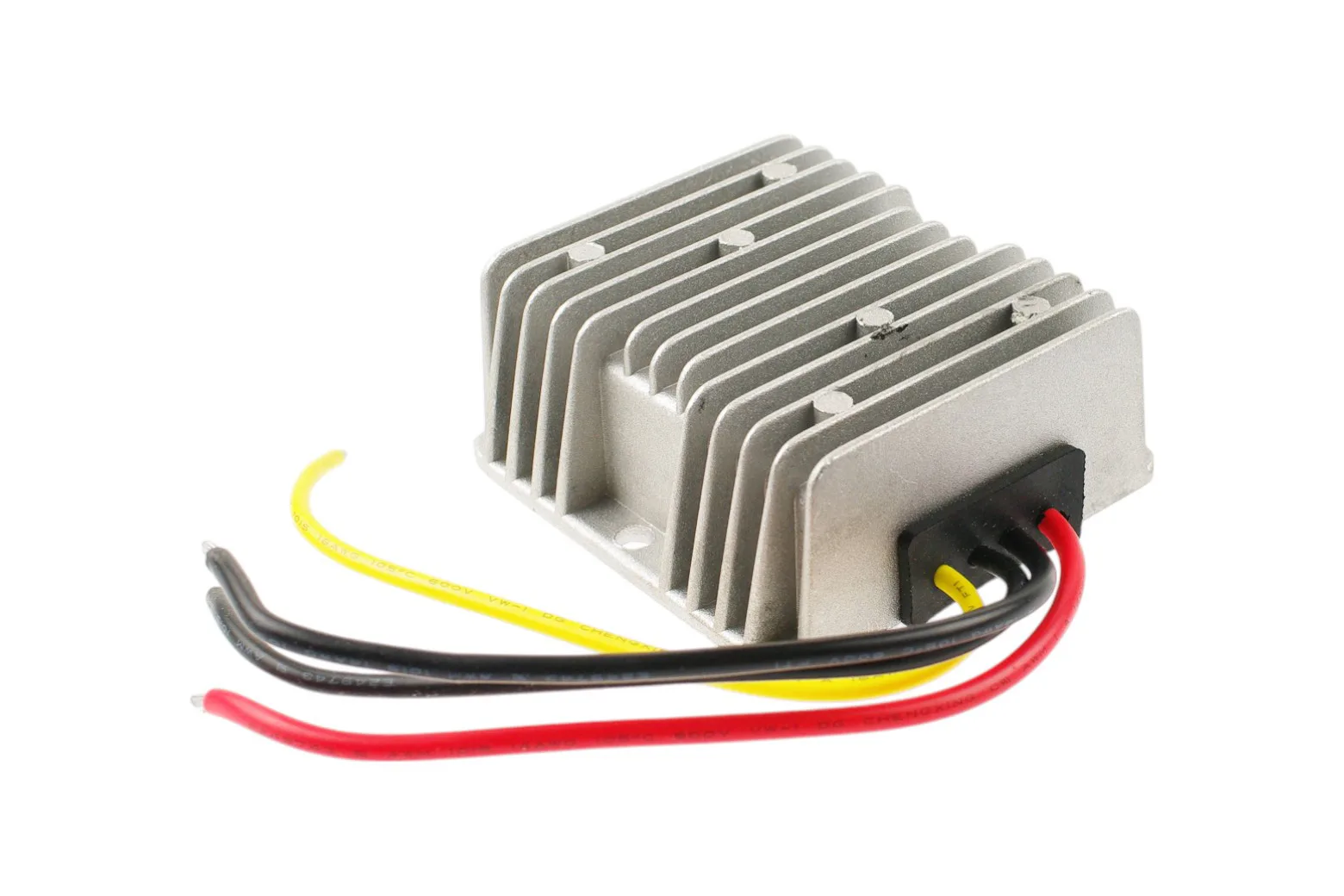

240W DC-DC Boost Converter (8-18V Input, 24V 10A Output)

This waterproof DC-DC boost converter steps up an 8–18V DC input to a regulated 24V output delivering up to 10A. Ideal for robotics, battery-powered mobile equipment, and outdoor automation, it provides high-power stability for motors and controllers in demanding environments.

High-power 24V voltage conversion

The module steps up an 8–18V DC supply to a regulated 24V output with a maximum current of 10A. When supplied with an input of 12V or higher, it delivers up to 240W to reliably power high-draw actuators, industrial controllers, and motors.

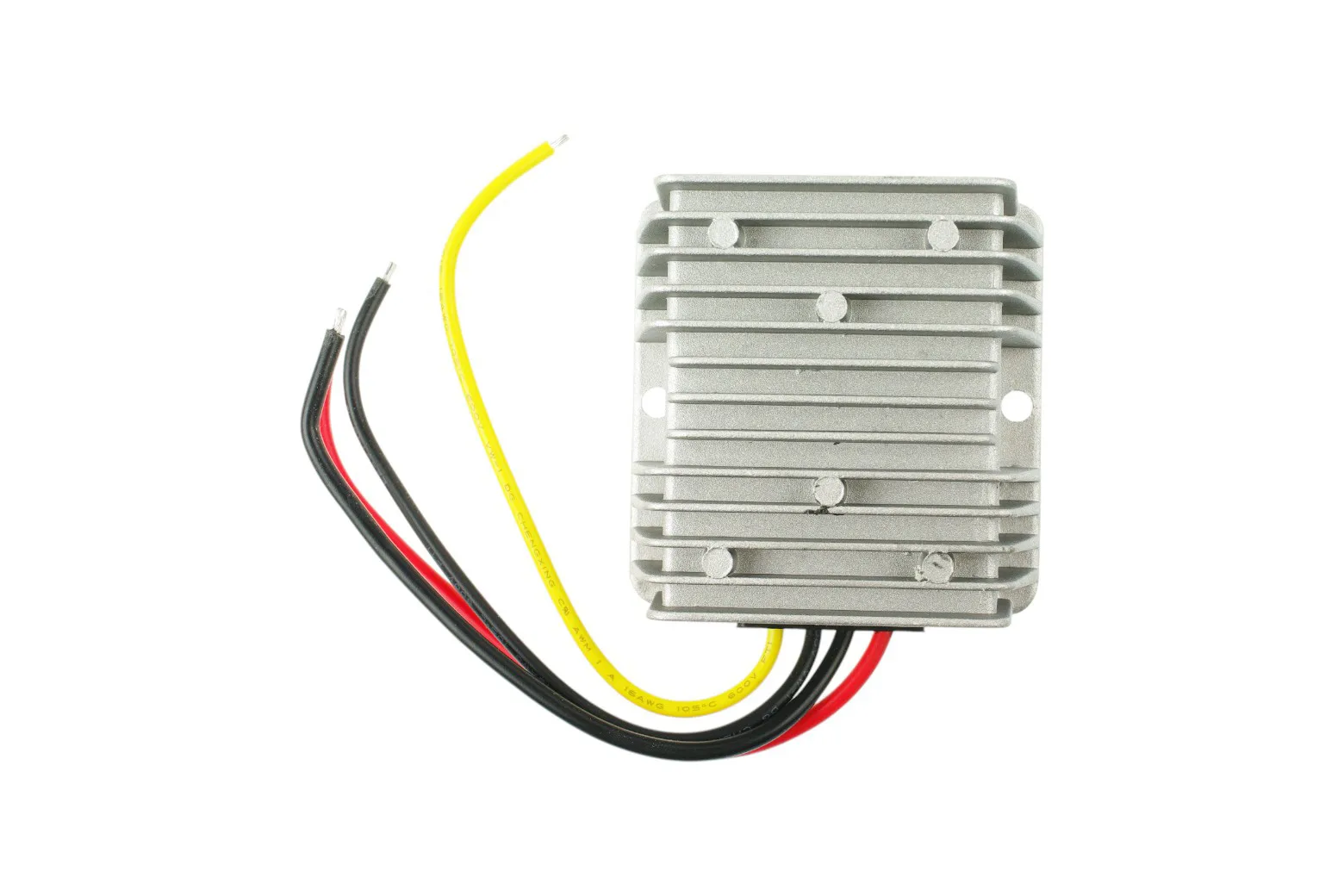

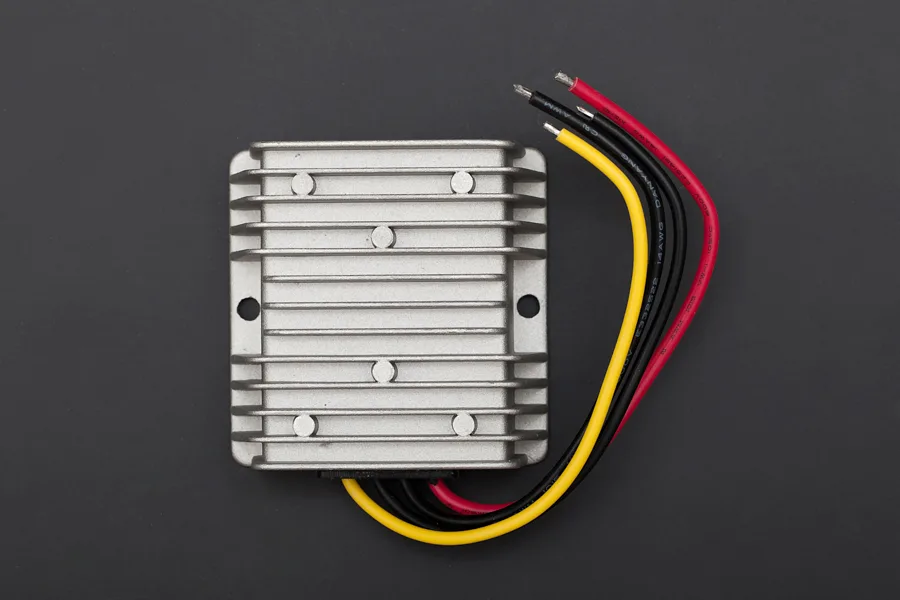

Rugged waterproof and shock-resistant housing

A fully sealed enclosure protects internal components from water and mechanical vibration in outdoor or industrial setups. The compact 74 x 74 x 32 mm unit weighs 0.28 kg, making it easy to mount into mobile platforms.

Built-in multi-stage circuit protection

Integrated safety features include overvoltage, overcurrent, short-circuit, and overheating protection up to an 80 °C maximum working temperature. These safeguards ensure dependable operation under fluctuating load conditions and protect connected electronics.

High conversion efficiency and wiring recommendations

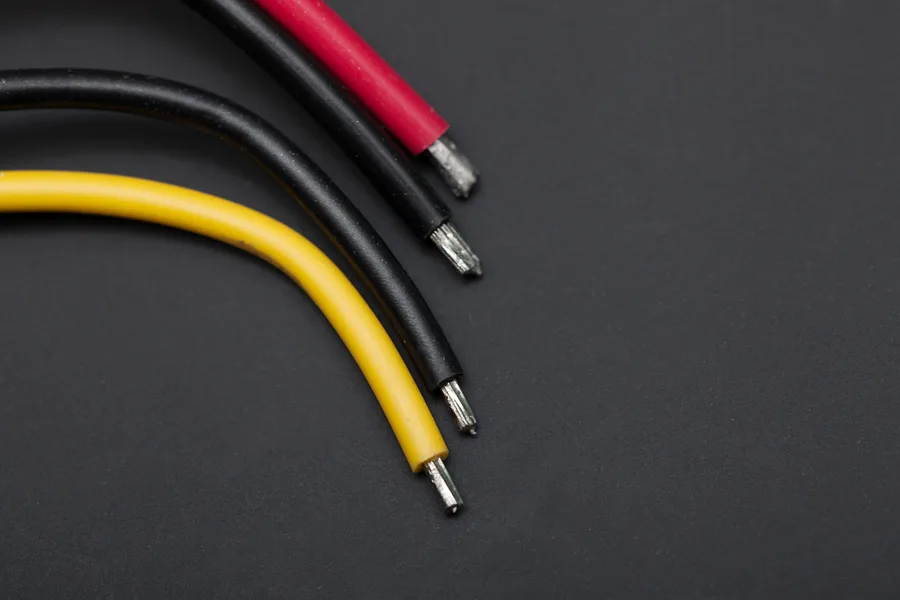

Conversion efficiency ranges between 82% and 88%, reducing waste heat during sustained operation. For optimal performance and minimal voltage drop, power lines should use conductors with a cross-section of 2.5 mm² or larger over short runs.

Package contents

The package includes one 240W DC-DC boost converter module.
