2.13" e-ink Display Module for Raspberry Pi 4B/3B+/Zero W

The 2.13 inch e-ink Display Module is an ultra-low power display designed for Raspberry Pi 4B, 3B+, and Zero W microcomputers. Offering a crisp 250x122 black-and-white view, it suits makers, educators, and hobbyists building battery-powered dashboards, smart badges, and static information panels.

Sunlight-readable paper-like screen

The 2.13 inch panel provides a 250x122 resolution with viewing angles exceeding 170 degrees, remaining clear even under direct sunlight. It supports custom fonts and retains the last rendered image on screen even after the power is disconnected.

Energy-efficient refresh modes

Operating at 3.3V, the module draws only 0.017mW in standby and 26.4mW typically during refresh cycles. It supports both a 680ms partial refresh and a 3-second full refresh, making it ideal for low-frequency data displays.

Pass-through header and onboard switches

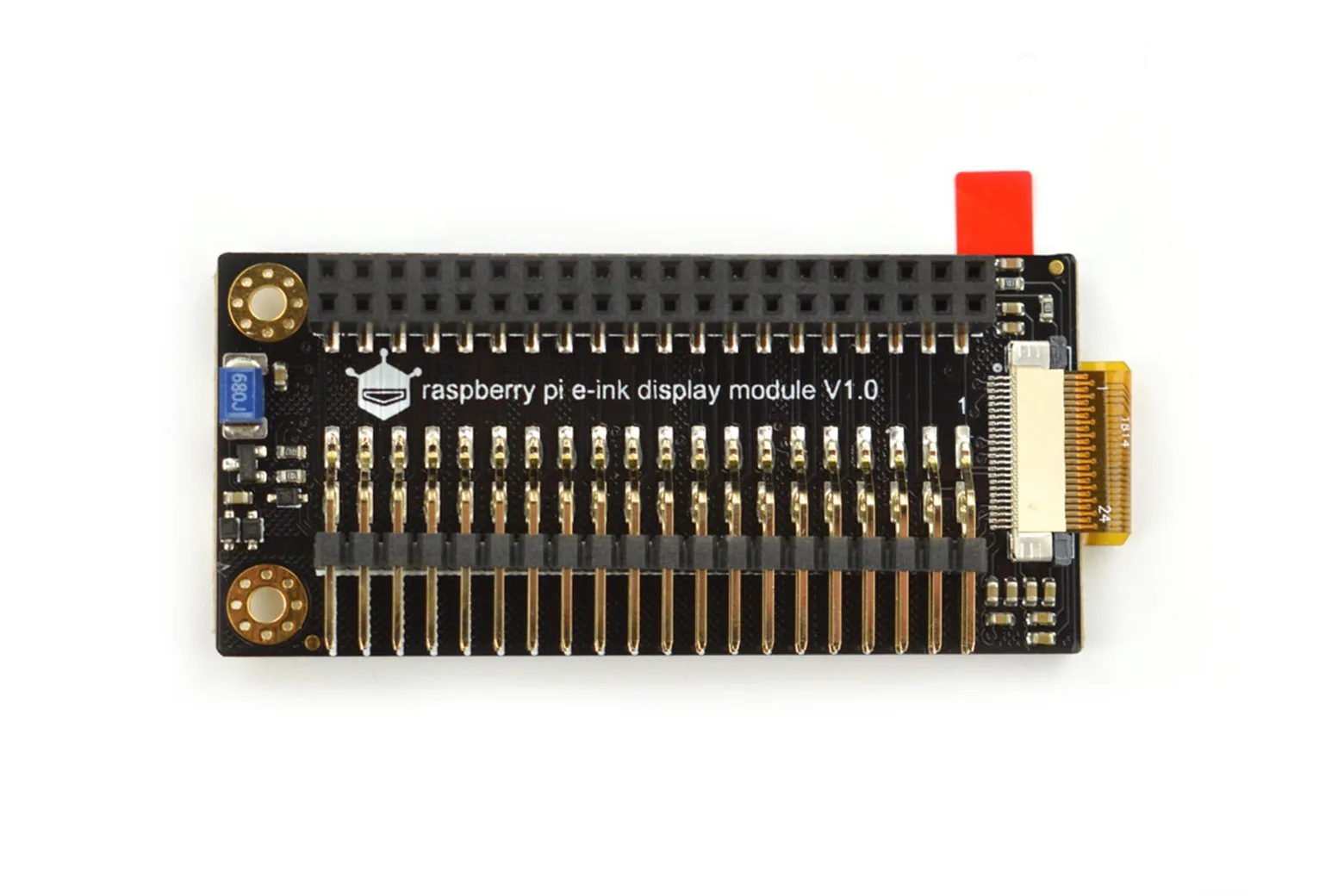

The module uses an SPI interface via a standard 2.54mm 2x20-pin header that breaks out Raspberry Pi pins to avoid hardware conflicts. Two integrated patch touch switches allow for custom user input and extended interactive applications.

Compact dimensions and mounting hardware

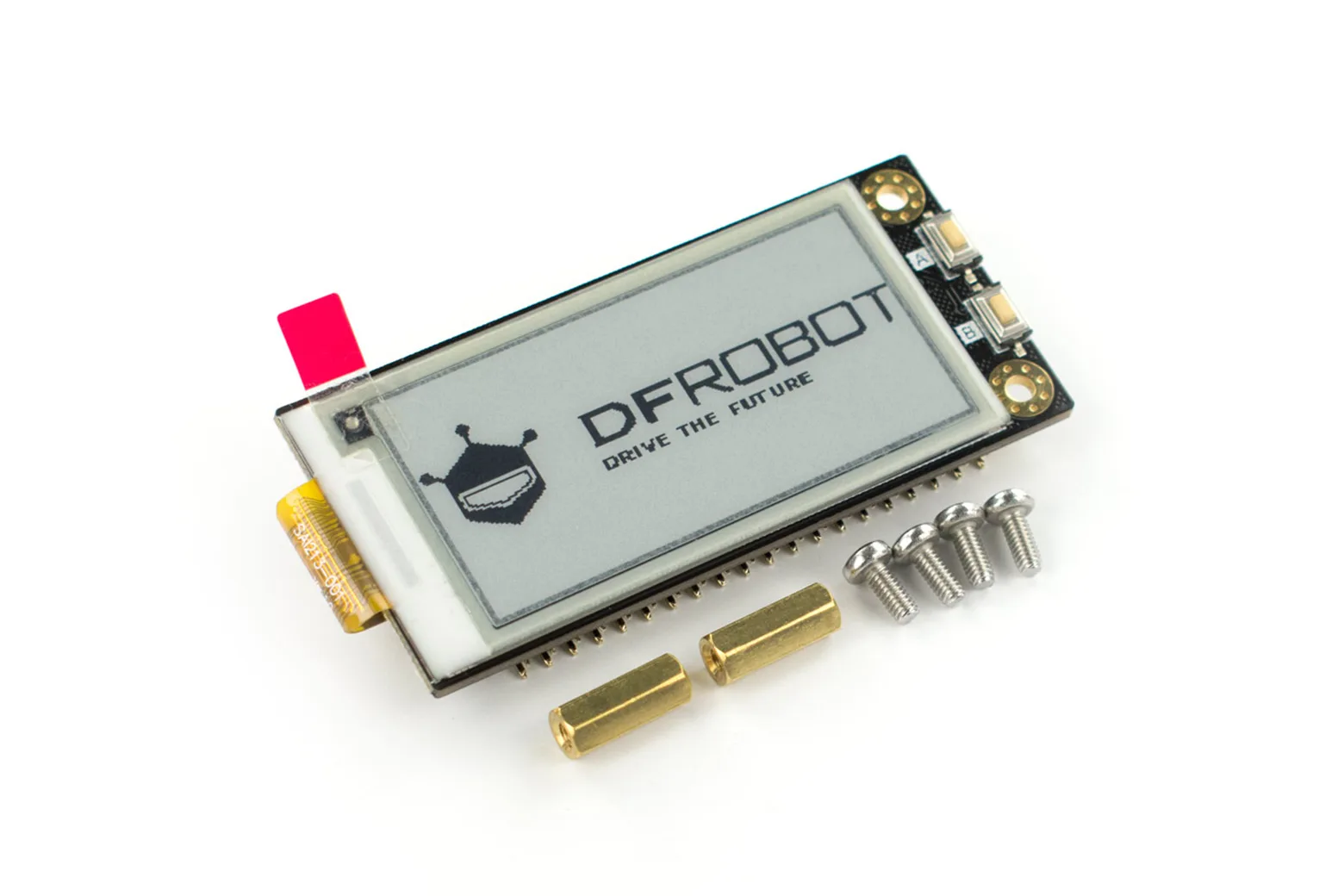

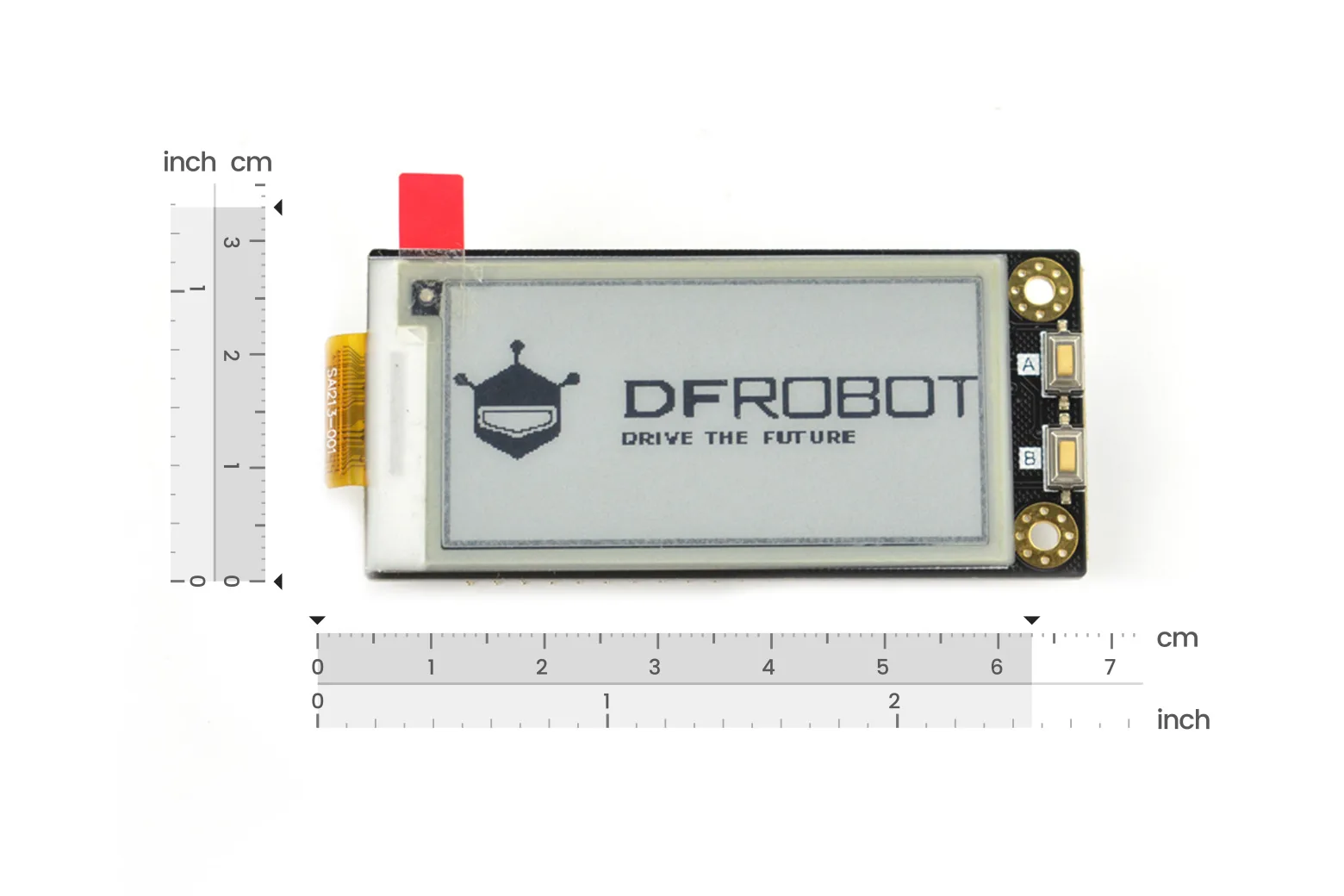

With a compact footprint of 66.5 x 31 mm, the module neatly matches small-format builds. Each pack includes the display module, two double-ended copper standoff nuts, and four screws for secure attachment.

Downloads & documentation

• Product wiki (DFRobot)
