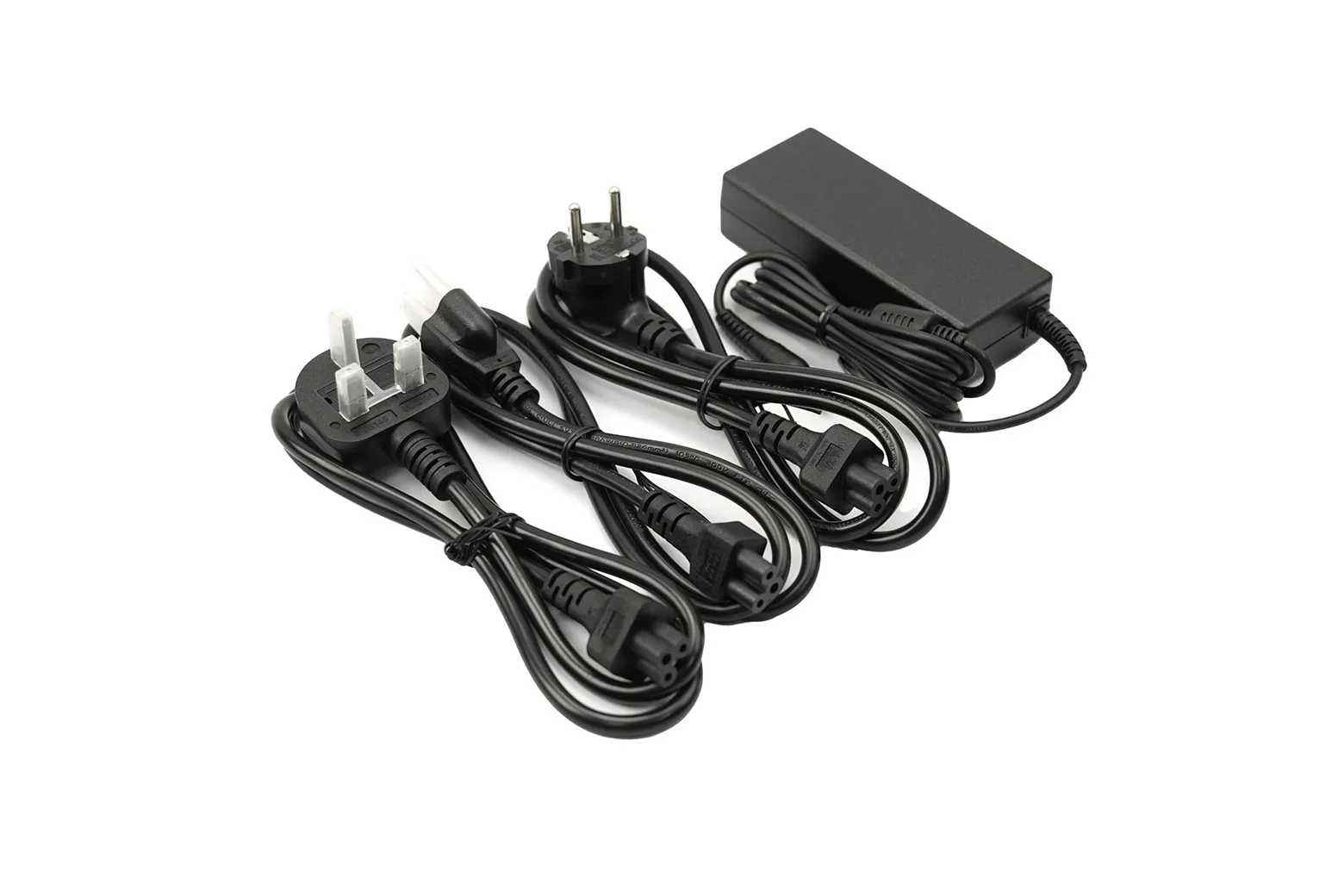

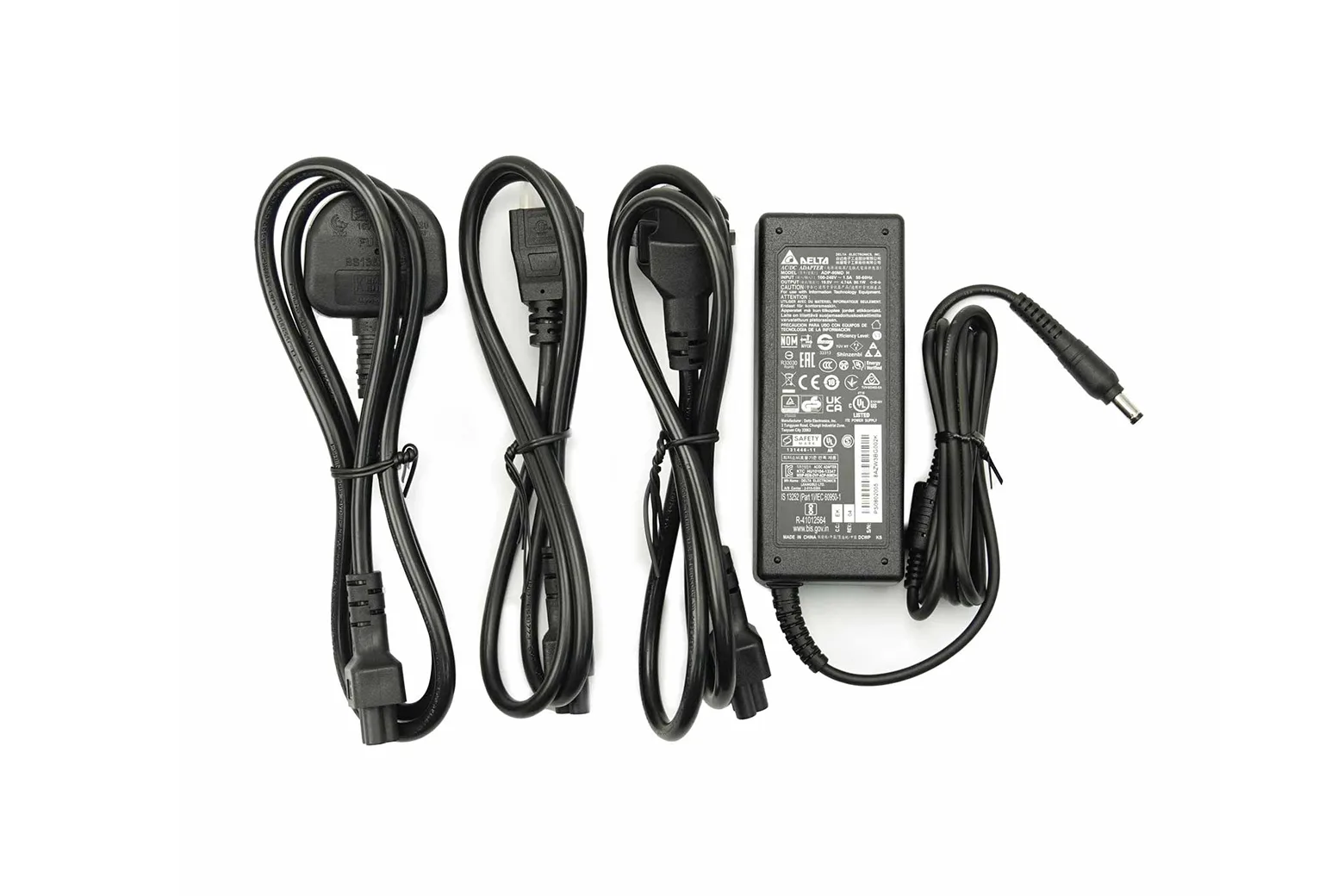

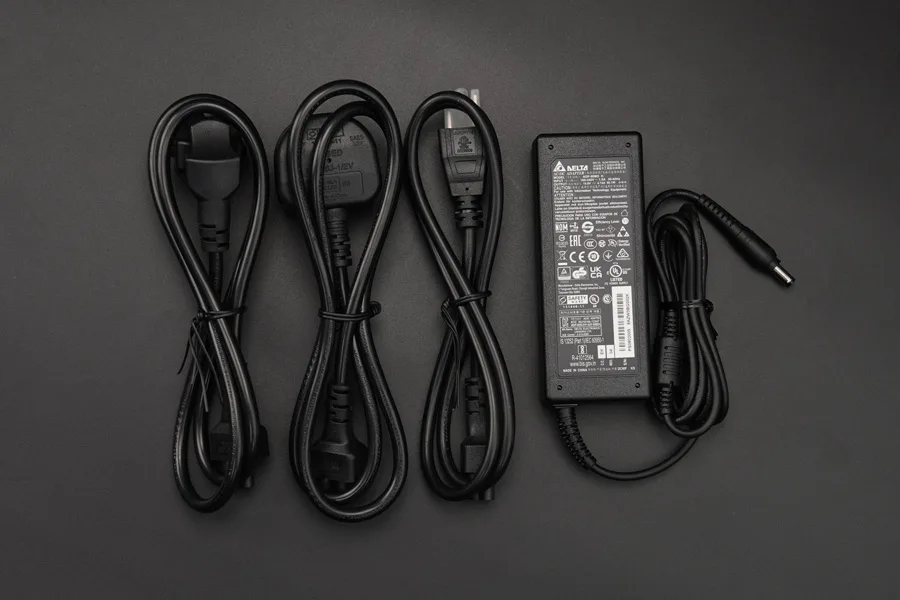

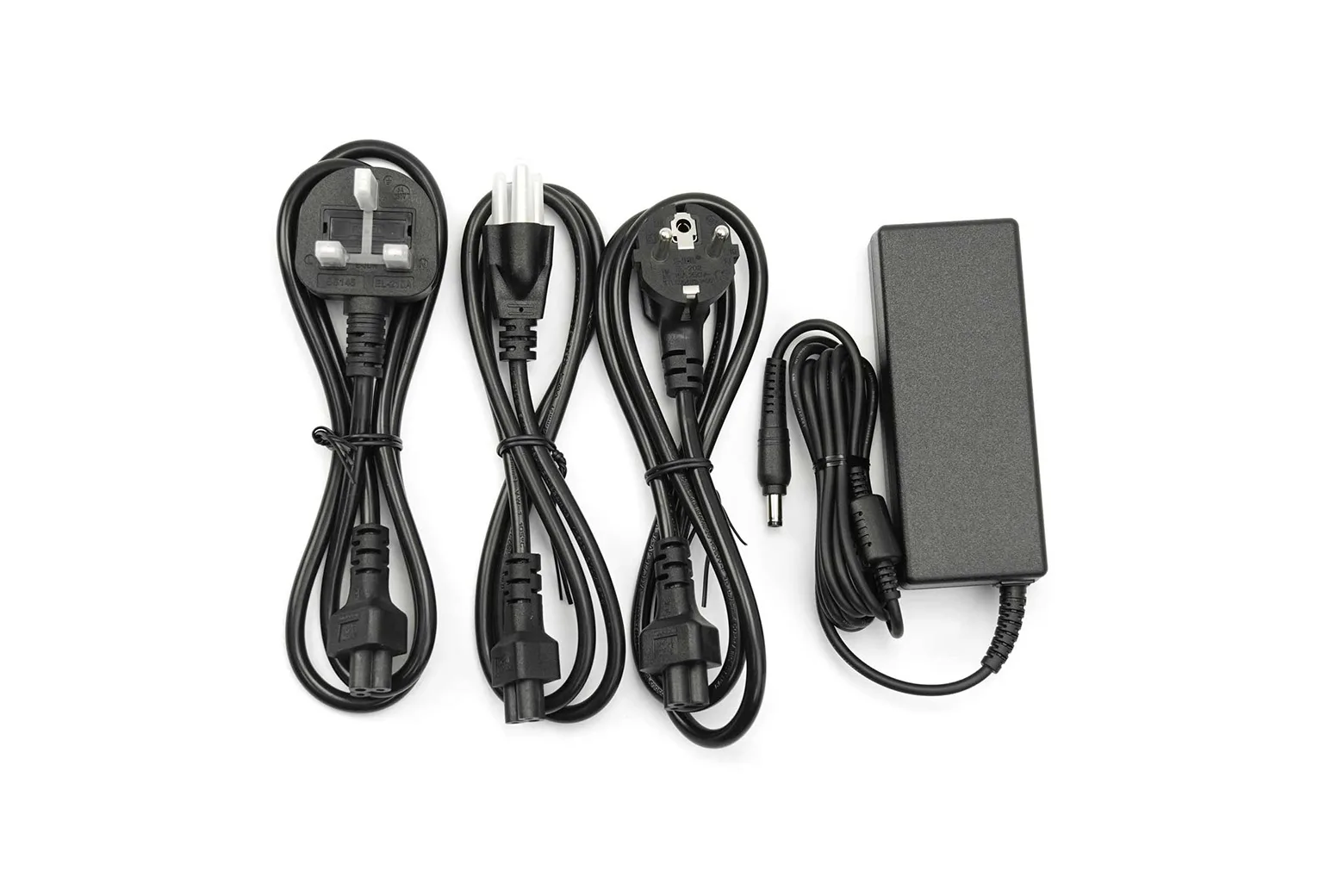

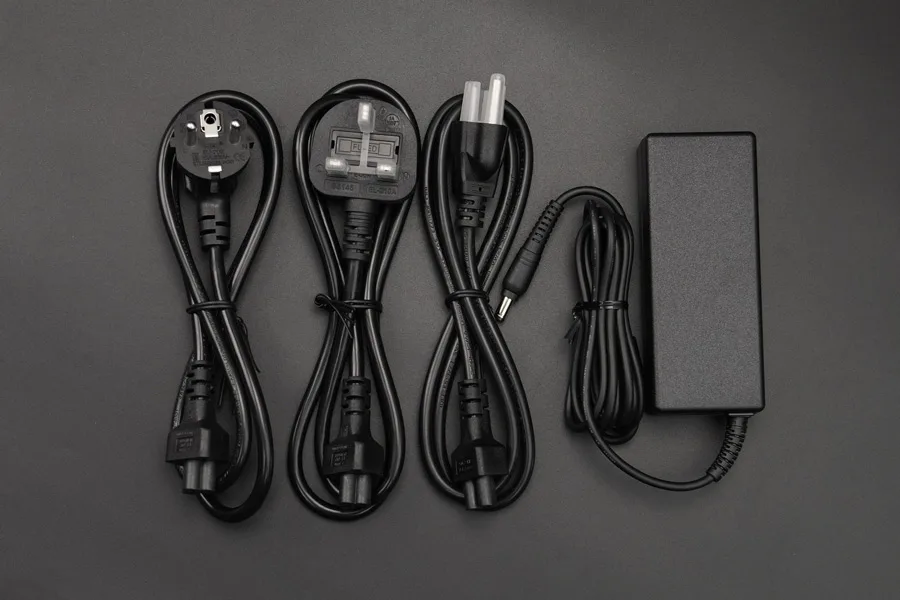

19V 90W AC/DC Adapter for LattePanda Mu Full-Function EVA Carrier Board

The Delta 19V 90W AC/DC Adapter provides reliable, regulated power for the LattePanda Mu Full-Function Evaluation Carrier Board and other compatible electronics. Supplied with US, EU, and UK mains cables, it is an ideal power solution for makers, developers, and educators working across various laboratory and field setups.

Stable 90W DC power delivery

This adapter provides a rated 19V DC output at up to 90W, maintaining a steady 18.55V to 19.95V across load currents ranging from 0A to 4.74A. It accepts a wide AC input range of 100V to 240V at 50/60Hz for reliable operation.

Multi-region plug support

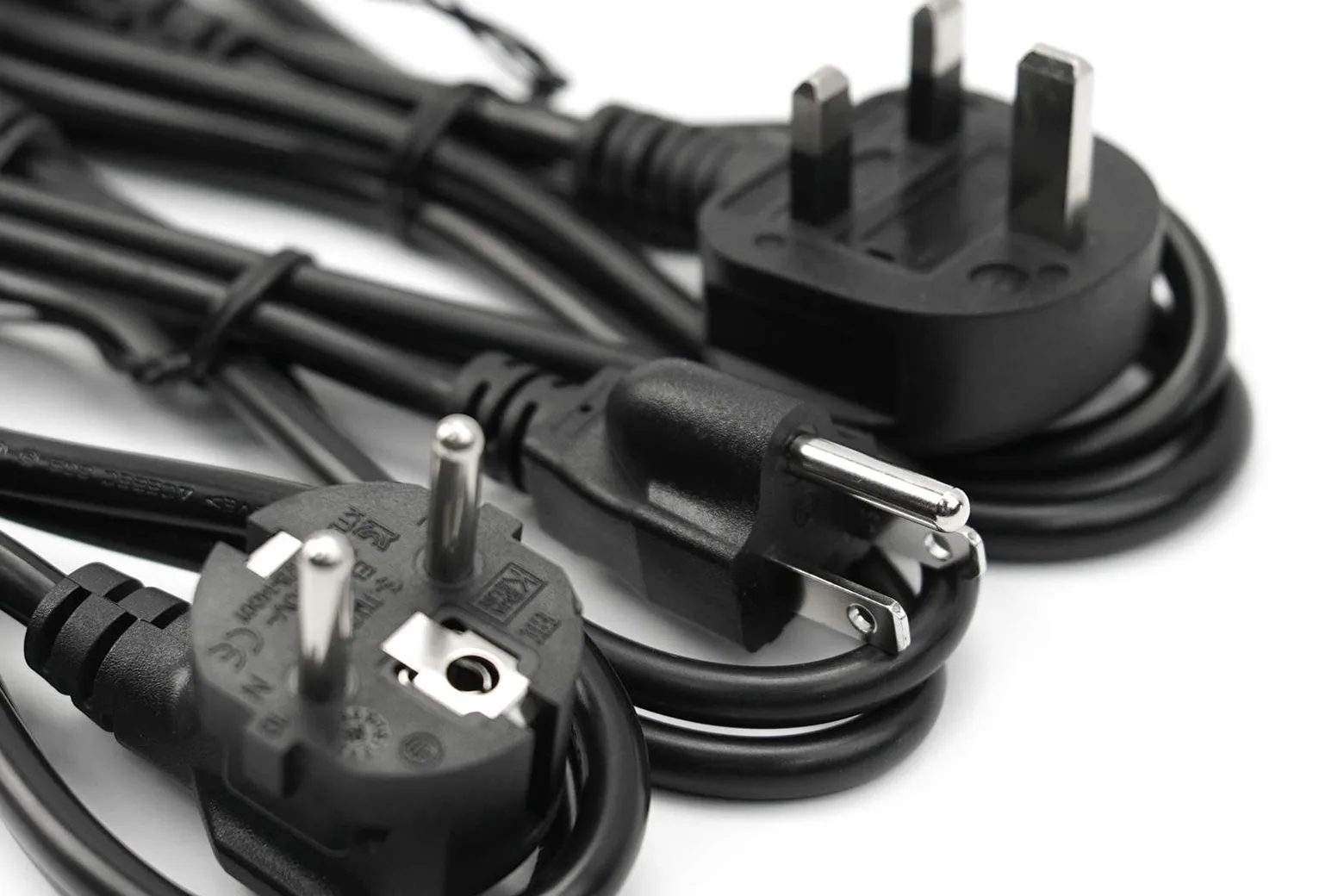

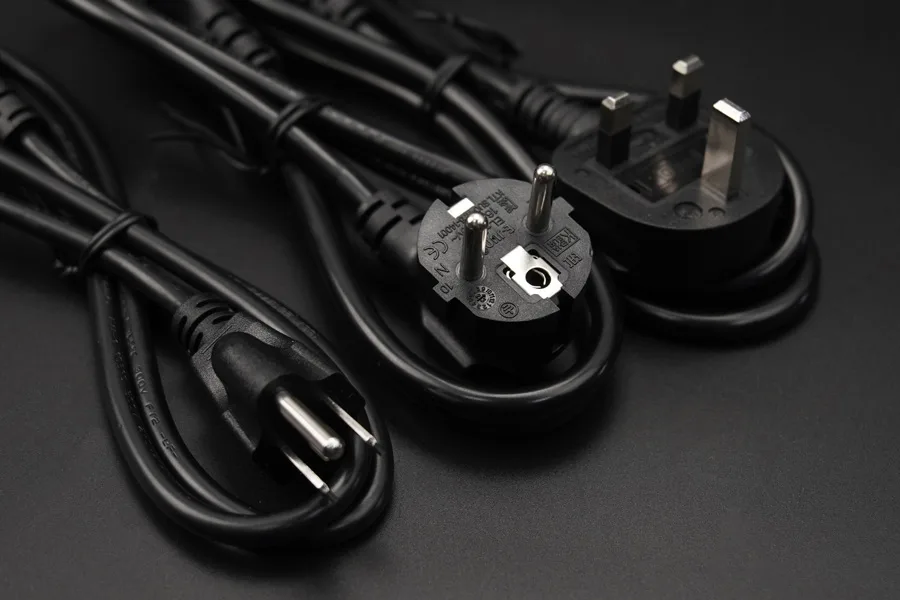

The package includes three regional mains cables featuring a cloverleaf (plum blossom) connection: a US straight plug, an EU angled plug, and a UK angled plug. This enables immediate out-of-the-box use in different countries without additional adapters.

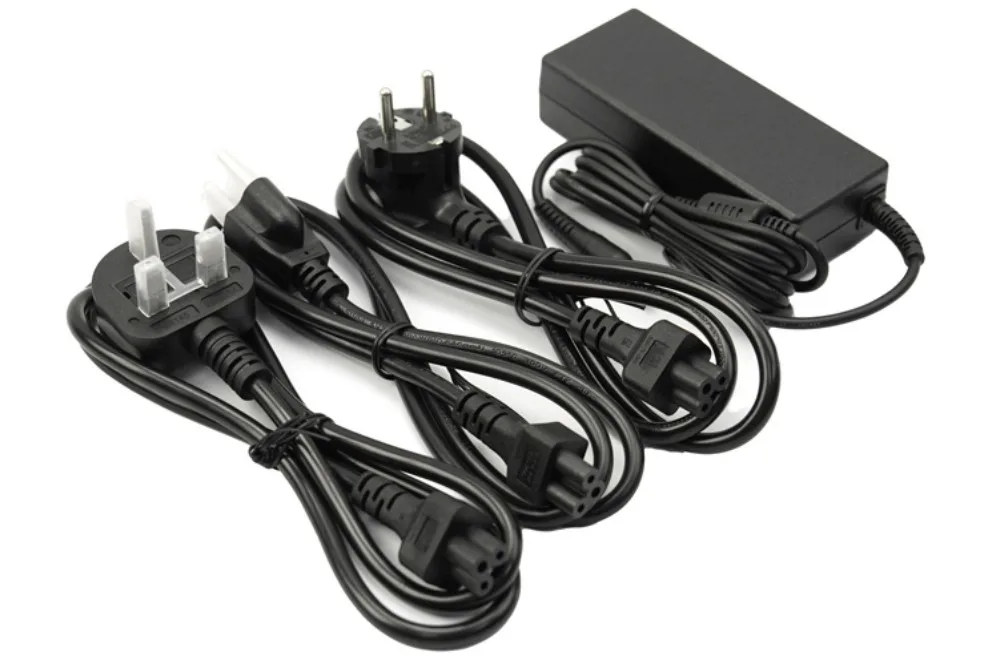

Carrier board connection guidelines

Engineered for the LattePanda Mu Full-Function Evaluation Carrier Board and compatible 5.5 x 2.5 mm barrel-jack hardware. To protect internal interfaces and components, always disconnect the power adapter before connecting or removing the board or peripherals.

Physical dimensions and cable reach

The main adapter housing measures 127.0 x 51.0 x 30.5 mm and connects to your device via an integrated 1800 mm DC lead. Each accompanying AC power cable provides an additional 1000 mm of reach.

Certified operating specifications

Built for reliable thermal performance, it operates from 0°C to 40°C with a storage rating of -20°C to 85°C. The unit complies with CISPR 22 Class B, VCCI Class B, and FCC certification standards.
