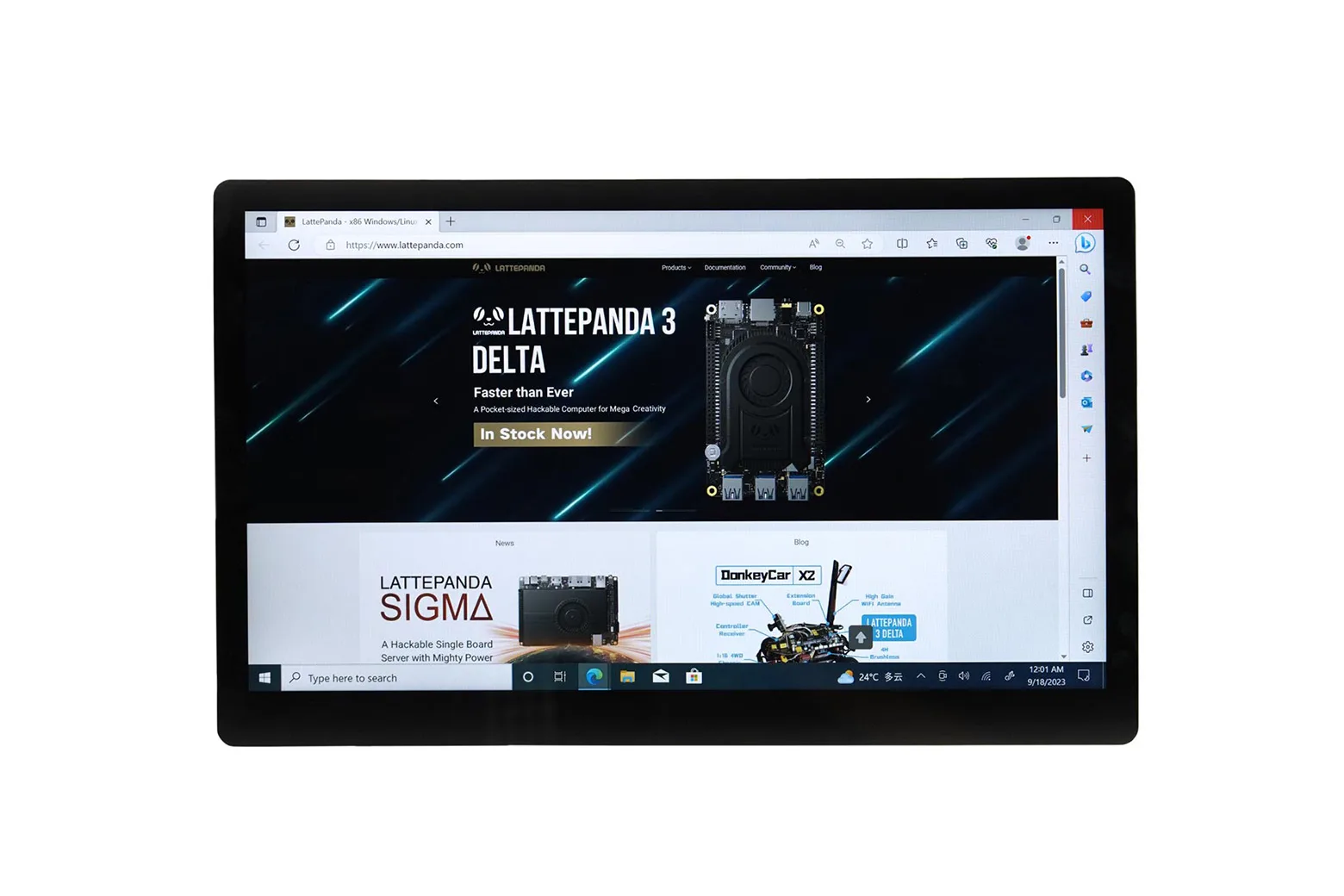

15.6 Inch 1920x1080 IPS Type-C Touch Screen & Display for Raspberry Pi / LattePanda / Jetson Nano Single Board Computer
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
This 15.6-inch Full HD capacitive touch display delivers crisp 1920x1080 visuals using an optically bonded IPS panel. Designed for makers, educators, and embedded engineers, it offers plug-and-play Type-C and HDMI connectivity for single-board computers like Raspberry Pi, LattePanda, and Jetson Nano. It provides an ideal solution for interactive control panels, IoT kiosks, and compact desktop setups.
Full HD IPS optical bonding panel
The 15.6-inch BOE display delivers 1920x1080 resolution at 60Hz with wide viewing angles and 250 cd/m² brightness. It features an anti-glare surface treatment, optical bonding, and responsive ten-point capacitive touch driven by an ILI2511 touch controller.

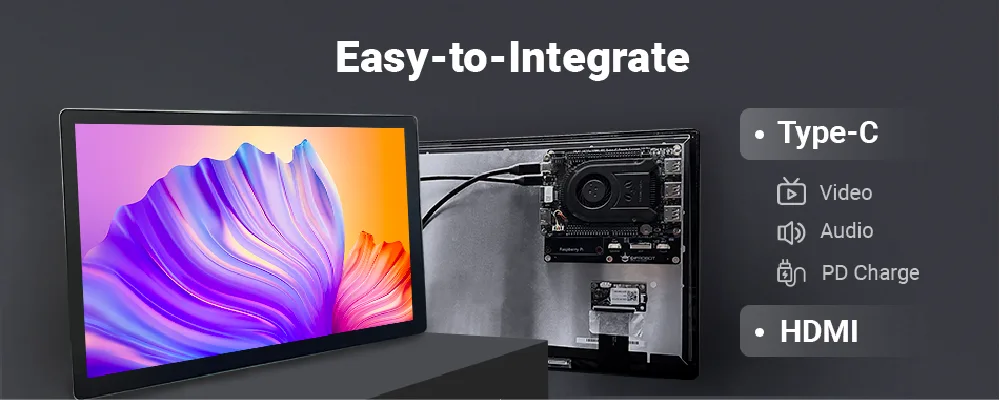

Dual full-featured Type-C ports
Two full-function Type-C interfaces support blind insertion, allowing single-cable transmission of video, dual-channel audio, and touch signals without distinguishing between ports. The interface also supports reverse USB PD power delivery to power connected host devices.

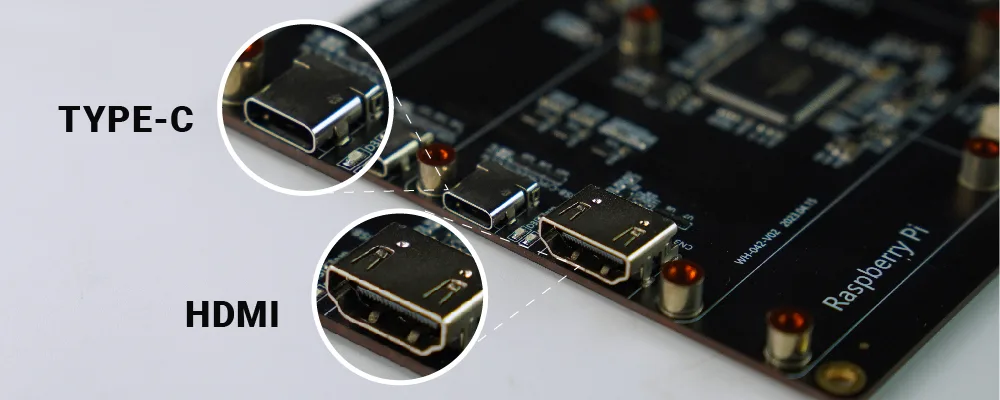

Dedicated HDMI display interface
In addition to Type-C connectivity, the driver board includes a dedicated HDMI input to ensure broad compatibility with standard video sources. The package includes dedicated HDMI adapter modules tailored for Raspberry Pi and LattePanda boards.
Broad single-board computer support
This display connects natively with single-board computers including the LattePanda series (Sigma, Alpha, Delta, Delta 3), Raspberry Pi 4B, and Jetson Nano. It also functions seamlessly with standard desktop PCs, laptops, mini PCs, tablets, and industrial controllers.

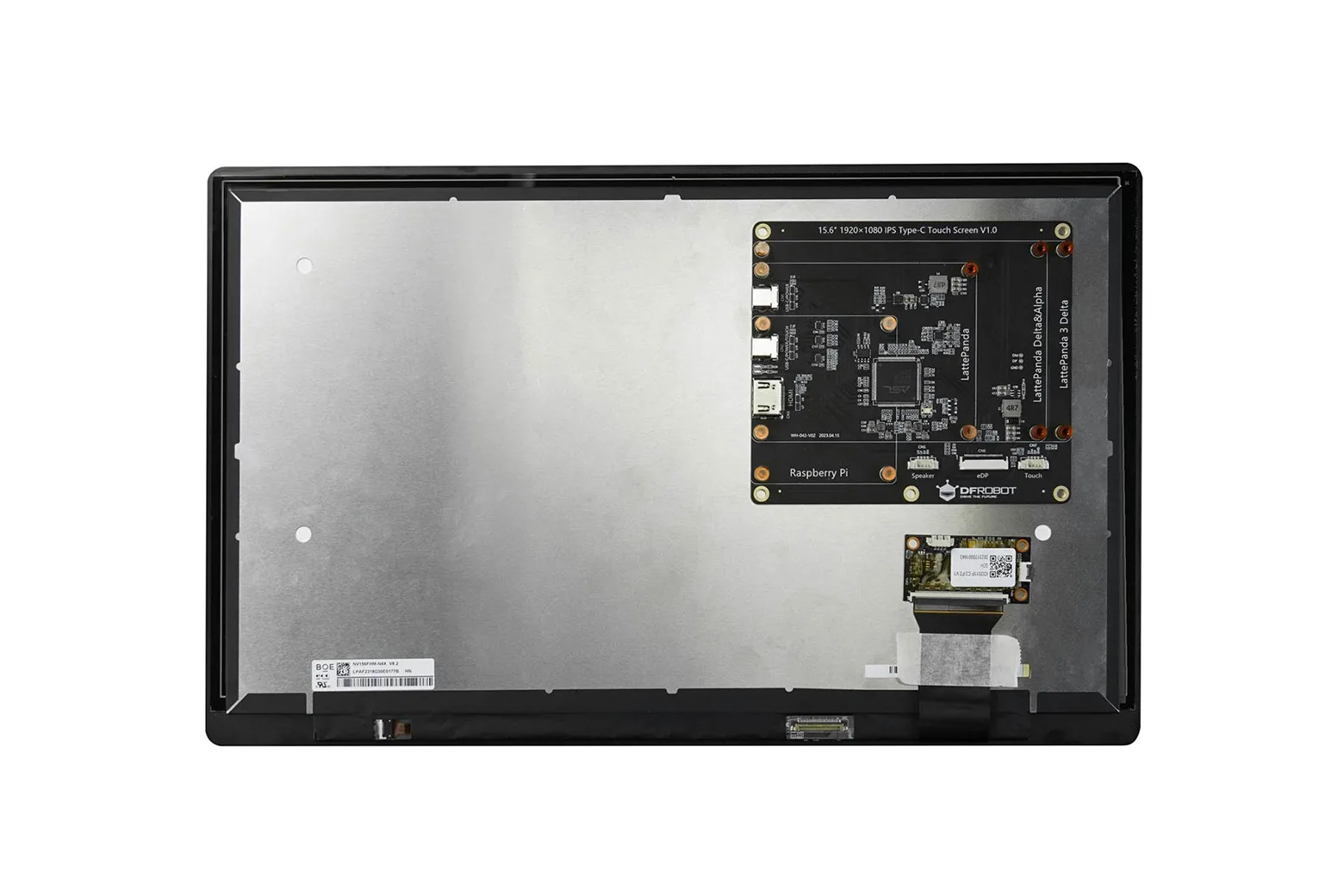

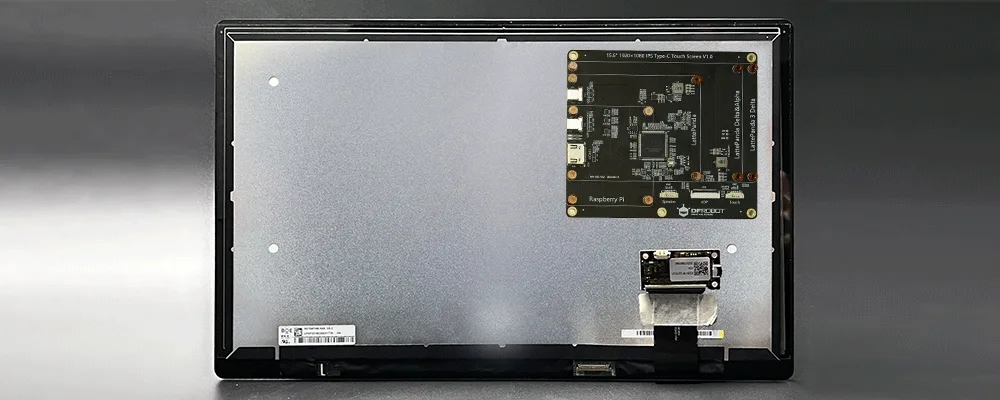

Direct SBC back-mounting integration
Integrated mounting points and included standoff hardware allow Raspberry Pi 4B and LattePanda development boards to mount directly to the rear of the unit. This creates a neat, self-contained computing module suitable for IoT dashboards and terminal control systems.

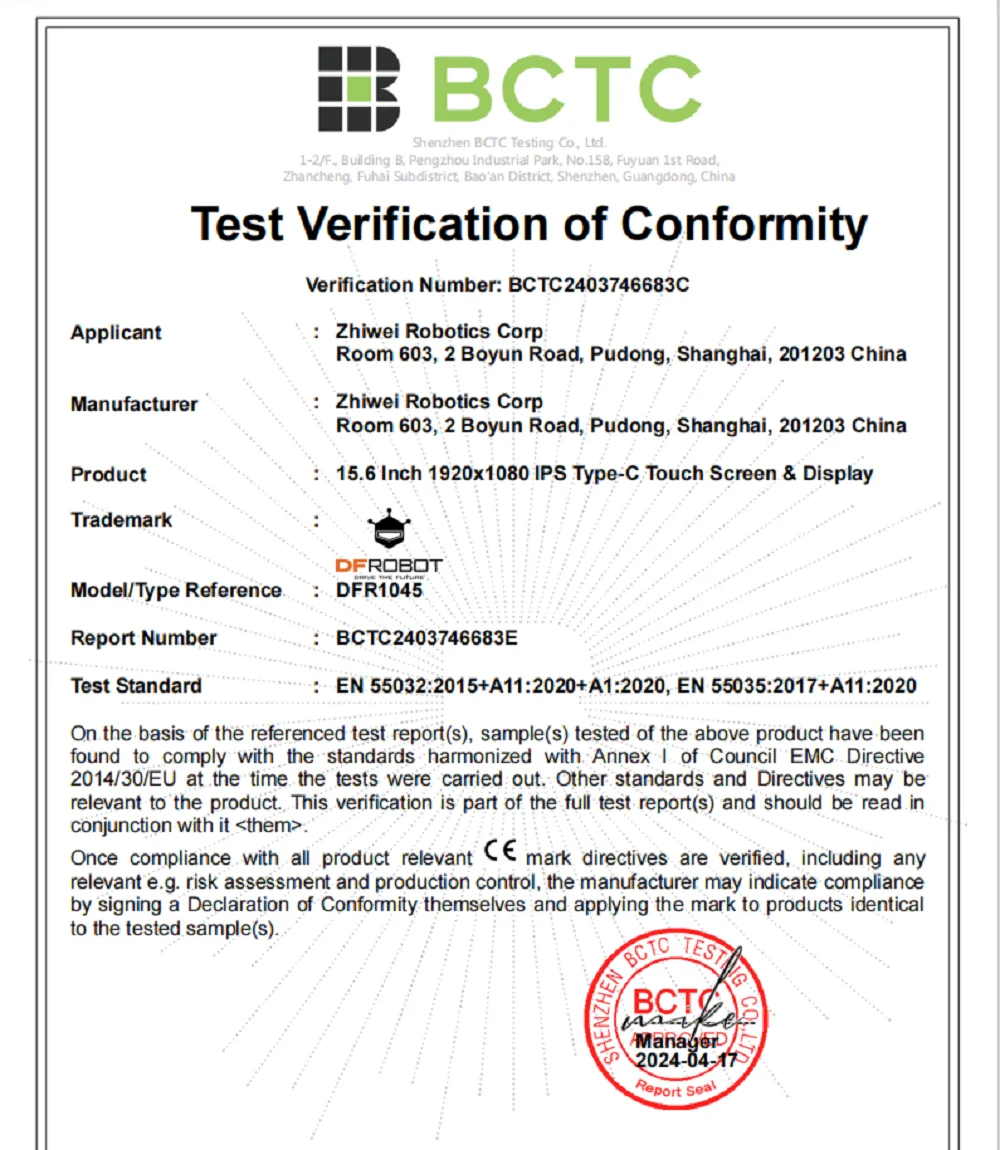

Certified electrical safety compliance
The display screen and driver hardware meet CE-EMC electromagnetic compatibility and CE-LVD electrical safety requirements. This verified compliance ensures stable performance and reliable continuous operation across commercial and maker projects.
Downloads & documentation
Specifications
| LCD size | 15.6 inches |
| Resolution | 1920×1080 |
| Pixel pitch (um) | 179.25(H) × 179.25(V) |
| Pixel arrangement | RGB Vertical Stripe |
| Color gamut | 45% |
| Display colors | 262k (6-bit) |
| Active area(mm) | 344.16(H)×193.59(V) |
| Surface treatment | Anti-Glare |
| Surface hardness | 3H |
| Brightness | 250cd/㎡ |
| Refresh rate | 60Hz |
| Transmittance | ≥86% |
| View angle | Full-view angle |
| Number of touch | 10 |
| Touch panel hardness | ≥6H |
| Bonding method | Optical bonding |

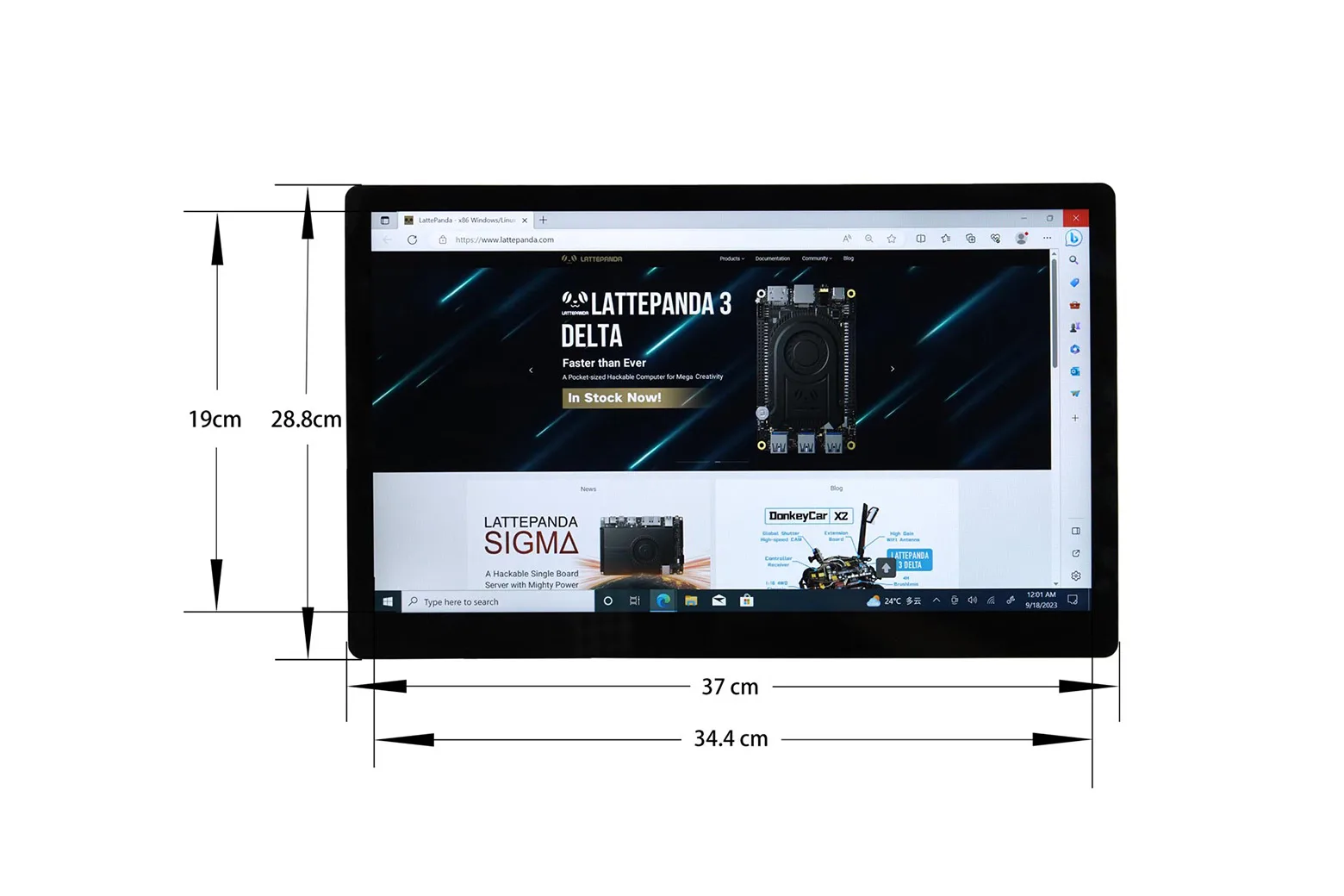

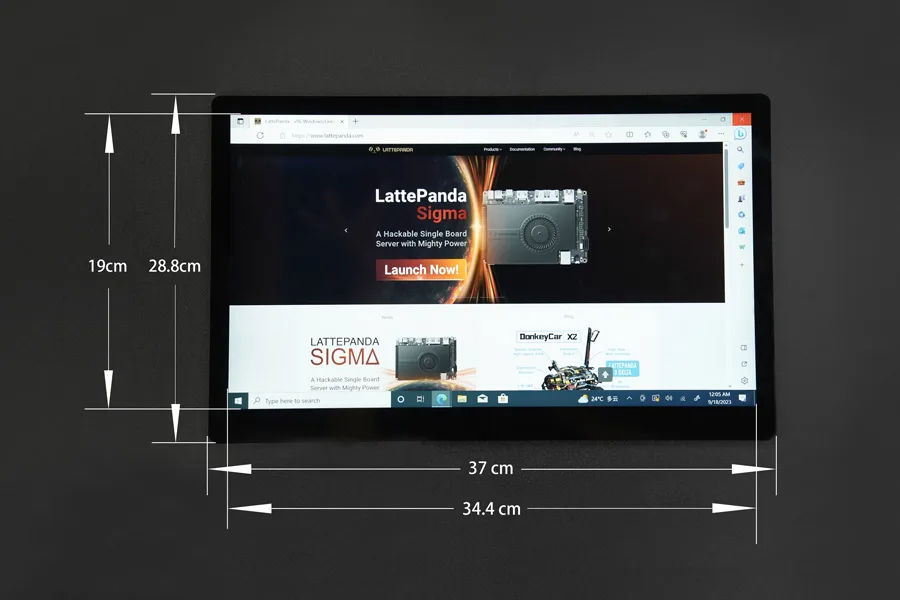

| Outline dimension(mm) | 369.5(H)×288.6(V)×5.2(D) |
| Interface | eDP |
| LCD brand | BOE |
| Operating temperature | 0~+50℃ |
| Weight | 766g |
| Display interface | Type-C/HDMI |
| Speaker interface | MX1.25-4P |
| Touch interface | Type-C |
| Power interface | Type-C |
| Power voltage | PD3.0, 5~20V |
| Mounting hole size | Hole diameter 3.0mm |
| PCB size(mm) | 125(V)×110(H)×1.6(D) |
| Touch chip | ILI2511 |

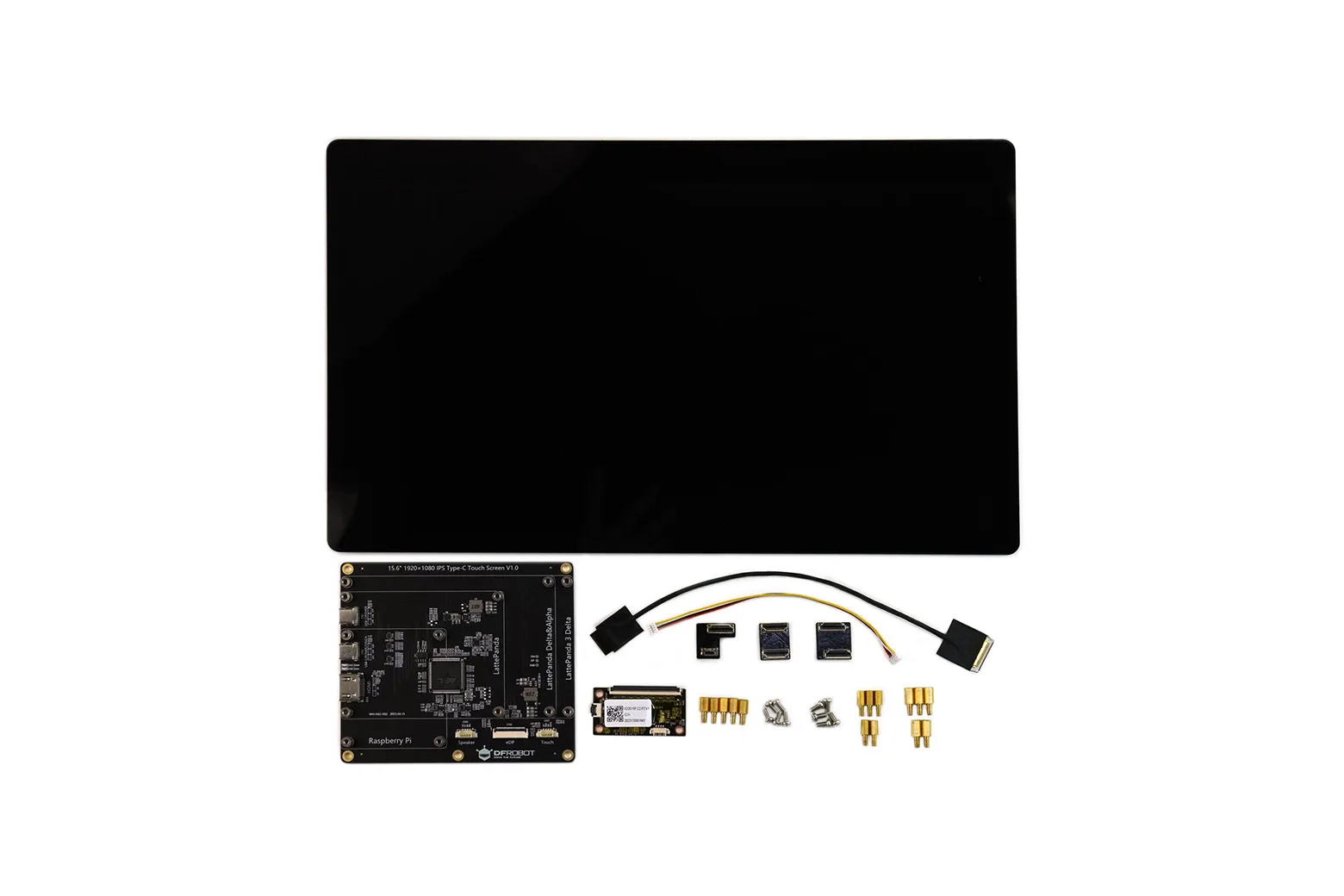

In the box
| 15.6" 1920×1080 IPS Type-C Capacitive Touch Screen ×1 | 1 |

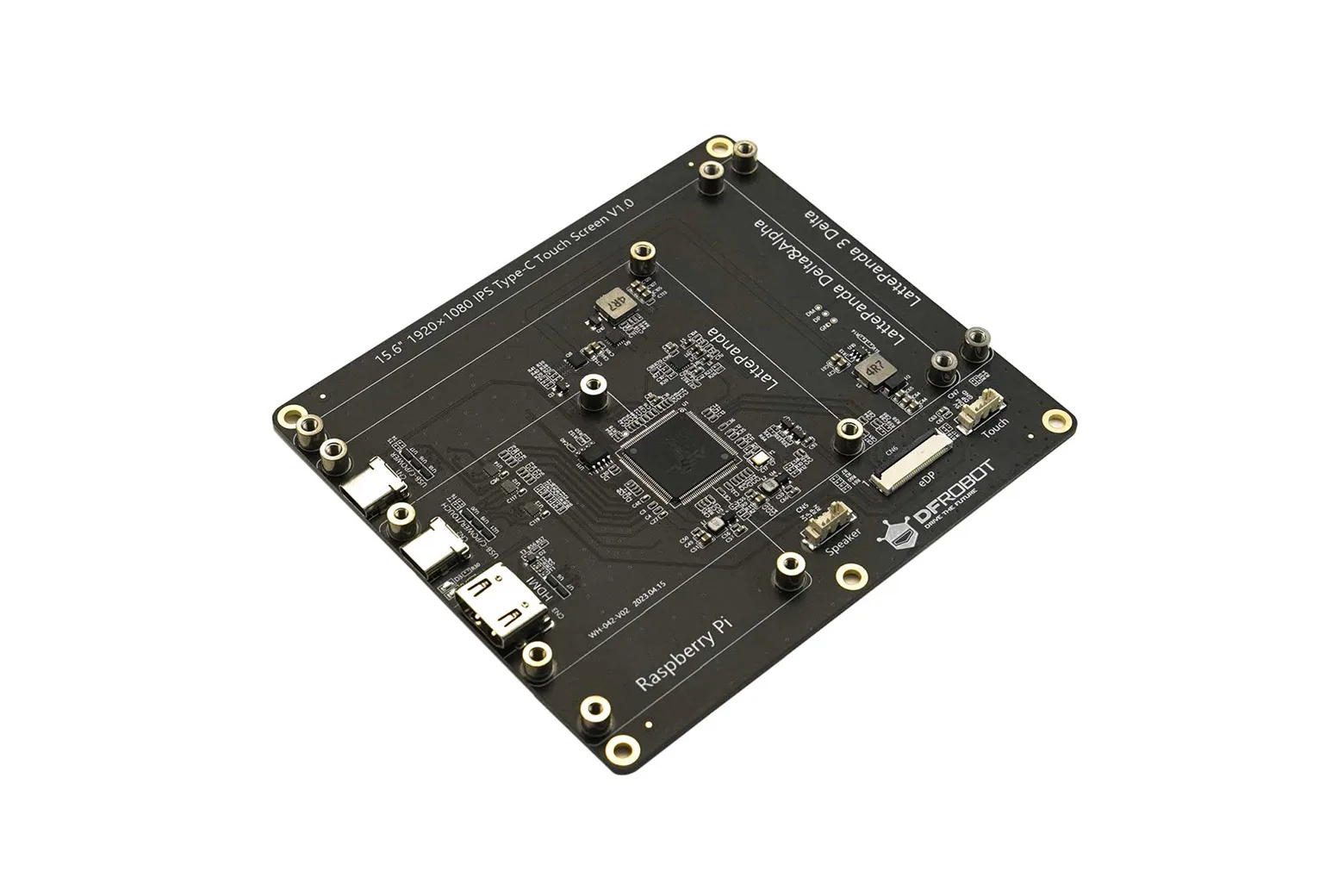

| Display Driver Board ×1 | 1 |
| Touch Control Board ×1 | 1 |
| eDP Screen Connection Cable 210mm ×1 | 1 |
| Dual-Head MX1.25-4P Touch Screen Cable ×1 | 1 |
| HDMI A to A Adapter Module for LattePanda Delta 3 ×1 | 1 |
| HDMI A to A Adapter Module for LattePanda Delta/Alpha ×1 | 1 |
| HDMI A to D Adapter Module for Raspberry Pi ×1 | 1 |
| M3×6+8mm Single-Head Copper Pillar × 5 | 1 |
| M3×6+9mm Single-Head Copper Pillar × 5 | 1 |
| M2.5×6+8mm Single-Head Copper Pillar ×5 | 1 |
| M3×6 Round Head Screw × 5 | 1 |
| M2.5×6 Round Head Screw ×5 | 1 |
| Product Certificate and Warranty Card ×1 | 1 |
