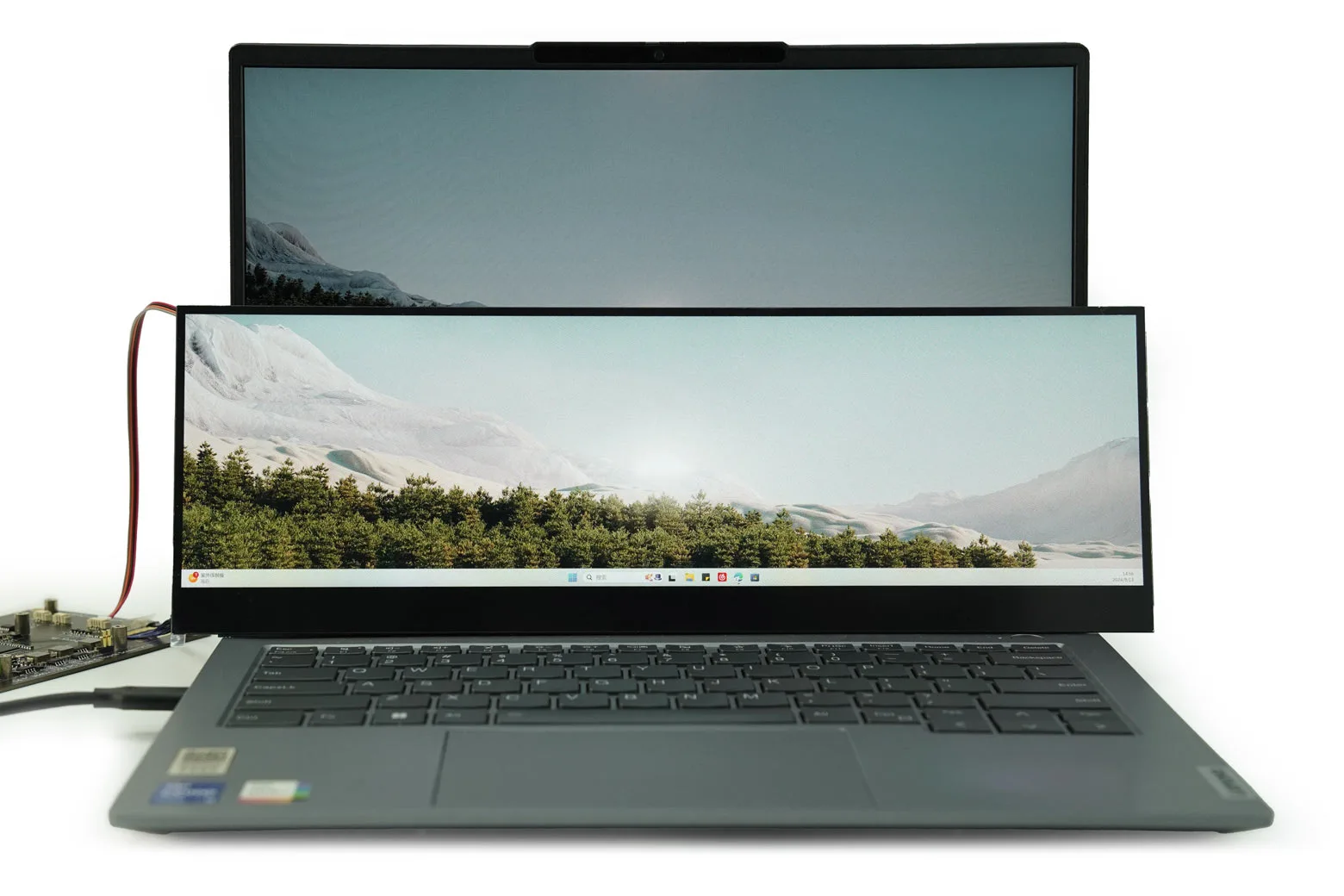

14" 4K IPS IPS Bar Touch Display (Compatible with Raspberry Pi 5 / 4B, LattePanda Sigma / Delta)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
The 14-inch 4K IPS bar touch display delivers an ultra-wide 3840 x 1100 resolution across an elongated 3.5:1 aspect ratio, designed for secondary monitoring and custom maker setups. Equipped with 10-point capacitive touch, optical bonding, and full-function Type-C connectivity, it seamlessly integrates with single-board computers, laptops, and desktop workstations. It is ideal for hobbyists, engineers, and students who need dedicated screen space for toolbars, telemetry, and debugging.

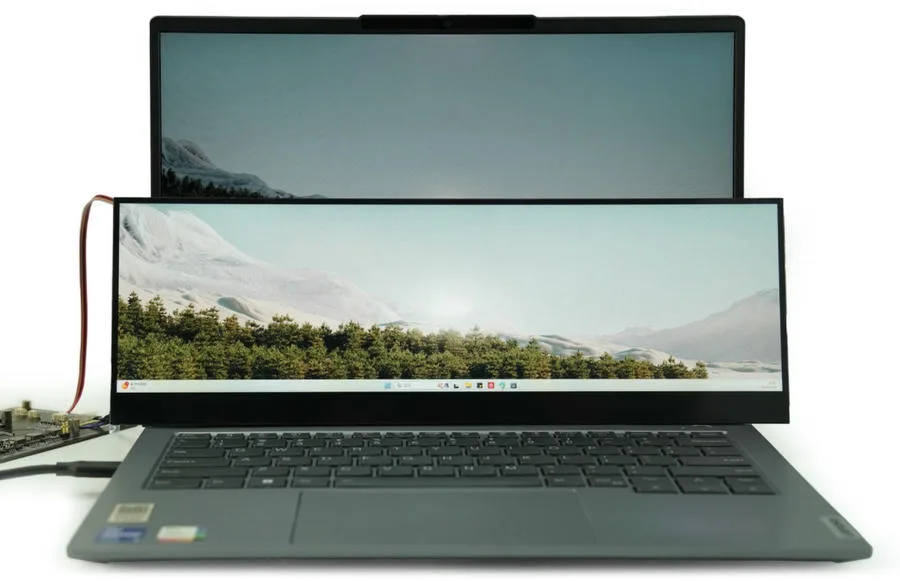

High-resolution 4K IPS display
The 3840 x 1100 panel delivers sharp graphics and crisp text with a 1200:1 contrast ratio and 72% NTSC colour gamut. Wide 170-degree horizontal and vertical viewing angles provide clear visibility from multiple angles across your workspace.

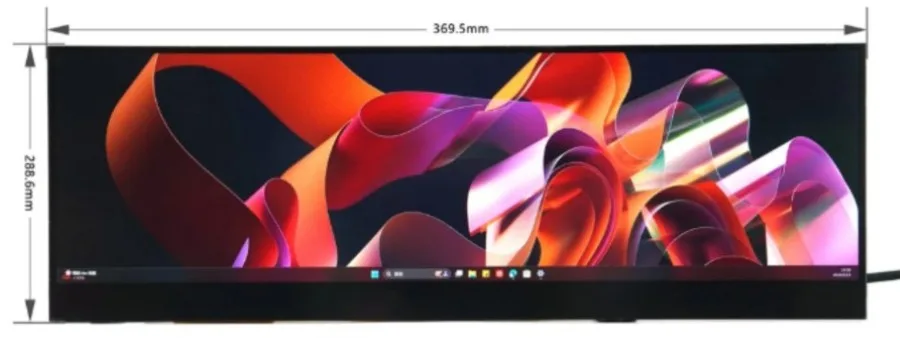

Elongated 3.5 to 1 ratio
The bar-shaped form factor fits neatly above or alongside primary monitors without taking up significant vertical space. It provides an efficient layout for tracking system diagnostics, video editing timelines, reference documents, or communication windows.
Optically bonded capacitive touch
Optical bonding eliminates internal air gaps to reduce glare, enhance touch sensitivity, and prevent dust ingress. The screen supports 10-point multi-touch and features a robust surface hardness of at least 6H with an anti-fingerprint coating.

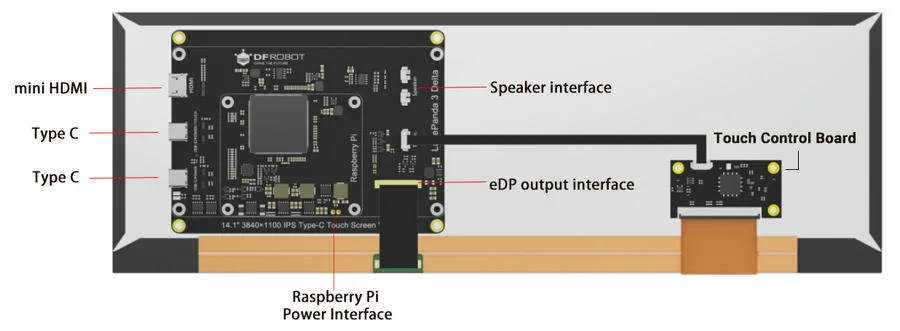

Full-function Type-C interface
A single full-featured Type-C connection carries video, audio, and touch signals while supporting reverse PD power delivery from 5V to 20V. The reversible ports allow blind insertion and simplify cabling on tidy desktop setups.

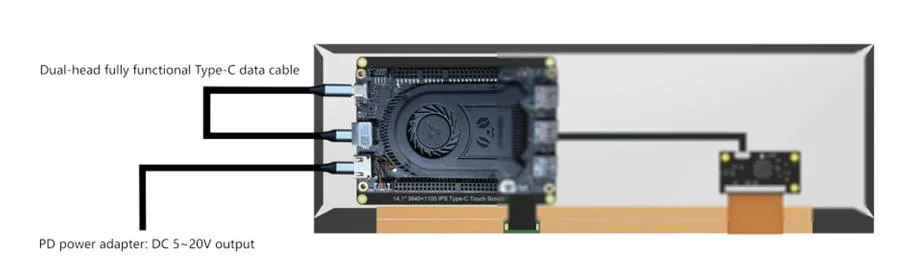

LattePanda integration support

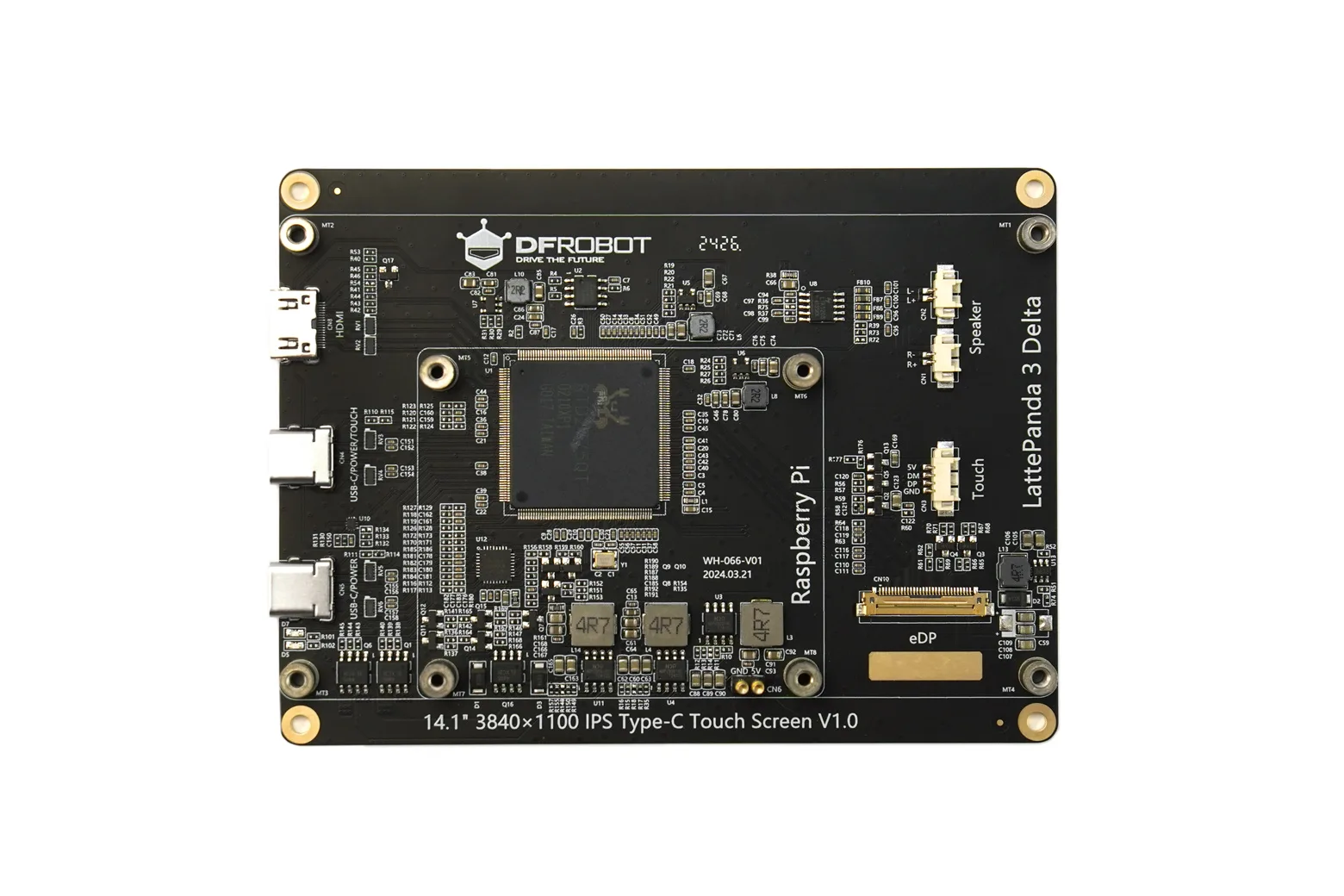

Dedicated driver board mounting holes measuring 118 mm x 71 mm allow direct attachment to LattePanda 3 Delta and LattePanda Sigma single-board computers. The board supports both Type-C and mini-HDMI inputs alongside dual-channel MX1.25 speaker outputs.

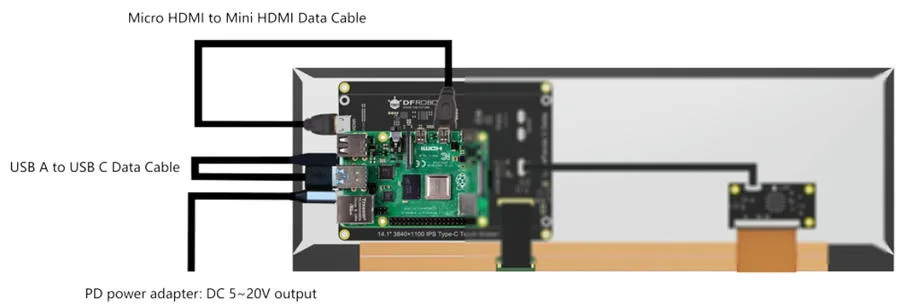

Raspberry Pi compatibility
The driver board includes 58 mm x 49 mm mounting patterns for direct hardware mounting onto Raspberry Pi 4B and Raspberry Pi 5 boards. The included mini HDMI to micro HDMI and USB cables enable rapid plug-and-play wiring out of the box.
Downloads & documentation
Specifications
| LCD Size | 14 inches |
| Resolution | 3840 × 1100 |
| Active Area | 344.2 (H) × 98.6 (V) mm |
| Pixel Pitch | 0.08964 (H) × 0.08964 (V) mm |
| Color Gamut | 72% NTSC |
| Brightness | 300 cd/m² |
| Contrast Ratio | 1200:1 |
| Refresh Rate | 60 Hz |
| Transmittance | ≥86% |
| Viewing Angle | 170° (Horizontal and Vertical) |
| Touch Points | 10-point capacitive touch |
| Surface Hardness | ≥6H |
| Surface Treatment | Anti-Fingerprint (AF) coating |
| Bonding Technology | Optical bonding |

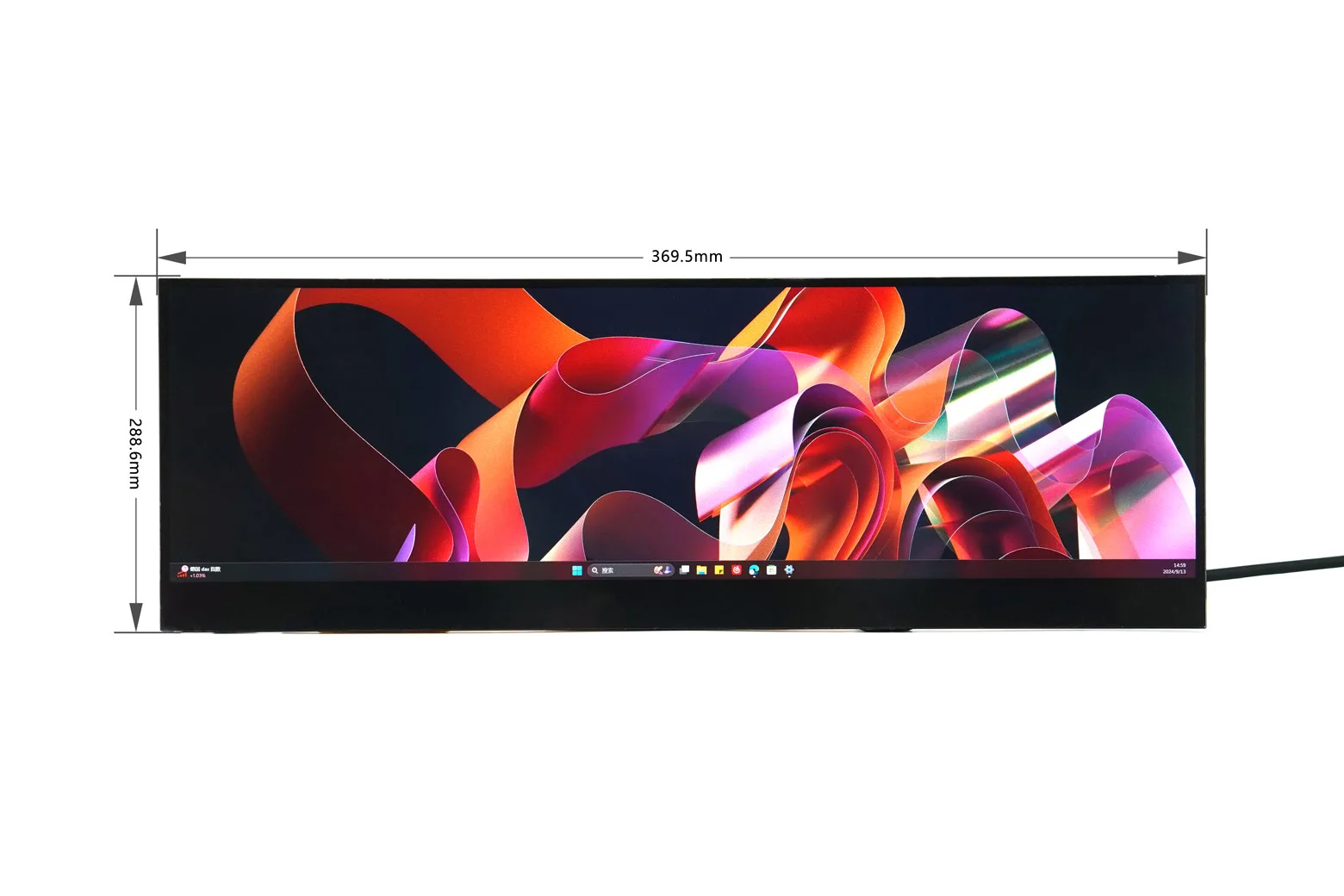

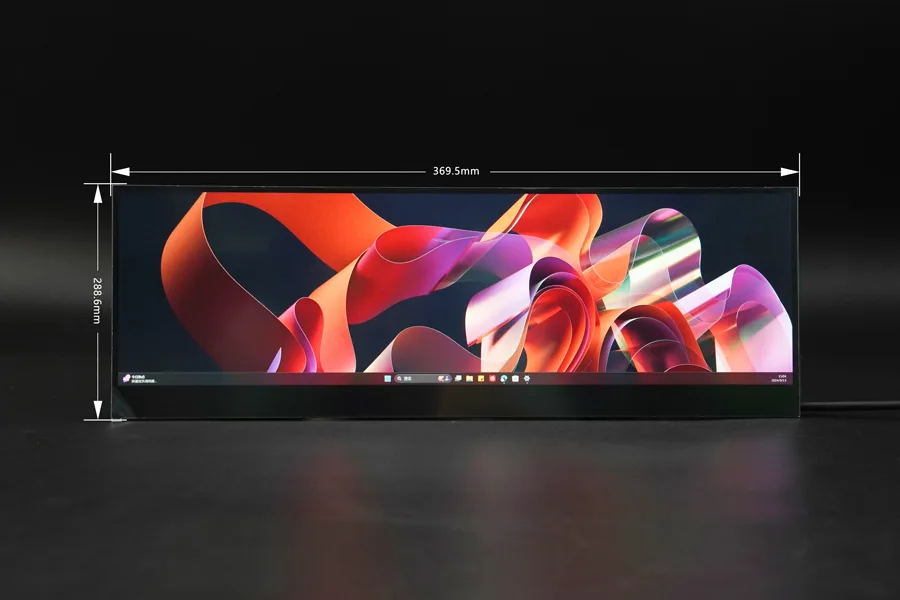

| Overall Dimensions | 350.52 (W) × 188.65 (H) × 4.23 (D) mm |
| Weight | 709 g (including packaging) |
| Power Interface | Type-C |
| Power Input | PD 3.0 protocol, 5V~20V |
| Display Interfaces | Type-C / Mini HDMI |
| Touch Interface | Type-C |
| Speaker Interface | MX1.25-2P |
| Raspberry Pi Mounting Holes | 58 mm × 49 mm |
| LattePanda 3 Delta Mounting Holes | 118 mm × 71 mm |
| Mounting Hole Diameter | 3.0 mm |
| Mounting Hole Spacing | 118 mm × 86 mm |
| Driver Board Dimensions | 125 (W) × 93 (H) × 9.6 (D) mm |
| Touch Board Dimensions | 50 (W) × 26 (H) × 4.8 (D) mm |

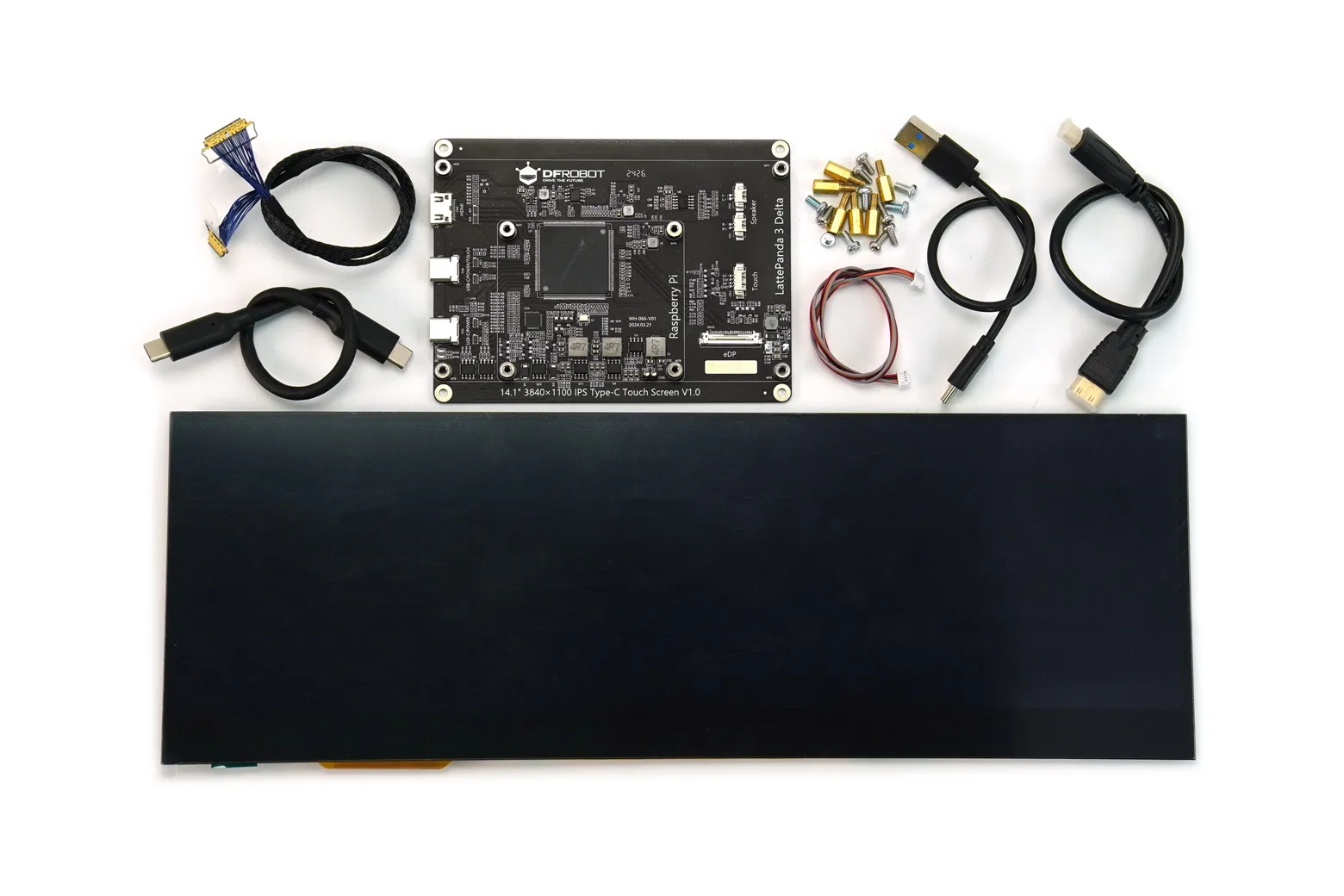

In the box
| 14" 3840 × 1100 IPS Type-C bar capacitive touch screen | 1 |
| Type-C and HDMI display driver board | 1 |
| Display connection cable (320mm) | 1 |
| Touch connection cable (300mm) | 1 |
| Dual-head Type-C full-function data cable (0.2m) | 1 |
| Mini HDMI to micro HDMI data cable (0.25m) | 1 |
| USB A to C data cable (0.25m) | 1 |
| Screw and copper pillar mounting accessory kit | 1 |
