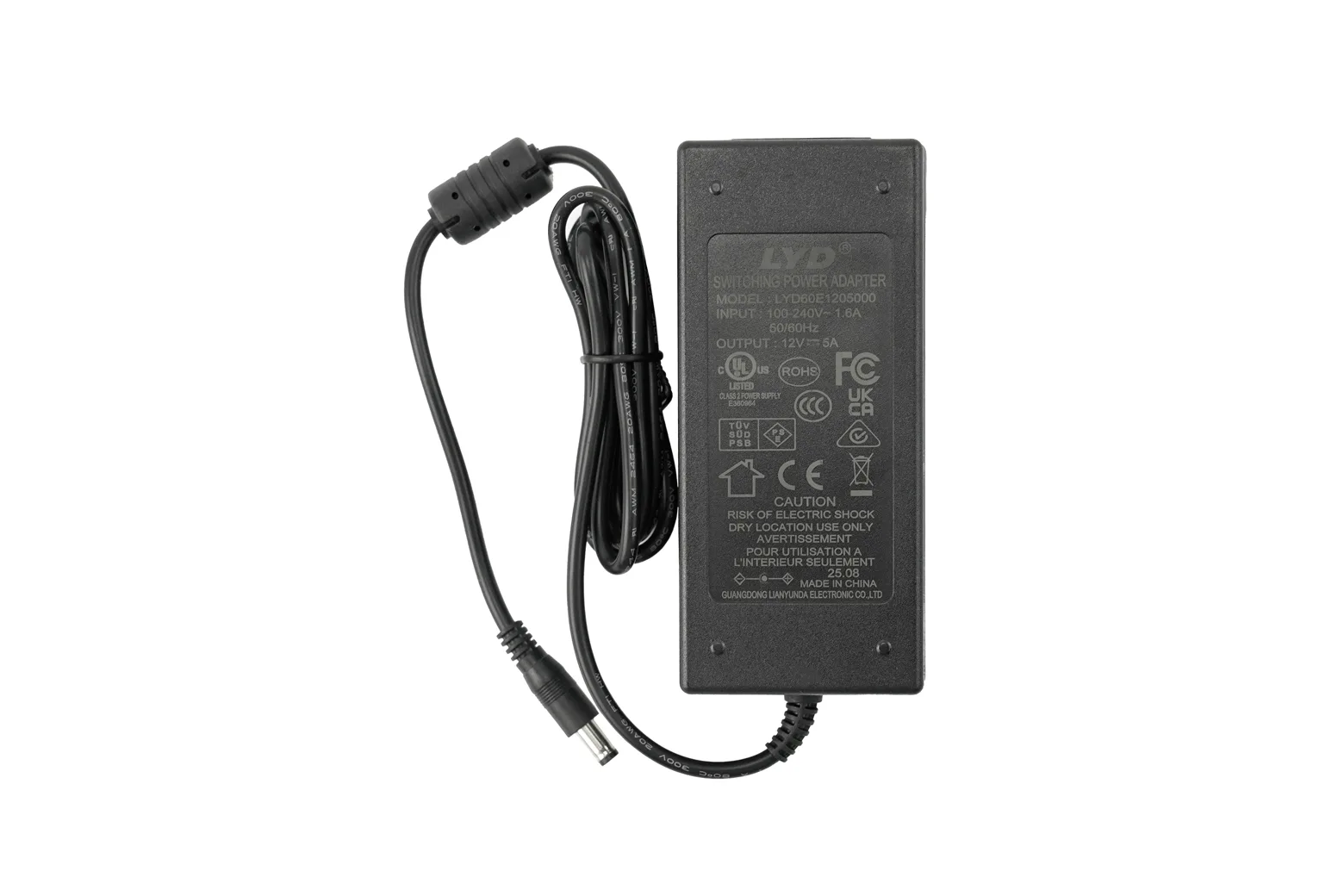

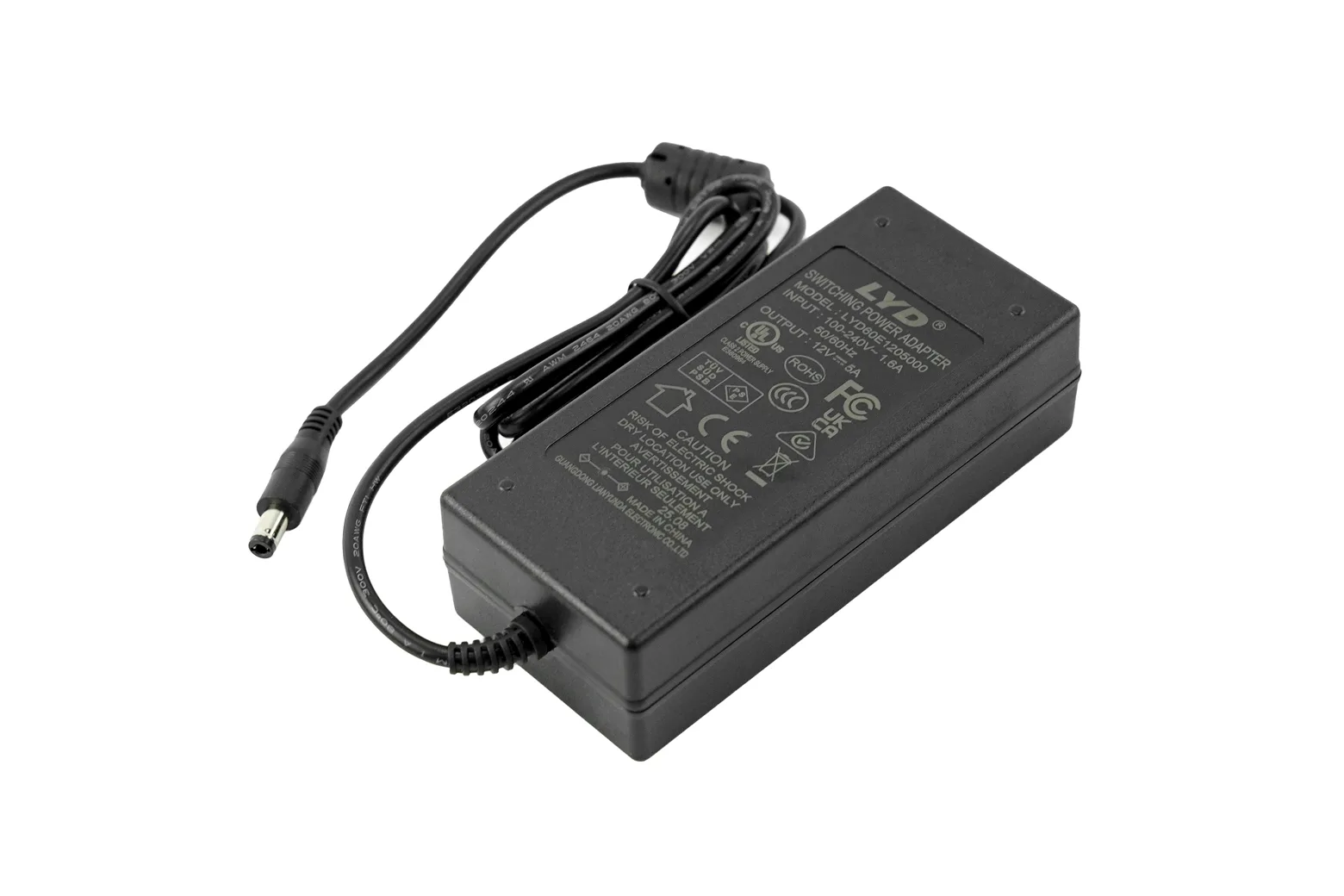

12V 60W AC/DC Power Adapter for LattePanda Mu

This 12V 60W AC/DC power adapter is designed to provide stable, dedicated power for the LattePanda Mu carrier board and other compatible 12V devices. With an international 100–240V input range and three interchangeable mains leads, it suits makers, students, and developers needing a dependable benchtop supply.

Stable 60W DC power delivery

The adapter delivers a rated 12V at 5A, maintaining a steady output voltage between 11.4V and 12.6V under loads from 0A to 5A. This ensures continuous, reliable operation for sensitive single-board computer carrier setups.

International mains compatibility

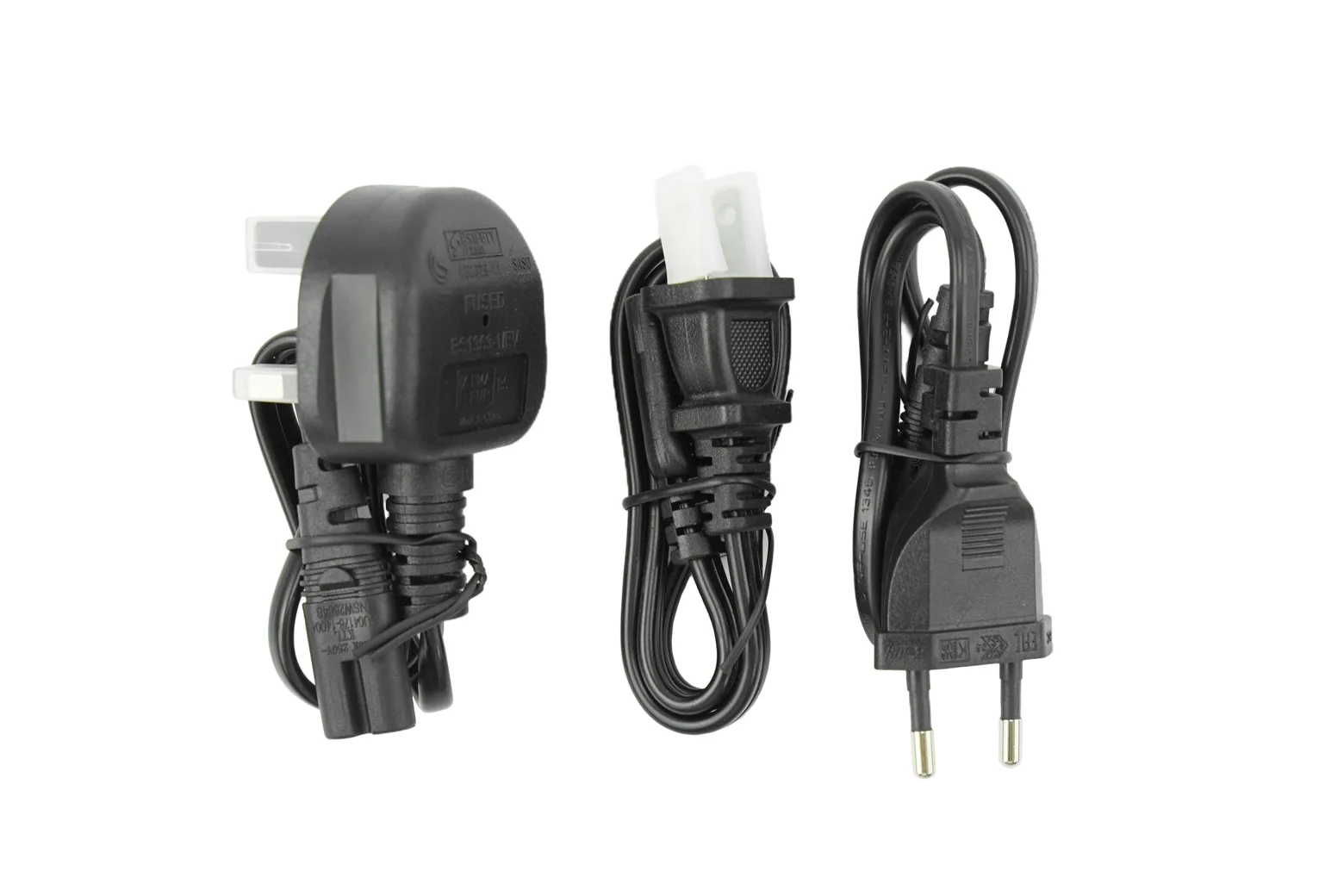

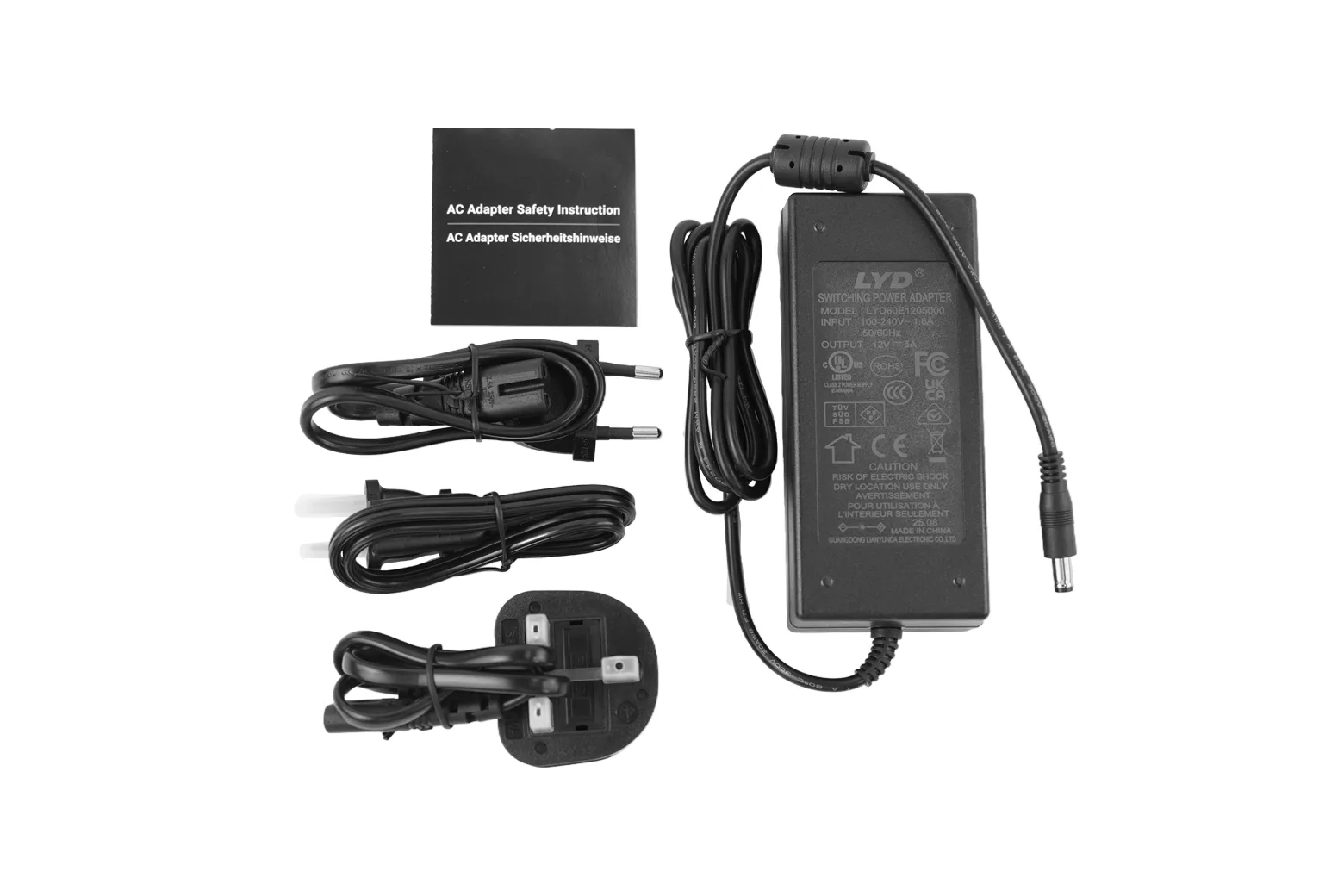

Featuring a 100–240V AC input at 50/60Hz, this supply is compatible with worldwide electrical outlets. It comes supplied with dedicated 500mm US, EU, and UK figure-8 mains cables.

Adapter dimensions and cable lengths

The adapter housing measures 122mm by 55mm by 34.5mm. It features an integrated 1200mm DC lead terminated with a standard 5.5mm by 2.5mm barrel connector.

Compliance and safe handling

The unit meets FCC, CE, UKCA, CCC, PSE, SAA, UL, and ROHS certification standards with a rated operating temperature range of 0°C to 40°C. The power supply must be disconnected before plugging or unplugging carrier boards, cables, or internal interfaces.
