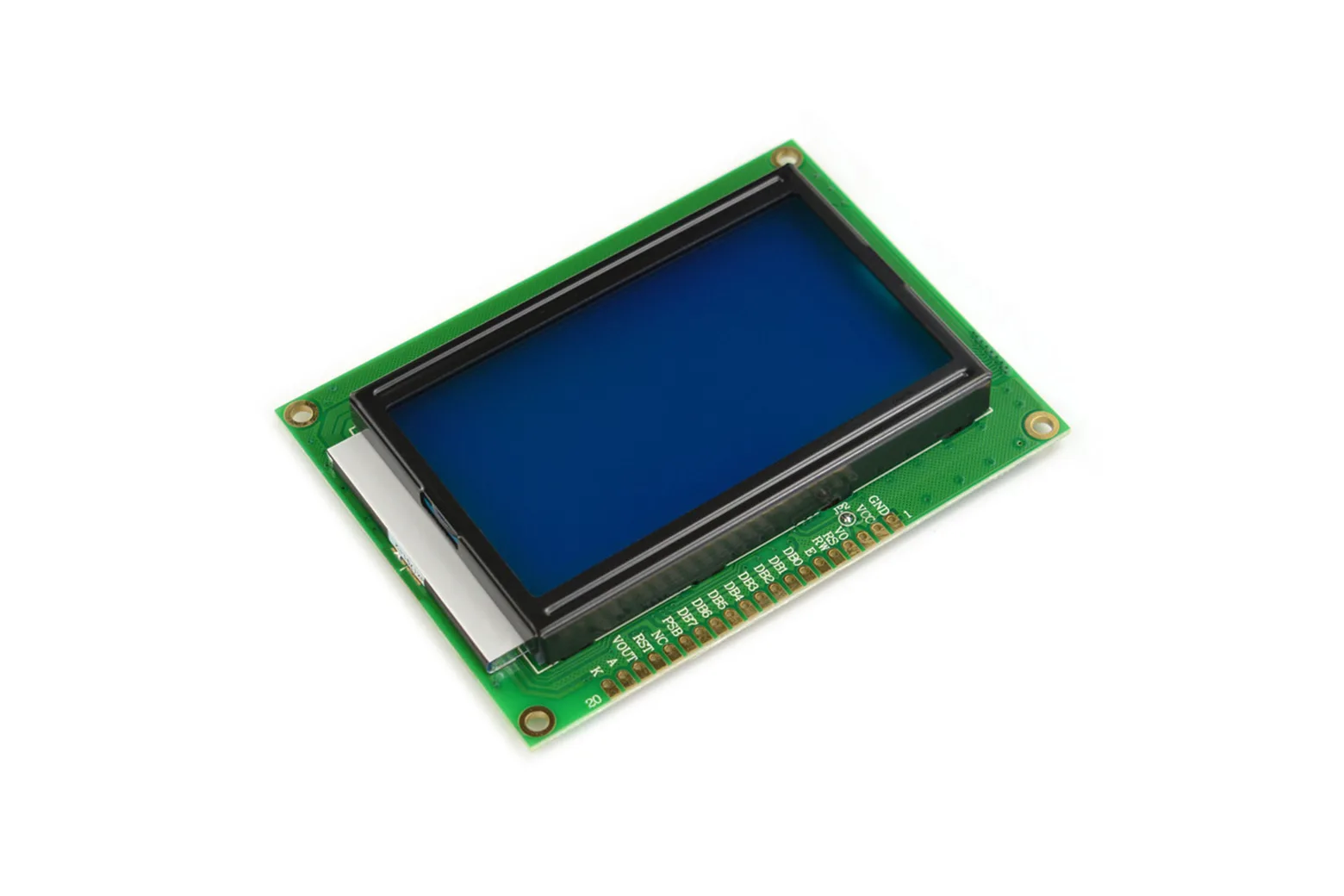

128x64 Graphic LCD

The 128x64 Graphic LCD is a versatile liquid crystal screen capable of displaying custom graphics, English text, and built-in Chinese characters. Driven by the ST7920 controller, it is an ideal visual interface for Arduino hobbyists, students, and makers building interactive projects.

Text and graphic capabilities

With a 128x64 pixel matrix, this display can render detailed bitmaps, English alphanumeric characters, and Chinese fonts. It provides a flexible interface for presenting sensor readings, menus, and visual status indicators.

ST7920 controller integration

The display is driven by the ST7920 controller, ensuring broad compatibility with Arduino libraries and microcontrollers. This simplifies software development for interactive embedded systems.

High-contrast blue backlight

Equipped with a vivid blue backlight, the screen offers clear readability across different ambient lighting conditions. The module is powered via a standard 5V power supply.

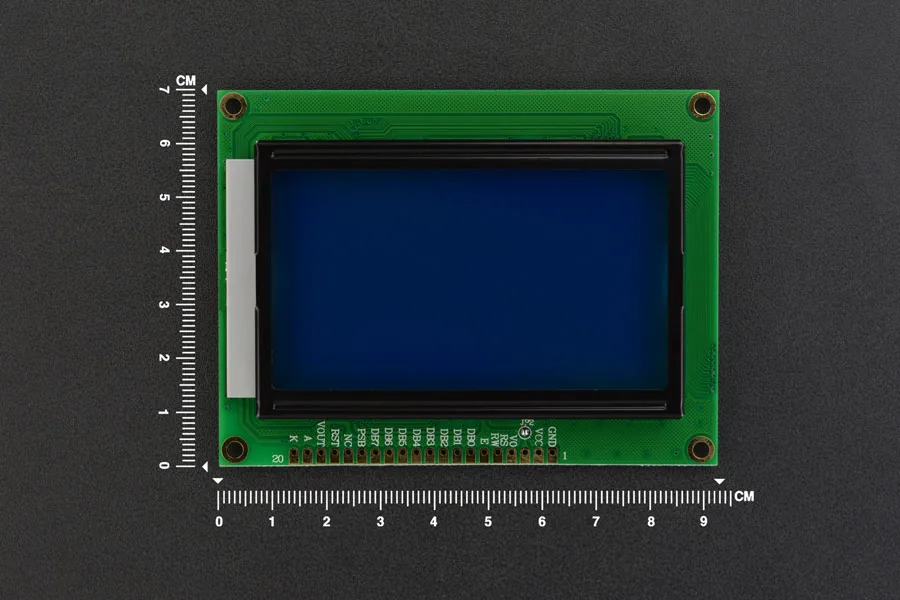

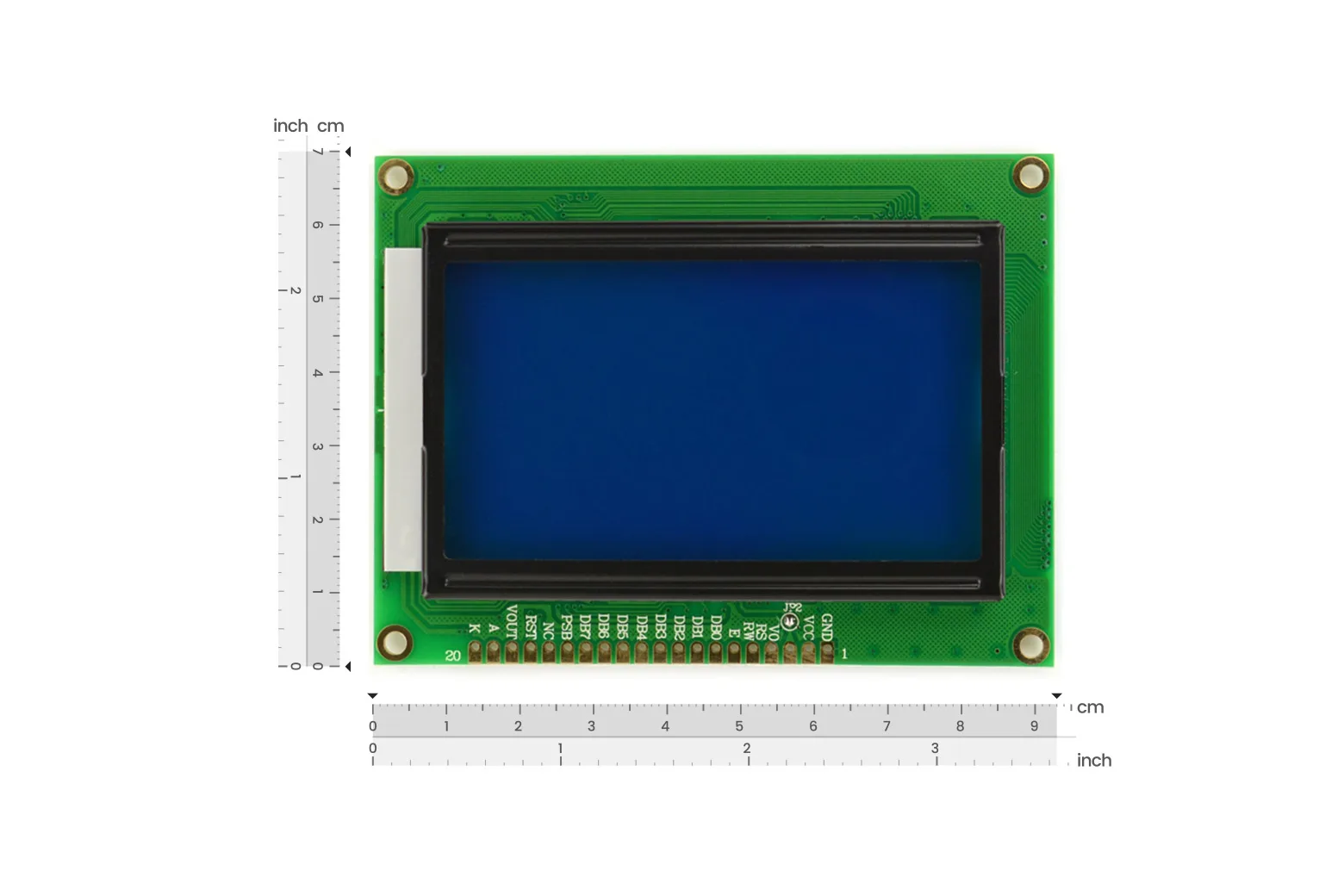

Module dimensions

The overall board measures 93x70mm (3.7x2.8 in), providing a generous display area while fitting comfortably into electronics enclosures and custom builds.

Package contents

The package includes one 128x64 Graphic LCD module ready to connect to your development hardware.

Downloads & documentation

• Datasheet
• LCD12864RSPI v1.0
• LCD12864R v1.0
