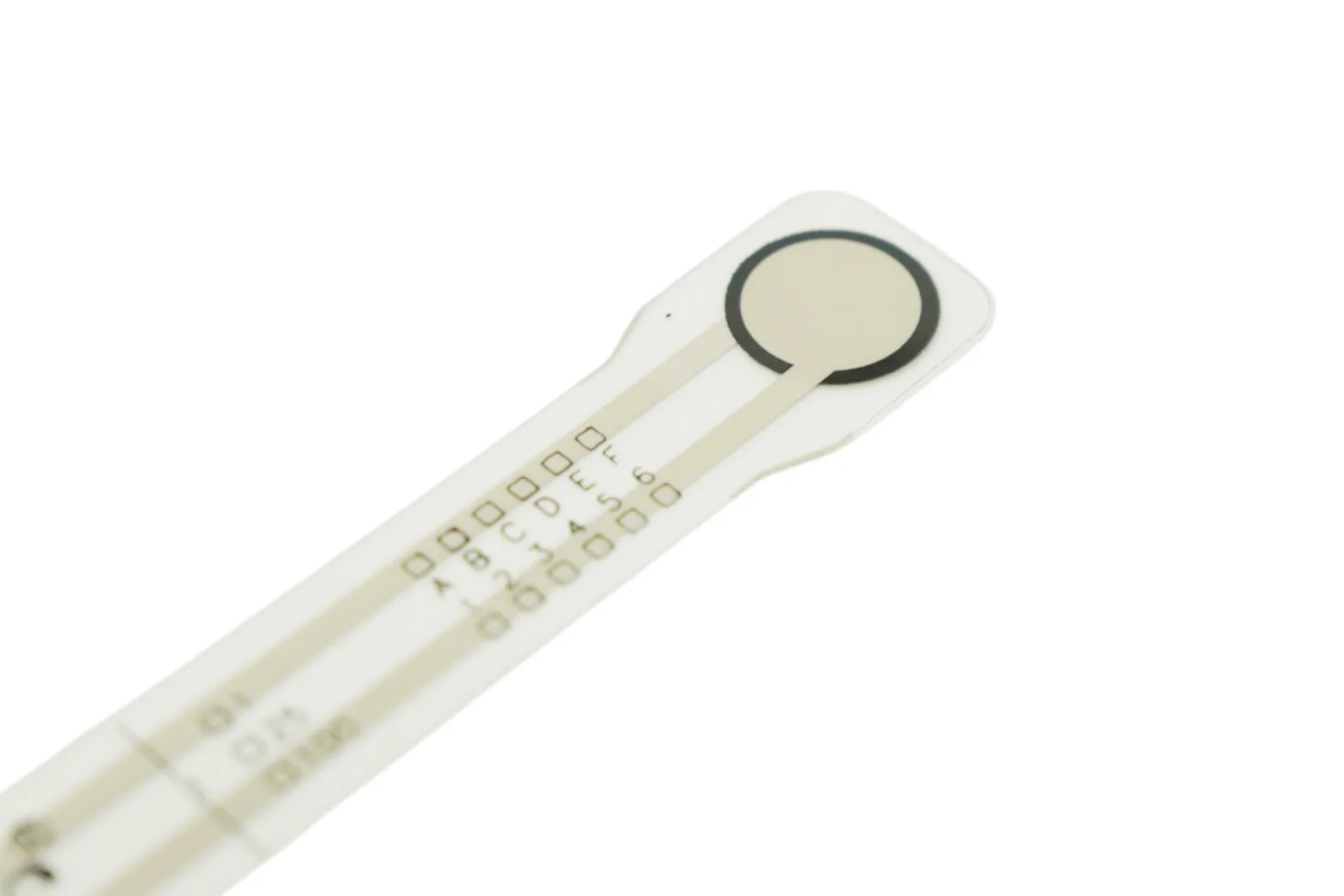

100lb FlexiForce Pressure Sensor (9.53mm Sensing Area)

The 100lb FlexiForce Pressure Sensor is an ultra-thin, piezoresistive force-sensing resistor designed to measure contact force. It suits makers, students, and engineers integrating responsive pressure detection into compact or embedded projects.

Piezoresistive force detection

The sensor uses piezoresistive technology to accurately capture dynamic or static force. Its resistance changes in proportion to the applied load.

0 to 100lb measurement range

Engineered for high-capacity force measurement, this sensor supports a wide detection range from 0 to 100lb. This makes it suitable for demanding structural and mechanical testing.

Compact 9.53mm sensing area

The active circular sensing zone measures 9.53mm in diameter. This allows for targeted force capture across small points of contact.

Sub-5ms response time

With a response time of less than 5ms, the sensor provides rapid feedback for real-time monitoring. This enables high-speed data acquisition in interactive control systems.

Flexible embedded strip design

The thin, flexible strip profile allows the sensor to fit effortlessly into tight spaces and curved surfaces. It is ideal for seamless integration into embedded electronic assemblies.

Downloads & documentation

• Manual
