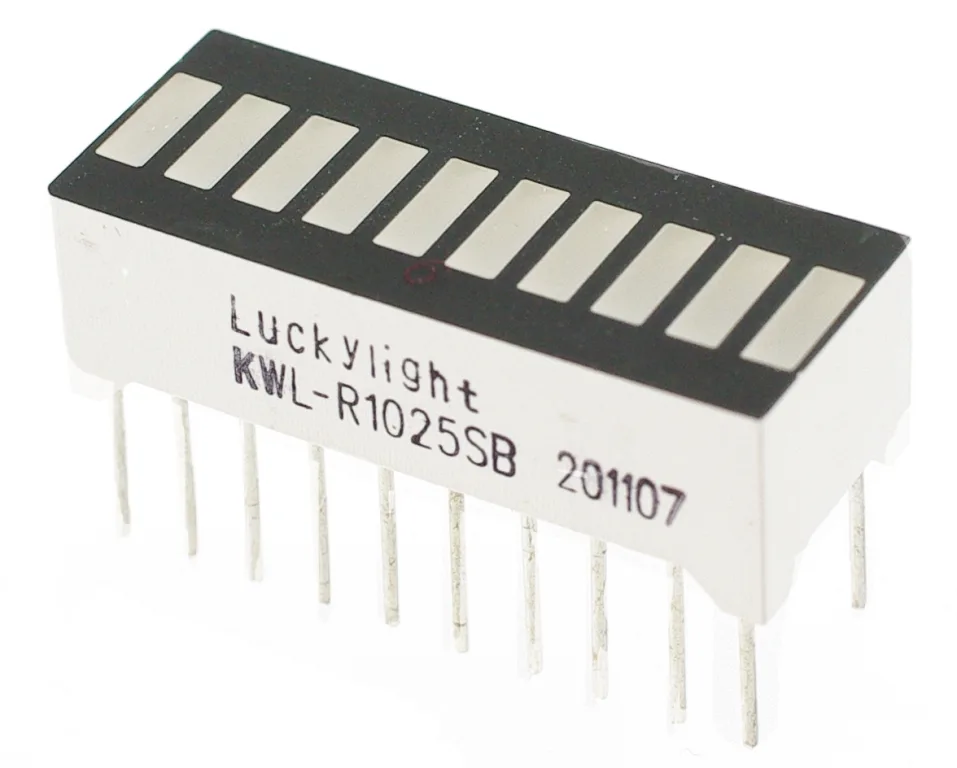

10 Segment LED Bar Graph - Red

The 10 Segment LED Bar Graph - Red is a compact linear display module combining ten independently controllable super-bright red LEDs in a single package. It provides clear multi-level visual feedback for analog values, signal strength, and system status without the overhead of complex display controllers. This component is well suited for students, makers, and engineers building embedded instrumentation, audio monitors, or interactive prototypes.

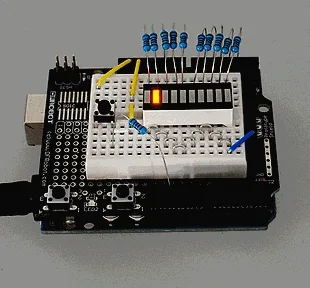

Independent multi-segment display

Ten discrete super-bright red LEDs form a clean linear array for real-time level monitoring. Each segment can be controlled independently to display progressive values, audio levels, or discrete system states.

Compact industrial package

The industrial-standard footprint reduces board complexity and wiring compared to arrays of individual discrete LEDs. Consistent segment spacing and categorized luminous intensity ensure uniform brightness across the entire light bar.

Low power electrical characteristics

Each segment features a 25mA forward current rating and a maximum reverse voltage limit of 5V. The low-power design ensures efficient operation when driven directly by microcontroller I/O pins or standard logic drivers.

Versatile instrument and audio applications

This display suits audio equipment level meters, instrument panels, battery charge indicators, and digital readouts. Its straightforward interfacing makes it suitable for both quick breadboard prototyping and permanent embedded installations.

Package contents

The package contains one 10 Segment LED Bar Graph display in super-bright red.

Downloads & documentation

• Product wiki (DFRobot)
