Description
The 1.47-inch 172×320 IPS LCD display module is a compact, vibrant screen designed for clear graphic output in small-scale electronics projects. Powered by an ST7789V3 driver chip via an SPI interface, it is well suited for makers, students, and hobbyists building wearable gadgets, miniature instruments, and desktop monitors.
High-definition IPS wide-angle screen

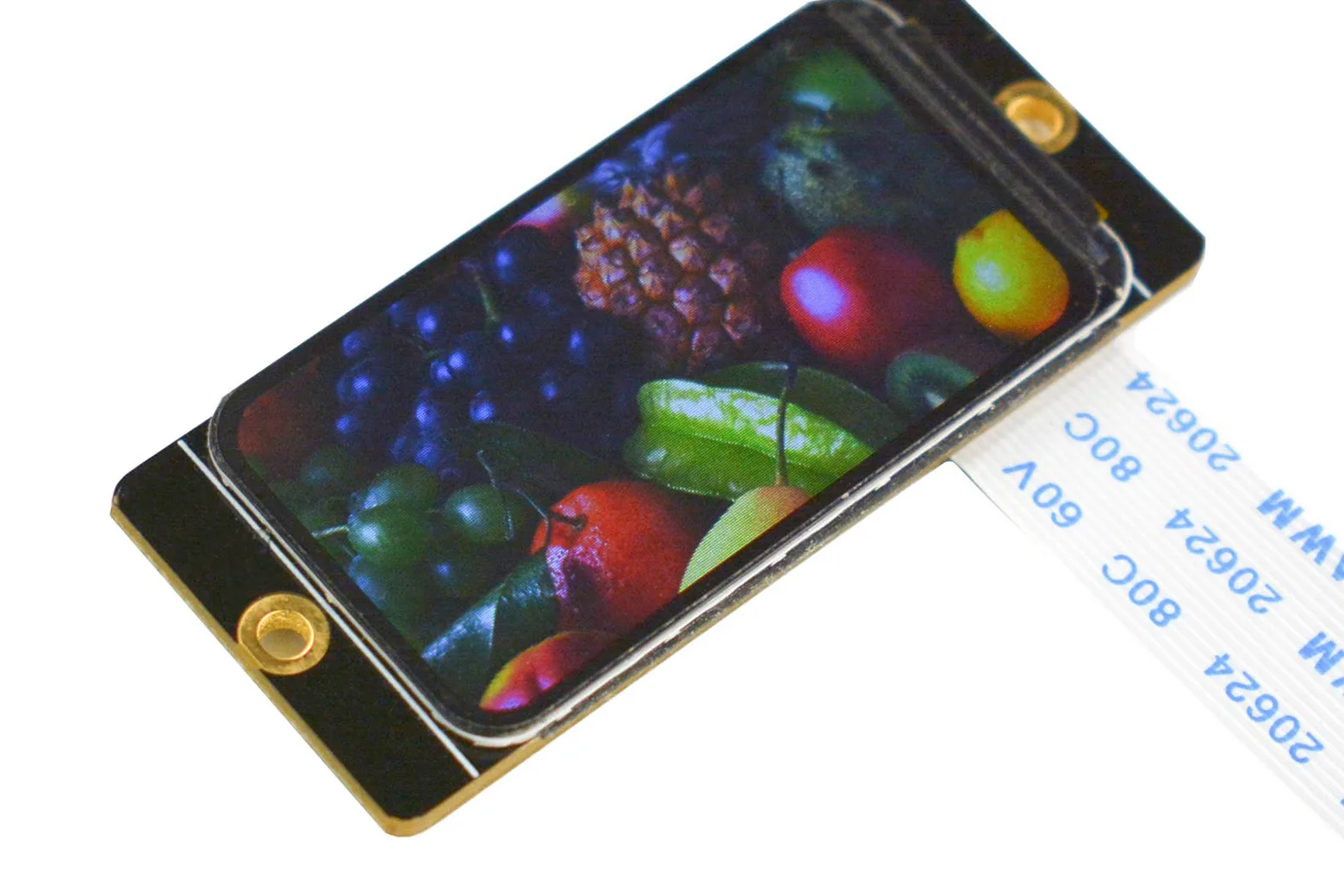

Featuring a 172×320 pixel resolution and a typical brightness of 600 cd/m², this IPS panel delivers clear visuals across full viewing angles. It supports the display of text messages, full-colour images, animations, and video playback.

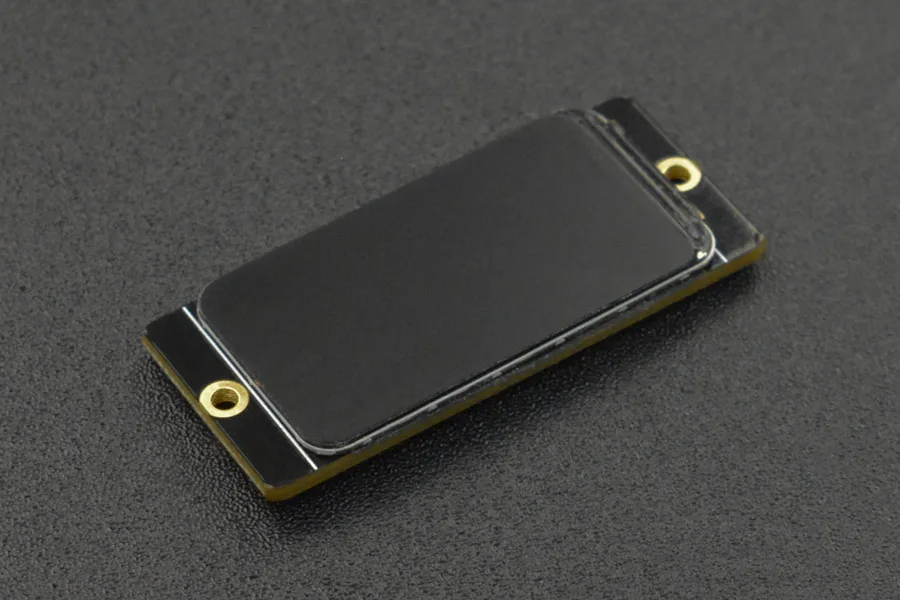

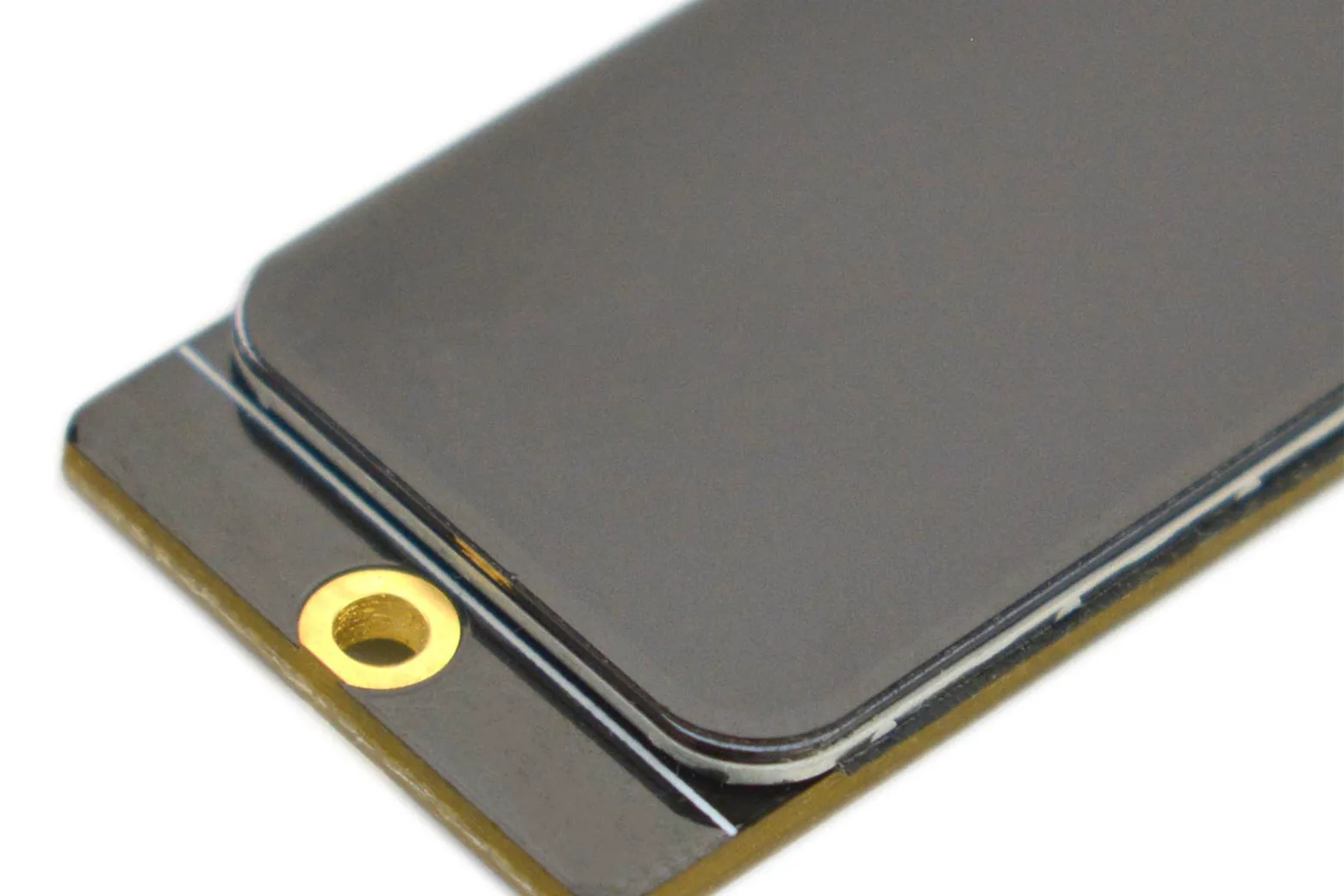

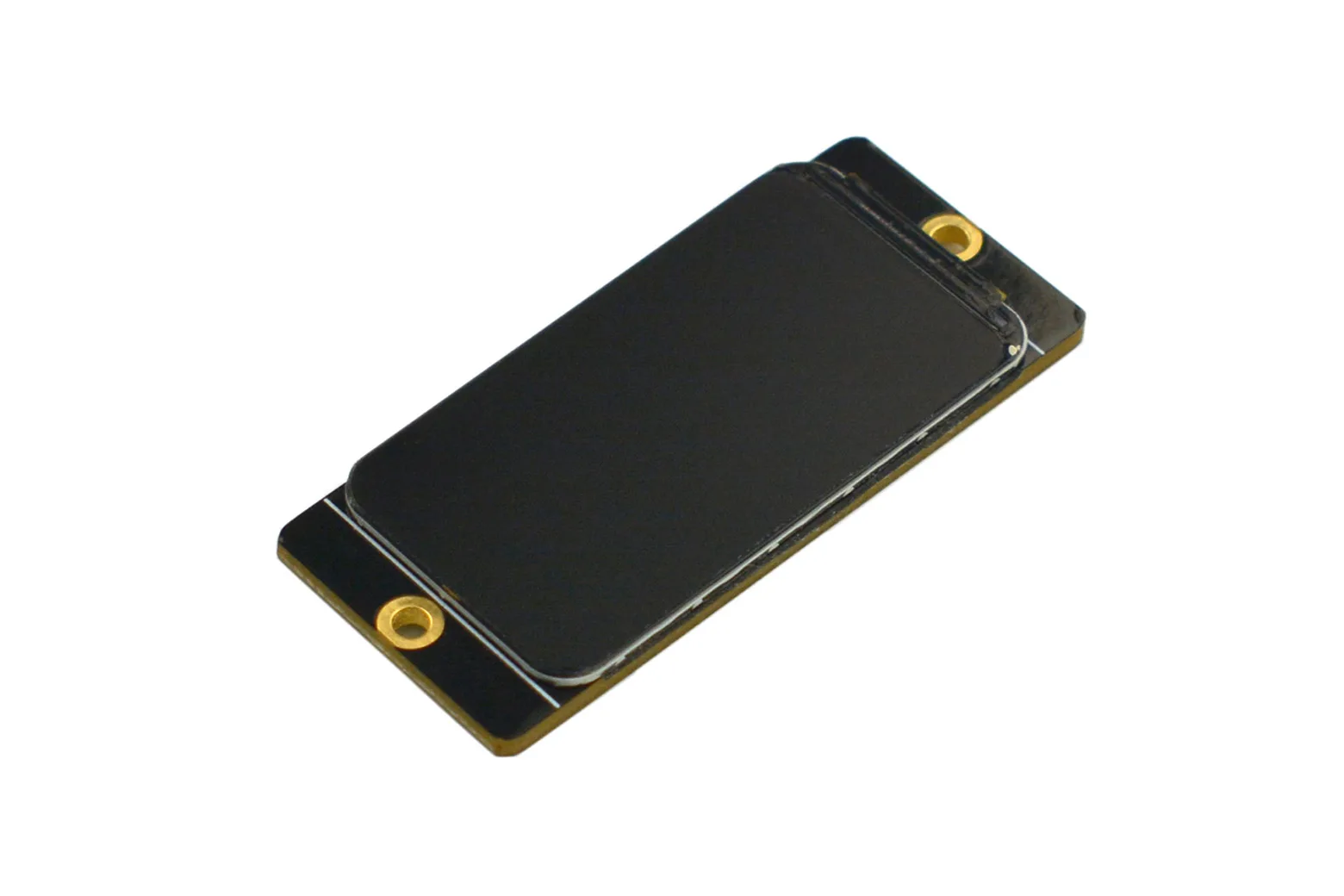

Slim bezel and rounded corners

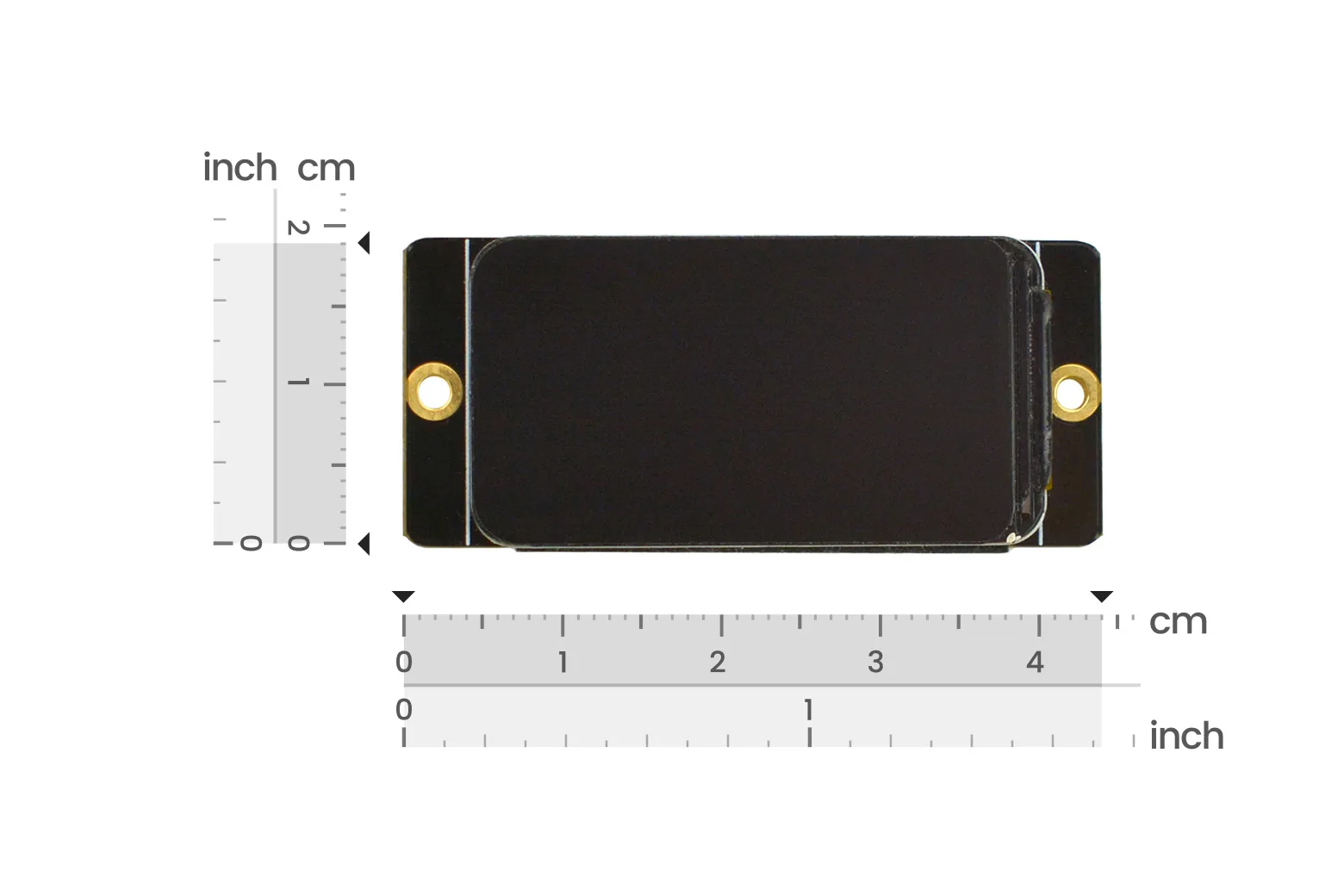

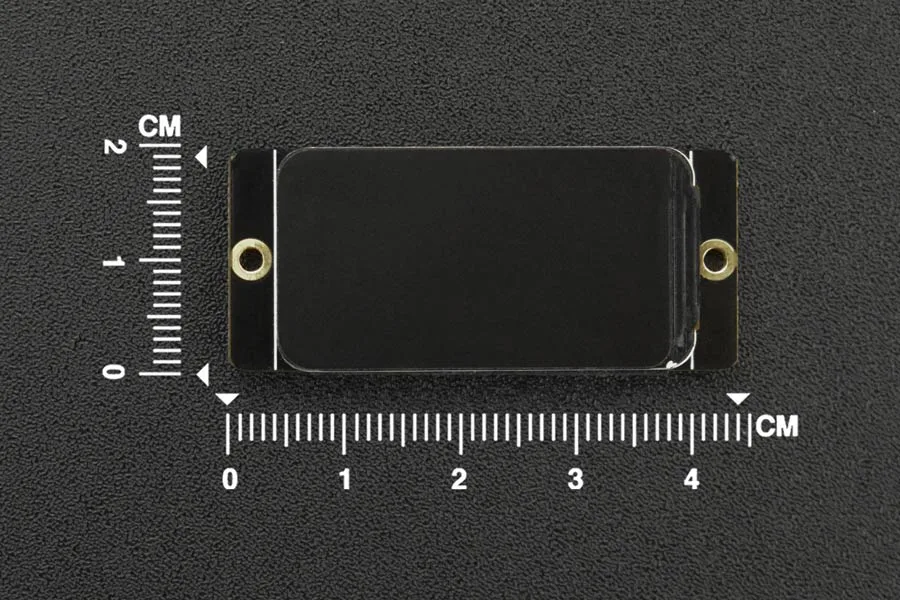

The module features an ultra-narrow 1mm frame with curved edges, providing an active display area of 19.1mm by 33.8mm on an overall footprint of 19.5mm by 44.5mm. This sleek form factor is tailored for compact DIY enclosures and portable devices.
SPI communication and driver support

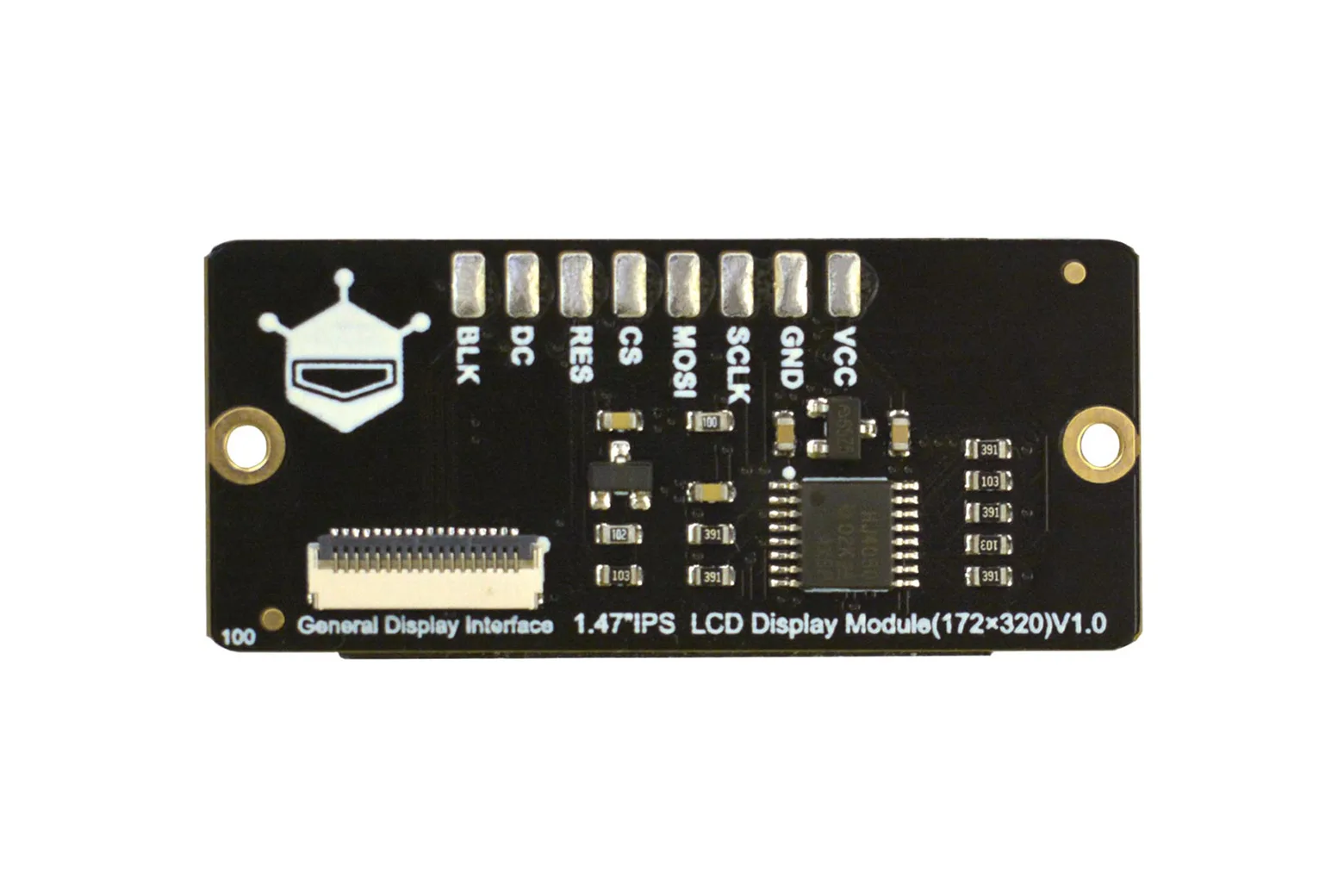

Based on the ST7789V3 driver IC, the module operates at 3.3V and connects over an SPI interface to conserve microcontroller pins. It supports Arduino graphics and LVGL libraries to enable fluid user interfaces and dynamic visual effects.
Versatile embedded project applications
This display is ideal for miniature projects including weather stations, digital pendants, humidity and temperature monitors, portable video players, mini clocks, and compact gaming consoles.
Package contents and operating parameters

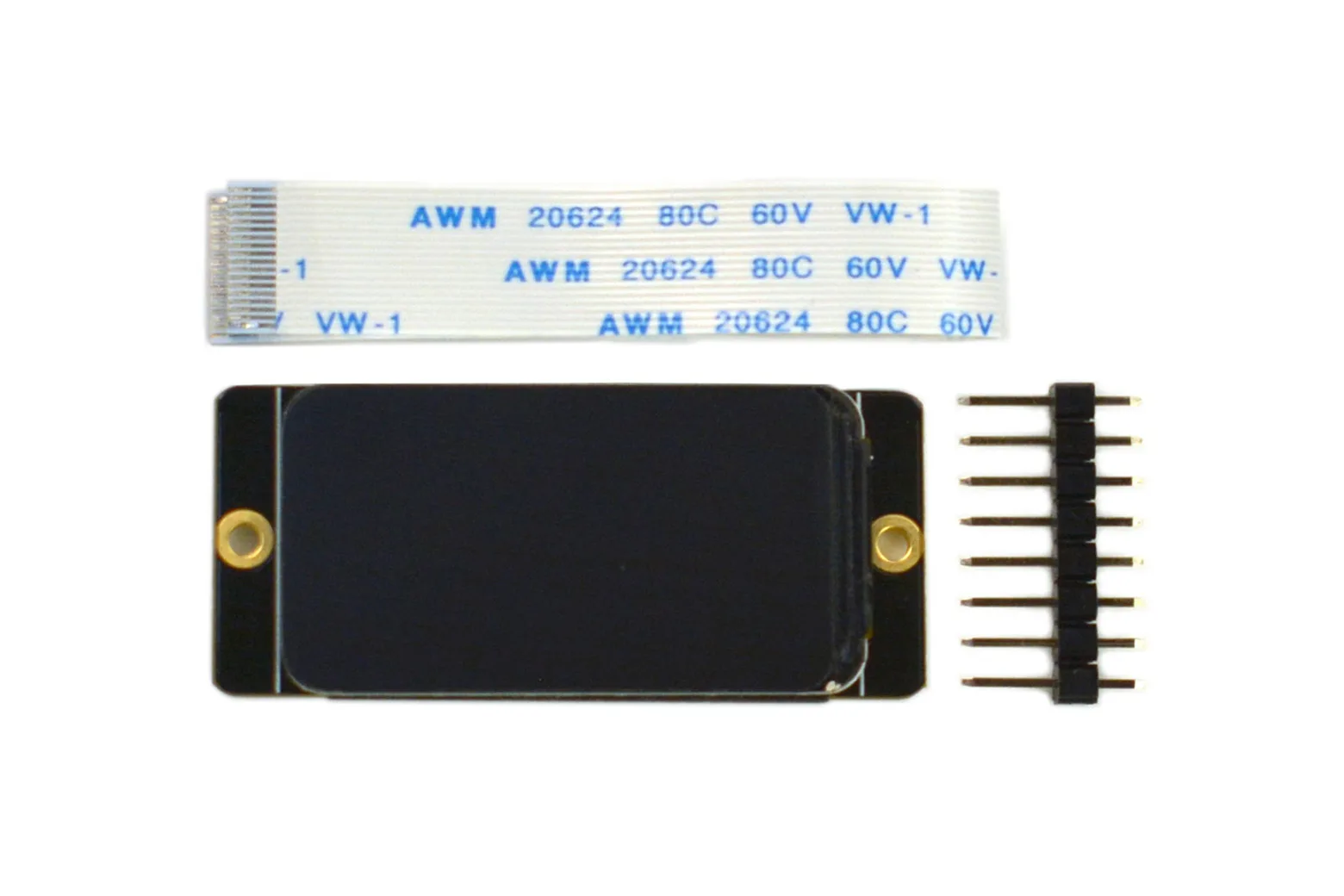

The module operates in temperatures ranging from -20°C to +70°C and is backlit by three parallel white LEDs. The package includes the display module, an 8-pin single-row pin header, and an FPC cable.
Downloads & documentation
Specifications
| Display Dimension | 1.47" |
| Pixels | 172×320 |
| Interface | SPI |
| Brightness | 600(TYP)Cd/m2 |
| Viewing Direction | full angle |
| Operating Temperature | -20℃ to +70℃ |
| Operating Voltage | 3.3V |
| Backlit | 3 White LED Parallel |
| Display Area | 19.1mm×33.8mm/0.75×1.33" |
| Module Dimension | 19.5mm×44.5mm/0.77×1.75" |
In the box
| 1.47" 172×320 IPS LCD Display Module ×1 | 1 |
| Black Single-row Pin Header-8PIN ×1 | 1 |
| FPC Cable ×1 | 1 |
