0.96" 160x80 Color SPI TFT Display

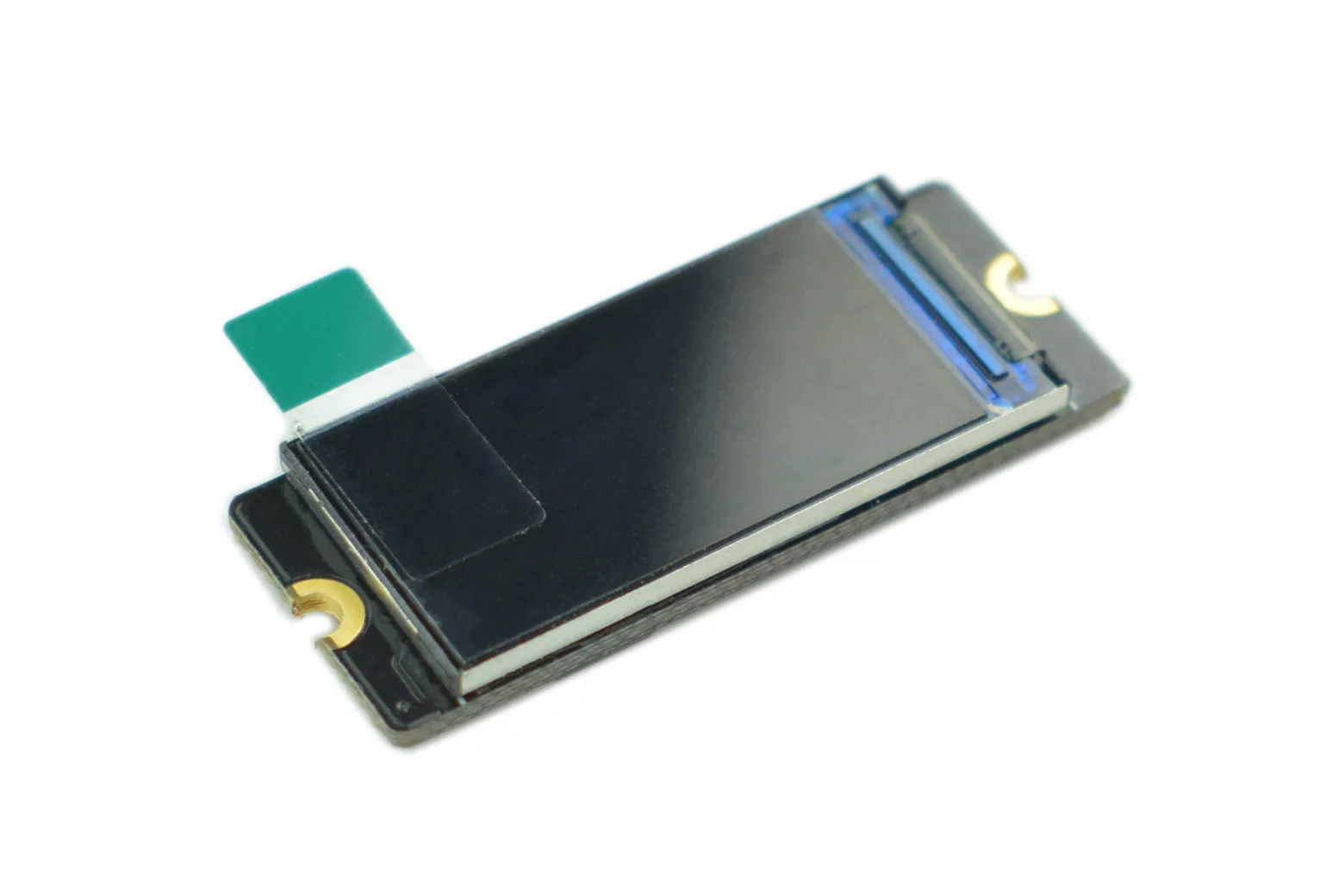

The 0.96-inch 160x80 Color SPI TFT Display provides a crisp 16-bit colour screen in an ultra-compact, edge-to-edge form factor. Engineered for low power consumption and flexible connectivity, it is well suited for makers, educators, and hobbyists developing wearable electronics, compact instruments, and smart home interfaces.

Vibrant 16-bit colour screen

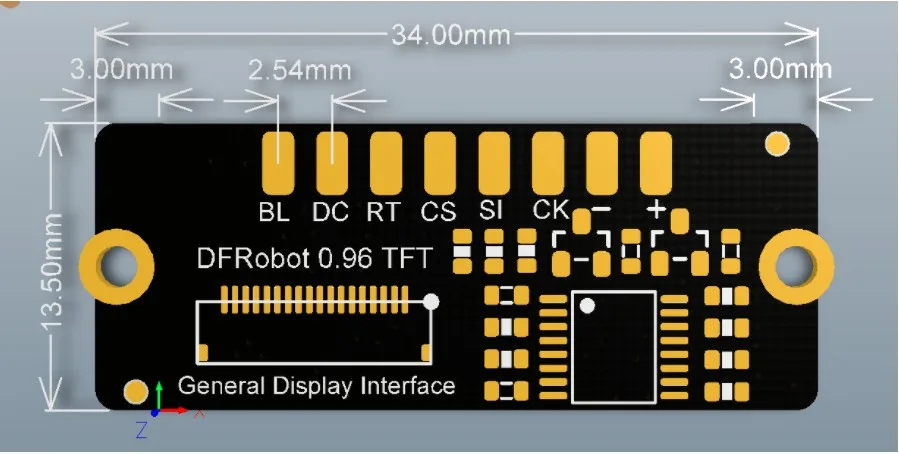

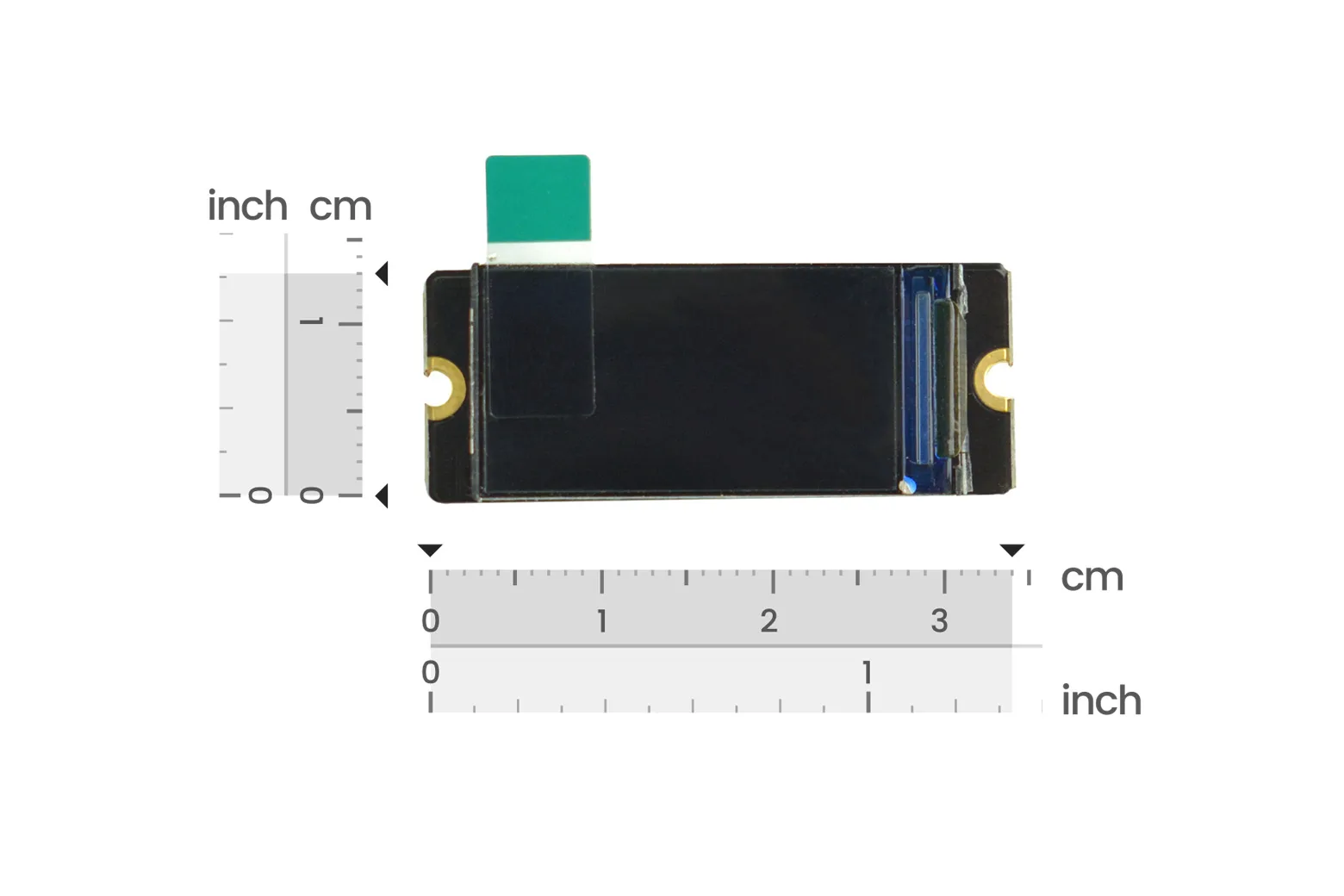

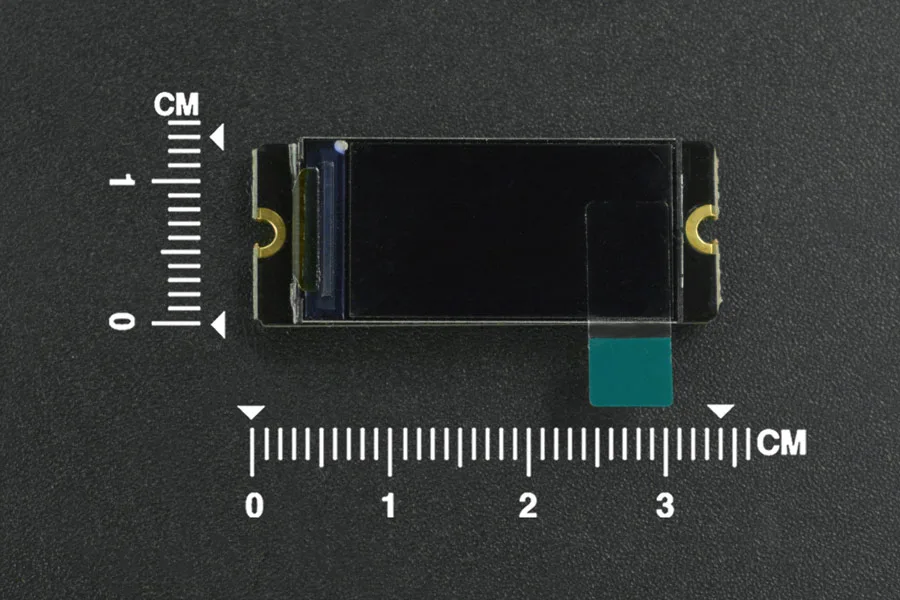

Featuring a 160x80 resolution with 16-bit RGB565 colour depth and 250 cd/m2 typical luminance, this screen delivers clear visuals across 60-degree viewing angles. Its narrow 13.5 x 34 mm PCB profile allows it to fit neatly into miniature enclosures.

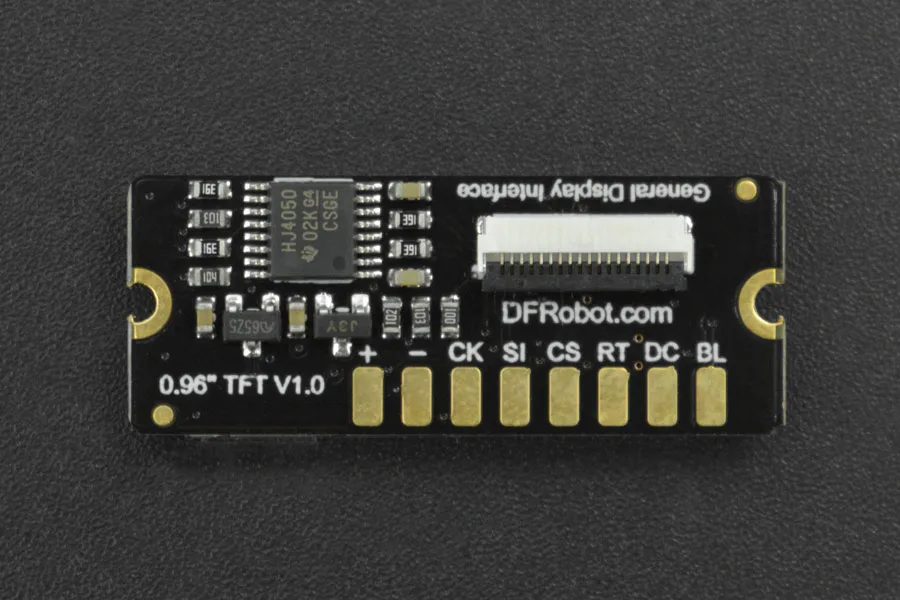

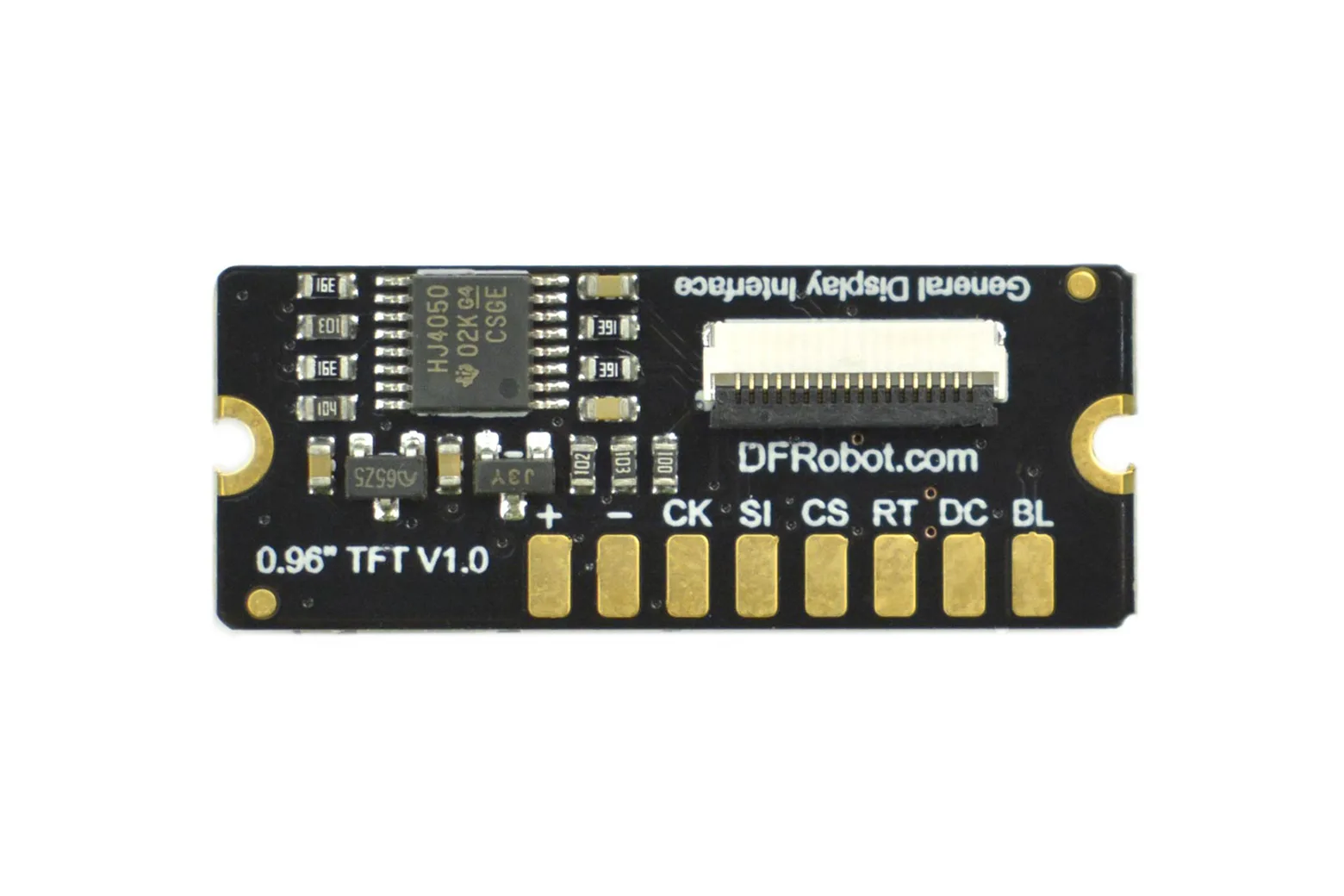

Dual SPI and GDI connectivity

The module supports standard SPI as well as a dedicated GDI interface for solderless FPC connection to compatible main controllers. It works reliably with platforms such as Arduino UNO, Leonardo, ESP32, ESP8266, and FireBeetle M0.

Low-power 3.3V to 5V operation

Operating across a wide 3.3V to 5V supply range, the display consumes under 15mA in full-screen mode. This low power draw makes it well matched to battery-operated and portable electronics projects.

Reliable ST7735 controller

Powered by the standard ST7735 driver chip, the display maintains stable performance in operating temperatures from -30 degrees Celsius to +70 degrees Celsius. It offers broad microcontroller library support for rapid development.

Included connection hardware

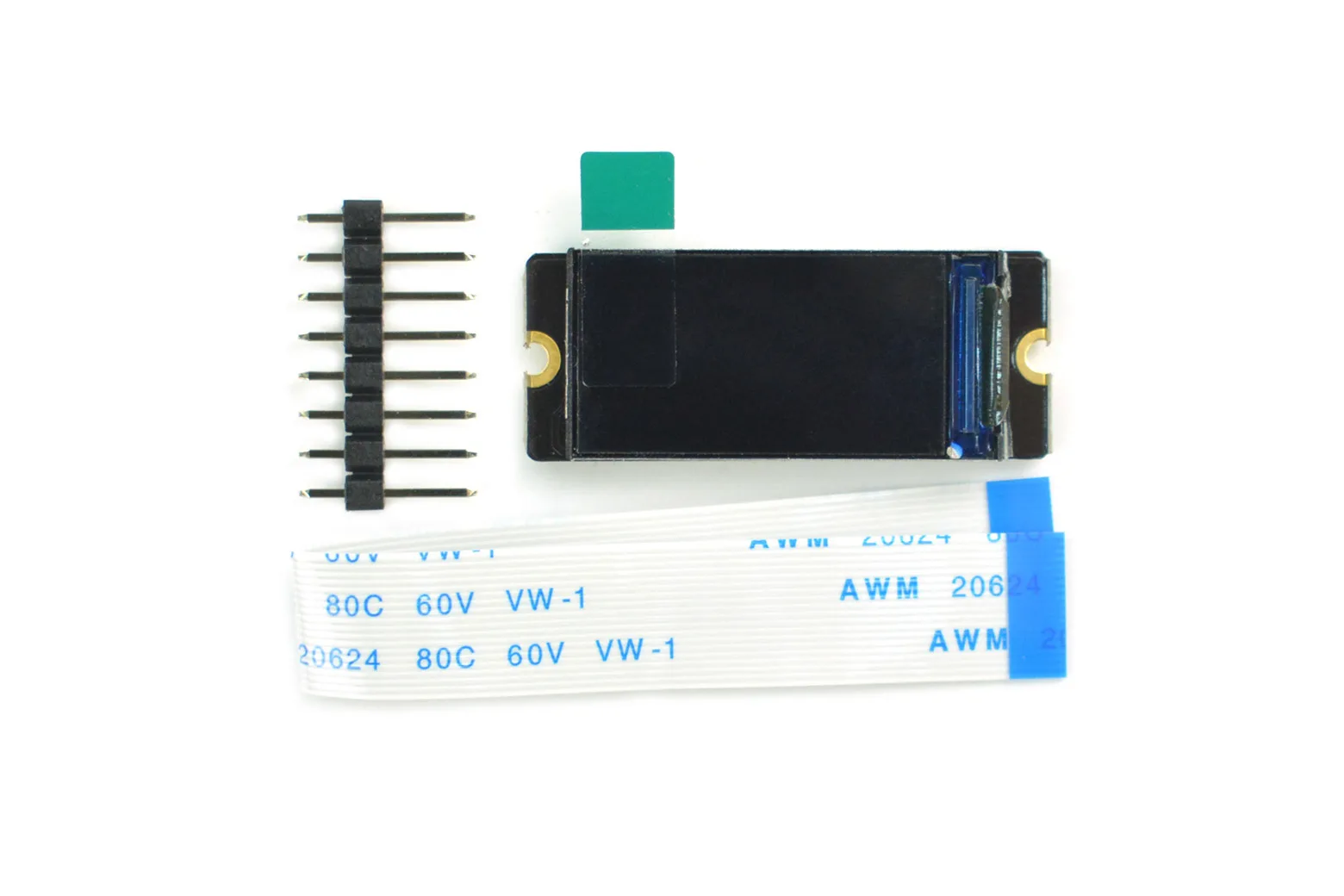

The package includes the 0.96-inch TFT display board, a 10-pin 2.54 mm single-row header for breadboarding, and a 10 cm 18-pin reverse-direction FPC cable for GDI connection.

Downloads & documentation

• Product wiki (DFRobot)
