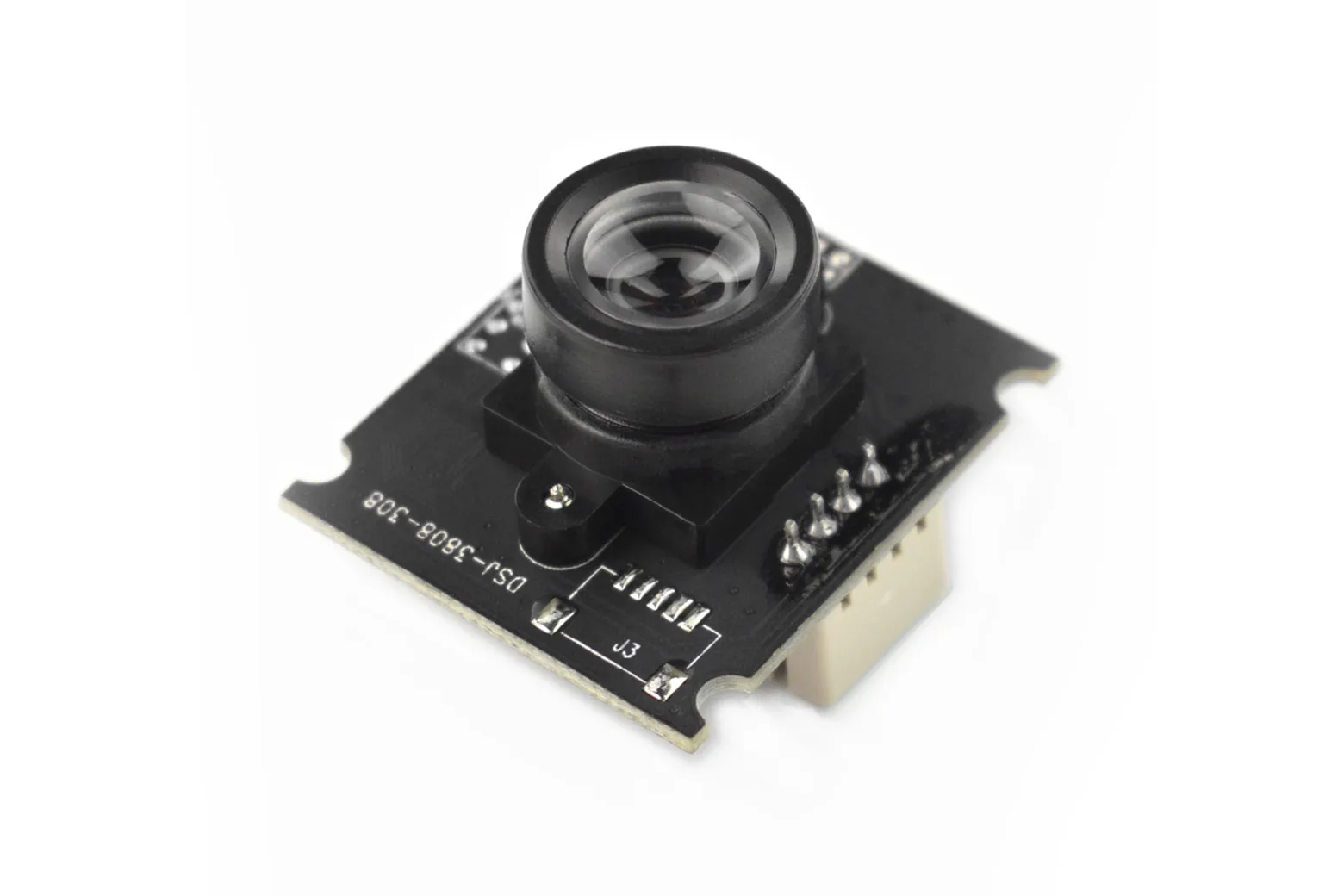

0.3 MegaPixels USB Camera for Raspberry Pi / NVIDIA Jetson Nano / UNIHIKER M10

The 0.3 MegaPixels USB Camera is a compact, plug-and-play vision module offering 640x480 resolution for embedded machine vision projects. It is an accessible choice for students, educators, and makers looking to add image recognition, remote monitoring, or basic computer vision to single-board computers without complex software configuration.

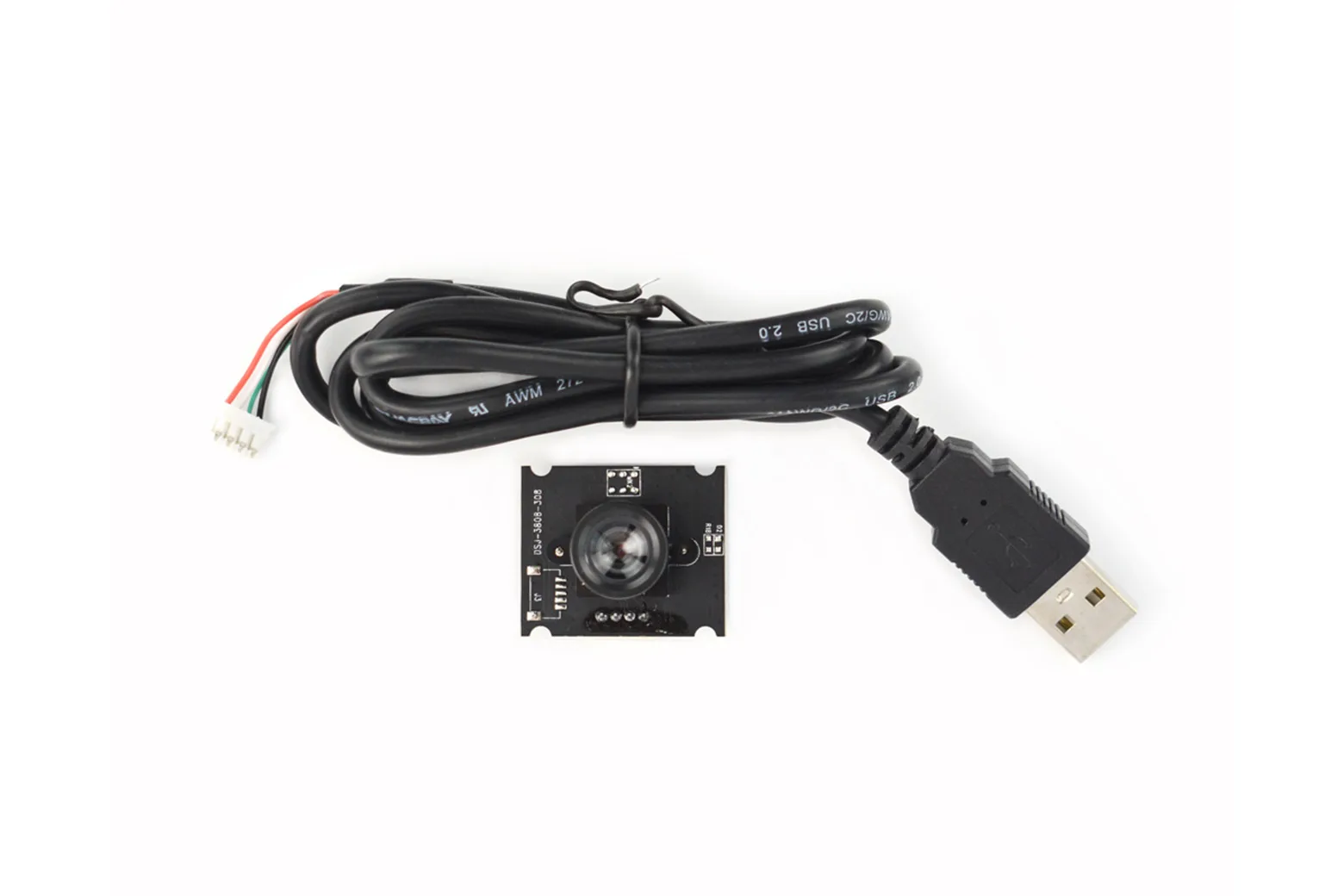

Driver-free USB 2.0 connectivity

The module operates as a standard driver-free USB 2.0 device, allowing immediate plug-and-play use on Raspberry Pi, NVIDIA series mainboards, and UNIHIKER M10 platforms. It also supports Windows, Linux, Android, and iOS systems.

Automated CMOS imaging

Equipped with a 0.3MP CMOS sensor delivering a 640x480 resolution, the camera includes built-in auto gain control (AGC), auto exposure control (AEC), and auto white balance (AWB) for straightforward image capture.

Optical filtering and output formats

An integrated 650±10nm infrared filter helps maintain accurate colour reproduction during daytime capture. The camera outputs video in both MJPG and YUV formats to accommodate various processing pipelines.

Compact form factor for embedding

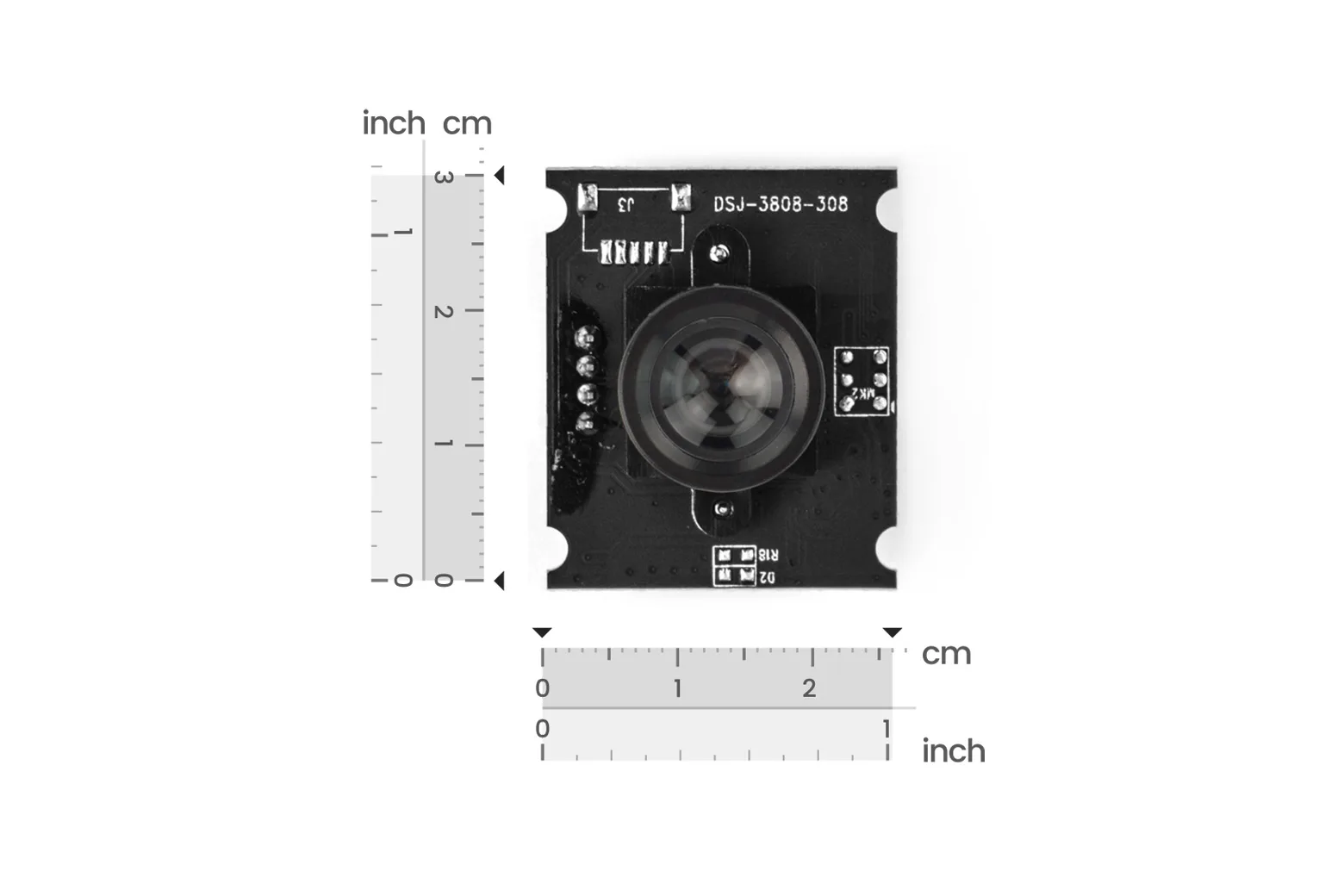

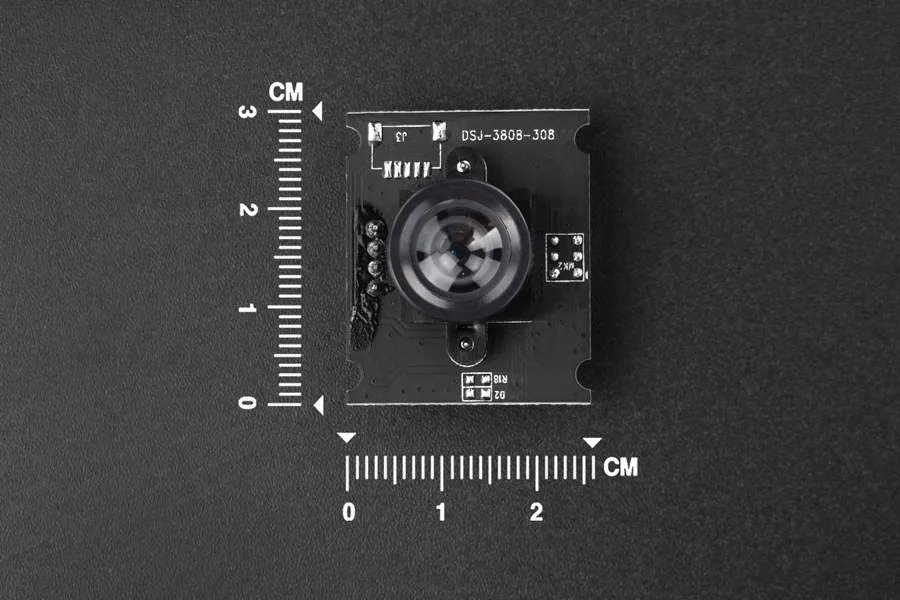

With dimensions of only 30 x 25 x 21.4mm, the camera easily integrates into tight enclosures and robotic frames. It is suitable for applications such as face identification, image recognition, security tracking, and remote teaching.

Power and operating limits

The unit runs directly on a standard 5V USB power supply and is built to operate reliably in ambient temperatures ranging from -20°C to 70°C.
