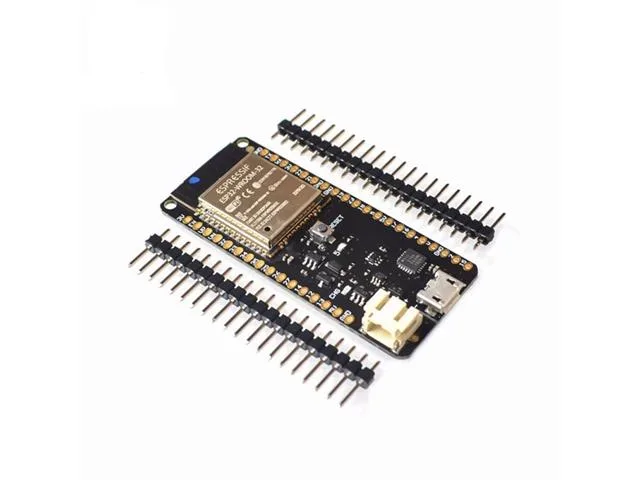

WeMos LOLIN32 ESP32 WiFi and Bluetooth Development Board
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
The WeMos LOLIN32 is a versatile development board built around the dual-core ESP-WROOM-32 microcontroller, featuring integrated Wi-Fi and Bluetooth connectivity. Equipped with an onboard LiPo battery charging circuit and a narrow breadboard-friendly form factor, it allows for easy portable and wireless prototyping. It is well suited to students, makers, and hobbyists building connected Internet of Things projects.
Breadboard-friendly design with LiPo support

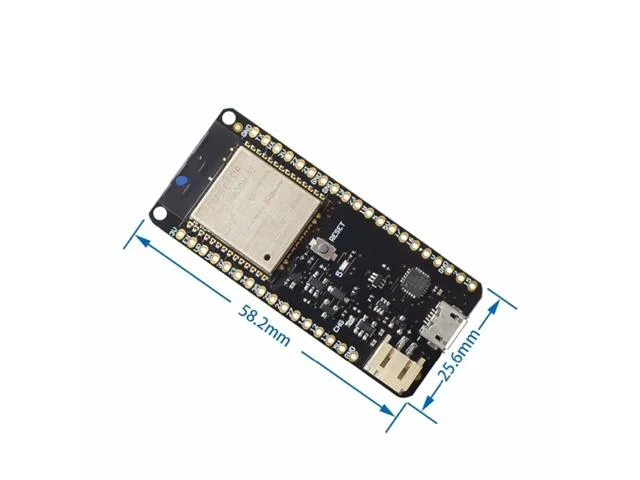

The LOLIN32 is designed narrower than early ESP32 boards, leaving an open row of tie-points on both sides when plugged into a standard breadboard. It features an onboard JST XH2-2.54mm connector keyed to prevent reverse polarity, allowing you to power projects with a LiPo battery while handling battery charging and programming through the micro-USB port.
Dual-core processing and wireless connectivity
Powered by the 240MHz dual-core ESP-WROOM-32 module with 4MB SPI flash memory, the board supports 802.11 b/g/n Wi-Fi and Bluetooth 4.0 LE. It also includes integrated cryptographic hardware supporting AES, SHA2, Elliptical Curve Cryptography, and RSA-4096 algorithms for secure communications.
Versatile I/O and integrated sensors
The board exposes 26 3.3V digital I/O pins with PWM support, 18 analogue inputs, 2 DACs, 3 UART, 3 SPI, 2 I2S, and 2 I2C interfaces. It also includes an integrated Hall Effect sensor and 10 capacitive touch inputs, while supporting low-power sleep modes down to 5 μA.
Specifications
| Device | WeMos LOLIN32 |
| Type | ESP-WROOM-32 |
| ESP32 Module | ESP-WROOM-32 from Espressif |
| Microprocessor | 240MHz dual core |
| Flash Memory | 4MB SPI (supports up to 16MB) |
| Wi-Fi | 802.11 b/g/n |
| Bluetooth | Bluetooth 4.0 LE |
| Battery Connector | JST XH2-2.54mm (keyed against reverse polarity) |
| USB Interface | Micro-USB |
| Digital I/O | 26x (3.3V, all PWM capable) |
| Analogue Inputs | 18x |
| DAC Channels | 2x |
| Serial Interfaces | 3x UART, 3x SPI, 2x I2S, 2x I2C |
| Integrated Sensors | Hall Effect, 10x capacitive touch inputs |
| Sleep Mode Consumption | 5 μA |
| Wi-Fi TX Power | 19.5 dBm@11b, 16.5 dBm@11g, 15.5 dBm@11n |
| Wi-Fi Sensitivity | -97 dBm max. reception |
