UltraPlanetary Female 5mm Hex Output V2
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
The REV UltraPlanetary Female 5mm Output V2 is the output stage of the REV UltraPlanetary system. With two different ways to transfer power, the output stage allows designers to choose the option best suited for the application. The V2 version of the REV UltraPlanetary Female 5mm Output offers more flexibility for custom designs by making modifications to the output block.
The REV Motion Pattern, combined with the ball bearing supports, allows for directly attaching sprockets, gears, pulleys, structure, and wheels. Designers also have a female 5mm hex output allowing for the length of shaft needed for the application.

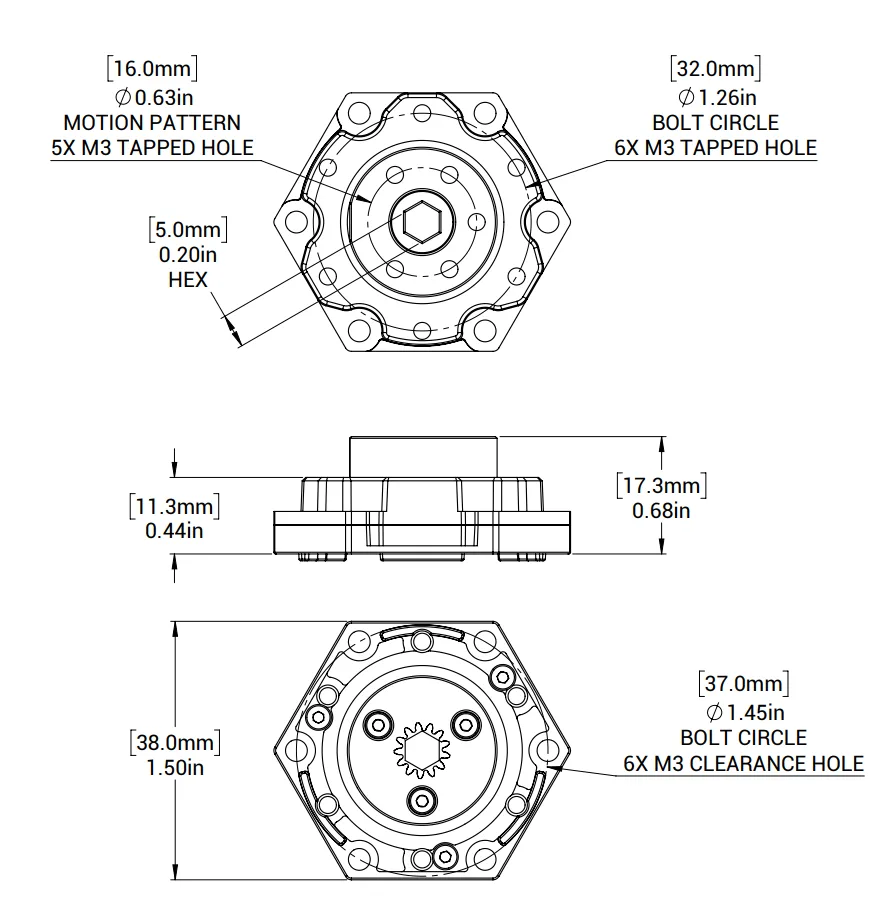

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | ZY-41-1615 |
| Module | 0.55 |
| Pressure Angle | 20° |
| Materials | Sintered Steel, Glass Fiber Reinforced PA66 Nylon |
| Weight | 66.5 g (0.147 lbs) |
