Description

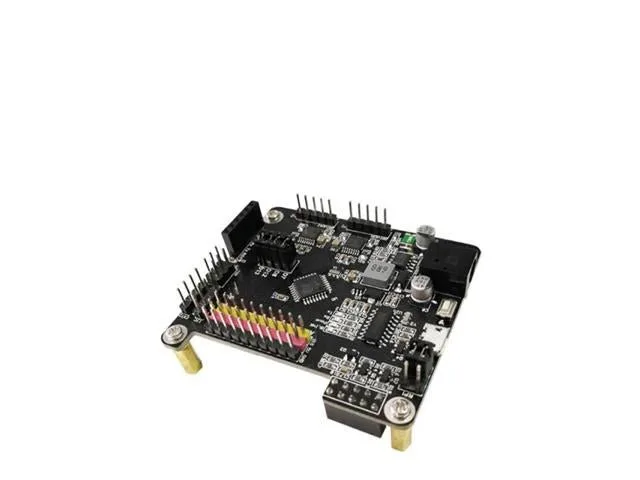

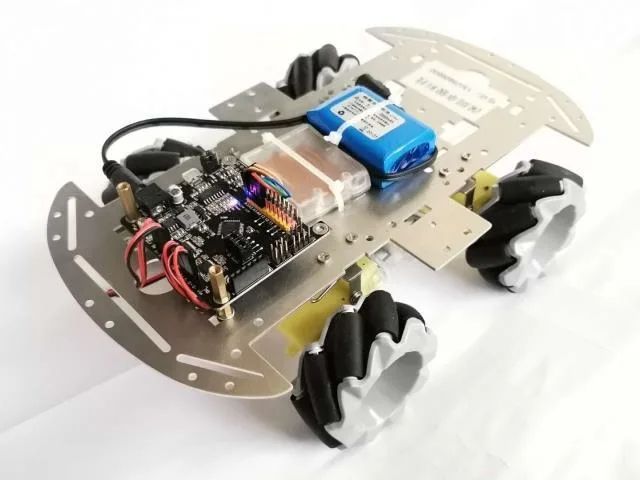

The Rosbot Robot Motion Control Board is an Arduino UNO-based robotics motherboard designed for Scratch 3.0 environments. Equipped with dual onboard H-bridge drivers, it can drive multiple motors while supporting numerous sensor inputs. It is an ideal control solution for learners, makers, and educators constructing automated or wheeled robotic systems.
Motor driving and sensor connectivity

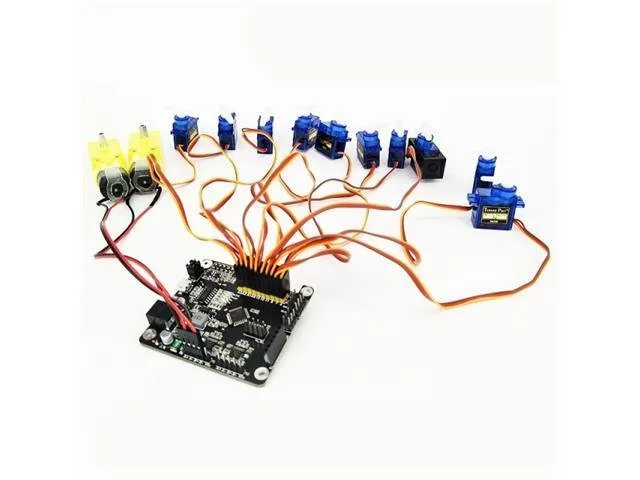

Equipped with two onboard dual H-bridge motor drives, the Rosbot board can run up to four DC motors or two stepper motors simultaneously. It also provides connectivity to support up to 13 sensors at the same time for interactive robotic builds.
Architecture and SBC upgrade support

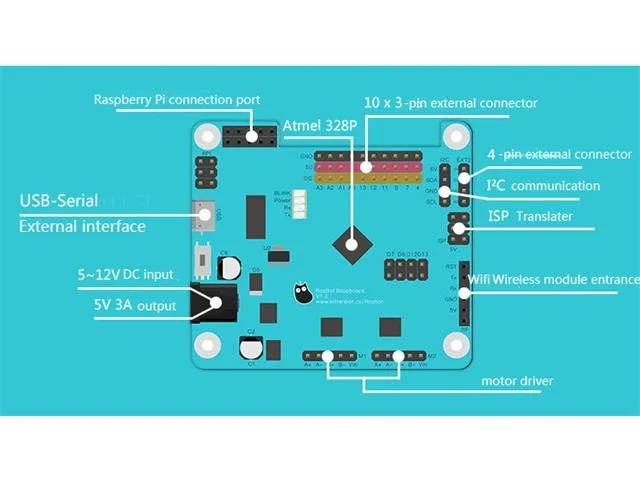

Based on the Arduino UNO architecture, the board is designed around Scratch 3.0 visual coding. It can also be upgraded with single-board computers including the Raspberry Pi 2, Raspberry Pi 3B+, and Intel UP Board.
Power supply and dimensions
The board operates on a 5-12V DC input and delivers a regulated 5V 3A output. It features a compact footprint measuring 65 x 58 x 13 mm with a 1.6 mm PCB thickness.
What is included
This package contains one Rosbot robot development board. Chassis and external peripherals are not included.
Specifications
| Device | Control Board |
| Type | Rosbot | Main |
| Input Voltage | 5-12V DC input |
| Output | 5V 3A Output |
| Size | 65*58*13mm(L*W*H) |
| PCB Board thickness | 1.6mm |
| Motor Support | 4 DC motors or 2 stepper motors |
| Sensor Capacity | 13 sensors simultaneously |
