MINI Robotics Controller Component Set

Not competition legal — read before buying

This part is NOT legal for FIRST Tech Challenge (FTC) or FIRST Robotics Competition (FRC). It is sold for training, practice, prototyping and general robotics use only. Do not build it into a robot you intend to compete with.

64305

The controller is a programmable robotics controller specifically developed for the system that is powerful yet easy to use and when combined with the Mixly software and Arduino Software (IDE) can provide an ideal learning tool for teaching graphic or syntax-based coding.

Mixly is drag-and-drop block-based graphic coding software used to program the PULSE controller. In addition the PULSE controller can be programmed with a syntax-based coding method using the Arduino Software (IDE) and the PULSE Arduino Library,compatible with TETRIX PRIME

The Robotics Controller features the following:

2 DC motor control ports and 6 standard control servo ports

3 digital sensor ports that can be configured as digital input digital output or serial communication and 3 analog sensor ports (A1-A3 can be configured as analog input or digital input or output.)

1 i2C port 1 USB programming port and 2 quadrature encoder input ports

1 battery connection port

1 power on/off switch

1 programmable Start push button and 1 Stop/Reset push button

3 LED indicators: red green and yellow

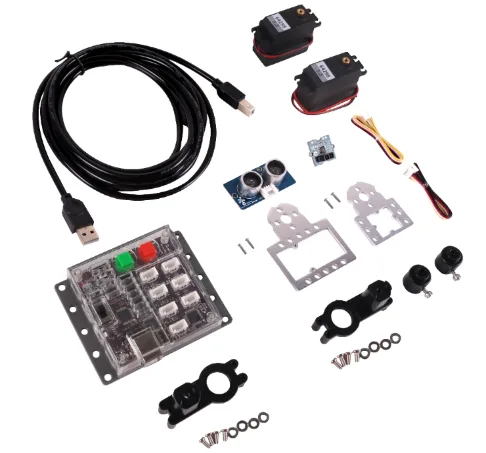

What You'll Get

• Robotics Controller with USB cable
• 2 six-volt DC motors and motor mounts
• Line Finder Sensor Ultrasonic Sensor and sensor mounts
• Sensor connector cables
• Printed programming guide
• Robotics Controller with USB cable
• Two six-volt DC motors and motor mounts
• Line Finder Sensor with mount and connector cable
• Ultrasonic Sensor with mount and connector cable

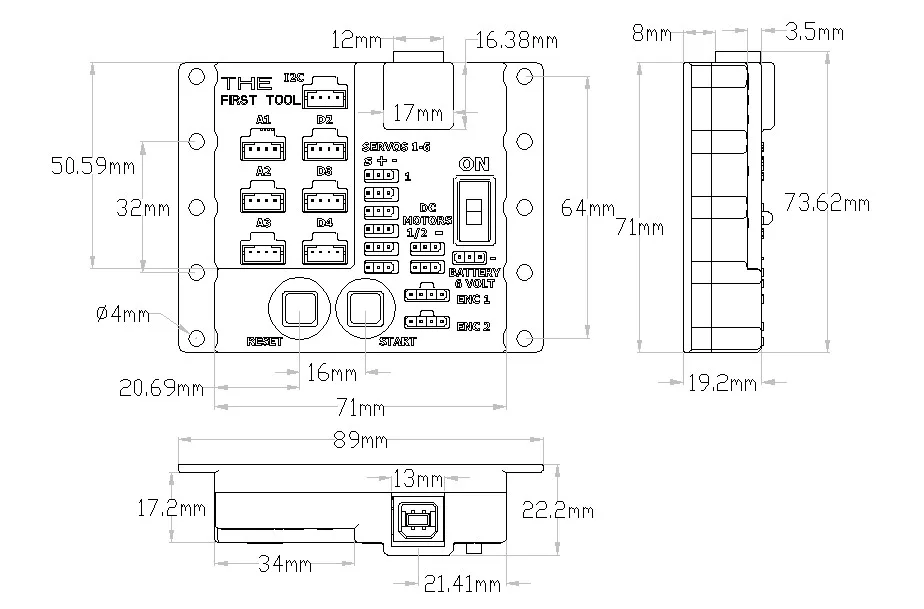

Technical drawing
