MAX Robotics Component Set

Not competition legal — read before buying

This part is NOT legal for FIRST Tech Challenge (FTC) or FIRST Robotics Competition (FRC). It is sold for training, practice, prototyping and general robotics use only. Do not build it into a robot you intend to compete with.

The Robotics Controller is a fully integrated programmable brain for your bot that features a variety of motor servo encoder and sensor ports with convenient connectors that enable you to control your robot's behavior like never before. This controller offers the best of both worlds – a learning tool that is powerful yet easy to use. With the controller you can take learning to new heights by creating robots that are smarter more precise and as real world as it gets.

The controller is specifically developed for use with the building system and comes with programming support for the Arduino Software (IDE) which is compatible with Windows Mac OS X 10.7 or newer and Linux devices that have a USB portcompatible with TETRIX PRIME

The Robotics Controller features:

32 KB flash programmable memory

ATmega328P processor with Arduino Optiboot bootloader installed

4 digital sensor ports (D2 can be used as a serial port) and 3 analog sensor ports

1 i2C port 1 USB programming port 1 motor controller expansion port and 2 quadrature encoder input ports

2 high-current DC motor control ports

6 standard control servo ports and 2 continuous rotation (CR) servo ports

Battery connection port (additional port used to daisy-chain power to other devices)

Programmable Start button (green) and a non-programmable Stop/Reset button (red)

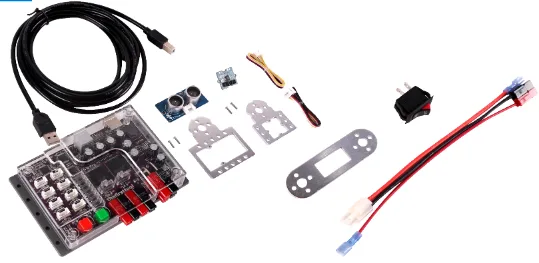

What You'll Get

• Robotics Controller with USB cable power switch
• Line Finder Sensor and mount
• Ultrasonic Sensor and mount
• Sensor connector cables

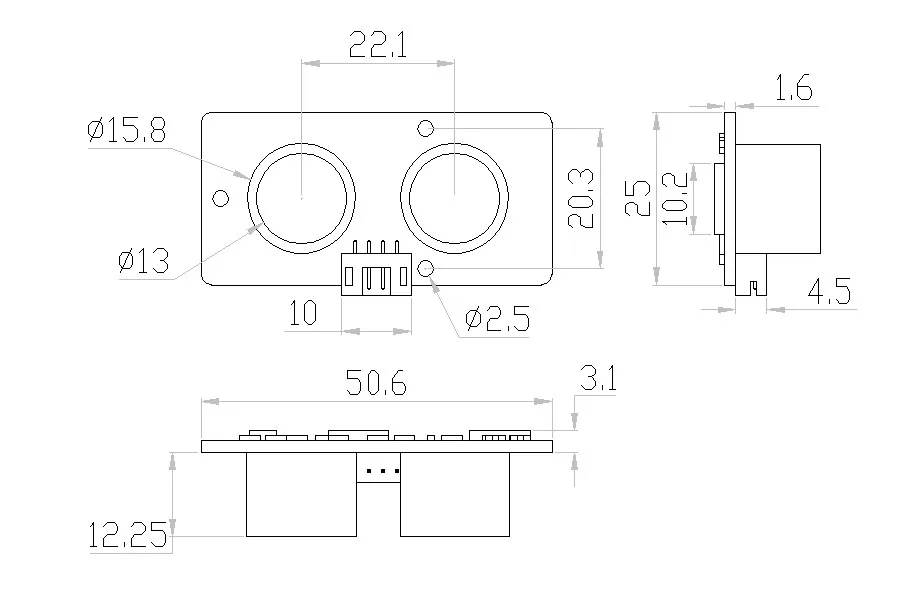

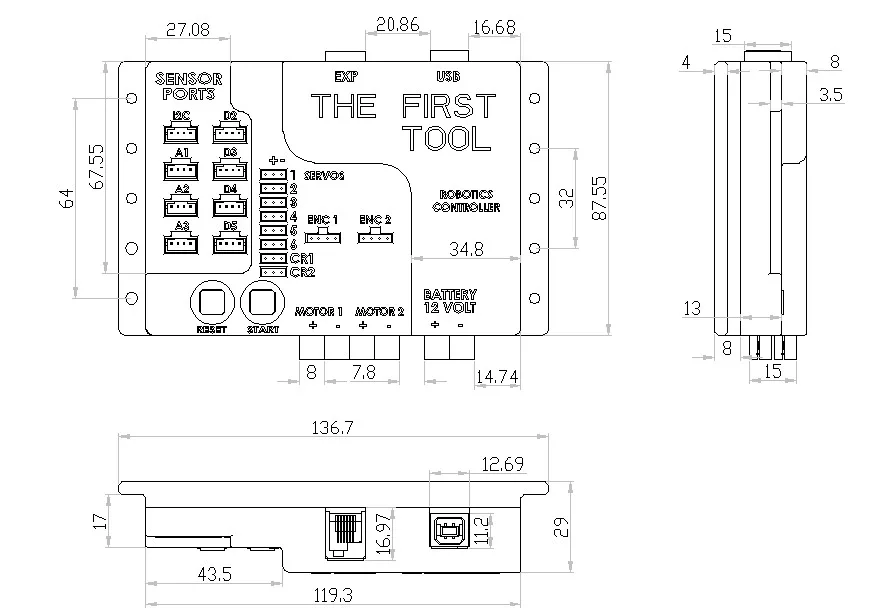

Technical drawing
