Keyestudio Micro Servo SG90 0-180 degrees for Arduino Smart Car Robot /Aircraft / CE Certification

The Keyestudio Micro Servo SG90 is a lightweight, 180-degree position control rotary actuator designed for precise angular movement. It is an ideal choice for South African students, educators, and hobbyists building smart cars, model aircraft, or robotic arms. The package includes multiple motor mounts to easily connect the servo to your custom projects.

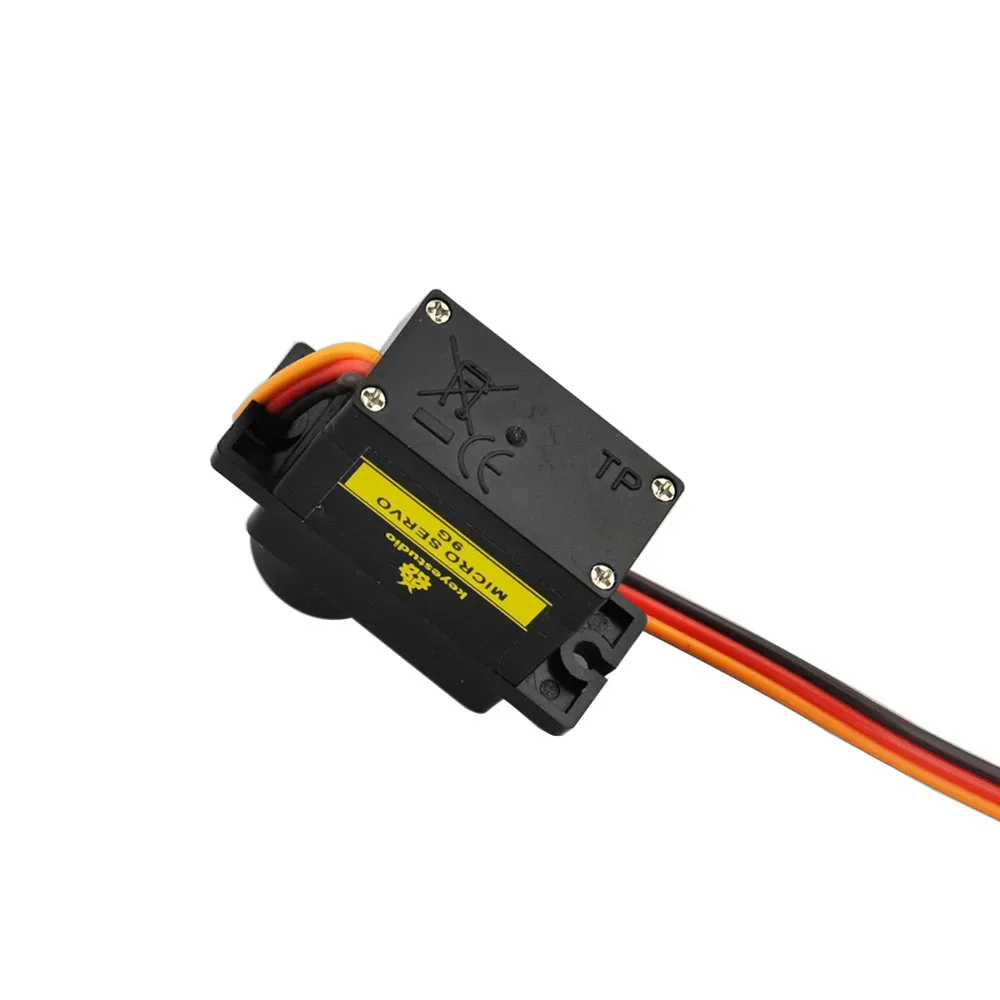

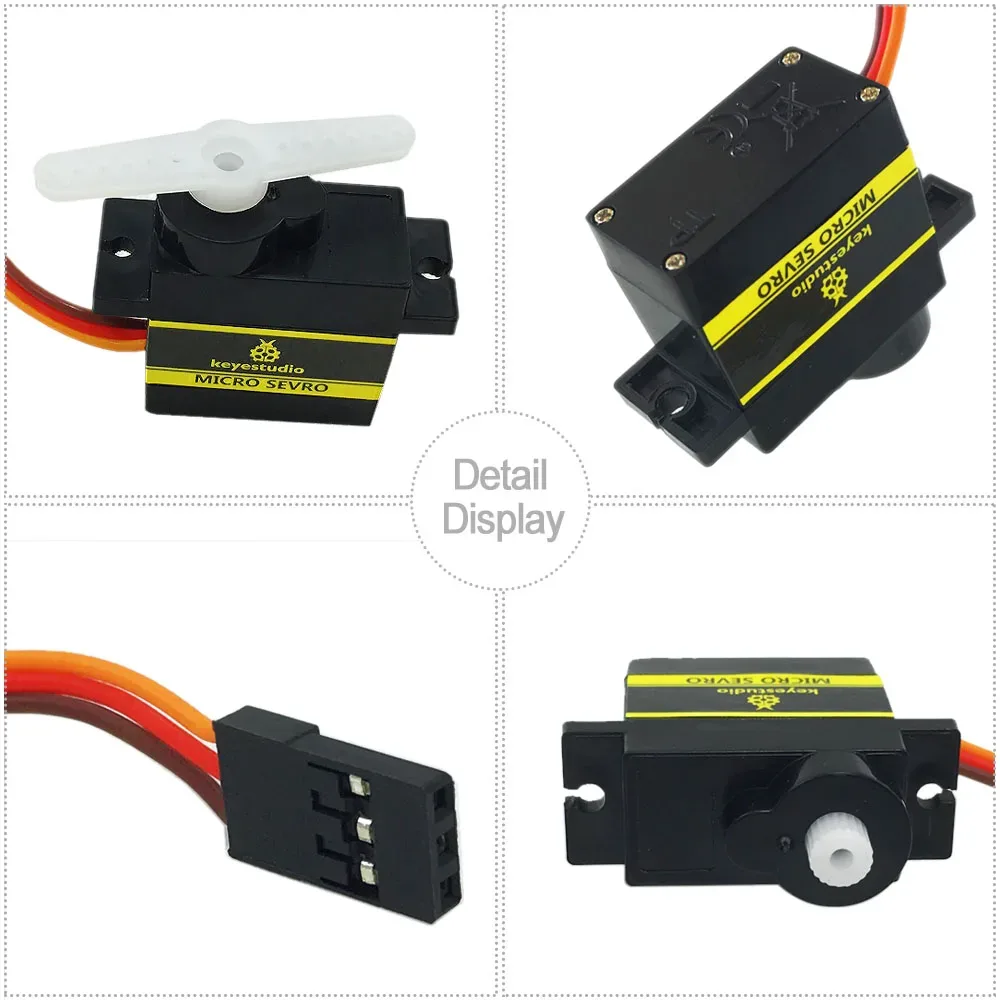

Compact housing and versatile mounts

This micro servo consists of a lightweight housing, circuit board, coreless motor, gear, and position sensor. It comes with a variety of white motor mounts that connect directly to the shaft, acting as a visual aid and making it easy to integrate into your physical builds.

Closed-loop position control

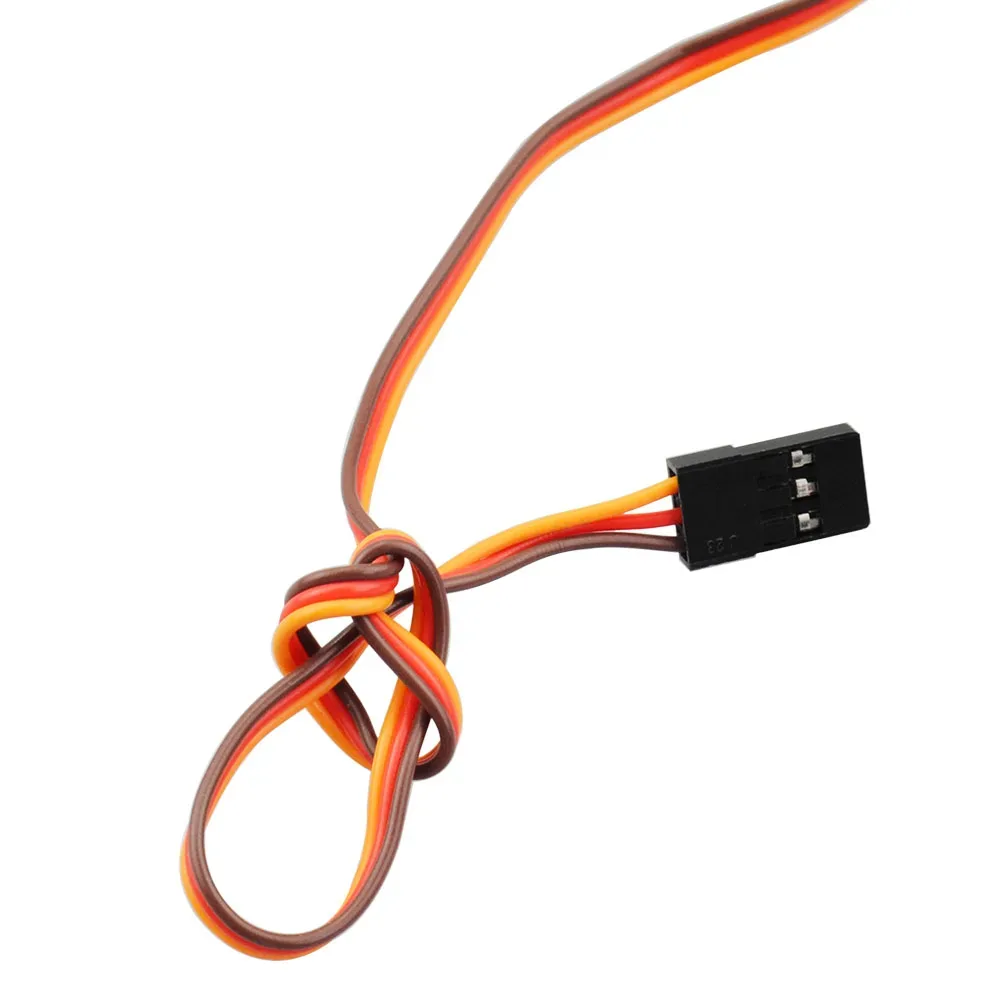

The servo compares an incoming signal from your microcontroller against its internal potentiometer feedback to adjust the shaft position. It features three colour-coded connection wires: brown for ground, red for positive power, and orange for the signal line.

Simple microcontroller connection

This servo is highly compatible with development boards like the Mega 2560 R3. It operates reliably within a standard pulsewidth range of 500 to 2500 microseconds to sweep through its full rotational range.

Dual-voltage performance metrics

Operating between 4.8V and 6V DC, the servo delivers a stop torque of up to 1.5 kg/cm at 6V. It draws a no-load current of 200mA to 220mA depending on the supplied voltage.

Lightweight and compact dimensions

Weighing just 9g without its mounts, this micro servo is perfect for weight-sensitive applications like model aircraft. It features compact dimensions of 22.9mm by 12.2mm by 30mm and comes with a 250mm connection wire.
