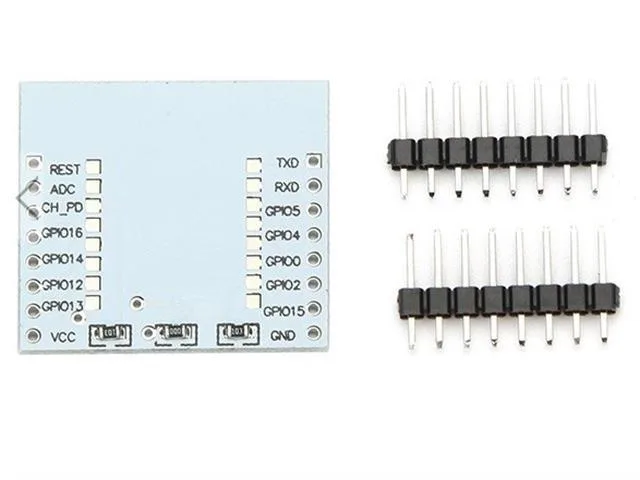

ESP8266 Adapter Breakout Board for ESP-07, ESP-08 and ESP-12

This ESP8266 adapter board provides a dedicated test platform for ESP-07, ESP-08, and ESP-12 WiFi modules by breaking out their IO pins. It is an ideal breakout solution for students, makers, and hobbyists prototyping wireless IoT designs. An onboard 3V regulator must be soldered by the user prior to use.

IO breakout and testing

The board provides lead-out access for the IO pins on compatible ESP8266 modules, simplifying testing and breadboard development.

Module compatibility

This adapter plate is designed specifically to support ESP-07, ESP-08, and ESP-12 WiFi modules.

Assembly requirements

Please note that a 3V voltage regulator must be soldered onto the board by the user.
