DC Motor Mount set
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
59376
An increased number of attachment holes makes this two-piece DC motor mount more flexible – mount a motor between or alongside channels as well as on top of them.
(1) Attaches the 12-volt DC motor to your robot
(2) Features more attachment holes enabling this two-piece motor mount to be
integrated into builds in a variety of ways –such as between two structural elements
(3)This versatile mount can be used as a structural element for attaching two
channels together.

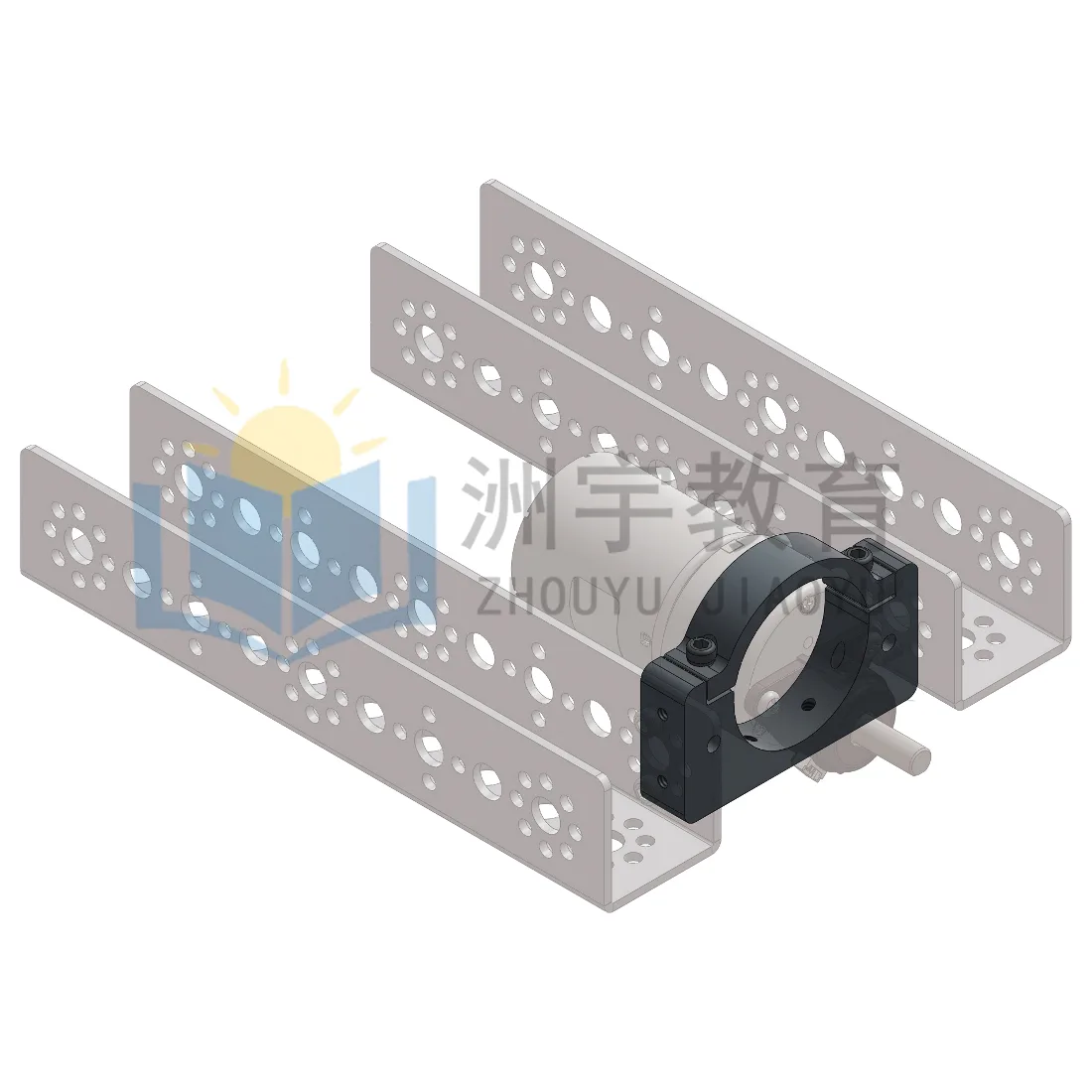

(4)Enables you to place motors between or alongside channels as well as on top of them,compatible with TETRIX PRIME

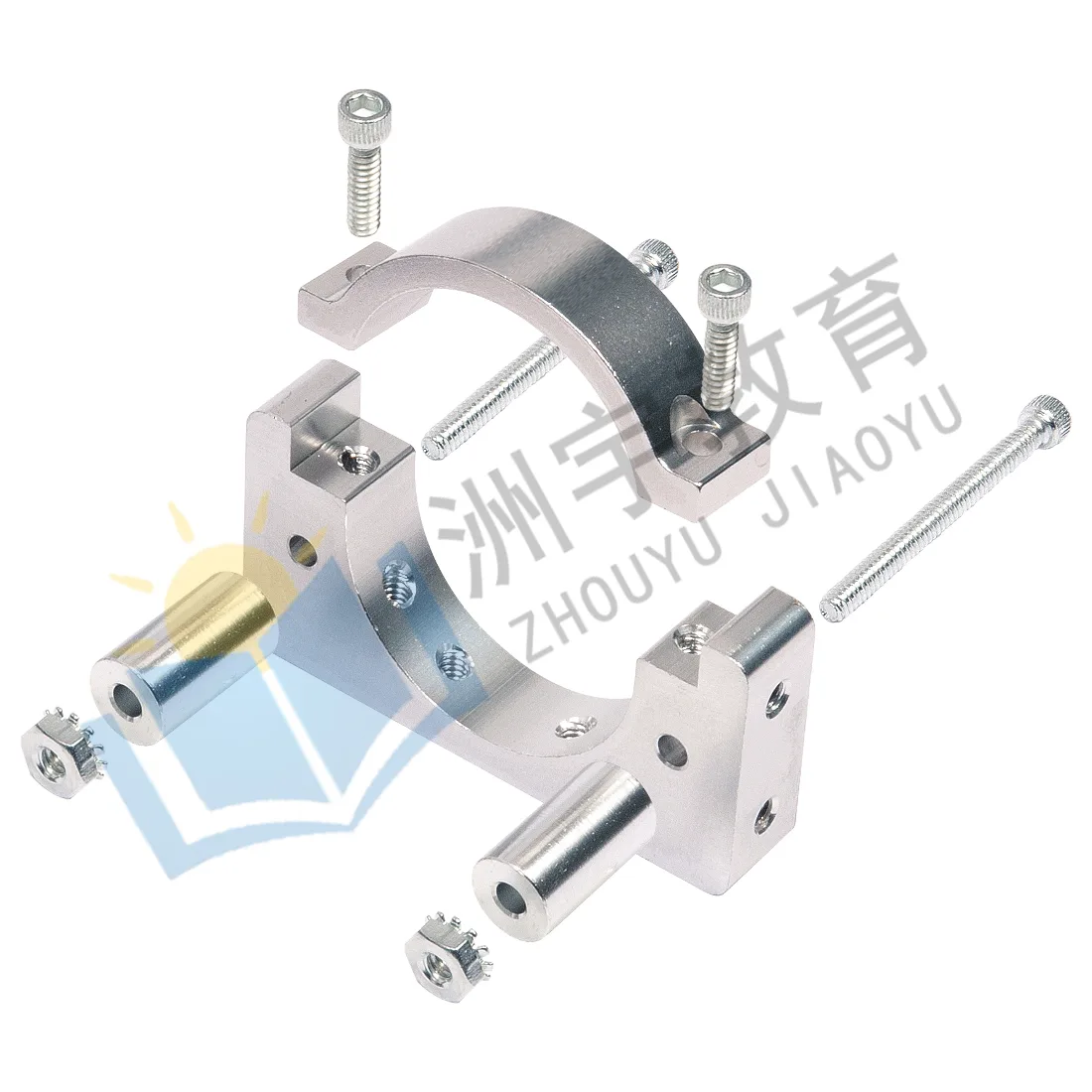

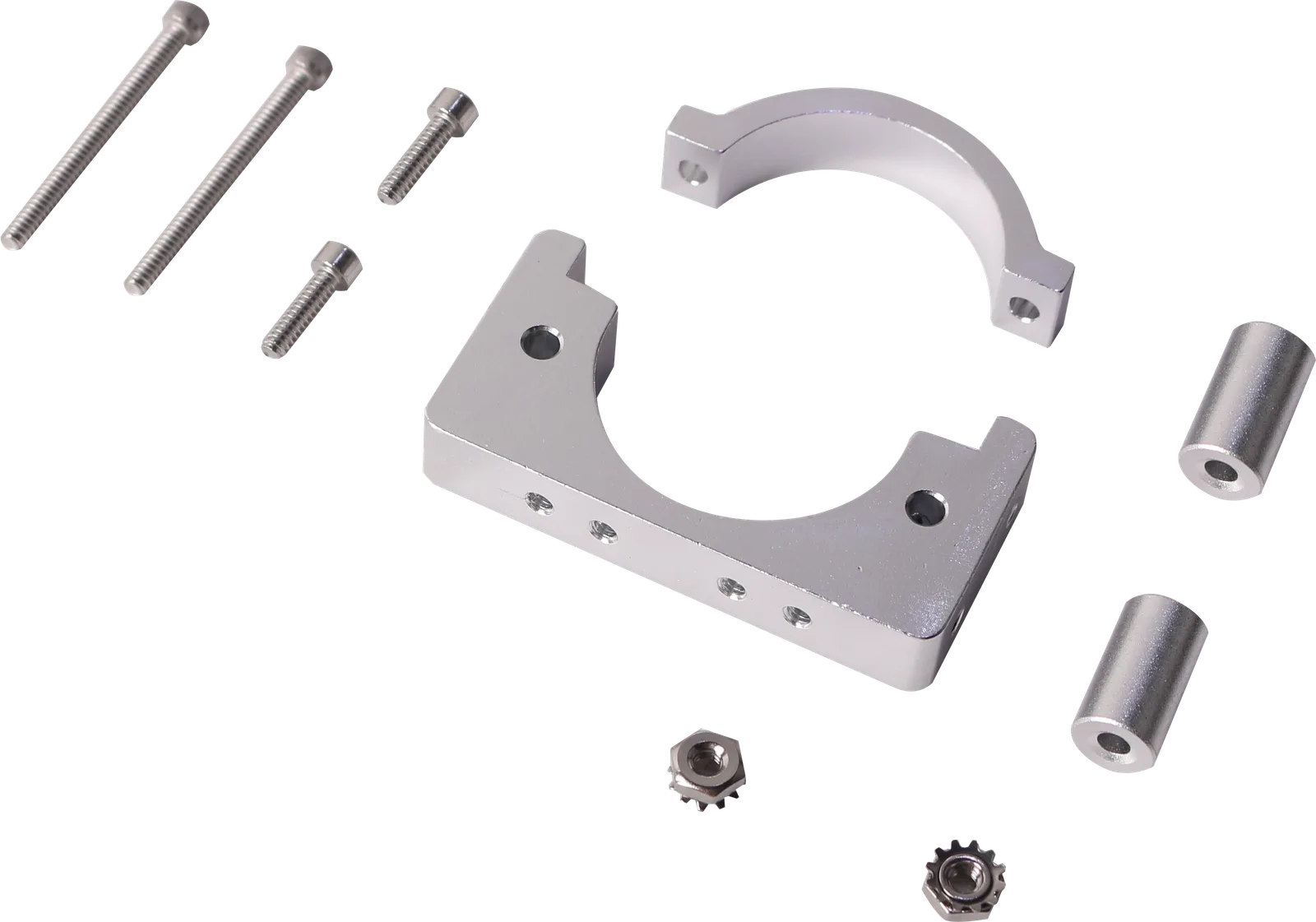

What you will get
- 1 MAX DC Motor Mount
- 2 stand-off posts (16 mm)
- 2 kep nuts (6-32)
- 2 socket head cap screws (1/2")
- 2 socket head cap screws (1-1/2")

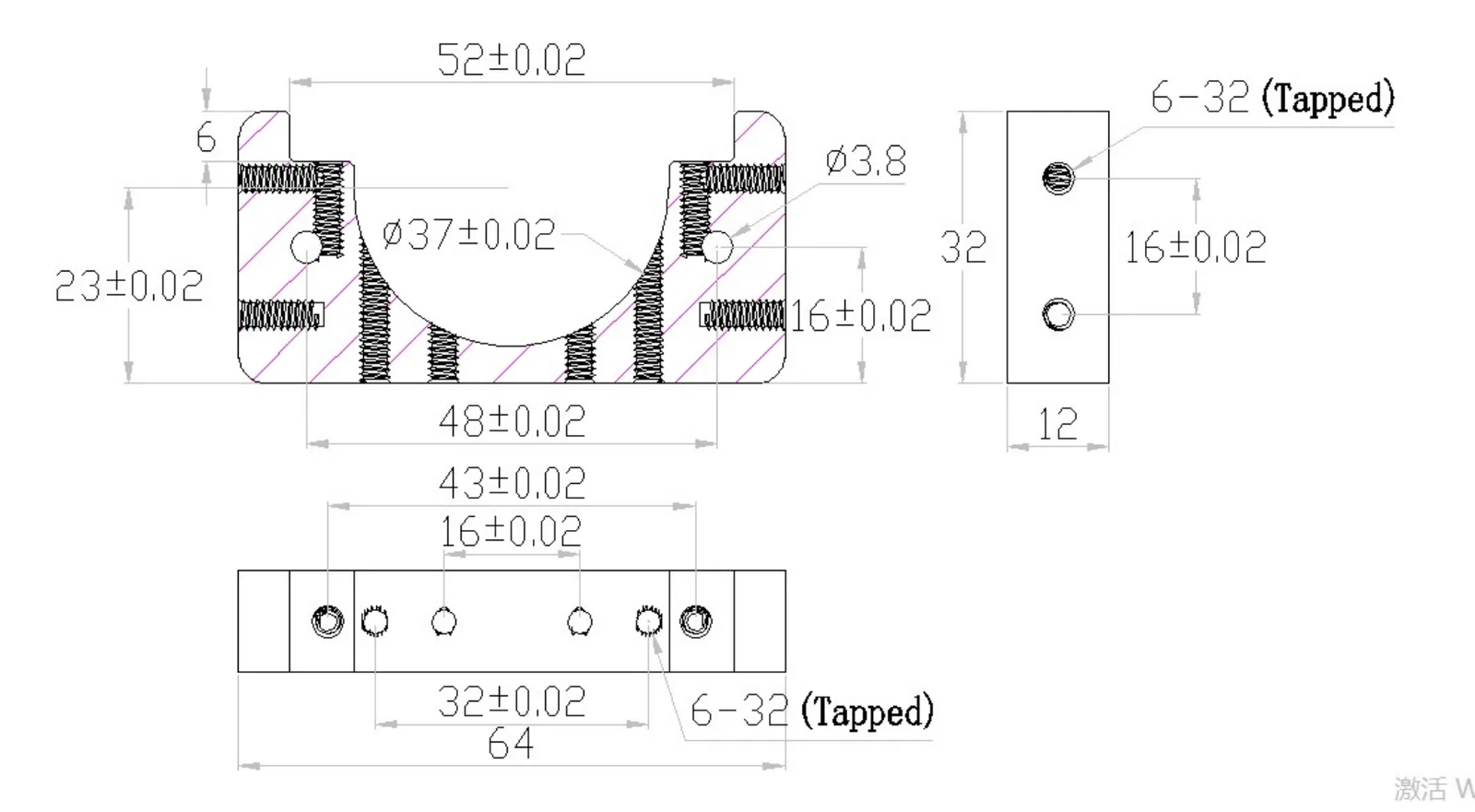

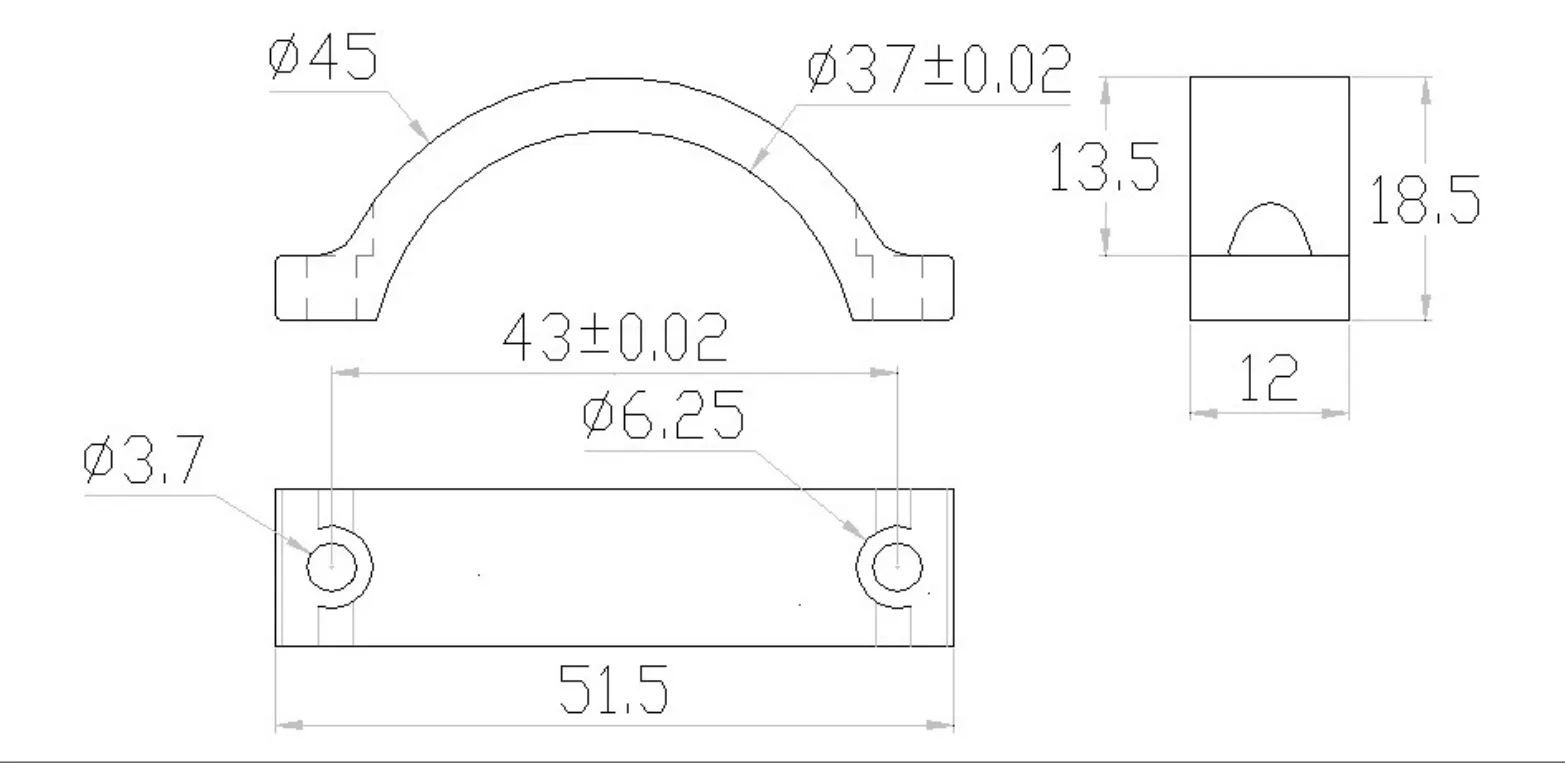

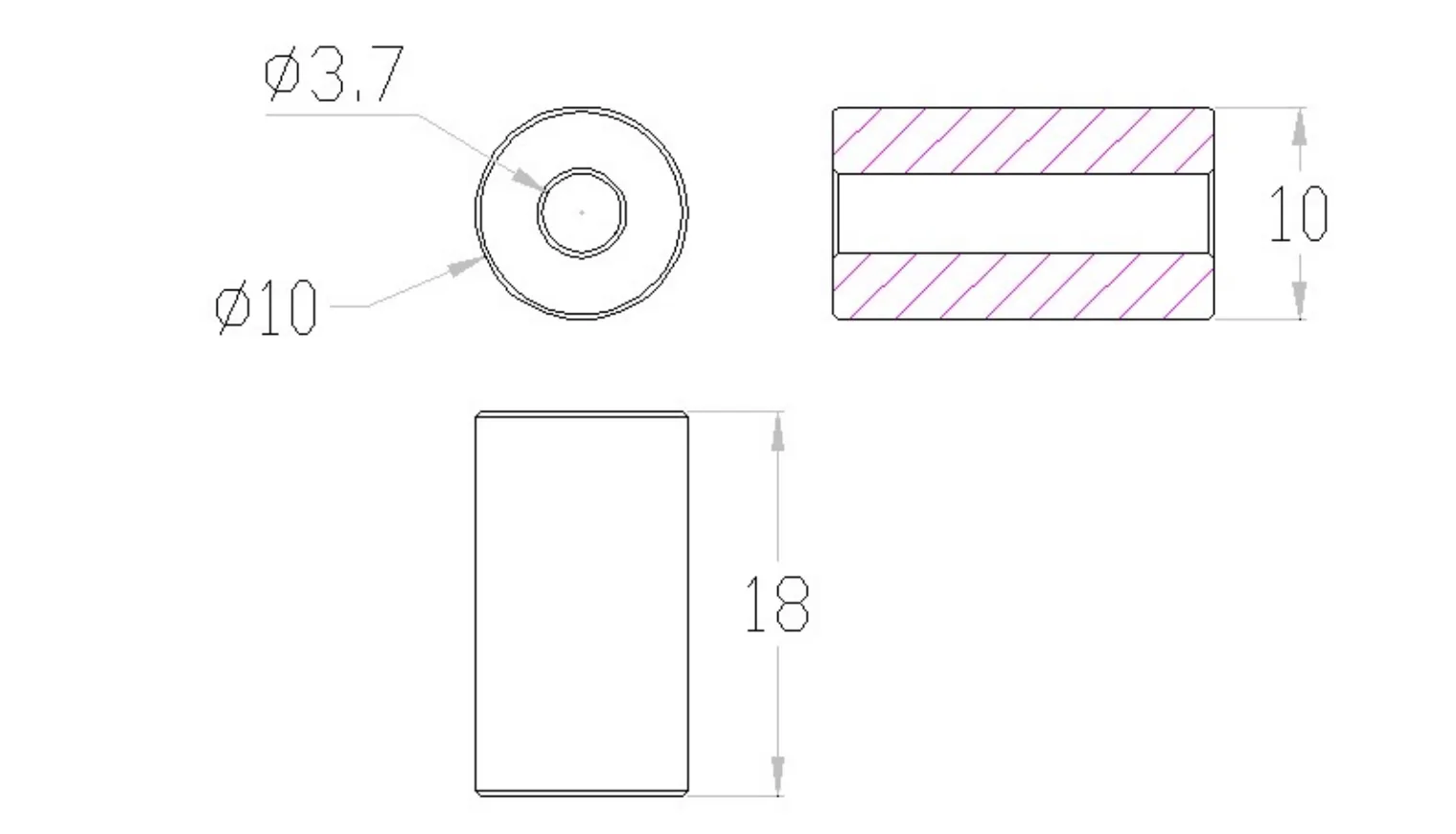

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 59376 |
| Weight | 56.9 g per mount |
| Size | 64 mm x 45 mm x 12 mm |
| Thickness | 12 mm |
| Material | 7005 aluminum |
