3208 Series Surface Mount (1-2)
SKU: ZY-3208-0001-0002
R 65,31Ex Tax: R 56,79
Ships in 7–10 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

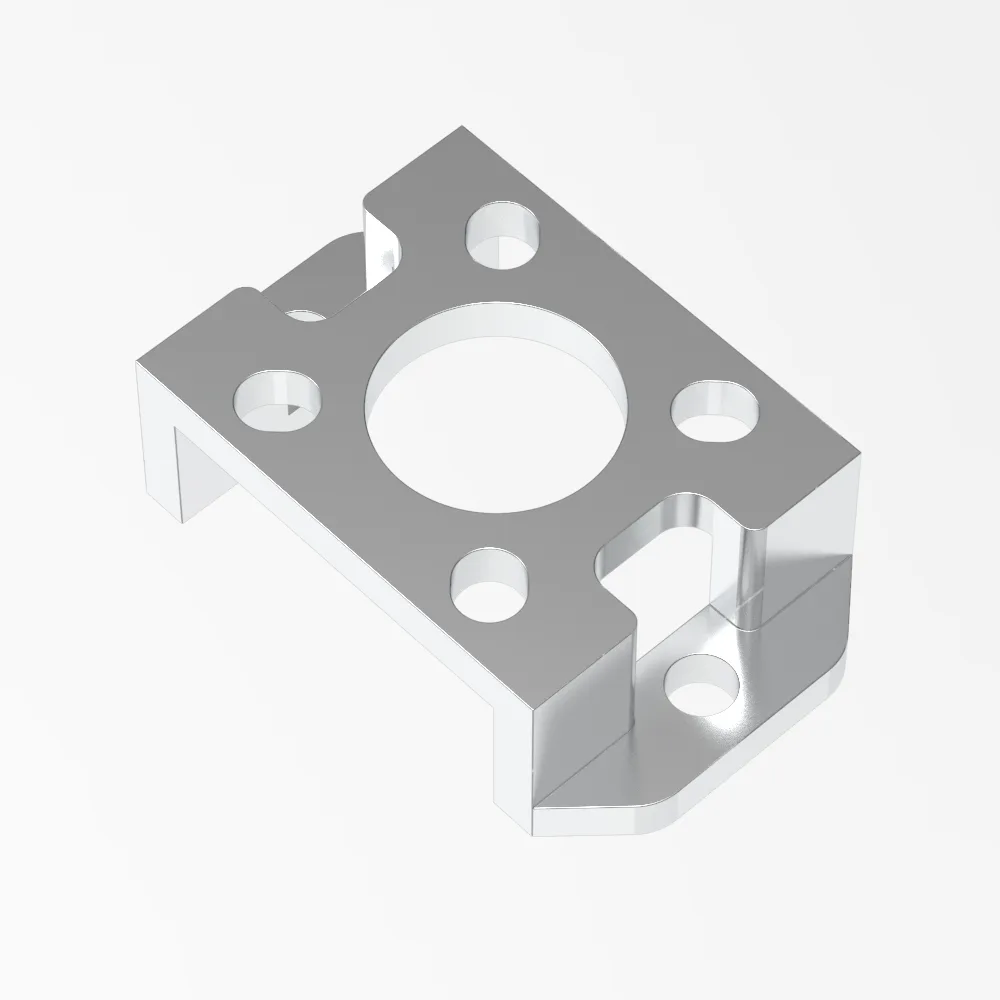

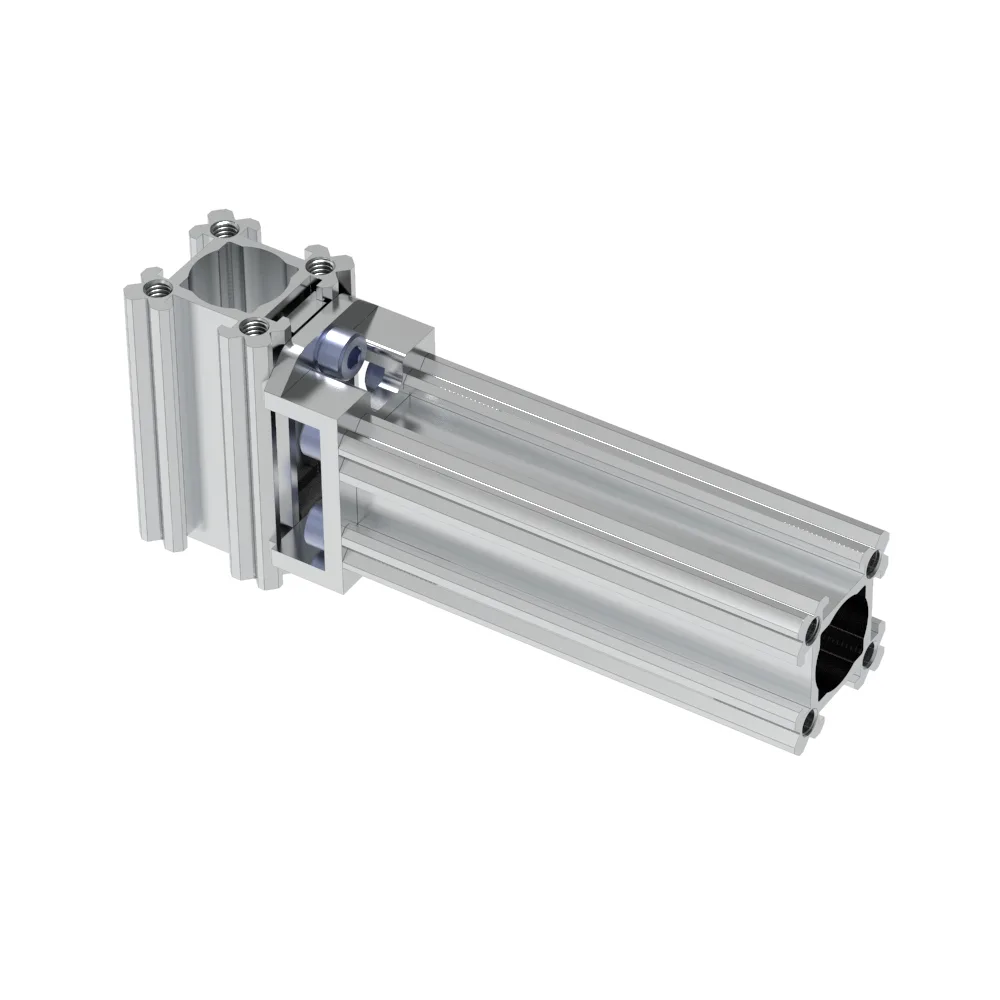

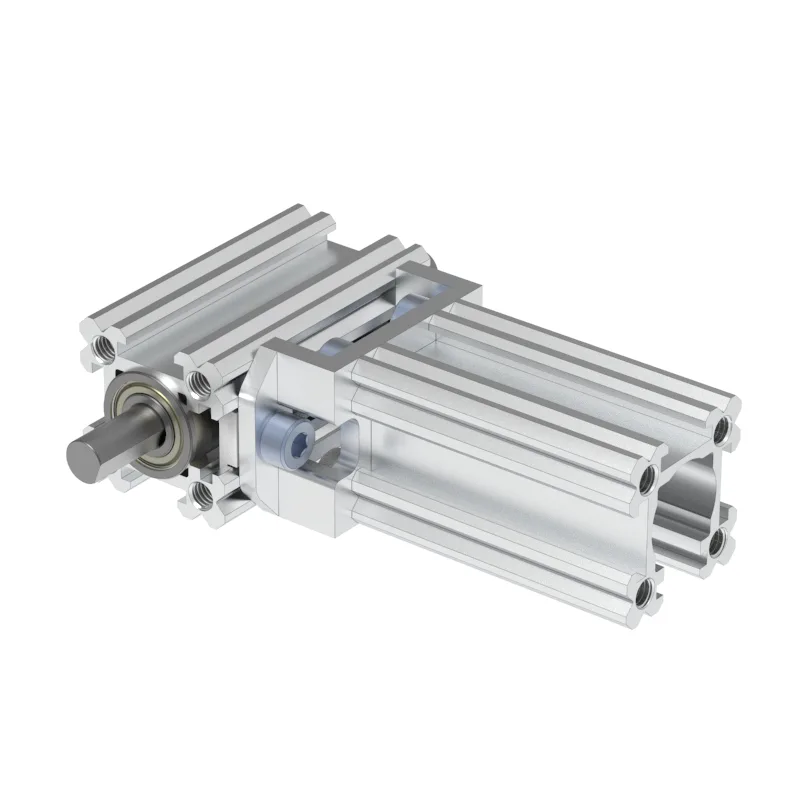

Create a 90 degree junction between two pieces of goRUN using a surface mount. The offset profile allows the heads of the screws holding the mount to the goRUN to remain below the mating surface, leaving a clean slate to fasten to.This compact surface mount allows you to create a 90 degree joint between two pieces of goRUN while providing access to the center hole of the goRUN for routing wires or running shafting through.
size:40mm*24mm*12mm

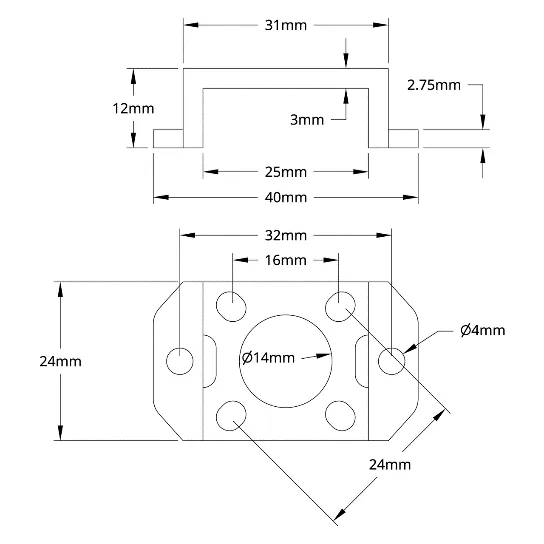

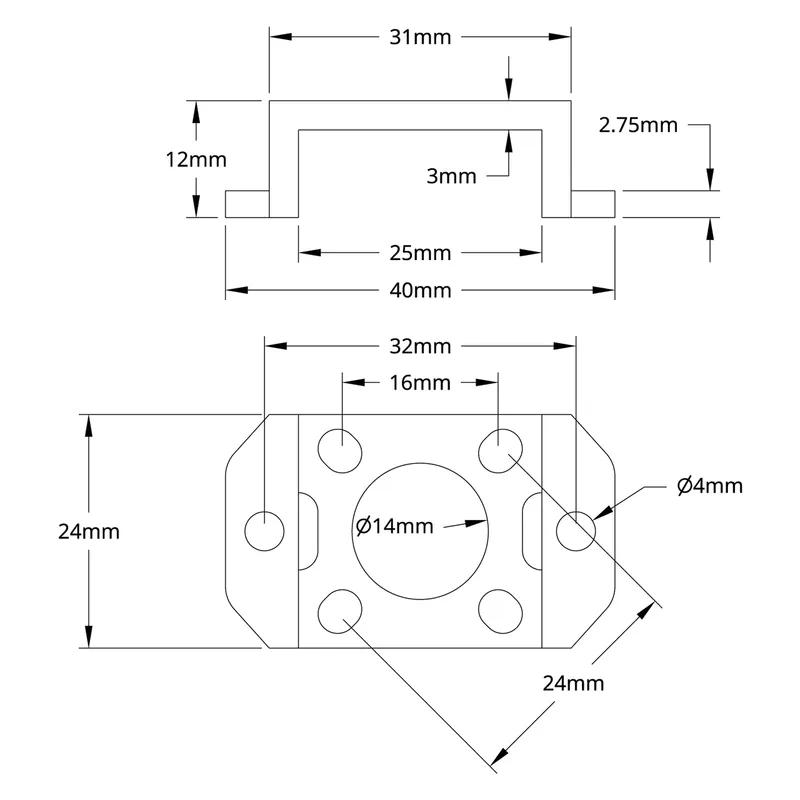

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3208-0001-0002 |
| Weight | 24g Each |
| Material | Aluminum |
| Finish | Clear Anodized |
