Description
Not competition legal — read before buying
This part is NOT legal for FIRST Tech Challenge (FTC) or FIRST Robotics Competition (FRC). It is sold for training, practice, prototyping and general robotics use only. Do not build it into a robot you intend to compete with.
This motor controller connects to the thefristtool expansion port enabling users to control up to two additional 12-volt DC motors. Up to four motor controllers can be connected to the thefristtool expansion port. There are two H-bridge outputs to control the speed and direction of two DC motors and two quadrature encoder input ports. Additional power and expansion ports support daisy-chain configurations compatible with TETRIX PRIME
Supported programming languages include Arduino and LEGO® MINDSTORMS® EV3. The motor controller can be connected to the LEGO EV3 Brick. Software blocks can be downloaded from the Resources tab below.

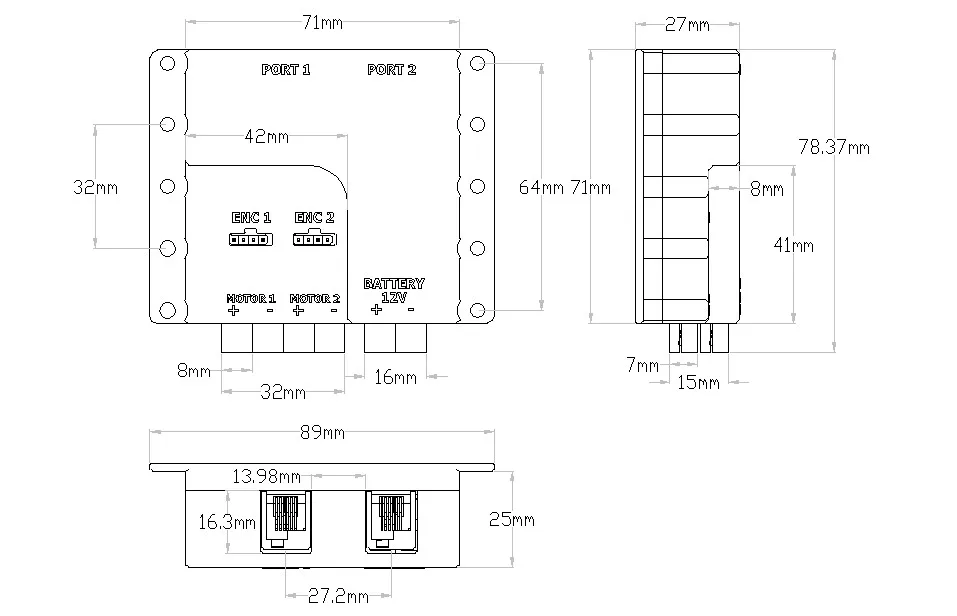

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Not legal |
| FIRST Robotics Competition (FRC) | Not legal |
Specifications
| Part number | U64354 |
