sheen robotics
DC Gear Motor
SKU: ZY-59530
R 415,70Ex Tax: R 361,48
On backorder — Ships in ~21 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
Redesigned for improved performance this motor can handle more heat buildup and now has tougher coil protection and a harder steel alloy to prevent gear stripping. Twelve-volt DC motor features 152 rpm and 320 oz-in. of torque.Operating Voltage: 12 voltscompatible with TETRIX PRIME

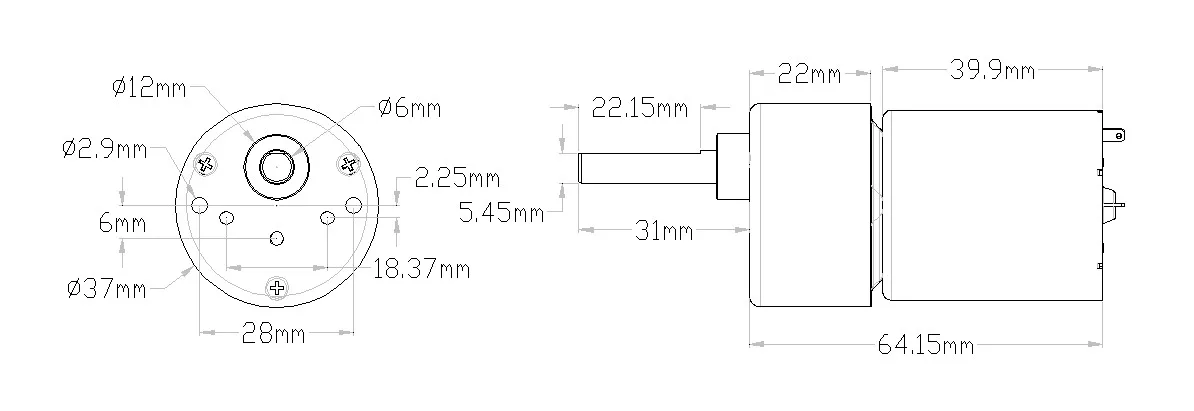

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 59530 |
| Weight | 222.8 grams per motor |
| Other Products Required | motor mount sold separately |
| Note | gear train damage can occur if the motor shaft is stalled while being powered |
