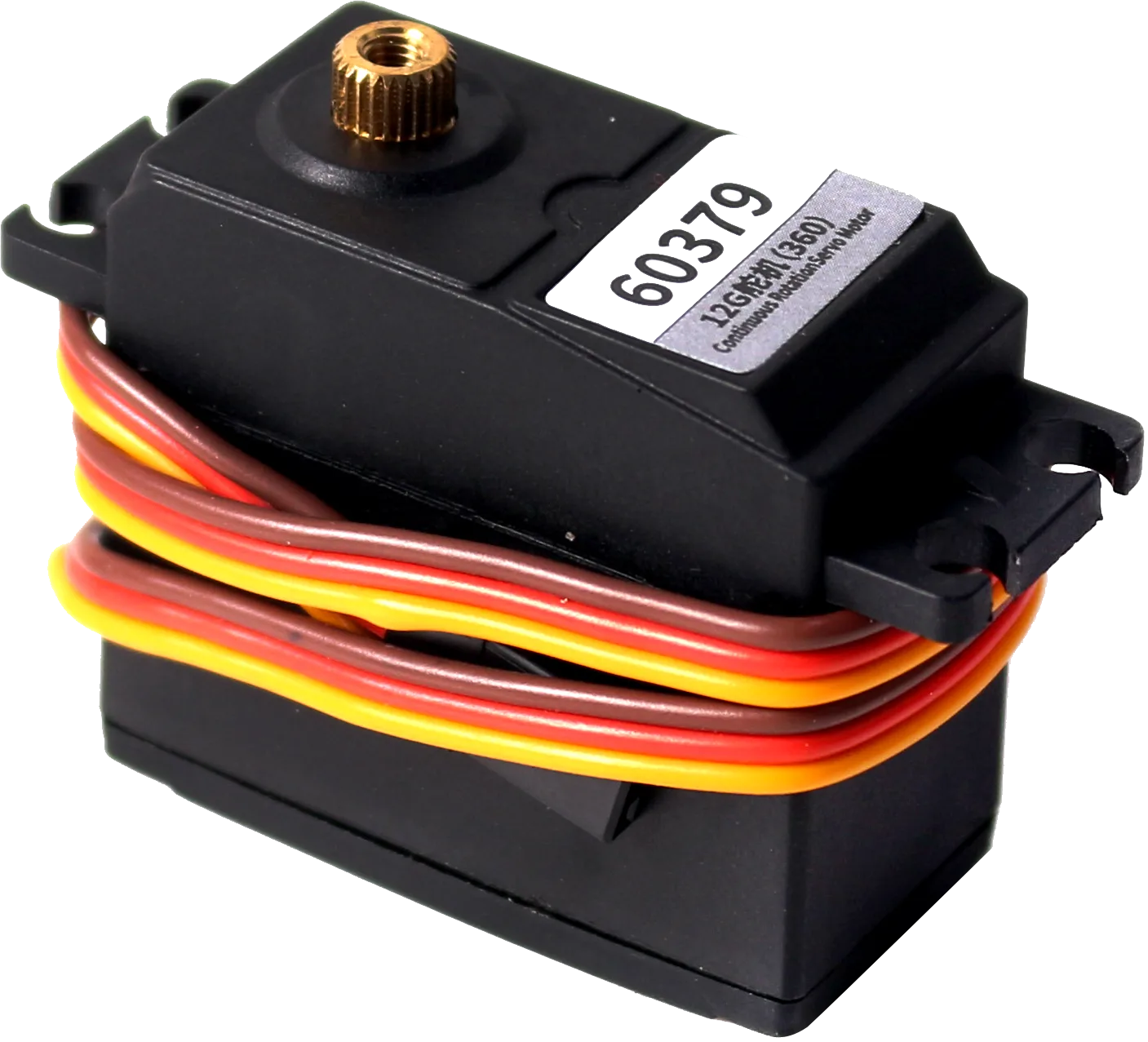

Continuous Rotation Servo Motor
SKU: ZY-60379
R 632,70Ex Tax: R 550,17
Ships in 7–10 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
Consumption Current* (No Load):6.0V/≦180mA7.4V/≦190mA
Max. Torque*:6.0V/≧10.5 kgf/cm7.4V/≧11.5 kg/cm
No Load Speed* 6.0V/≦0.31sec/60°7.4V/≦0.27sec/60°

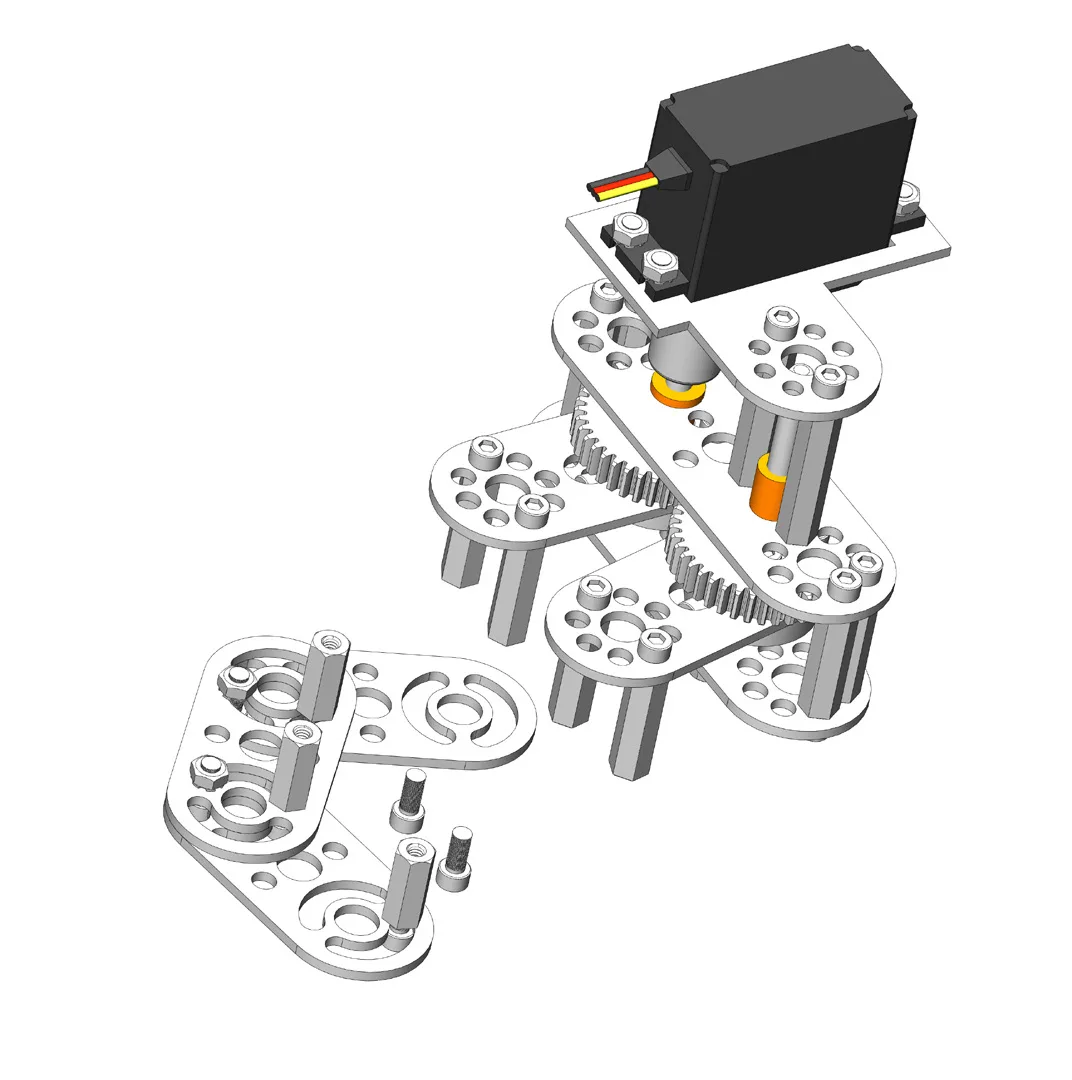

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 60379 |
| Operating Voltage | 6.0~7.4V DC |
| Standby Current | ≤10 mA |
| Rated Torque | 6.0V/≧9 kgf/cm7.4V/≧10 kgf/cm |
| Rotating Direction | 500→2500us-逆时针/ 2500→500us-顺时针 |
| Pulse Width | Range:500~2500us |
| Stop Signal | 1500us |
| Max. Operating Travel Angle | 360° |
| Mechanical Limit Angle | 360° |
| Communication Interface | PWM |
| Weight | 52±1g |
