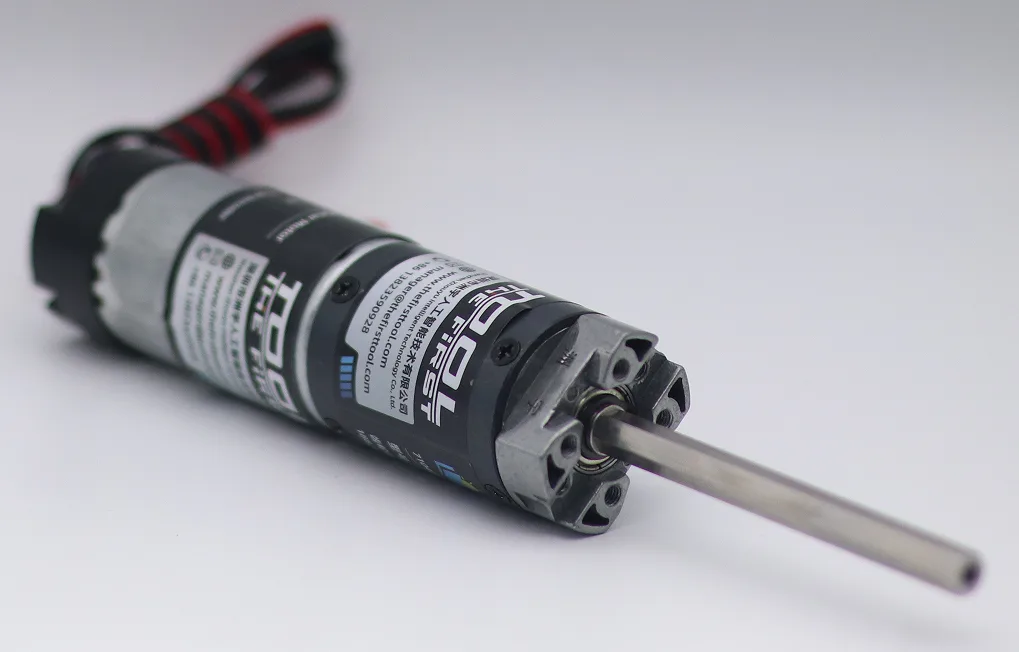

7204 Series Planetary Gear Motor (188:1 Ratio, 80mm Length 8mm REX Shaft, 30 RPM, 3.3 - 5V Encoder)

Not competition legal — read before buying

This part is NOT legal for FIRST Tech Challenge (FTC) or FIRST Robotics Competition (FRC). It is sold for training, practice, prototyping and general robotics use only. Do not build it into a robot you intend to compete with.

The 7204 Series Planetary Gear Motors have all the benefits of the 5203s with one obvious difference, an 80mm long output shaft. The longer shaft is able to reach through the channel and enough past the far side to fasten a hub and a wheel to, negating the need for a coupler and an additional shaft.The 7204 Series Planetary Gear Motors are the solution for smooth, efficient and robust power for your project. This series of Planetary Gear Motors features the primary shaft profile of the Sheen Robotics build system - 8mm REX. This already strong shaft goes up to a 9mm diameter inside the head with dual ball-bearing support. The 36mm diameter gearbox contains all steel gears which are larger than those in the 5202 Series. The screws which mount the gearbox are larger in diameter and come in from the sides. This helps make them ultra-resistant to loosening over time. Though the gearbox itself is larger, the shape of the head has been designed to allow more room for nearby components.

Specs

Output Shaft 8mm REX, 80mm Length

No-Load Speed @ 12VDC 30 RPM

No-Load Current @12VDC 0.25A

Wire Gauge 16AWG

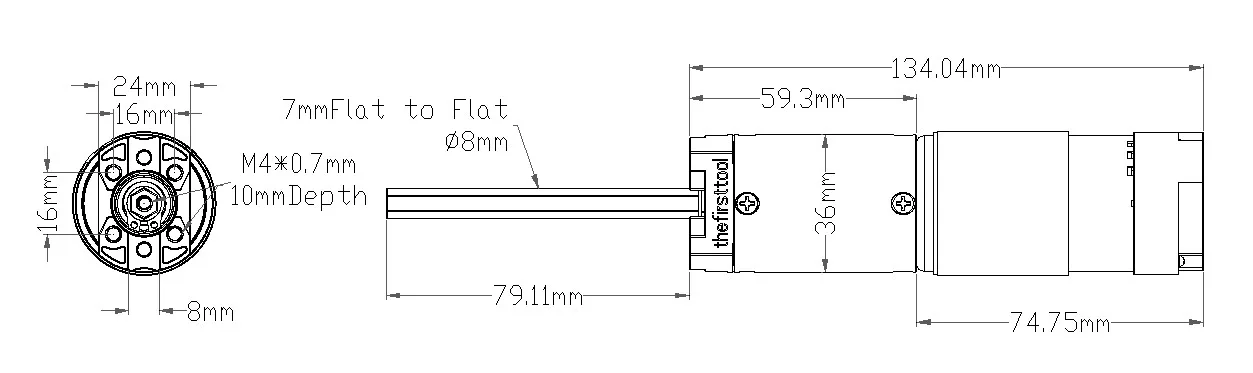

Technical drawing
