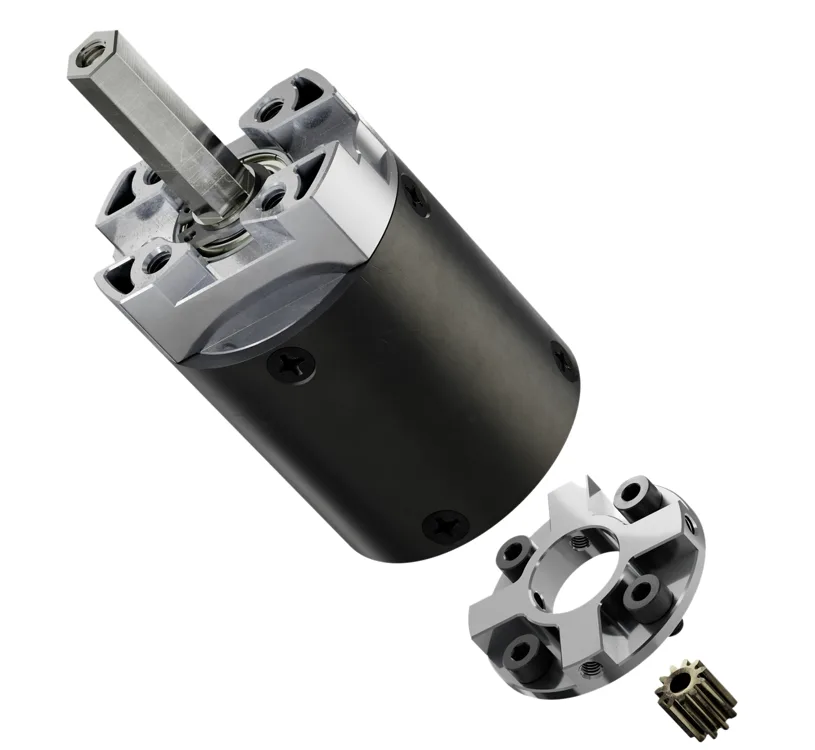

7103 Series Planetary Gearbox (139:1 Ratio, 24mm Length 8mm REX Shaft)
SKU: ZY-7103-0024-0139
R 1 037,40Ex Tax: R 902,09
Ships in 7–10 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
Not competition legal — read before buying
This part is NOT legal for FIRST Tech Challenge (FTC) or FIRST Robotics Competition (FRC). It is sold for training, practice, prototyping and general robotics use only. Do not build it into a robot you intend to compete with.
This planetary gearbox is a direct replacement to the gearbox found on the 7202 Series, 7203 Series and 7204 Series Yellow Jacket Planetary Gear Motor. This gearbox is packed with features, such as the Sheen Robotics pattern in the face, clearance cuts for nearby components, and a beefy 8mm REX output shaft to drive your favorite 8mm REX components!
Specs
Output Shaft 8mm REX, 24mm Length
motor gear Tooth Count 11

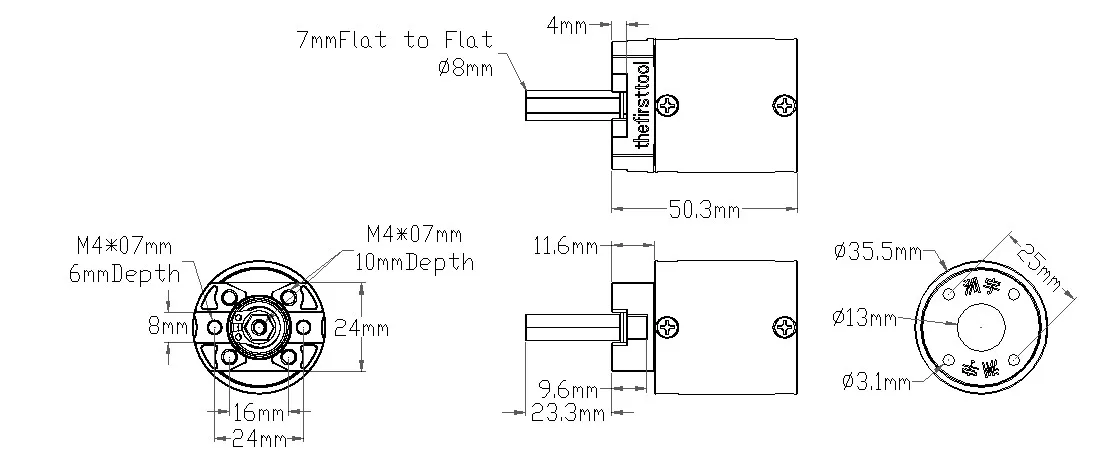

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Not legal |
| FIRST Robotics Competition (FRC) | Not legal |
Specifications
| Part number | 7103-0024-0139 |
| Gearbox Style | Planetary |
| Gear Ratio | 139:1 |
| Gear Material | Steel |
| Gear Pitch | MOD 0.6 |
| Weight | 237g |
