4315 Series Steel, MOD 1.25 Miter Gear (8mm REX Bore, 30 Tooth)

Competition eligibility

Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

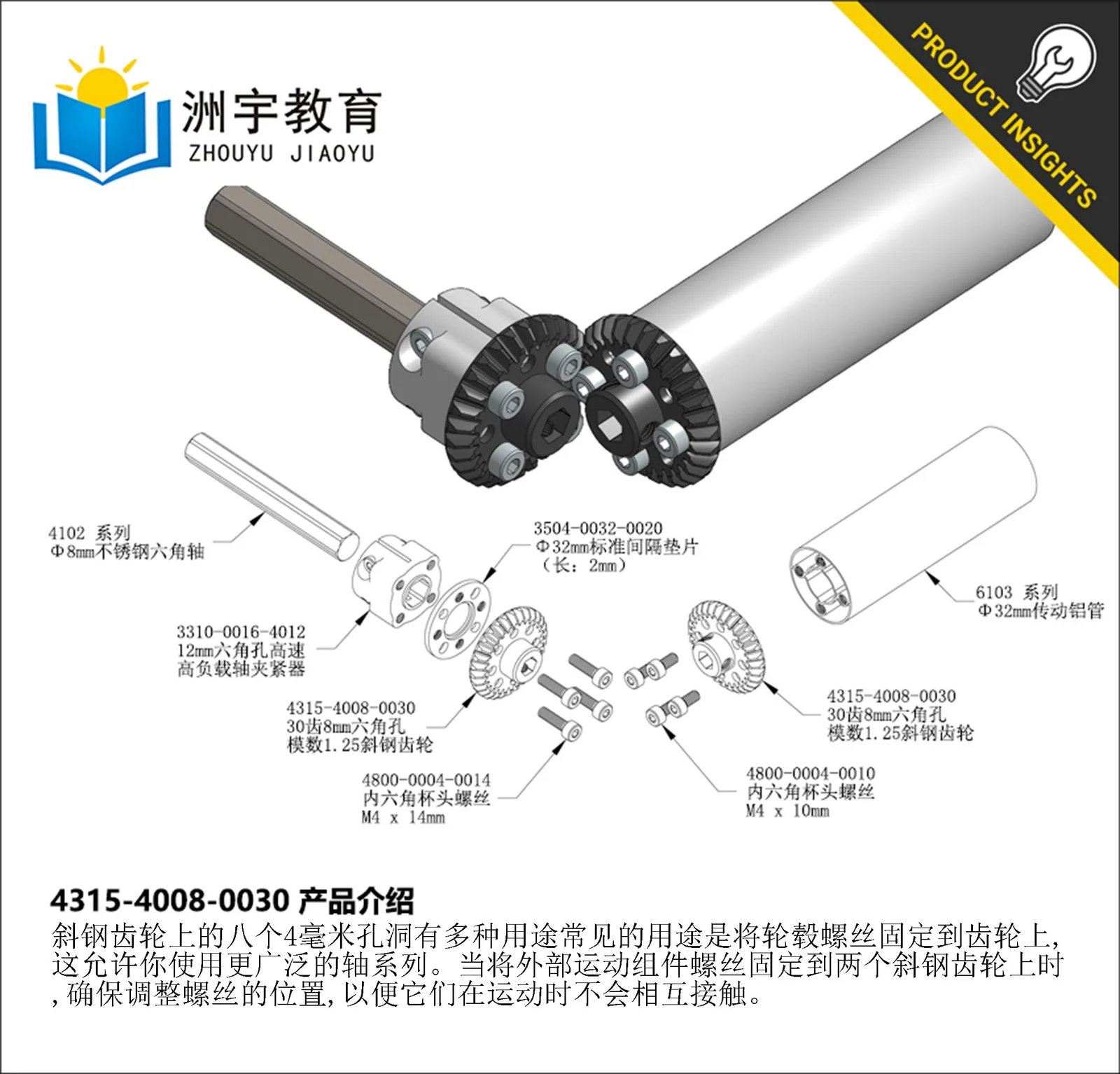

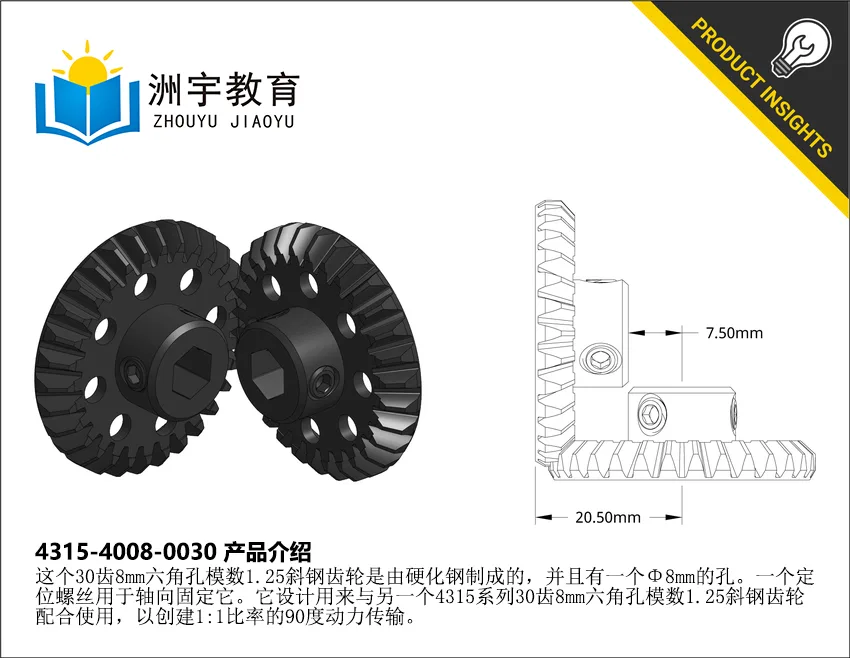

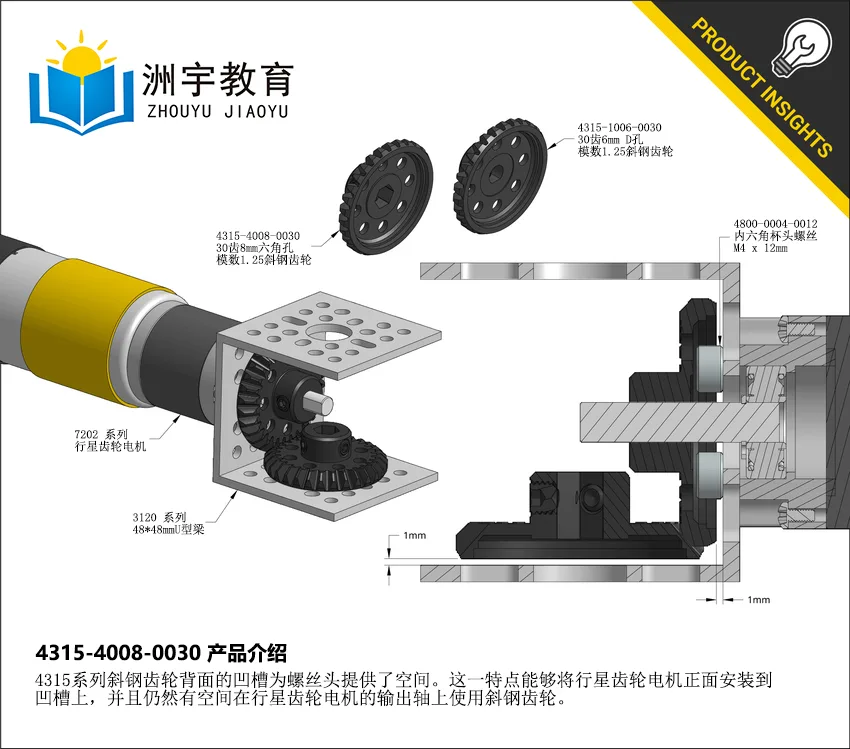

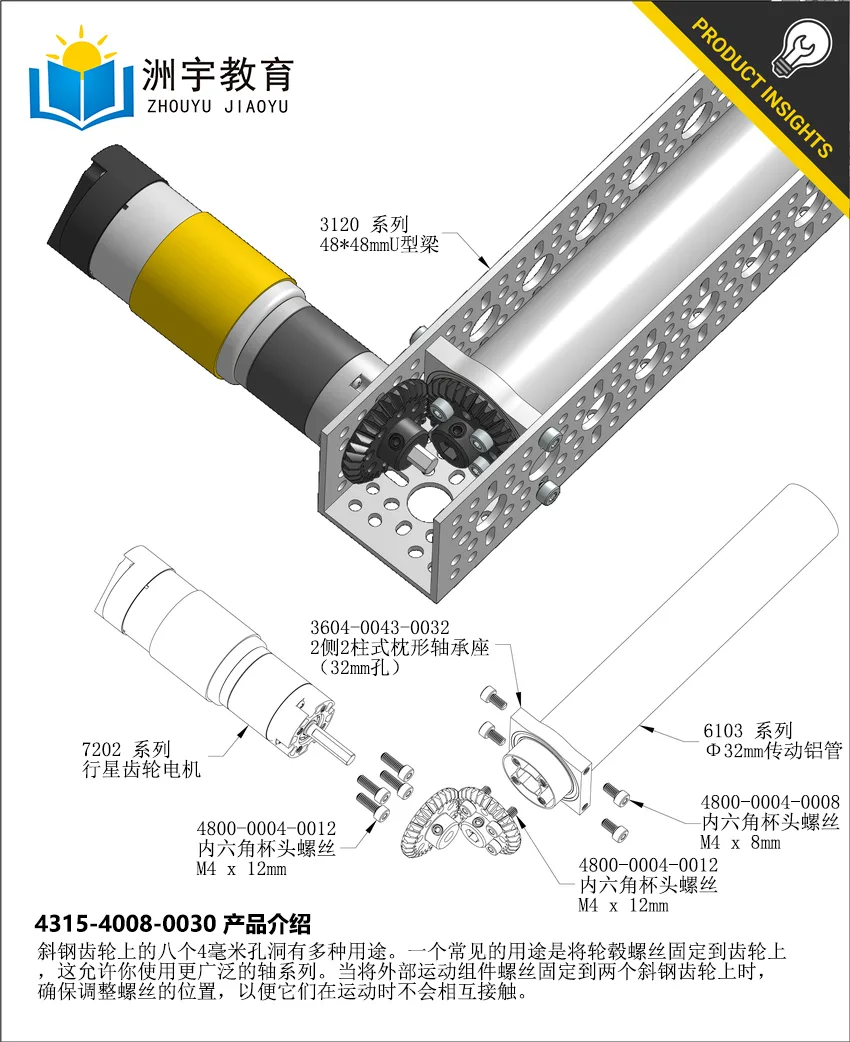

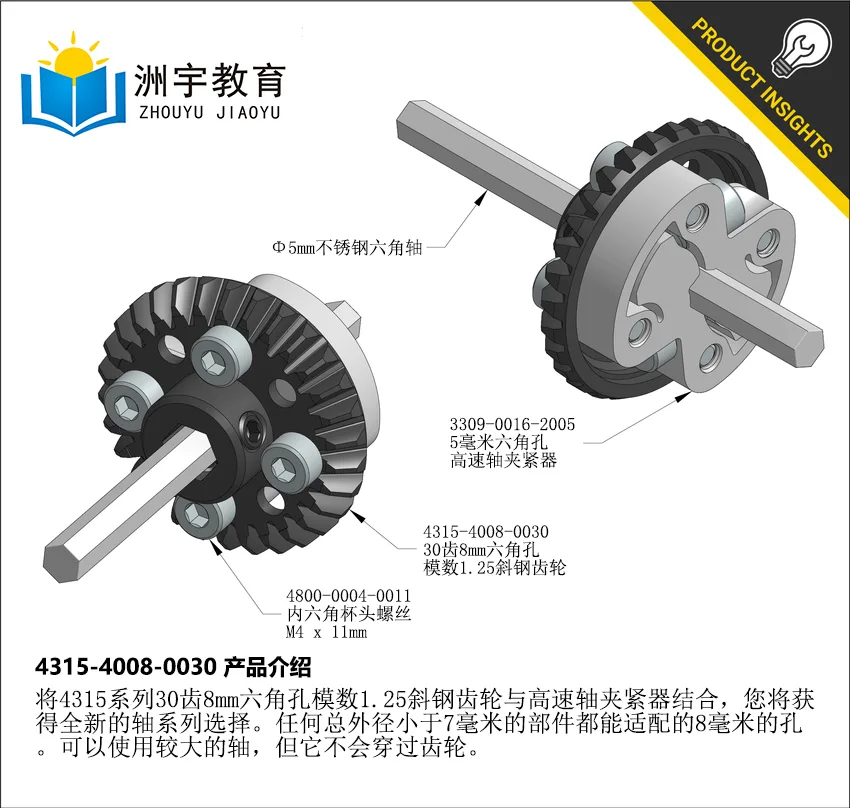

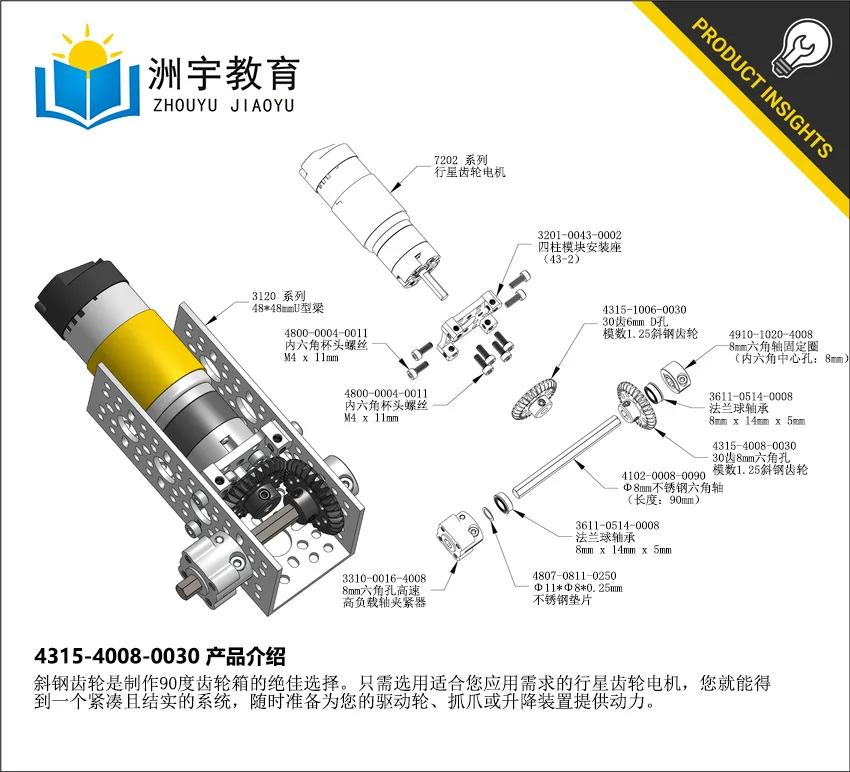

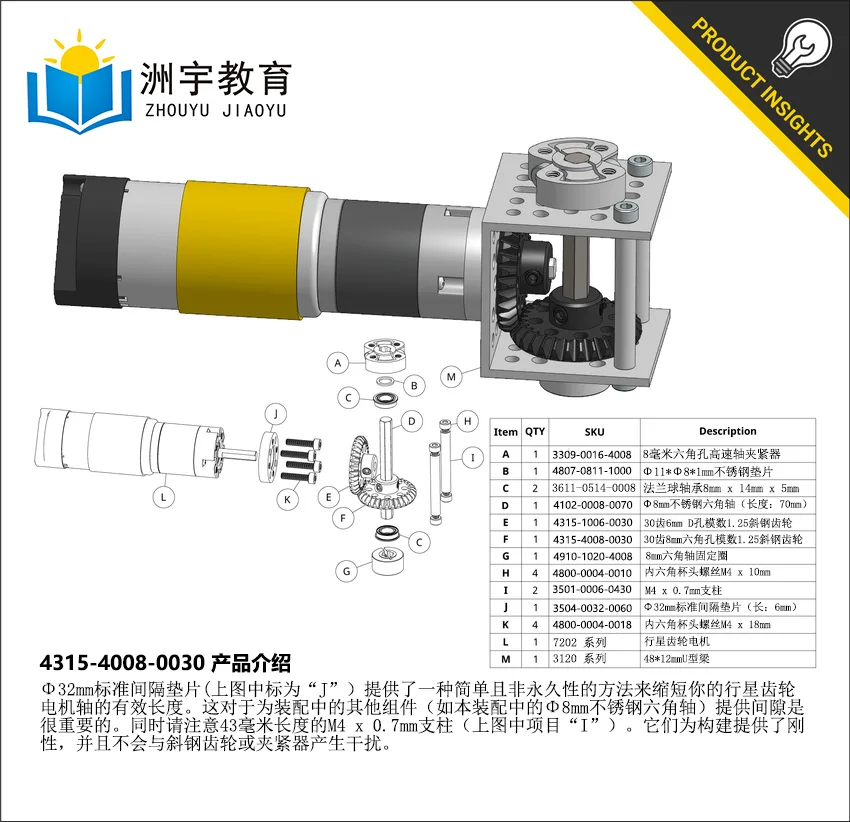

These bevel gears are considered miter gears because they create a 1:1 ratio between the drive gear and driven gear. Feel free to mix and match between any two 4315 Series Miter Gears as they are all compatible with one-another.This 8mm REX Bore Miter Gear is able to mate with any other 4315 Series Miter Gear. A miter gear is a specific type of bevel gear. Two mating miter gears create a 1:1 ratio, and transmit power at a 90 degree angle due to the 45 degree pitch cone angle. The underneath side of this gear has been dished out to allow a thrust bearing to set the location of the gear (relative to the inside wall of an 3120 Series U-Channel) and counteract the potential spreading forces in the most extreme applications. Additionally, the 32mm shelf on the back will allow a 32mm diameter component, such as goRAIL, goTUBE or a Sonic Hub to nest down in the cavity and fasten with M4 socket head screws.

Pressure Angle 20 Degree

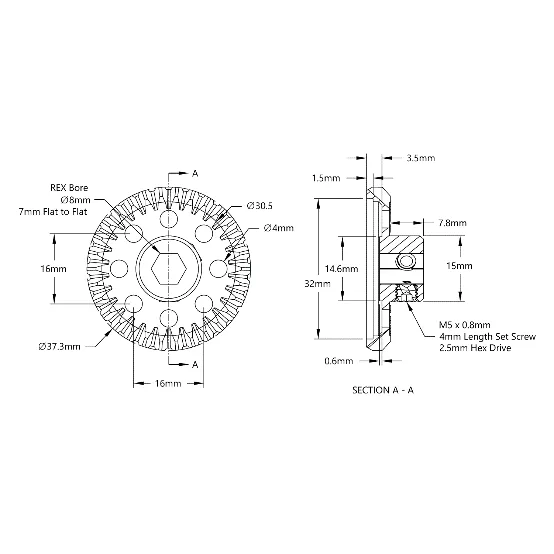

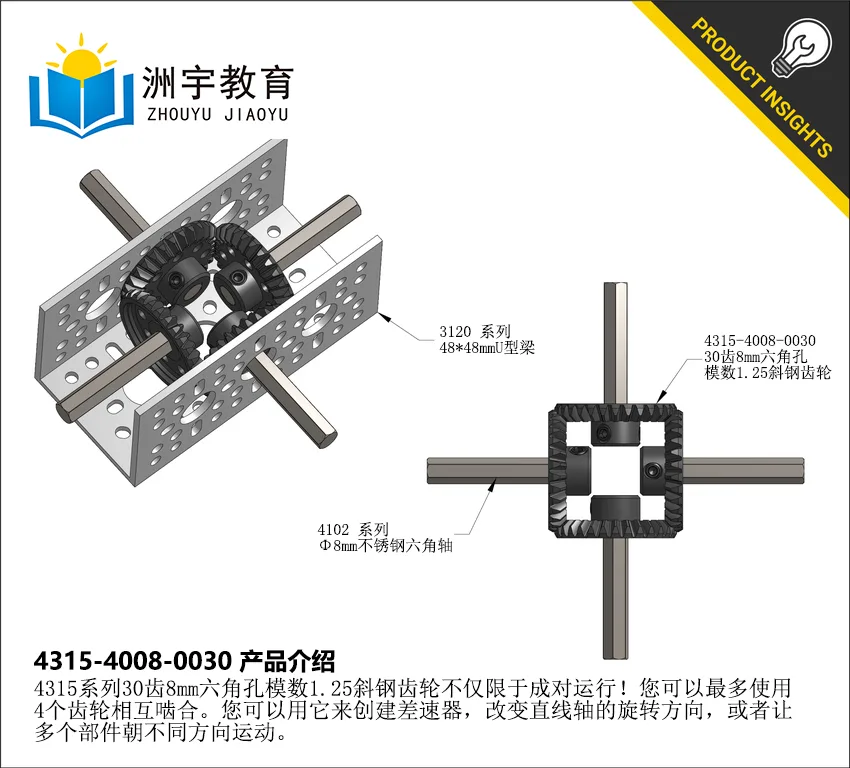

Technical drawing
