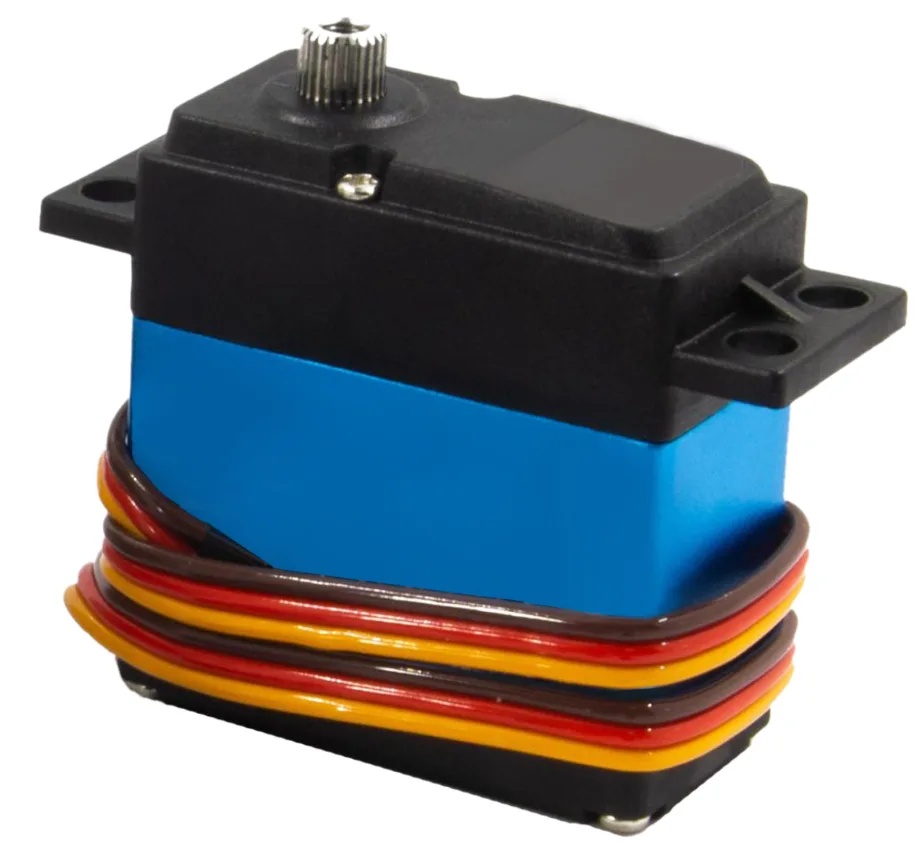

4000 Series Dual Mode Servo (25-2, Torque)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
The Sheen Robotics 4000-0025-0002 is a descendant of the popular 4000-0025-0001 servo. The 25-2 received some noteworthy updates including an ultra stout steel gear train, more torque and a new top case. Like its predecessor, the 25-2 boasts two different modes which allow it to fill a variety of roles on your robot or project. In the default mode, the servo is able to rotate 300 degrees while having positioning feedback. In this mode, the PWM signal will determine the position of the servo. Using the 3102 Series Dual Mode Servo Programmer (1-1) the servo can be toggled into continuous rotation mode. In this mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.
Specs
No-Load Speed (4.8V) 0.25sec/60° (40RPM)
No-Load Speed (6.0V) 0.20sec/60° (50RPM)
No-Load Speed (7.4V) 0.17sec/60° (60RPM)
No-Load Current (4.8V) 150mA
No-Load Current (6.0V) 160mA
No-Load Current (7.4V) 200mA
Travel per μsec 0.150°/μsec
Max Rotation (Default Mode) 300°
Pulse Amplitude 3-5V
Output Shaft Support Dual Ball Bearing
Wire Gauge 22AWG
Direction with Increasing PWM Signal Clockwise

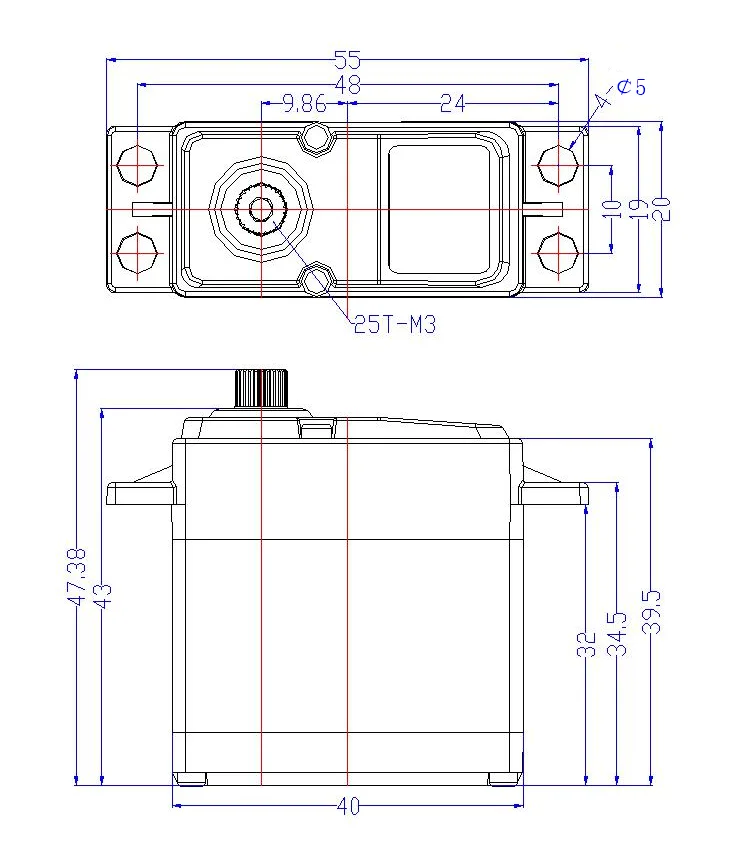

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 4000-0025-0002 |
| Weight | 60g |
| Gear Ratio | 300:1 |
| Output Shaft Style | 25 Tooth Spline |
| Voltage Range | 4.8V - 7.4V |
| Stall Torque | (4.8V) 240 oz-in (17.2 kg.cm ) |
| Stall Current | (4.8V) 2,000mA |
| Max PWM Range | 500-2500μsec |
| Deadband Width | 4μsec |
| Motor Type | Brushed DC |
| Feedback Style | 5KΩ Potentiometer |
| Gear Material | Steel |
| Wire Length | 11.81" (300mm) |
| Connector Type | 3-Pos TJC8 Servo Connector [MH-FC] |
| Servo Size | Standard |
