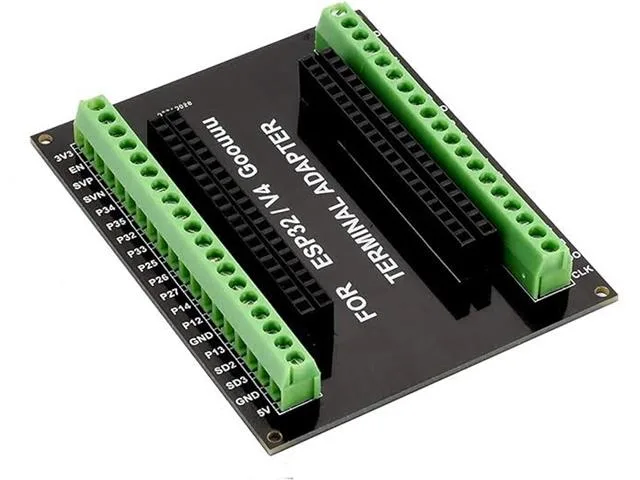

38-Pin ESP32 Screw Terminal Breakout Board for Goouuu V4

This breakout base simplifies wiring by breaking out the pins of your ESP32 module into secure screw terminals and duplicate header pins. It is designed to expand one GPIO pin into two, making circuit connections neat and stable for makers, students, and hobbyists. Please note that this board is the breakout base only and requires a compatible development board.

Hardware compatibility

This expansion board is only suitable for the 38-pin version ESP32 V4 Goouuu development board. It is not compatible with other versions or pin layouts.

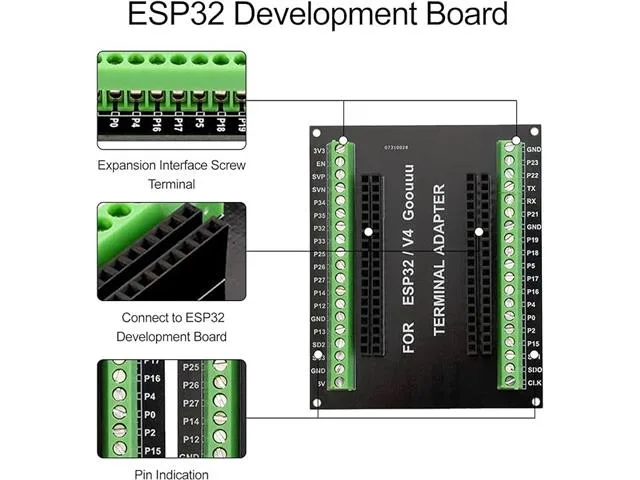

GPIO expansion and dual connections

The board expands each single GPIO pin on the development board into two connection points. You can easily connect your wiring using either the screw terminals or the pin headers depending on your project needs.

Double-layer PCB design

Built as a double-layer PCB with pins wired on both sides, this breakout board ensures stable circuits, reliable contact, and dependable signal transmission.

Package contents

This product includes the breakout board base only. The ESP32 development board is not included and must be supplied separately.
