Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

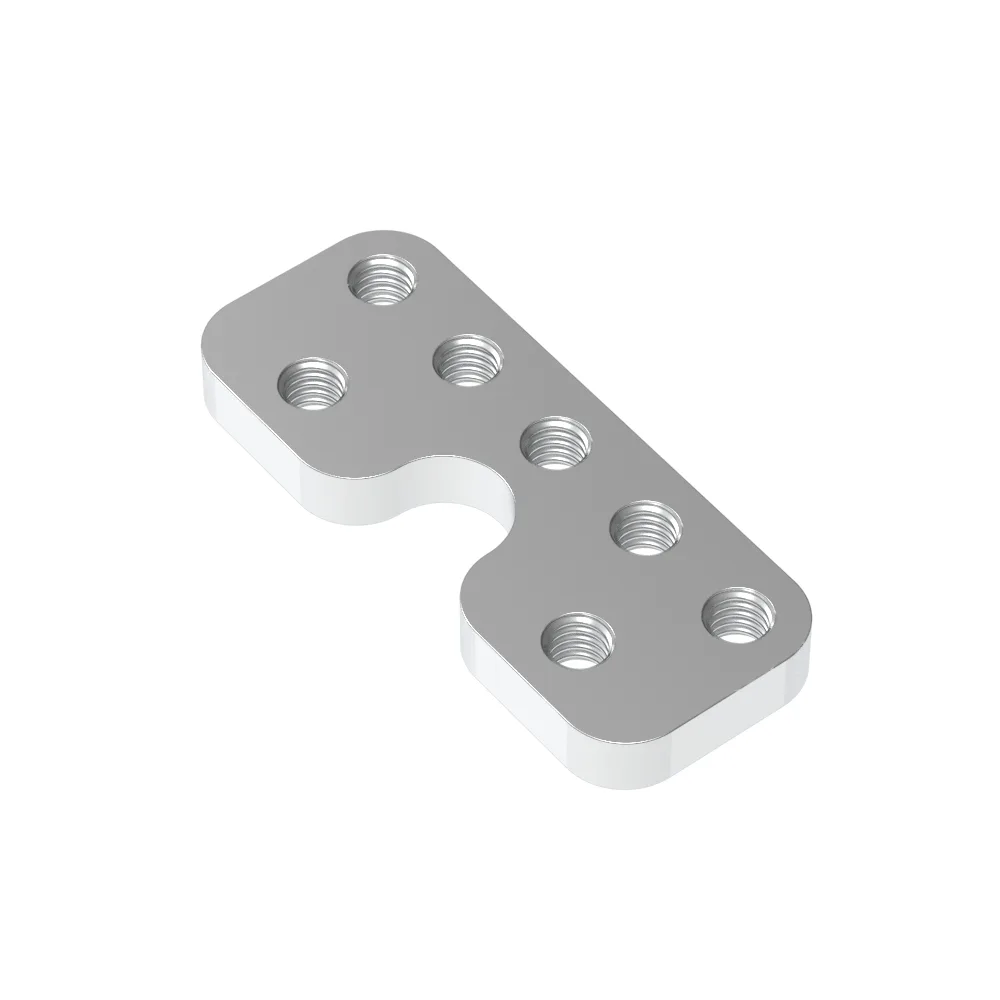

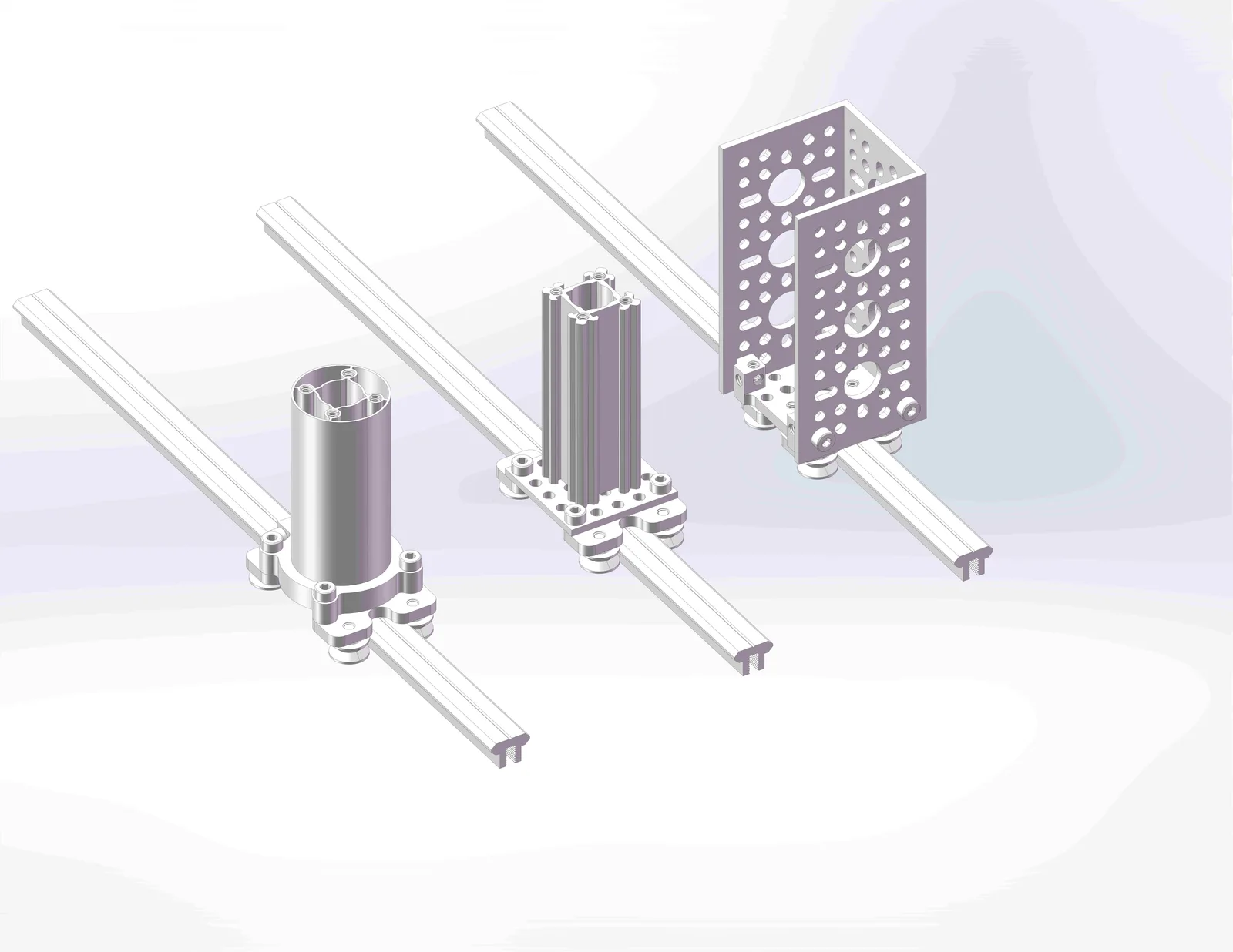

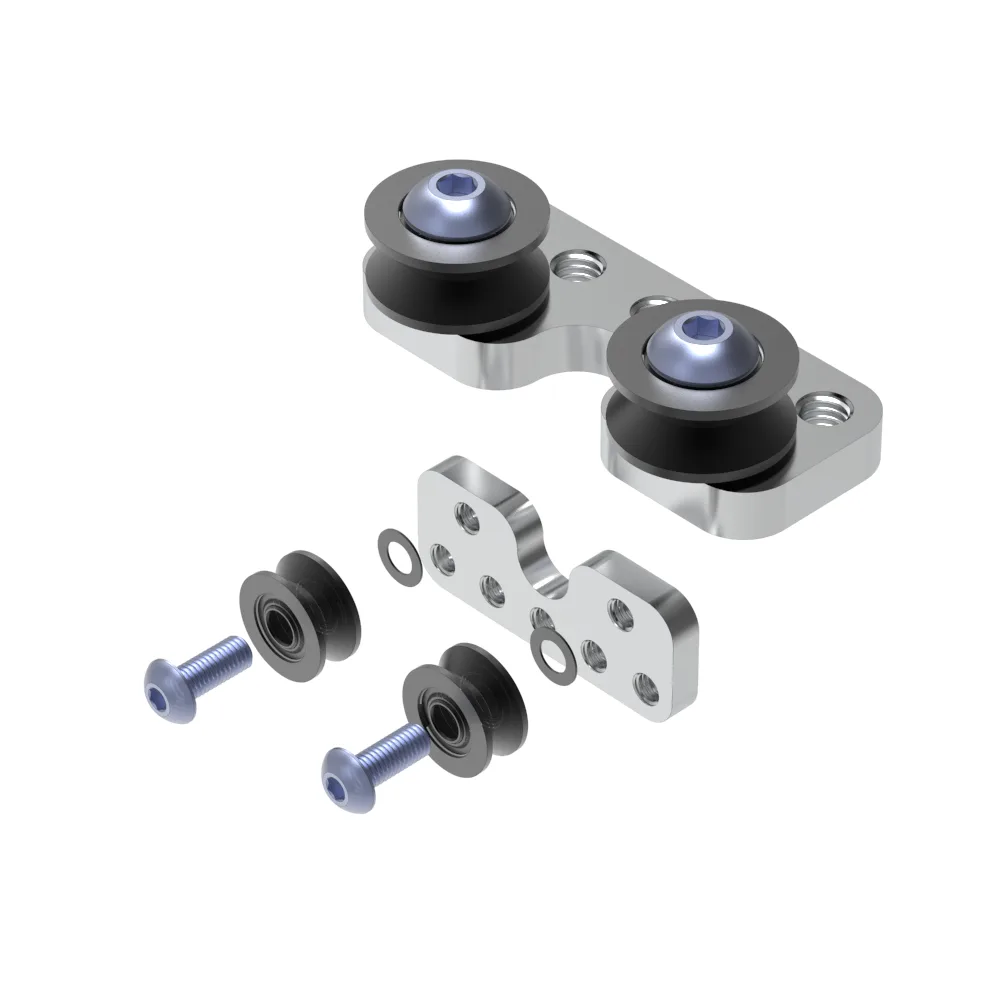

This Flat Mount provides threaded holes spaced 24mm apart so that V-Groove Bearings can be mounted the proper distance from one another to run on V-Guide. The additional row of threaded holes are to give you numerous mounting options. Having two independent mounts gives you the freedom to pick the distance between the pairs of V-Groove Bearings. Put them close together for maximum travel or spread them apart to counteract the forces that a long moment arm may be applying to your assembly.
size:40mm*16mm*4mm
Supplied as a pack of 2.

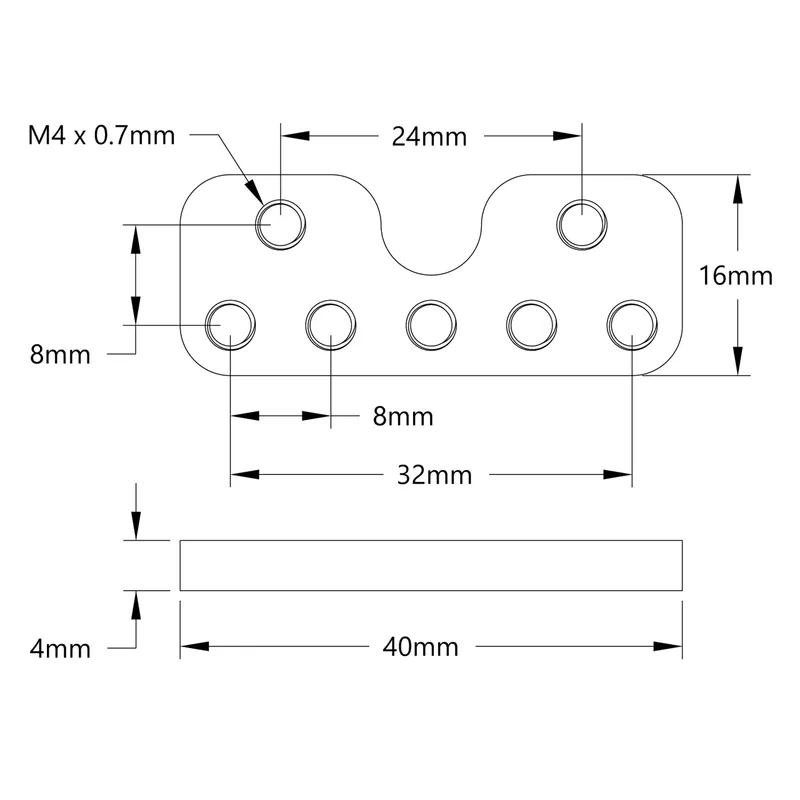

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3225-0001-0001 |
| Units per pack | 2 |
| Weight | 5.3g Each |
| Material | Aluminum |
| Finish | Clear Anodized |
