3221 Series 2-Side, 2-Post Pattern Mount (32-2)

Competition eligibility

Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

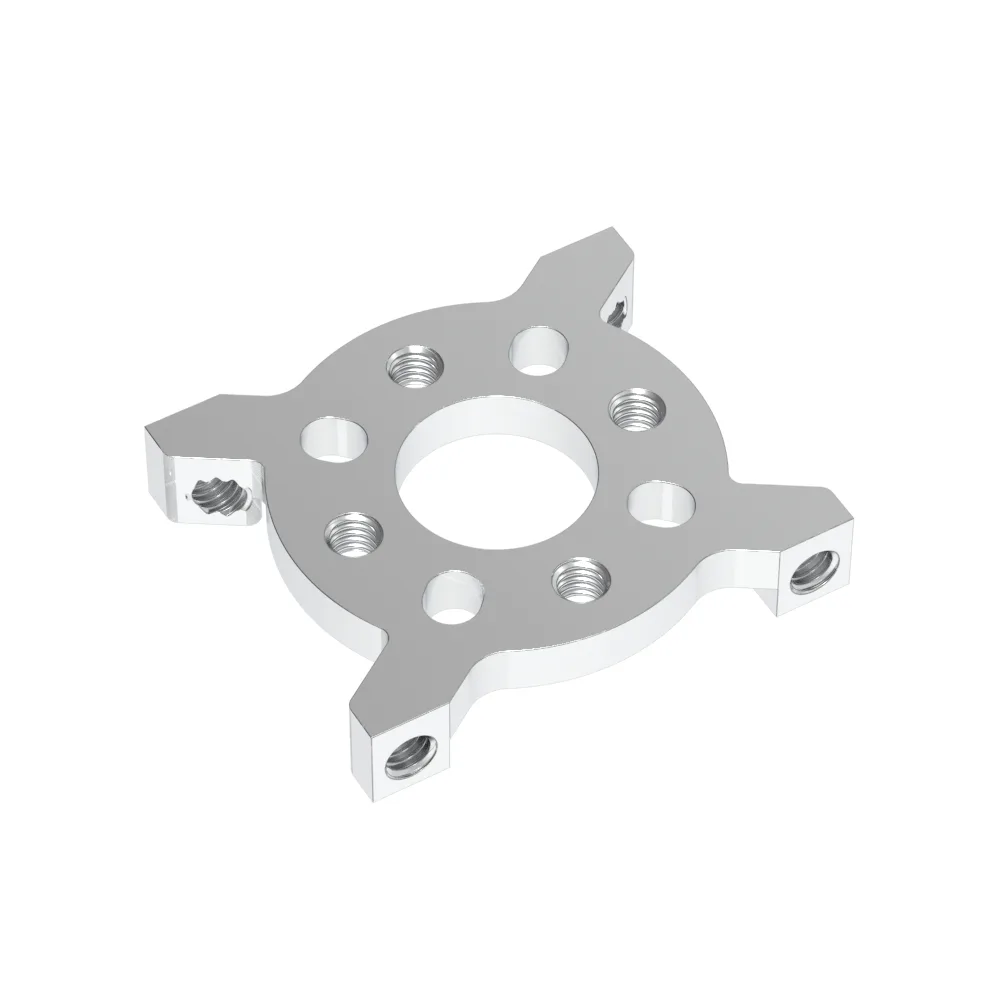

These mounts have tapped holes on each side of the part in order to hold two parallel surfaces apart from one-another. The flat faces contain the 16mm pattern with both thru-holes and threaded holes. These pattern mounts allow you to space parallel components 32mm apart while providing a mounting surface perpendicular to those components. The 4mm offset from the center of the threaded holes to the face ensures that your project remains on pattern.

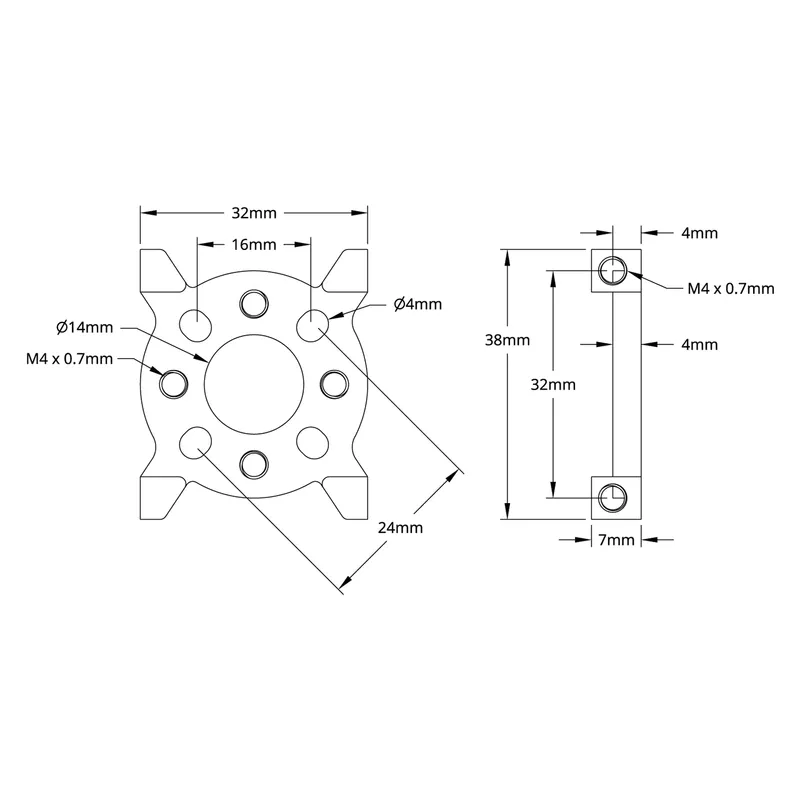

Technical drawing
