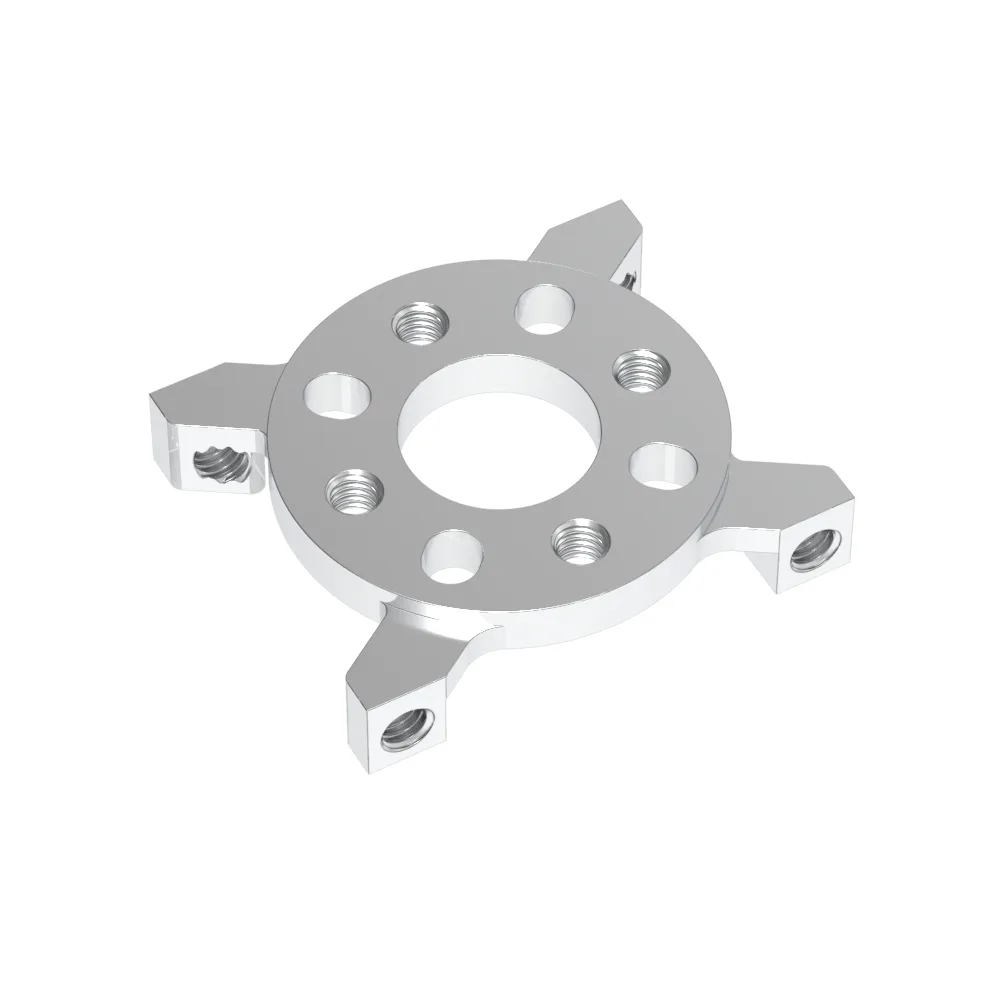

3221 Series 2-Side, 2-Post Pattern Mount (32-1)
SKU: ZY-3221-0032-0001
R 109,73Ex Tax: R 95,42
Ships in 7–10 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

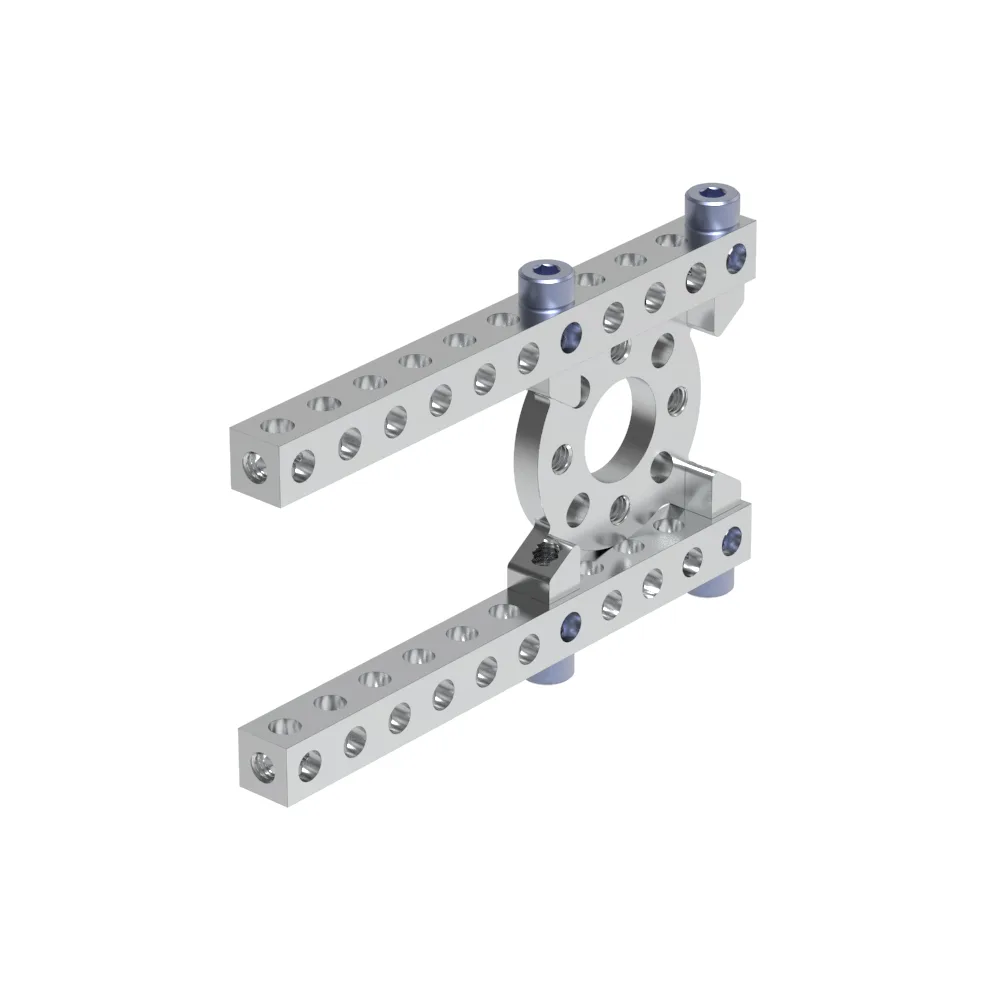

These mounts have tapped holes on each side of the part in order to hold two parallel surfaces apart from one-another. The flat faces contain the 16mm pattern with both thru-holes and threaded holes.Space two of these pattern mounts 32mm apart to achieve a 43mm overall width. This width is useful when mounting items in 1120 Series U-Channel.

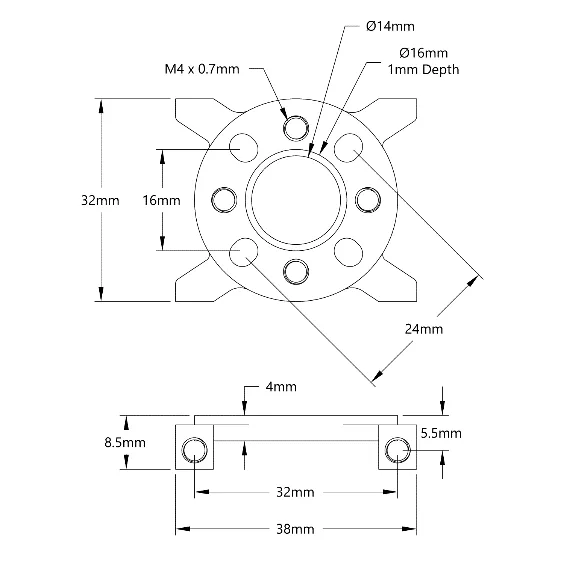

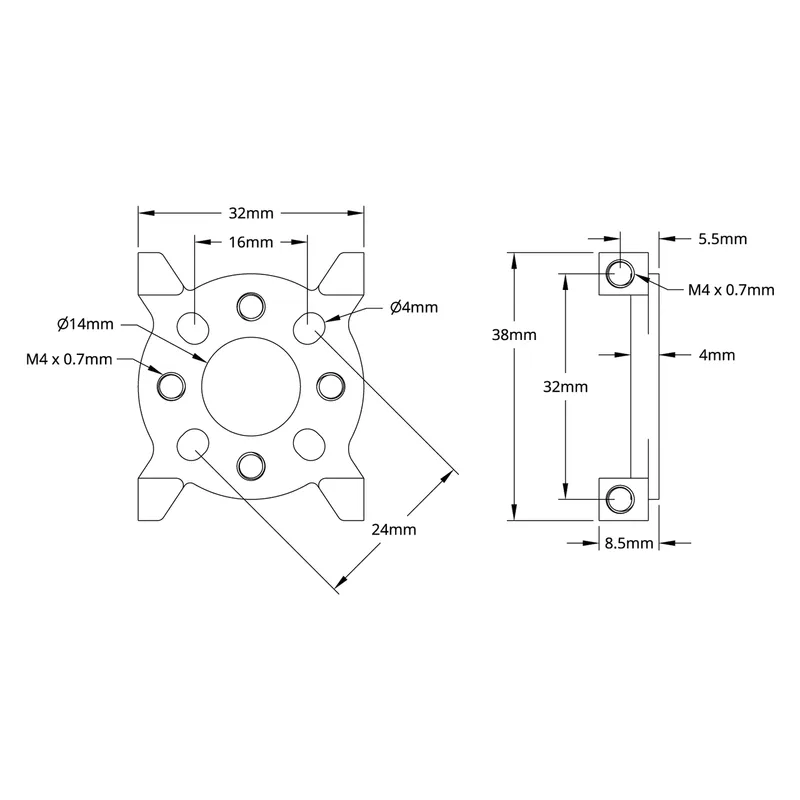

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3221-0032-0001 |
| Weight | 8.0g Each |
| Material | Aluminum |
| Finish | Clear Anodized |
